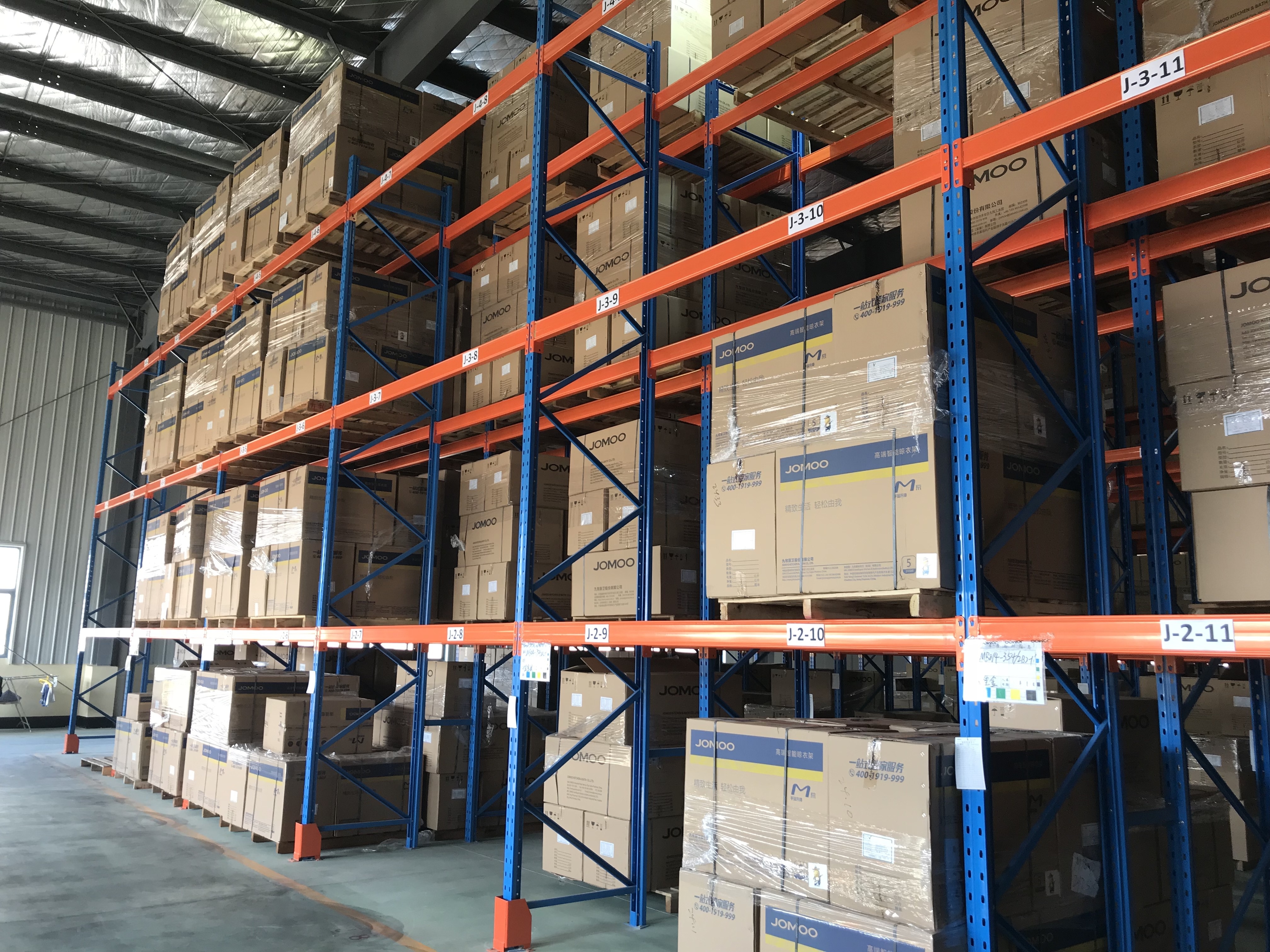

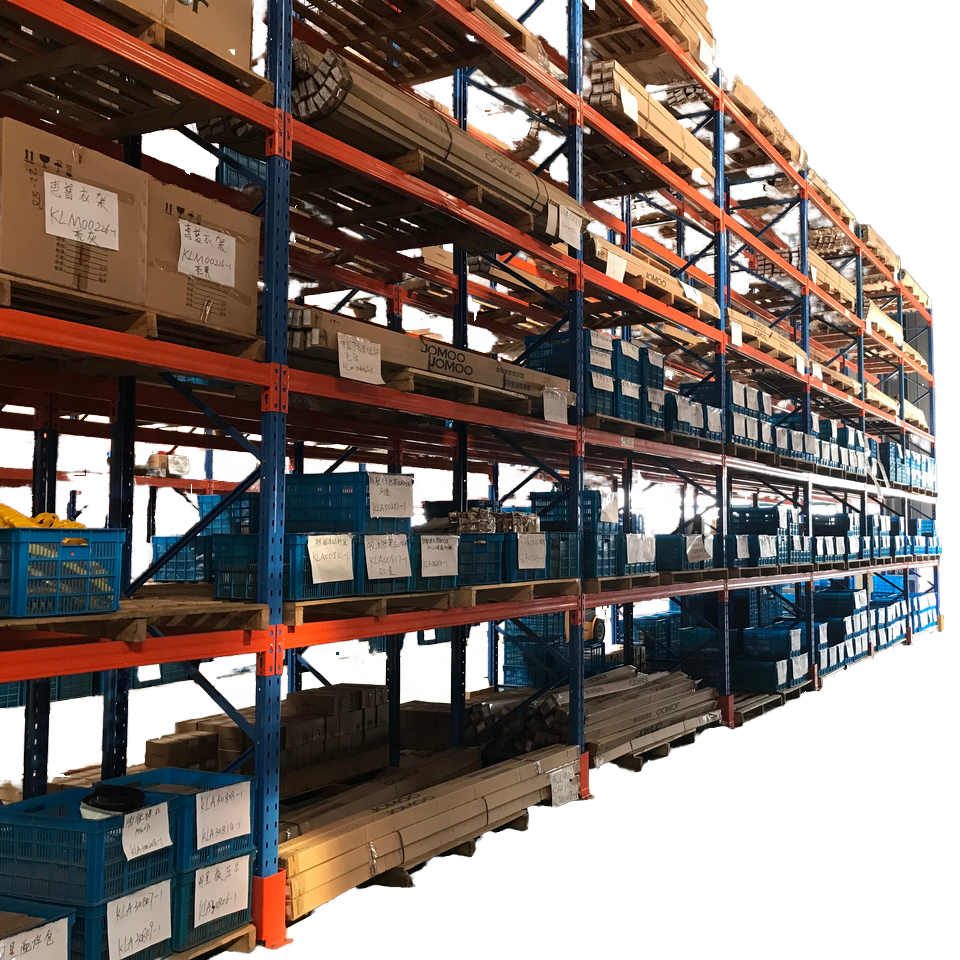

Industrial Steel Selective Pallet Rack Galvanized Powder Coated Corrosion Protection Screw Assembly Warehouse Garage Storage
Product Description
Product Description
URGO Heavy Duty Pallet Rack is highly cost-effective, providing high-capacity storage alongside immediate, direct access to every pallet. Engineered with versatile loading adaptability, it installs quickly and adjusts smoothly to match precise industrial operational requirements.
All premium raw materials are procured directly from tier-one domestic steel corporations, ensuring stable physical properties and superior load-bearing capacity. Combined with precision manufacturing advantages, URGO delivers complete, dependable logistics storage systems worldwide.
Warehouse & Logistics
Food & Pharmaceutical Distribution
Petroleum & Chemical Plants
Automotive Distributors
Big-Box Hardware Stores
Home Improvement Centers
Column Section Classification
Configured according to varying bearing demands and section dimensions:
- Type 80
- Type 85
- Type 90
- Type 100
- Type 120
- Type 140
Beam Profiles & Heights
Divided by structural design and profile dimensions:
- Rectangular Tube Beam: 60 / 80 / 100 / 120 mm
- C-Shape Tube Beam: 80 / 100 / 120 / 140 mm
- Box Beam: 80 / 90 / 100 / 110 / 120 / 140 / 160 / 180 mm
- Corbel Box Beam: 80 / 90 / 100 / 110 / 120 / 140 / 160 mm
- P-Type Box Beam: 76.2 / 80 / 101.6 / 110 / 114.3 mm
Product Structure
The structural assembly of the URGO heavy-duty pallet rack system primarily consists of upright frames and load-supporting beams. Column and beam cross-sections are custom-selected according to specific pallet load capacities, facility height, and warehouse layouts, complemented by purpose-built accessories.

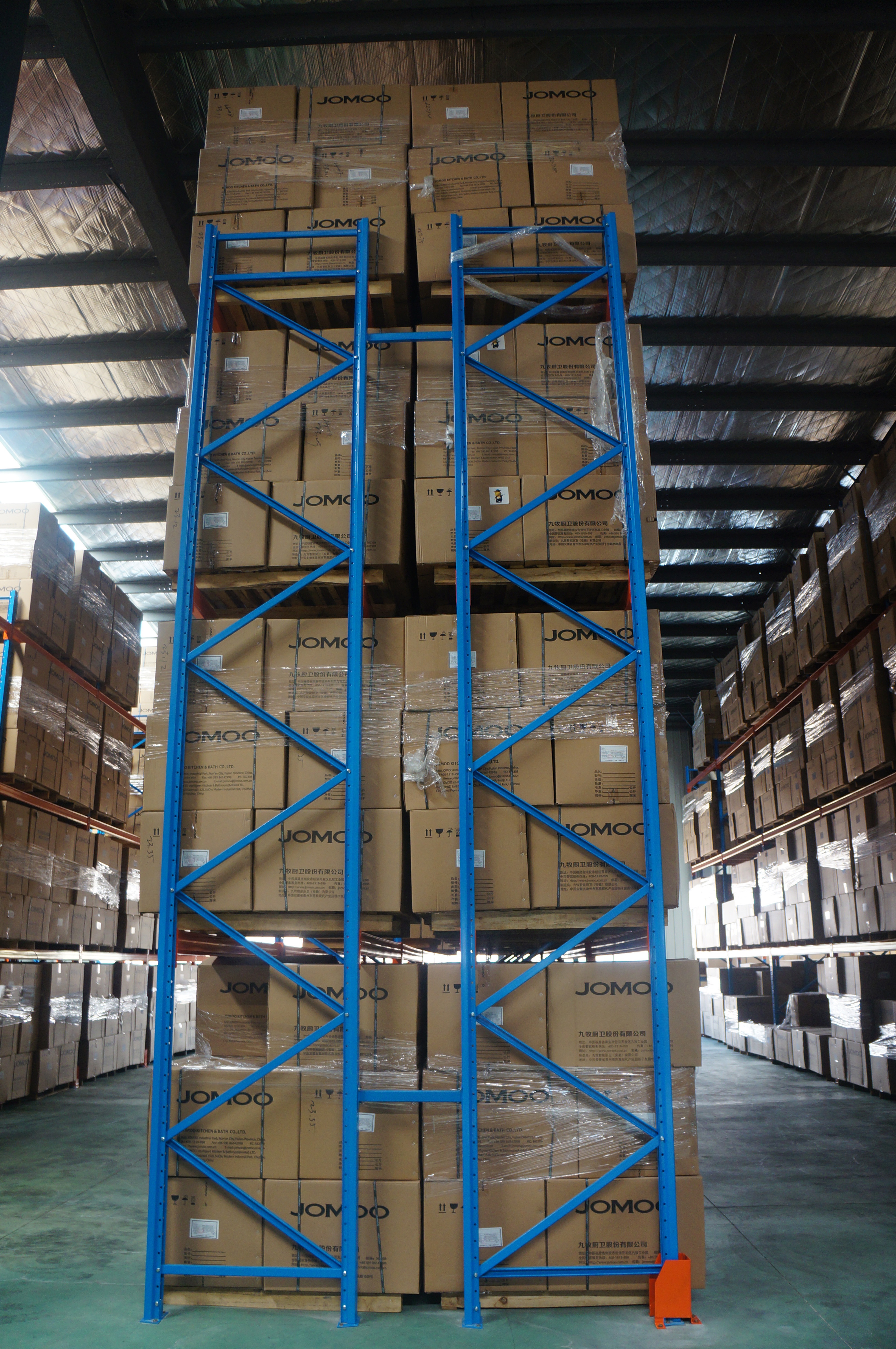

Upright Technical Characteristics
- High Load Capacity: Up to 21,000 kg per bay frame.
- Complete Modular Assembly: Upright frames include horizontal and diagonal bracings, base plates, leveling shims, and high-tensile hardware.
- Protective Finish: Electrostatic blue epoxy powder coating (RAL 5012 / RAL 5015 / RAL 5017).
- Standard Heights: Ranging flexibly from 2 meters to 11.5 meters.
- Pitch Adjustability: Vertical beam adjustments at 50 mm or 75 mm intervals.
Column Profile Specifications
| Column Specification (mm) | Thickness Range (mm) | Upright Loading Capacity (kg) |
|---|---|---|
| W80 x D60 | 1.8 - 2.0 | 4,000 - 6,000 KG |
| W85 x D67 | 1.8 - 2.3 | 7,500 - 12,500 KG |
| W90 x D60 | 1.8 - 2.5 | 8,000 - 10,000 KG |
| W90 x D70 | 1.8 - 2.5 | 10,000 - 12,000 KG |
| W100 x D70 | 2.0 - 2.5 | 11,000 - 14,000 KG |
| W120 x D95 | 2.3 - 3.0 | 17,000 - 21,000 KG |
Standard Box Beam Load Capacities (kg)
| Specification (mm) | Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | - | 4170 | 3320 | 2840 |
P-Type Box Beam Load Capacities (kg)
| Specification (mm) | Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |
Main Spare Parts Profiles
Optional Accessories
Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo’s Safeguard.
Our dedicated professional logistics team executes strict quality assurance at every delivery stage. Precision packaging methods are tailored to individual project specifications. Upright components are wrapped in thick transparent plastic film, and beams feature custom plastic edge protectors to prevent abrasive transport damage. On-time delivery and damage-free arrival remain our utmost commitment.
Company Profile & Enterprise Honors
Storage Plan Design & Installation Support
Custom Engineering & Storage Layout Optimization:
URGO maintains a specialized warehouse storage design team dedicated to evaluating and upgrading warehouse layouts. Partnering with URGO guarantees comprehensive system engineering:
- Experienced engineering personnel provide ongoing technical consultation, precise budgeting, and continuous client support.
- Minimized manufacturing cycles and reduced project risk ensure enhanced capital efficiency.
- Tailored rack schematics achieve optimal volumetric utilization and maximum financial returns.
Professional Installation Teams
URGO deploys skilled installation crews capable of installing, configuring, or relocating industrial racking and affiliated logistics structures safely and swiftly.
Long-Term Warranty Commitment
Backed by over 15 years of industry experience, URGO provides an industry-leading 10-year warranty under standard operating conditions. Dependable engineering guarantees structural integrity and complete operational peace of mind.

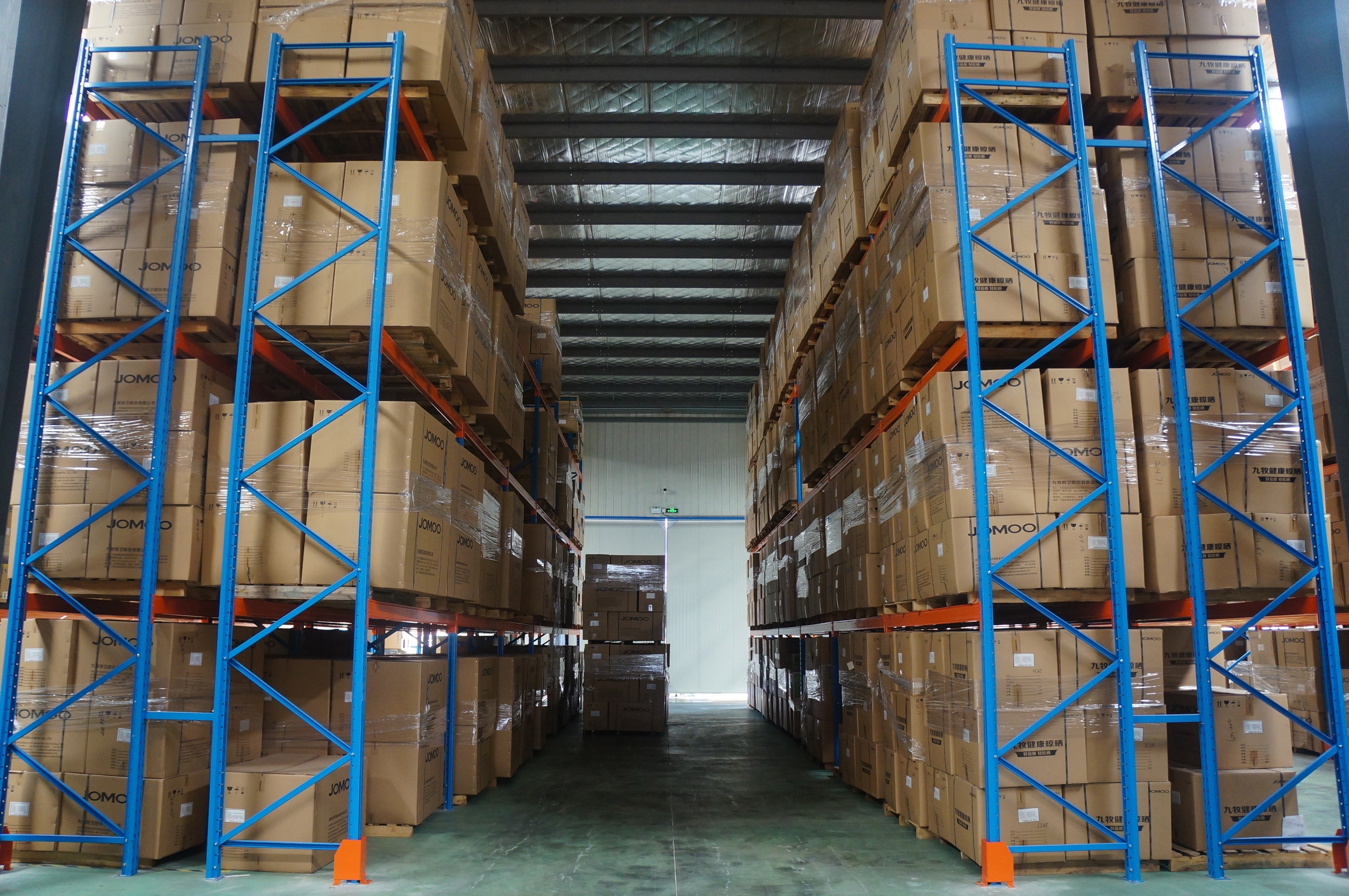

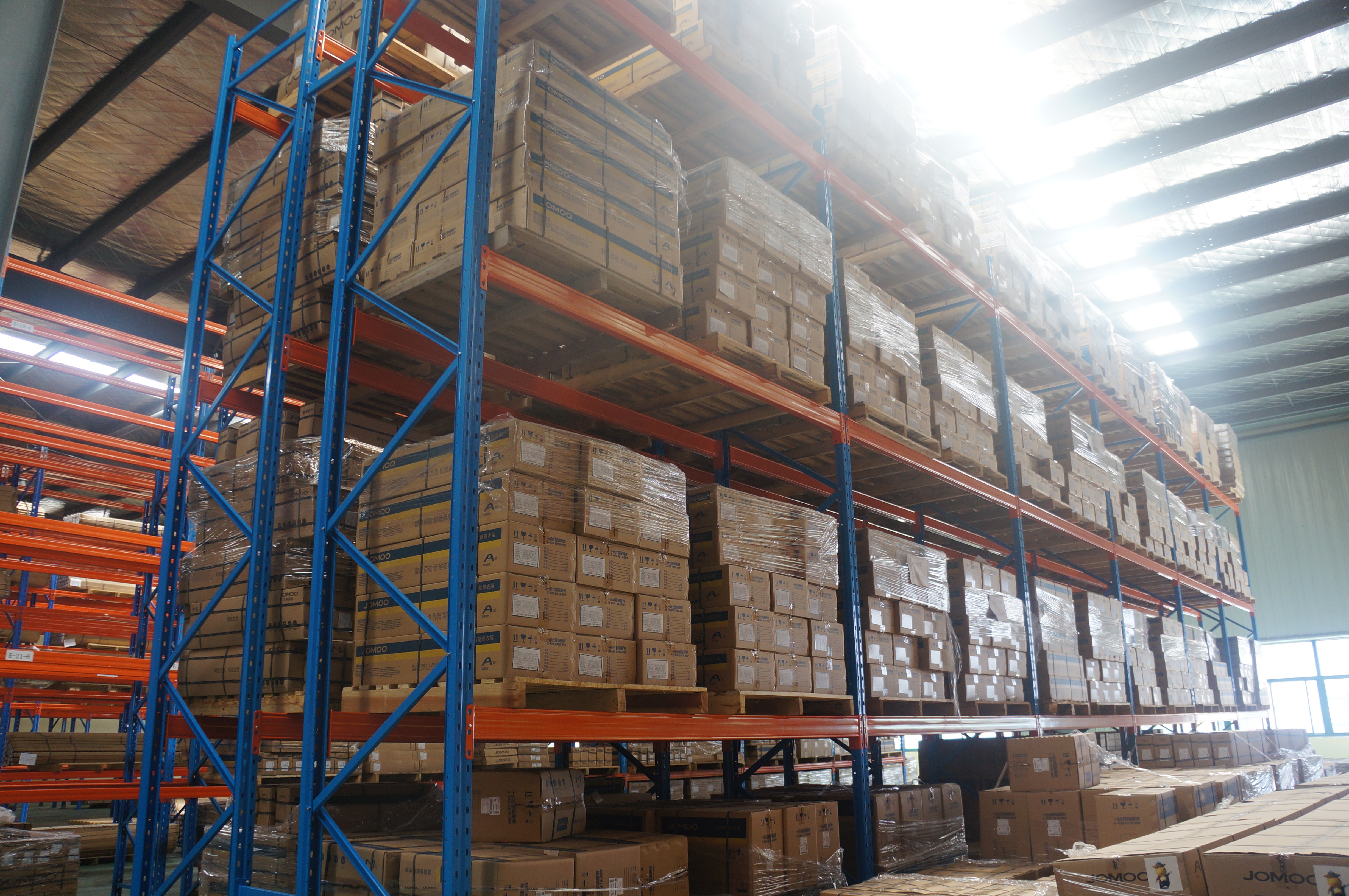

Featured Pallet Racking Installations
Frequently Asked Questions (FAQ)
Q1
What makes URGO different from other racking suppliers?
- Responsive Service: Quotations and technical consultations are delivered within 12 hours.
- Rapid Manufacturing: Selective pallet racking orders are typically produced within 15 days, guaranteed by contract.
- Protective Packaging: Export-grade protection includes beam end caps and complete protective plastic wrapping for uprights.
- Extended Warranty: High design standards enable us to offer an industry-leading 10-year manufacturer warranty.
Q2
What are your accepted terms of payment?
Standard payment terms are:
- 30% T/T advance deposit, with the remaining balance settled prior to container shipment.
- 100% irrevocable Letter of Credit (L/C) at sight.
Q3
Can I receive real-time updates regarding my order manufacturing status?
Yes. Detailed progress reports and photographic records are provided at every distinct manufacturing milestone, ensuring full visibility until dispatch.
Q4
What information is required to receive a fast, accurate quotation?
To receive an immediate proposal, please provide:
- Pallet racking dimensions: Frame Height × Depth × Beam Length.
- Number of storage beam levels per bay.
- Required load capacity per tier (kg).
- Total quantity of bays or overall storage positions.
Q5
What vertical heights and load capacities do URGO upright frames accommodate?
URGO upright frames support standard vertical elevations from 2 meters up to 11.5 meters with bay capacities reaching up to 21,000 kg. Beam elevations are easily customized on 50 mm or 75 mm vertical pitches.
Q6
Does URGO provide on-site assembly guidance and relocation assistance?
Yes. URGO maintains an experienced technical installation team capable of managing on-site assembly, systematic structural reconfiguration, and equipment relocation according to project schedules.
