Warehouse Mezzanine Racking Systems Production
Engineered Warehouse Storage Platforms

Mezzanine Racking Systems

Double or triple your warehouse floor space without relocation. Guangzhou Heda Shelves Co., Ltd. designs and manufactures heavy-duty structural steel platforms, rack-supported floors, and multi-tier picking mezzanines for industrial facilities across Asia and worldwide.

  • Home
  • Products
  • Mezzanine Racking
Product Classification

Custom Engineered Mezzanine Systems for High-Density Operations

Every industrial mezzanine manufactured by Guangzhou Heda Shelves Co., Ltd. is engineered around your warehouse clear height, floor slab load limit, material handling workflows, and seismic safety requirements.

Structural Steel Mezzanine Platform Structural Steel

Structural Steel Mezzanine Platform

Built with robust hot-rolled H-beams and cold-formed structural columns, this free-standing platform delivers wide column grids with minimal floor obstruction. Designed for bulky equipment placement, assembly work, or open storage space.

  • Standard 300–1,000 kg/m² load capacity (custom up to 2,000 kg/m²)
  • Multiple deck choices: Steel checker plate, plywood, or galvanized grating
  • Modular bolt-together design for rapid site assembly and easy expansion
Heavy-Duty Workspace Contact Us
Rack-Supported Mezzanine Floor Pallet Integrated

Rack-Supported Mezzanine Floor

Combines heavy-duty selective pallet racking with an elevated floor platform. Pallet rack uprights serve as the primary structural pillars, offering pallet storage below and open picking, sorting, or packing facilities above.

  • Maximizes building height without redundant structural columns
  • Seamless integration with pallet drop gates, staircases, and safety handrails
  • Ideal for 3PL logistics, automotive components, and retail distribution
Pallet & Picking Combo Contact Us

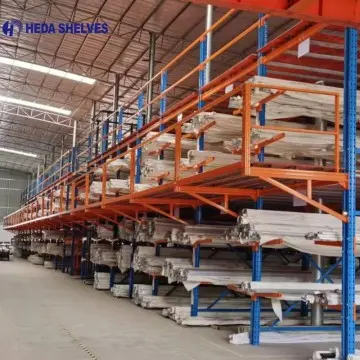

Cantilever Mezzanine System Long Goods Storage

Cantilever Mezzanine System

An innovative dual-function design integrating heavy cantilever racking with an overhead working mezzanine. Perfectly engineered for warehouses holding pipes, timber, steel sections, and extrusions that also require secondary floor space.

  • Unobstructed arm access for long items combined with upper-tier floors
  • High-strength Q235B cold-rolled steel structural uprights
  • Custom arm lengths, heavy load capacities, and anti-tipping base plates
Hardware & Building Supplies Contact Us
Shelving-Supported Mezzanine Floor Multi-Tier Shelving

Shelving-Supported Mezzanine Floor

Designed for fast manual carton picking and SKU-dense stockrooms. Industrial shelving frames form the supporting structure for multi-level walkways, multiplying usable footprint for e-commerce, spare parts, and pharmaceuticals.

  • Configurable multi-tier configurations (2, 3, or 4 levels)
  • Continuous picking aisle flooring with perforated ventilation decking
  • Integrates with cargo lifts, spiral chutes, and carton conveyor feeds
E-Commerce & Spare Parts Contact Us
300–2,000 kg/m² Deck Load Capacity Range
Up to 4 Tiers Multi-Level Floor Configurations
Q235B / Q355B Certified High-Tensile Structural Steel
CE & ISO 9001 Independently Audited Production
Complimentary Engineering

Engineering-First Service from Concept to Commissioning

Guangzhou Heda Shelves Co., Ltd. provides verified structural planning and free technical layouts for logistics hubs, distribution centers, and manufacturing warehouses.

Contact Us

01. Detailed CAD Drawings

Provide your warehouse dimensions, clear height, and load targets. Our structural engineering team delivers comprehensive 2D CAD architectural plans within 3 working days.

02. Realistic 3D Renderings

Visualize clearance heights, walkway layouts, pallet access gates, and staircase orientations prior to production to eliminate costly on-site modification and installation delays.

03. Complete Storage Layout

Receive an integrated logistics plan coordinating ground-floor pallet racks, mezzanine decks, safety barriers, and cargo handling paths into a unified warehouse ecosystem.

Guangzhou HEDA Quality

Why International Warehouse Operators Rely on HEDA Shelves

Over two decades of precision manufacturing, strict compliance, and traceable export logistics across Asia and beyond.

20+ Years Factory Heritage

Guangzhou Heda Shelves Co., Ltd. has specialized in industrial racking and heavy-duty mezzanine platforms since 2001, completing projects in over 120 countries worldwide.

30,000+ Tons Monthly Output

Our 30,000 sq meter manufacturing base is outfitted with automatic roll-forming lines, computerized steel punching, and continuous powder coating plants to guarantee on-time shipping.

Independently Certified

Full CE-CPR and ISO 9001:2015 audited quality systems ensure structural stability, strict deflection tolerances, and reliable powder-coat adhesion in humid tropical climates.

Turnkey Project Support

From custom beam profiles and load signage to component-coded export packing and remote installation supervision, we protect your project investment from start to finish.

Proven Track Record

Global Mezzanine & Heavy Storage Case Studies

Demonstrated performance in diverse industrial settings across Southeast Asia, the Americas, and Africa.

Contact Us
I-Beam Mezzanine Floor & Cantilever Racking Project
Structural Platform

I-Beam Mezzanine & Cantilever System

Custom structural I-beam mezzanine integrated with long-span cantilever arms for a large construction supply warehouse, effectively doubling storage capacity.

Rack-Supported Mezzanine Floor for Picking Warehouse
Rack-Supported

Multi-Level Manual Picking Mezzanine

Integrated selective racking foundation with steel checker plate flooring, custom safety staircases, and handrails to streamline fast order fulfillment.

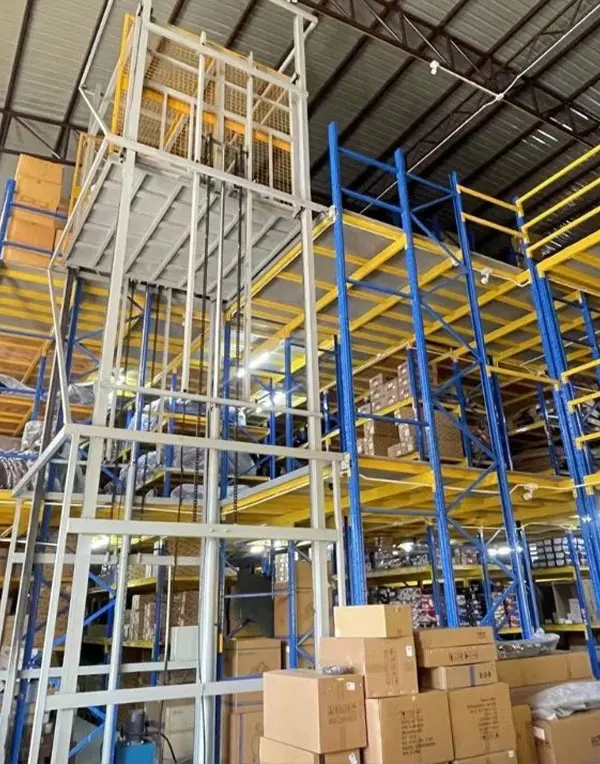

Multi-Level Mezzanine Racking System
Multi-Tier System

Auto Parts Multi-Level Storage Platform

Reinforced racking columns carrying a three-level walkway mezzanine designed for high-density automotive spare parts picking in Thailand.

Procurement FAQ

Frequently Asked Questions on Mezzanine Racking Systems

Engineering facts, structural capacities, and logistics considerations for overseas procurement directors.

Are you a direct manufacturer of industrial mezzanine racking systems?
Yes. Guangzhou Heda Shelves Co., Ltd. is an established manufacturer with over 20 years of experience. We operate a modern 30,000 sq meter production facility in Guangzhou equipped with automated roll-forming machines, robotic welding cells, and an eco-friendly electrostatic powder coating line. All mezzanines are engineered and fabricated directly in our factory.
Do you provide free mezzanine project design and CAD layouts?
Yes. We provide complete complimentary engineering support. Once you share your warehouse floor dimensions, clear internal height, required deck load capacity, and operational access points, our technical team prepares full 2D CAD layouts and 3D architectural renderings within 3 days for project review.
What load capacity can your warehouse mezzanine platforms support?
Standard uniformly distributed loads (UDL) typically range from 300 to 1,000 kg per square meter. For heavy machinery placement, pallet staging buffers, or dynamic handling equipment, our structural engineers can custom design heavy structural I-beam systems supporting loads up to 2,000 kg per square meter.
What flooring and decking options are available for mezzanine systems?
We offer solid steel checker plate decking for maximum durability, galvanized open steel plank grating for fire sprinkler water penetration and ambient lighting transmission, and heavy-duty structural plywood or MDF decking for cost-effective manual picking pathways.
Can mezzanine systems be designed for seismic regions across Asia?
Yes. When planning installations for seismic-prone zones such as the Philippines, Indonesia, or Japan, our structural team incorporates regional seismic accelerations into the calculation models, reinforcing upright cross-bracing, base plates, and structural chemical floor anchors accordingly.
How does Guangzhou Heda Shelves Co., Ltd. manage international shipping and installation?
All structural components are carefully bundled, bubble-wrapped, and container-loaded directly at our Guangzhou factory. Every delivery is accompanied by piece-marked component schedules, step-by-step CAD assembly drawings, and remote video guidance. On-site installation engineers can also be dispatched on request.

Ready to Optimize Your Warehouse Capacity?

Contact our structural engineering team today with your building layout. We will provide a free 3D design concept, capacity breakdown, and direct quotation within 24 hours.
