Manufactured using Q235B high-tensile steel, every pallet racking system is custom-configured to accommodate specific bay clear heights, forklift reach parameters, seismic conditions, and pallet dimensions ranging from Euro (1200x800mm) to ISO standard (1200x1000mm).

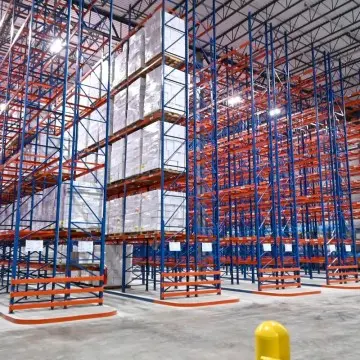

01 / VNA Engineered for high-density warehouse operations with floor guide rails or wire-guidance paths. Narrow aisle dimensions (1.5m to 1.8m) preserve 100% selective accessibility to every pallet while expanding vertical capacity up to 18 meters.

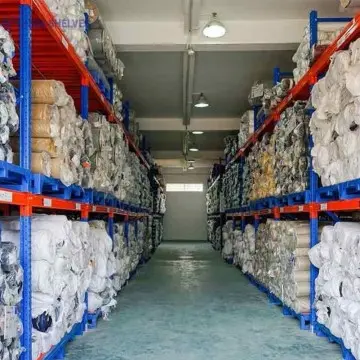

02 / Roll Material Dedicated cradle-beam storage systems purpose-built for cylindrical loads such as paper rolls, textile bolts, carpets, and industrial coil reels. Configured with heavy-duty structural steel saddles to eliminate surface roll damage and displacement.
03 / Selective The global benchmark for multi-SKU warehousing and 3PL fulfillment. Offers uninterrupted, 100% direct access to each pallet position with completely adjustable box beam levels, customizable beam drop safety pins, and integrated wire mesh decking options.
04 / Drive-In Designed for large-volume batch storage of identical SKUs. Lift trucks drive directly into structural storage lanes, minimizing aisles and dramatically cutting cooling power requirements in refrigerated cold-chain facilities operating on a LIFO inventory model.
05 / Flow Rack High-throughput dynamic racking utilizing inclined roller tracks and centrifugal speed controller brakes. Delivers automatic first-in, first-out (FIFO) stock turnover with separate loading and retrieval aisles, shielding picking personnel from stocking traffic.
06 / Shuttle A self-powered radio shuttle transports pallets within deep-lane storage tracks. Eliminates the necessity for forklifts to enter storage lanes, speeding up cycle times, preventing structural collision damage, and flexibly supporting both FIFO and LIFO modes.
07 / Push Back Utilizes nested telescoping carts moving on inclined structural steel rails. Storing 2 to 6 pallets deep per lane, each lane operates independently for dense LIFO storage without requiring specialized reach equipment or deep-lane forklift travel.
08 / Double Deep Pairs two rows of selective racking together, serviced by pantograph reach trucks. Reduces total operational aisles by 50% across the storage footprint, improving storage volume by 30% to 40% with balanced accessibility.
Every industrial racking system delivered by Guangzhou Heda Shelves Co., Ltd. begins with rigorous engineering validation. We provide comprehensive layout planning before production begins.
Provide your warehouse dimensions, column grid spacing, door clearances, and lift truck specifications. Our engineers generate comprehensive CAD layouts within 24 to 72 hours.
Gain absolute clarity on lane spacing, vertical pallet clearance, picking aisles, and egress routes with high-definition 3D rendering and walkthrough simulations.
From floor-level pallet flow and multi-tier mezzanines to automated shuttle lanes, we deliver a unified material handling ecosystem built for ongoing operational safety.
Combining 25 years of specialized racking manufacturing with strict compliance to international quality and safety benchmarks.
Manufacturing warehouse racking and structural mezzanine platforms since 2001, serving industrial facilities across 120+ countries worldwide.
Equipped with automated continuous roll-forming lines, robotic welding arms, and proprietary continuous electrostatic powder coating processes in Guangzhou.
Comprehensive technical support encompassing static structural calculations, seismic certification, packaging for sea freight, and turnkey installation support.
Proven installations across cold-chain logistics, hazardous chemical storage, heavy equipment staging, automotive sub-assembly, and FMCG warehouses.
Explore heavy-duty storage configurations manufactured and delivered to warehouse facilities worldwide.
Combined high-load structural mezzanine platform with heavy cantilever arms for timber, piping, and packaged building supplies.
Reinforced beam levels fitted with custom steel containment decking, column crash guards, and anti-corrosive powder finish.
Deep-lane semi-automated shuttle installation operating at -25°C, multiplying storage density while eliminating forklift transit in freezer zones.
Essential guidance for procurement officers, logistics consultants, and warehouse operations managers.
Connect with our engineering specialists today for complimentary CAD design, comprehensive structural calculations, and a direct factory quotation within 24 hours.
