Do you supply pallet racking to Southeast Asia and the Middle East?

Yes. We regularly ship racking, shelving and mezzanine systems to Malaysia, Singapore, Thailand, Vietnam, Indonesia, the Philippines, South Asia and the Gulf region. Goods are loaded FCL or LCL from Guangzhou-area ports, and sea transit to major Southeast Asian ports is typically around one to two weeks depending on the route.

How is racking protected against heat and humidity in tropical warehouses?

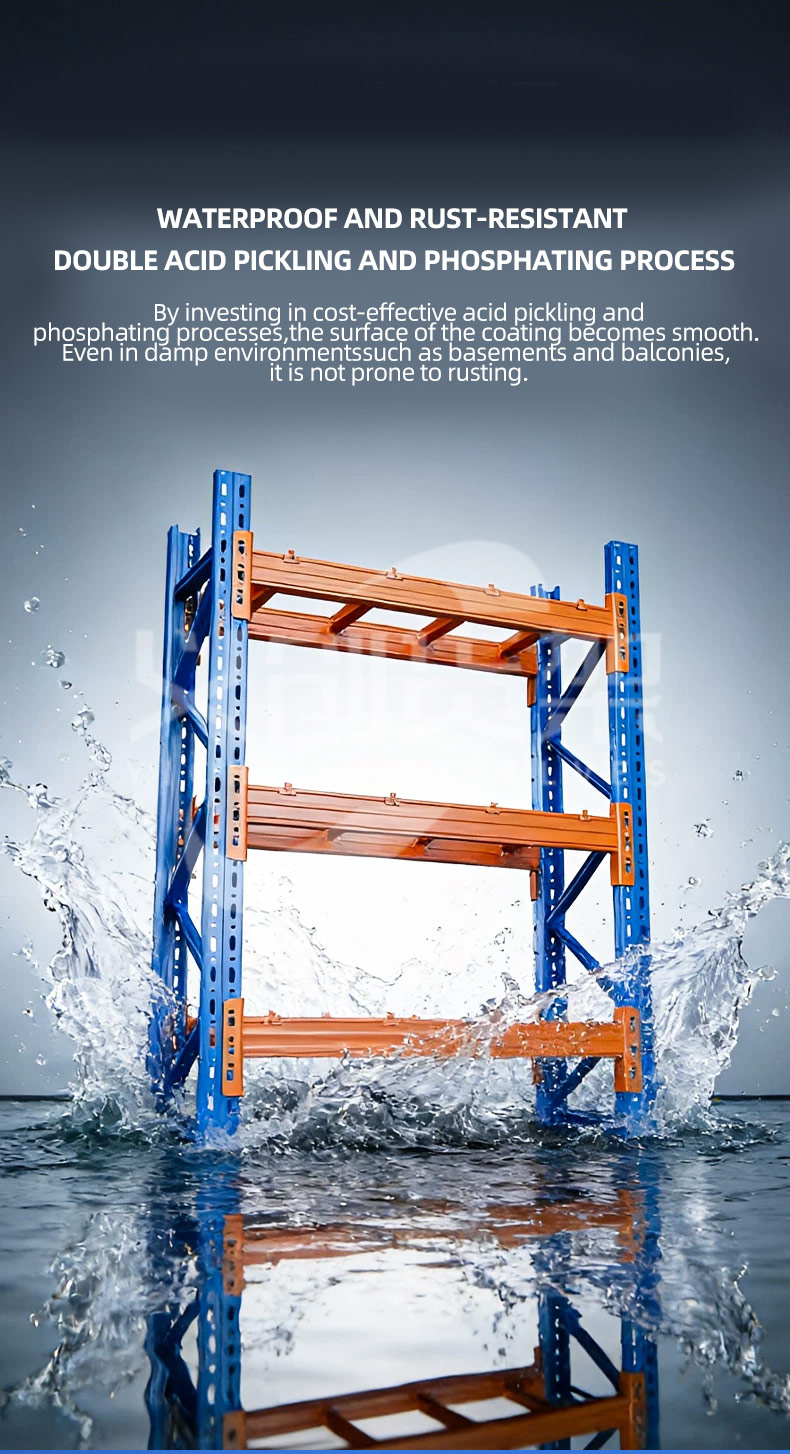

All steel components go through pickling and phosphating pre-treatment followed by electrostatic powder coating. For cold rooms, coastal sites or very humid facilities, pre-galvanized or hot-dip galvanized options can be specified.

Can your racking be designed for earthquake-prone regions?

Yes. When you share the project location and the local design code, our engineers can include seismic load cases in the structural calculation and adjust upright profiles, bracing, base plates and anchor specifications accordingly.

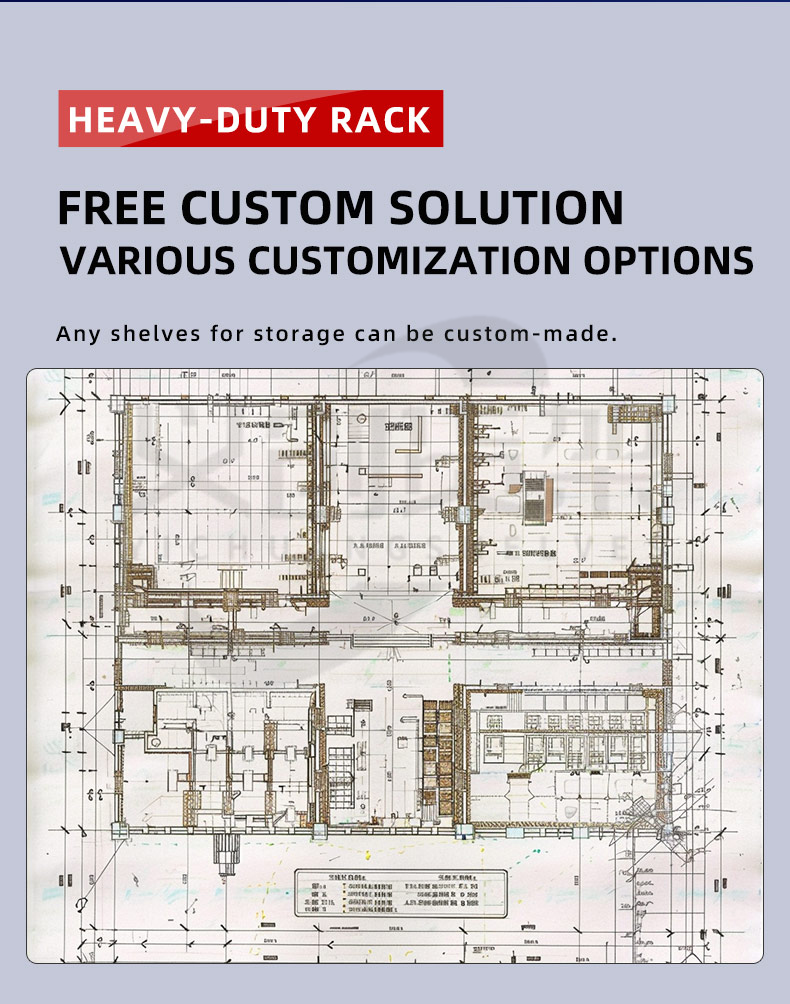

What information do you need for a free warehouse layout design?

Please provide the floor plan (CAD or PDF), clear building height, pallet or carton dimensions and weight, forklift type and maximum lift height, number of SKUs, daily throughput and whether you need FIFO or LIFO rotation.

What is the typical production lead time?

Lead time depends on tonnage, finish and system type. Standard selective racking orders usually ship within about 15 to 25 working days after drawing confirmation; the exact date is confirmed in the contract.

Do you provide installation support in Asia?

Every project ships with installation drawings, a component list and assembly guidance. Remote video support is available, and on-site installation supervision can be arranged on request.

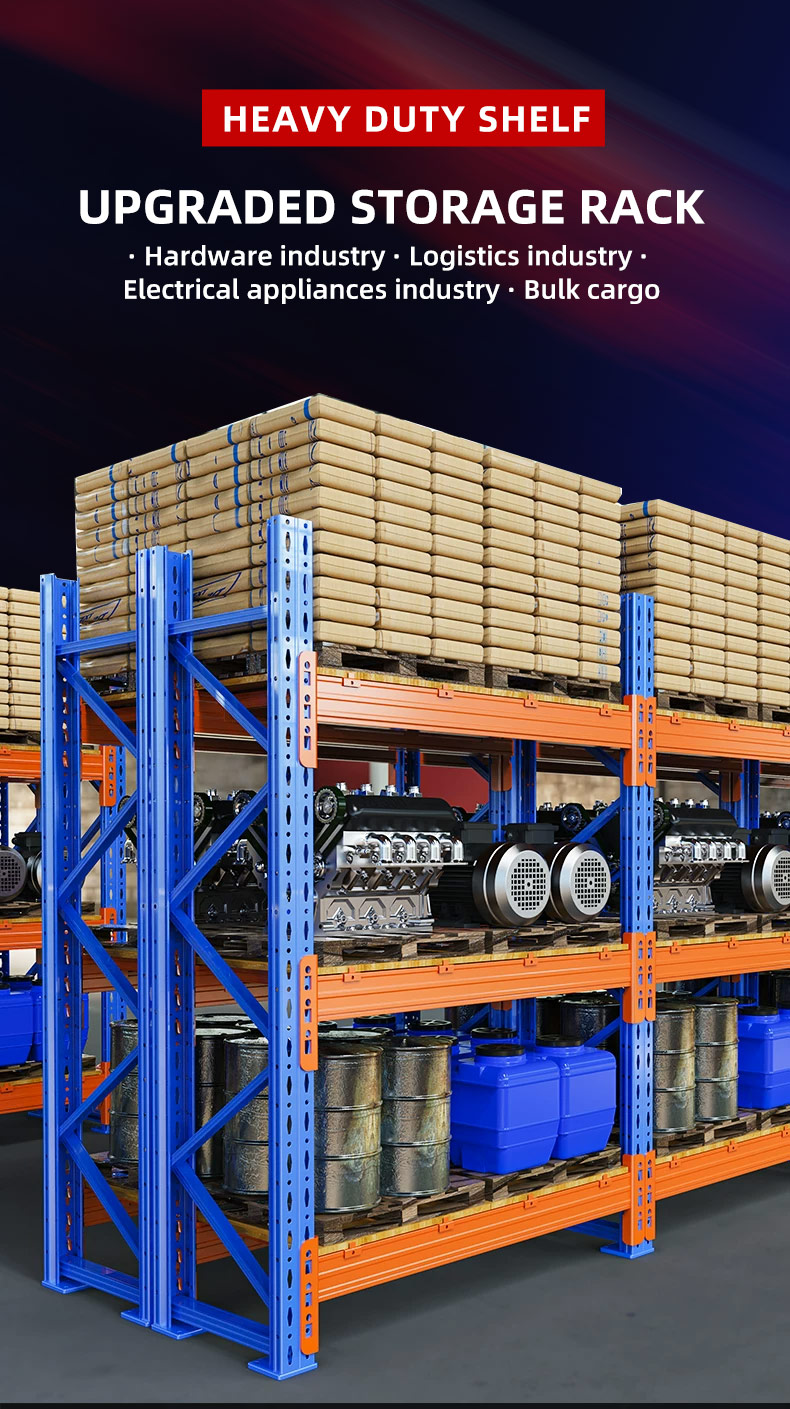

Warehouse racking heavy duty steel pallet storage selective racking

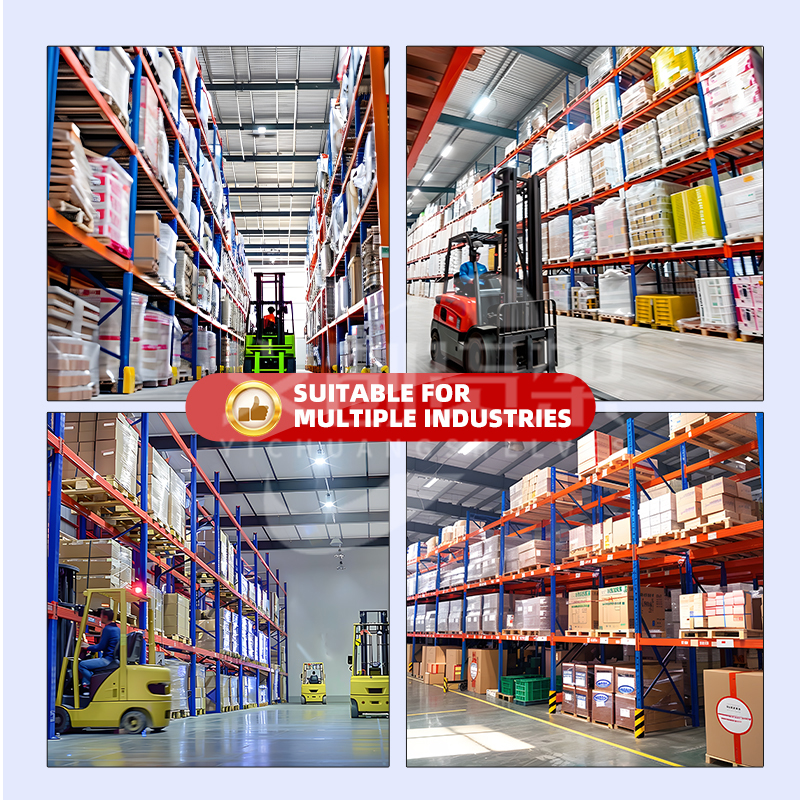

Industrial pallet racks can easily store large individual items and palletized goods, providing a effective storage system that can be widely used in warehouses and factory environments. The key to a successful storage operation is an effective storage layout, which contains enough storage capacity to meet the demand during busy periods, then enhance the company profits. Our standard pallet racking system provides a cost effective way to store large amounts of inventory in a warehouse. Selective pallet racking is the most commonly and popular heavy duty warehouse storage racking system. Heavy duty pallet racking system can store goods of various specifications and sizes. Its size is flexible and can be changed according to the pallet and product, thus greatly increasing the storage capacity of the warehouse. The forklift can directly access the individual pallets you need to load or unload. This makes the transportation process fast and convenient. Inventory management is also very simple

Specification	Standard Data	Buyer Note
Product Type	Heavy Duty Selective Pallet Rack	100% selective, direct access to every pallet
Load Capacity	1,000 – 4,500 kg per beam level	Matches standard pallet weights from 1T to 4T
Steel Material	Q235B / Q345B (High Yield Strength)	Equivalent to SS400 / A36 / S355JR
Upright Height	2,000 – 12,000 mm	Optimize vertical space up to 12m for high-bay warehouses
Beam Length	1,500 – 3,900 mm	Fits Euro (1200mm), Asian (1100mm), & US (48") pallets
Surface Finish	Epoxy Powder Coating (60–80 μm)	Corrosion resistance for humid/cold storage

Item	Detail
Packaging	Knockdown packing: Steel Belt + Plastic Film + Carton Board
Container Load	20–25 tons per 40HQ (depends on spec)

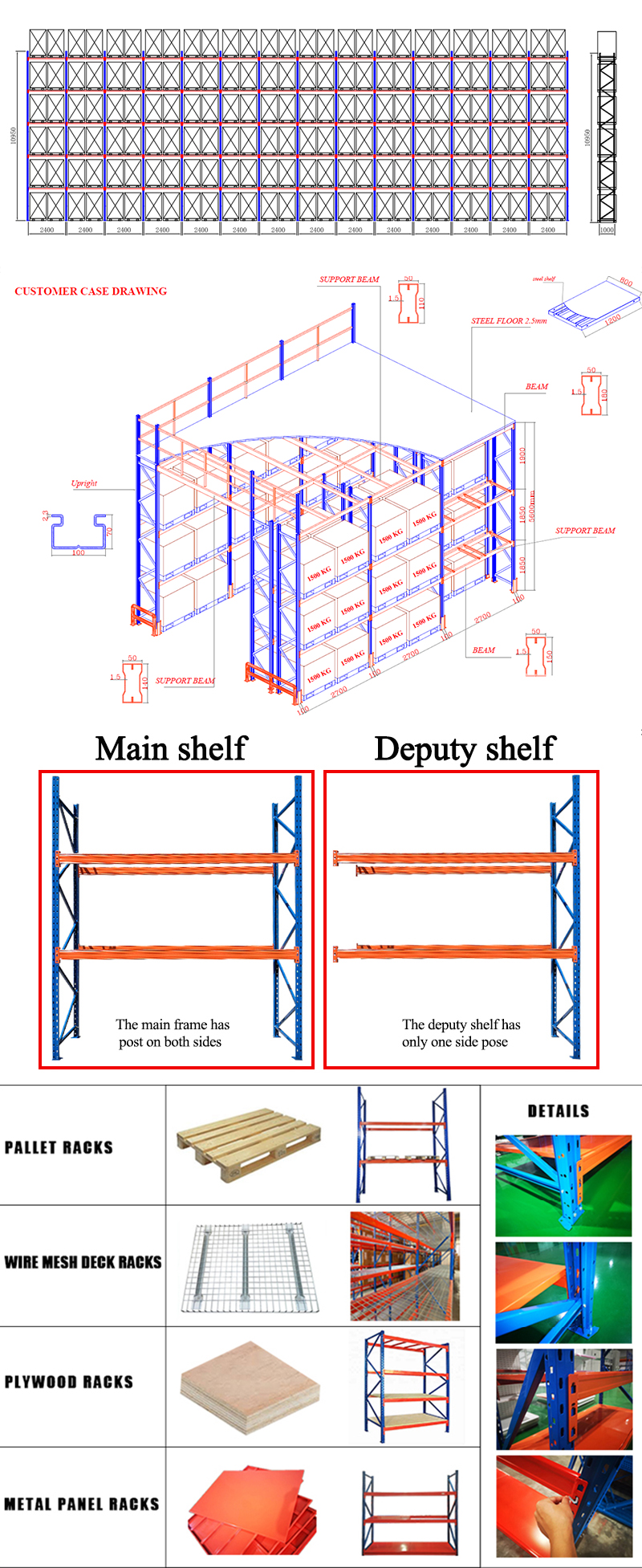

Installation	Free CAD Layout Drawing / Manual / Video Guide
Warranty	5 Years Structural Warranty

Customized heavy duty 1 ton warehouse racking storage pallet rack system

1. The simplest, lowest cost, most popular racking system in the world.
2. Convenience to stock management.
3. Easy to store and pick due to direct access to all pallets.
4. Compatible with many handling equipment styles.

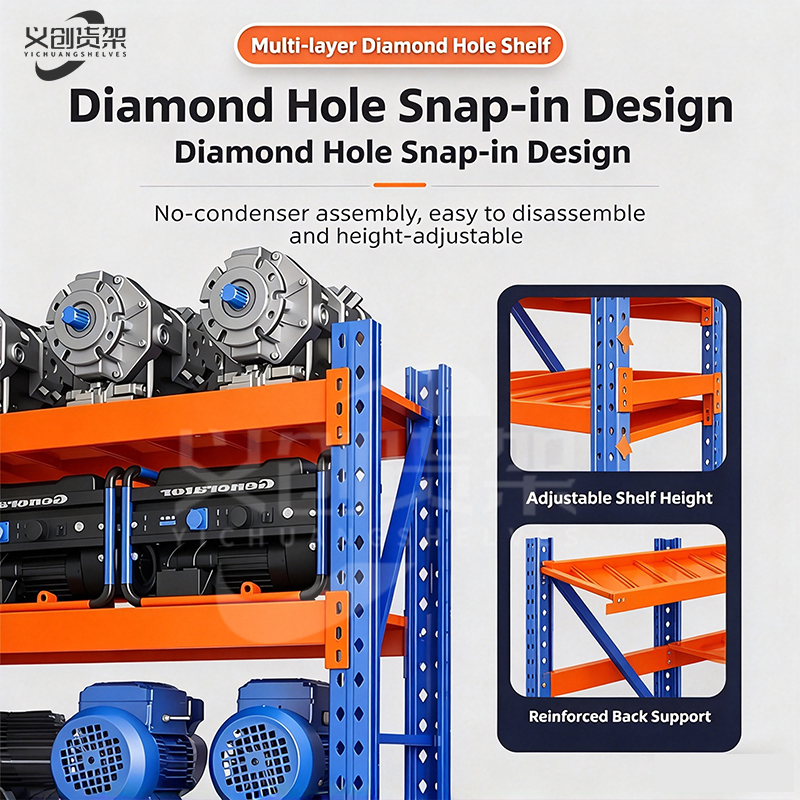

5. The height between levels can be adjusted easily by 50/helf assemble quickly and easily with a hammer or mallet. Widely used in home, supermarket, garage.etc.
6. Shelves can be adjusted per 38mm pitch.
7. Corrosion resistant: tough power coat finish resists rust and cratches.
8. Heavy duty capacity, the compartment loading capacity up to 8000kg.
9. No nuts and bolts. Ideal for record storage shelving.
10. Sturdy industrial strength steel construction.

Packing

1. KD structure, polyfoam between every part, packed in order and reasonable, not easy to shake.
2. Outside with five layers strong carton, tape sealing and packing belt to reinforce.
3. Can print LOGO or shipping mark as the customer want

Shipping

By Sea, By Air,
By international Express
Delivery Date within 10 days or according to your order quantity.

Frequently Asked Questions

Q1 Are you a manufacturer or a trading company?

Yes, we are a professional manufacturer for material handling system.

Q2 What is raw material & your products range?

The material is standard cold-rolled steel plate. Electrostatic Powder Coating Surface, avoid rusty.

Q3 Can you customize and supply samples?

Yes, we offer custom-made service to our clients. You need to provide us some technical data such as dimension and drawing.

Q4 What is your production procedure?

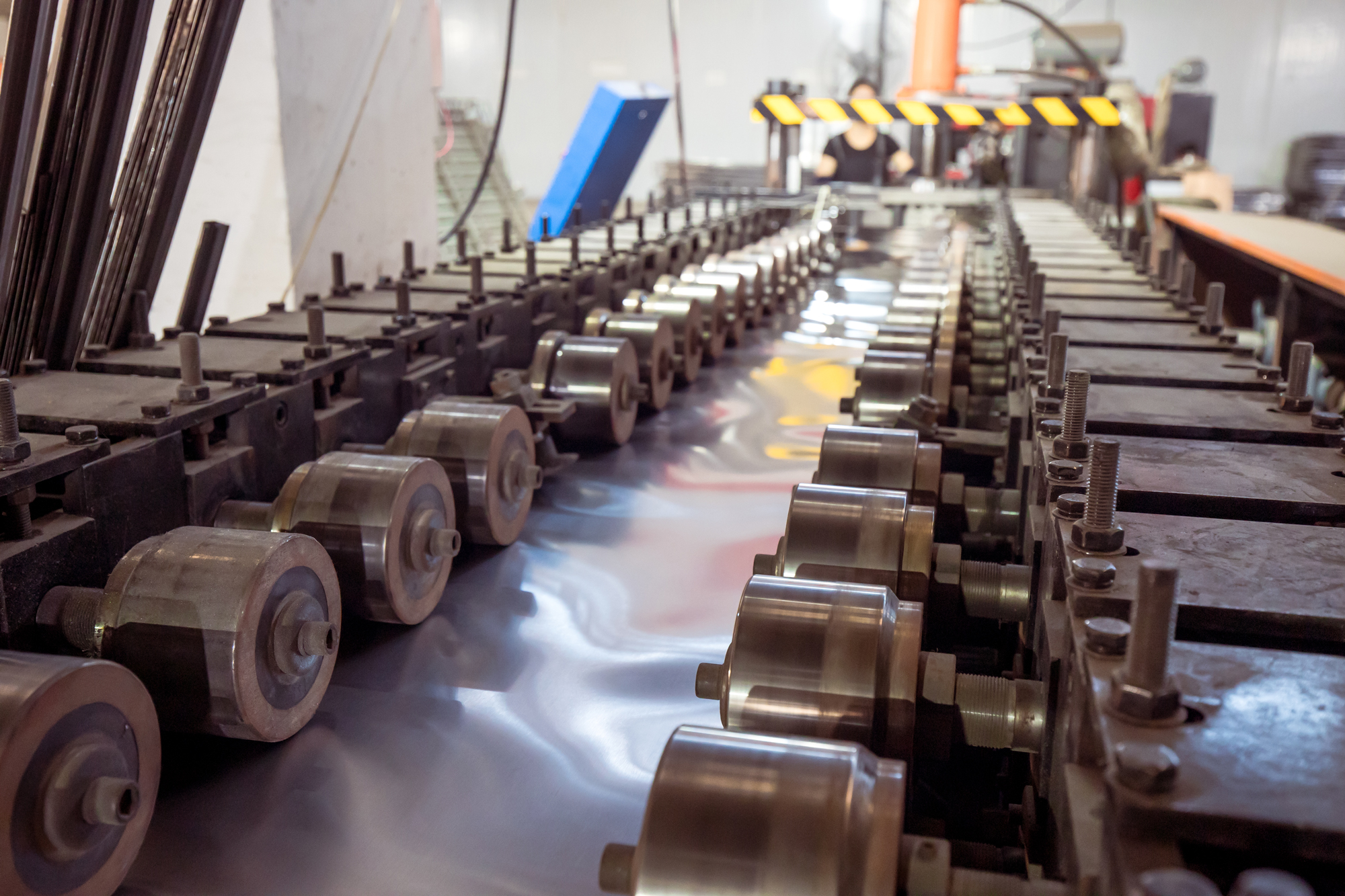

Raw material-QC-cutting-pressing-bending-welding-QC-Phosphating-powder painting-QC-packing

Q5 Easy assemble?

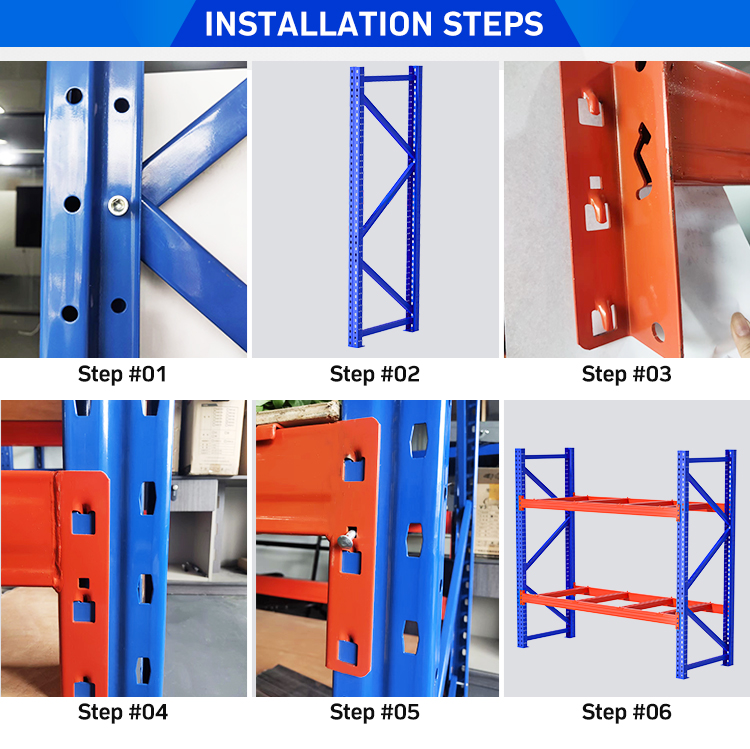

There is assembling instruction in each carton. If you need, you will receive our assembling video.

Q6 How to pay?

T/T, L/C, cash. Welcome to use Alibaba trade assurance.

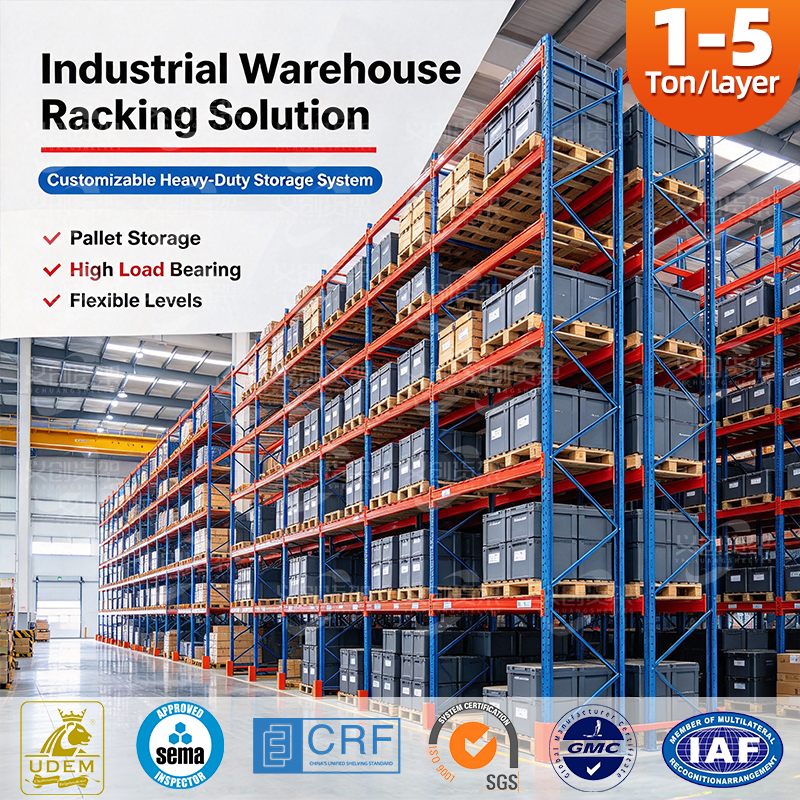

Heavy Duty Warehouse Storage Rack Selective Pallet Rack 1000-4500kg Load Capacity Q235B Steel Industrial Racking System

Product Description

Warehouse racking heavy duty steel pallet storage selective racking
