Every warehouse racking installation represents custom engineering tailored to the client's pallet dimensions, floor load capacity, forklift specifications, and seismic conditions. Review our recent implementations below.
Chemical Industry
Sep 2026
Specialized selective racking built for hazardous chemical drum storage. Features anti-corrosion electrostatic coating, drop-in wire decking, and reinforced column uprights to ensure non-deflection under constant chemical load.
Logistics & 3PL
Aug 2026

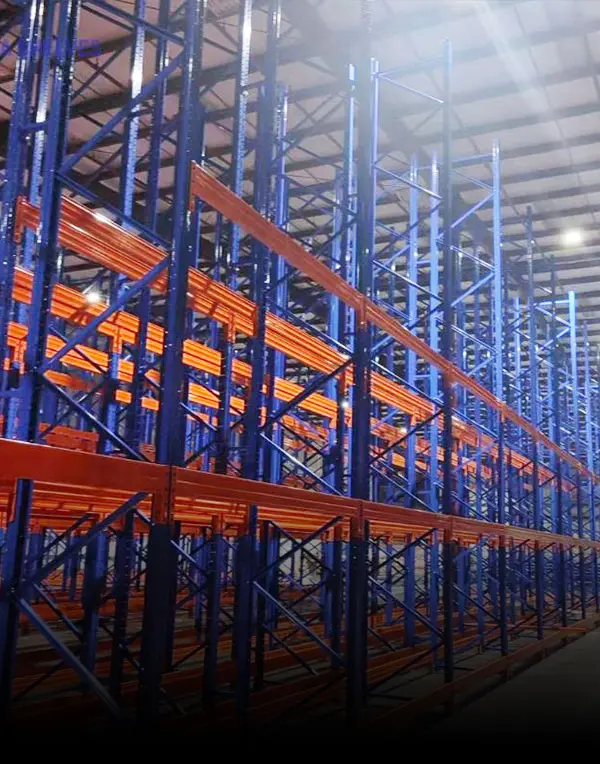

Designed for a fast-turnover regional logistics hub in Central America. High-density configuration with wide aisles configured for counterbalance forklifts, providing direct access to over 3,200 pallet positions.
Cold Chain
Aug 2026
Semi-automated deep lane storage operating continuously inside -25°C refrigerated facility. Maximized refrigerated cubic utilization by 80% while shielding forklift operators from extreme low-temperature exposure.
Manufacturing
Jul 2026
Engineered for a tier-one manufacturing parts warehouse requiring heavy unit load tolerance. Structural analysis was customized with seismic base plates and chemical expansion anchors to resist seismic activity.
Building Materials
Jul 2026

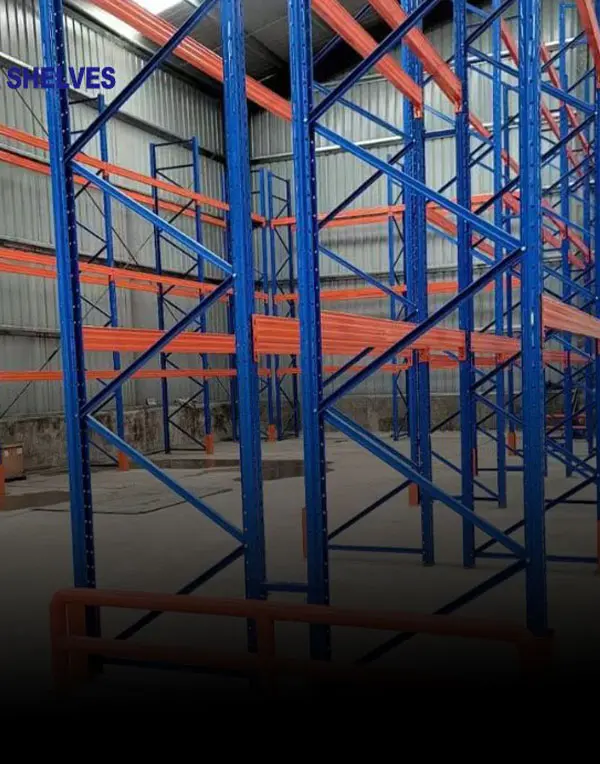

Multi-tier heavy pallet racking deployed for building supplies and heavy hardware. Equipped with reinforced pallet support bars and frame column guards to withstand forklift impact during loading of bulk cement and tiles.
Hardware Wholesale
Jul 2026
Cost-efficient space optimization designed for a regional hardware importer. Adjustable pitch connectors allow effortless beam reconfiguration as packaging sizes and inventory mix evolve through seasonal cycles.
Purchasing heavy-duty storage equipment is a high-responsibility structural safety commitment. Our production and quality control guarantee rock-solid performance on every job site.
We use Q235B and Q355B certified structural coil steel with traceable mill test certificates, ensuring tensile yield strength that strictly meets global FEM and RMI standards.
Automated continuous cold-roll forming lines produce upright columns and step/box beams with sub-millimeter dimensional tolerances, ensuring smooth, secure interlocking.
Automated pickling, phosphating, and 200°C curing electrostatic powder coating create high surface hardness and scratch resistance suited for high-humidity tropical climates.
Every proposal includes complete CAD floor layouts, upright frame deflection calculations, beam load capacities, and component assembly manuals in English.

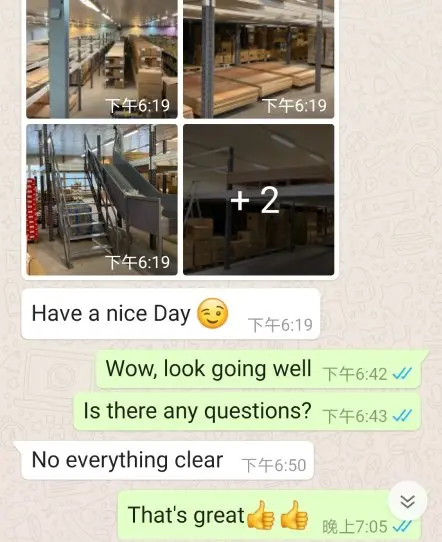

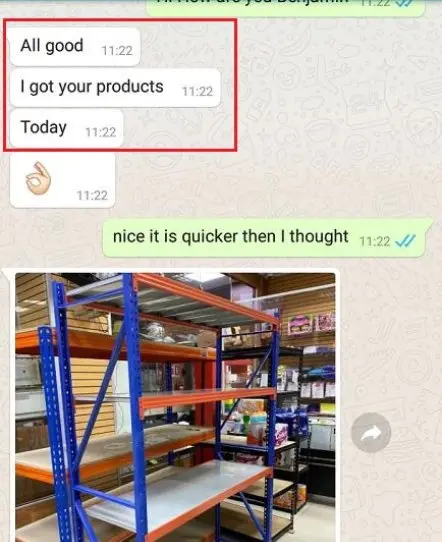

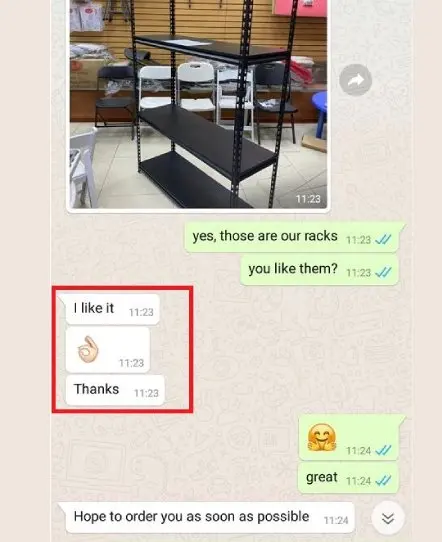

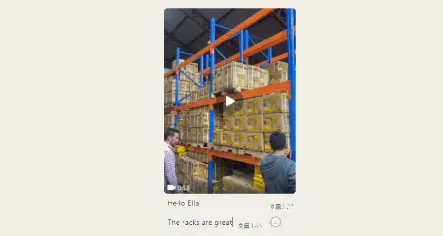

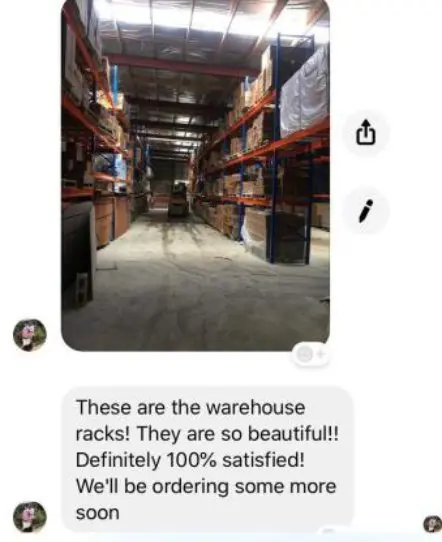

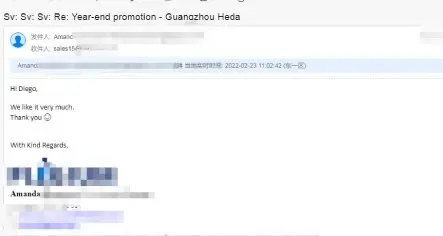

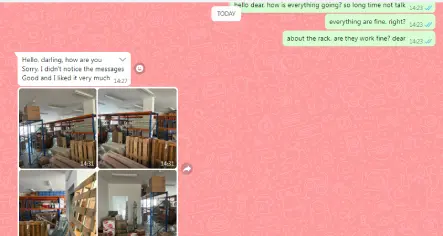

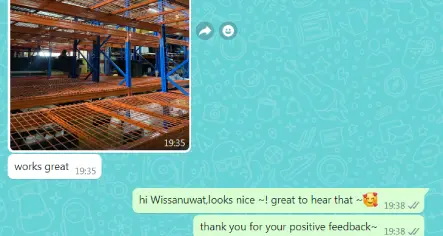

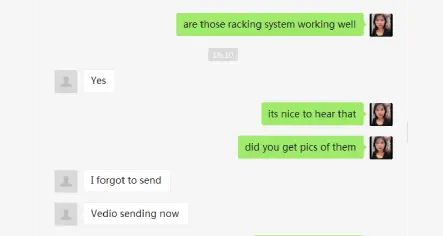

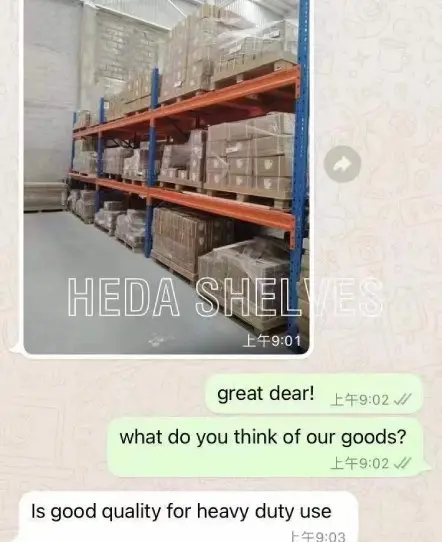

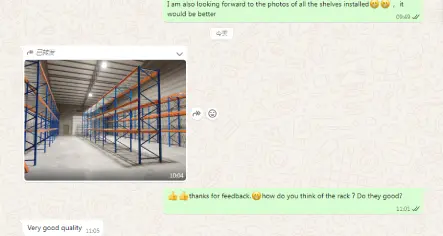

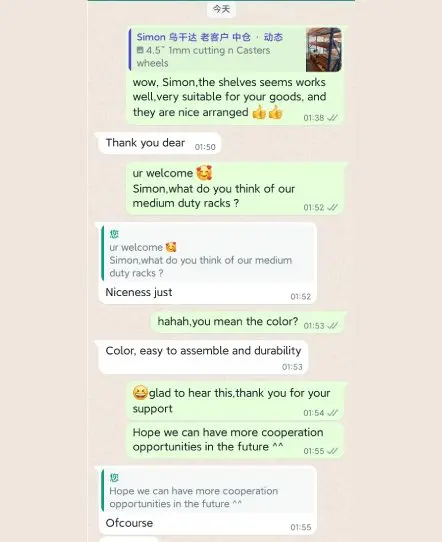

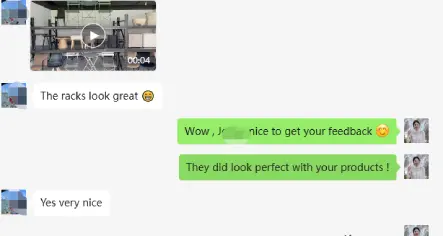

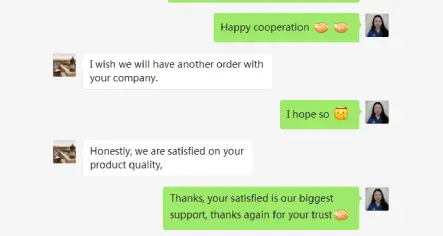

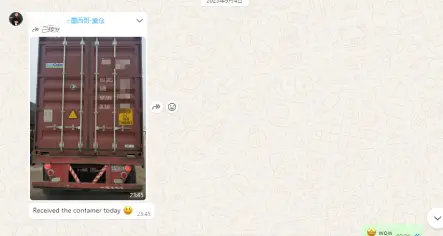

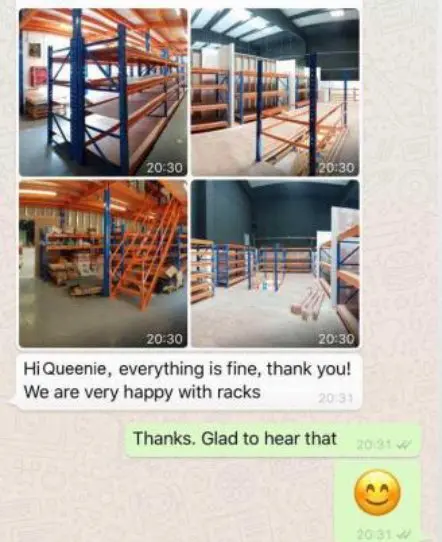

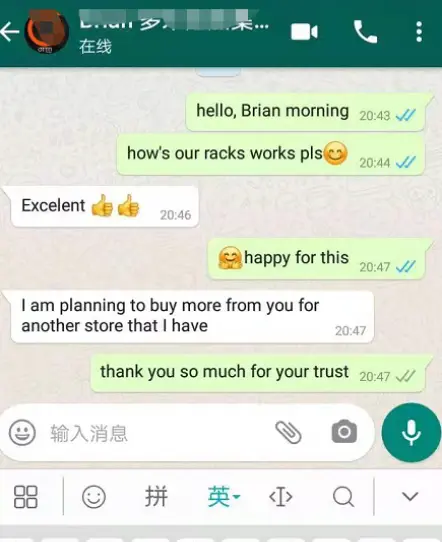

Explore photographic records from completed installations along with actual feedback from warehouse directors and international procurement teams.
"Guangzhou Heda Shelves Co., Ltd. shipped seven 40ft containers directly to our warehouse terminal. All beam packages arrived without scratch or paint chipping. The 3D drawings provided exact anchor coordinates, making local assembly smooth and on-schedule."

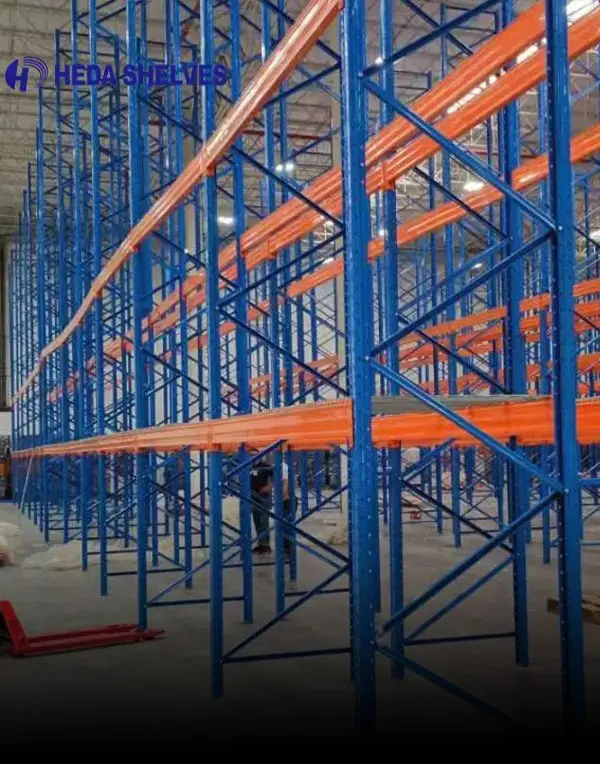

"We store heavy ceramic tile pallets weighing 1,500 kg each. The HEDA engineering team specified heavy-gauge box beams and extra upright cross-bracing. Even under maximum rated loading, deflection remained well below tolerance limits."

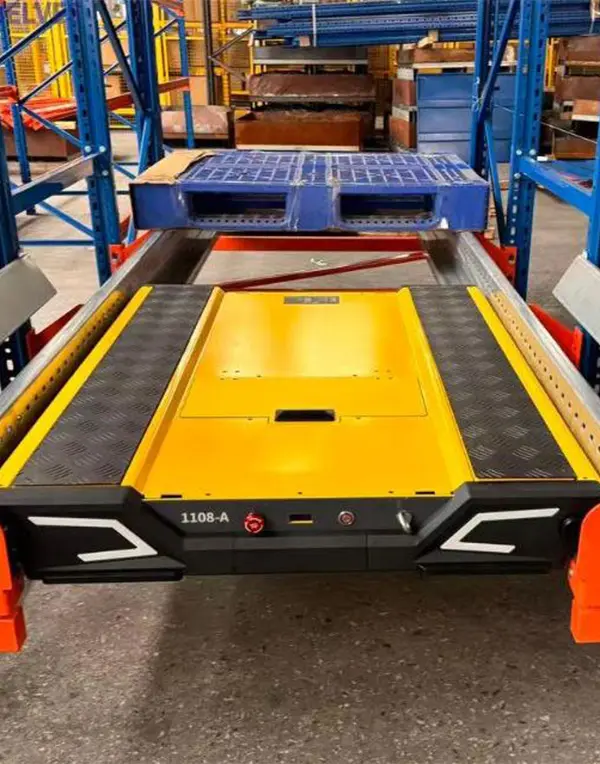

"Sub-zero storage requires specialized low-temp lubrication and battery protection for radio shuttles. Guangzhou Heda Shelves Co., Ltd. tested the entire system prior to shipment. Commissioning in our cold store took less than five days."
"Working directly with their factory engineering group avoided the confusion typical of trading middlemen. Changes to beam elevations were verified in CAD and fabricated without delay to our construction timeline."
"Our multinational compliance audit required verifiable CE marking and ISO 9001 certificates. Guangzhou Heda Shelves Co., Ltd. provided all documentation and steel inspection test sheets within 24 hours of our request."
Download our complete technical engineering catalog or contact our structural design team with your warehouse drawings for a free CAD layout and load assessment.
