Featured Industrial Racking & Modular Storage Categories
Manufactured from certified high-yield Q235B/Q355B cold-rolled structural steel coils. Every profile is custom cold roll-formed, CNC punched, and coated with salt-spray-resistant epoxy powder to satisfy rigorous EN 15512, RMI, and AS4084 engineering standards.

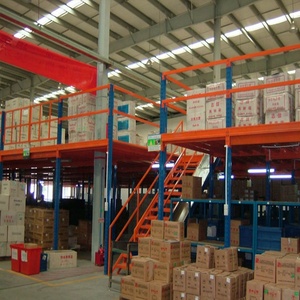

Multi-Level Heavy Duty Mezzanine Platform System
- Cap: 300–1200 kg/m²
- Hot-Dip/Epoxy
- Up to 4 Floors
Heavy Duty Adjustable Selective Pallet Racking
- Cap: 1000–5000 kg/lvl
- 75mm/50mm Pitch
- Q235B/Q355B
High-Density Direct Factory Drive-In Racking System
- 80% Space Gain
- Cold Storage OK
- Free 3D Layout
5-Layer Galvanized Multi-Level Stacking Racks
- Collapsible Frame
- Hot-Dip Galvanized
- Post-Pallet Type
Integrated Heavy-Duty Hypermarket Cash & Carry Racking
- Pallet Top + Display
- Modular Shelving
- Custom Powder Hues

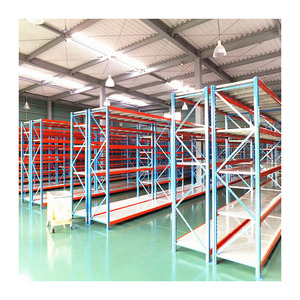

Medium Duty Longspan & Selective Hybrid Racks
- Cap: 300–800 kg/tier
- Boltless Clip Design
- Plywood/Steel Deck
Industrial Aluminum Mobile FIFO Gravity Flow Cart
- Extruded Aluminum
- Placon Roller Bed
- ESD Safe Wheels

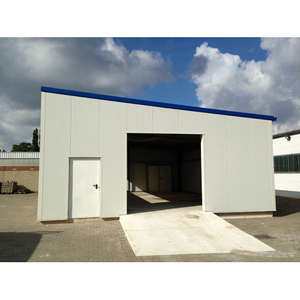

Shed Roof Hall Rack-Supported Warehouse Buildings
- Eliminates Columns
- Roof/Wall Integrated
- Turnkey Civil Cost Saver
Why Tier-1 Importers & Contractors Source OEM/ODM With Us
Unlike trading brokers, Guangzhou Heda Shelves Co., Ltd. controls the total metallurgical, roll-forming, and QA verification cycle across a 30,000 square meter intelligent manufacturing base in South China.
Certified Structural Steels
We source prime structural steel exclusively from tier-1 mills (Baosteel, Shougang) with complete Mill Test Certificates (MTC). Custom chemistries are tailored for yield strengths exceeding 355 MPa for seismic high-bay installations.
Free 2D/3D & FEA Modeling
Our engineering bureau delivers full warehouse layout schematics, static loading calculations, and 3D CAD/BIM models within 24–48 hours. We simulate Euler column buckling, seismic drift, and forklift impact forces prior to sheet shearing.
Tropical Surface Passivation
Standard warehouse coatings fail in monsoon and sub-zero cold environments. We employ an automated 9-stage degreasing and zinc phosphating immersion cycle before applying 80–120μm electrostatic epoxy powder to eliminate coastal oxidation.
Direct South China Logistics
Located minutes from Guangzhou and Shenzhen deepwater ports, our automated nesting algorithms compute exact 40HQ container load maps, maximizing steel tonnage and protecting upright geometry from transit warping across international sea routes.
Structural Load Dynamics & Seismic Deflection Analysis
When specifying industrial pallet racking for global projects, structural integrity depends directly on beam-connector moment resistance, column slenderness ratios, and base-plate floor anchorage. Poorly calibrated upright profiles risk catastrophical progressive collapse under asymmetric loading.
Our factory manufactures proprietary Omega-section upright columns configured with a multi-bend geometry that concentrates stiffening ribs along the principal buckling axis. Combined with heavy-duty robotic welded 3-claw or 4-claw connector plates, our beam systems achieve superior semi-rigid joint performance verified under cyclical load tests in accordance with EN 15512:2020 clause 5.2.2.
Get a Quote| Engineering Attribute | Standard Commercial Grade | HEDA Shelves Heavy-Duty OEM |
|---|---|---|
| Steel Substrate | Commercial Scrap-Reroll (Q195/Q215) | Prime Coil Q235B / Q355B with Full MTC |
| Column Profile Geometry | Simple C-Channel (4–6 Bends) | Multi-Rib Omega Profile (8–12 Stiffening Bends) |
| Beam Connector Claws | 2-Claw Stamped Sheet Plate | 3-Claw / 4-Claw Precision Die-Cast Integrated Locks |
| Surface Pre-Treatment | Manual Solvent Wipe Down | Automated 9-Stage Degrease + Zinc Phosphating |
| Paint Layer Integrity | Single Coat Air-Spray (35–45μm) | Electrostatic Epoxy-Polyester Powder (80–120μm) |
| Seismic Verification | None (Nominal Tabular Load) | Site-Specific FEA Calculation Reports (P-Delta Checked) |
Integrated 10-Step Factory Quality Assurance Workflow
From metallurgical spectroscopy to final container palletizing, every OEM/ODM order runs through our closed-loop quality tracking regime.
Coil Inspection
Tensile & chemical verification on steel coils.
Precision Shearing
High-speed CNC slitting with ±0.2mm tolerance.
CNC Punching
Automatic teardrop, diamond, or 75mm slotting.
Cold Roll-Bending
Continuous 18-roller progressive profile forming.
Box Beam Welding
High-frequency dual interlocking seam closing.
Deburring & Polish
Automated edge dressing to eliminate snag hazards.
Robotic Welding
Shielded multi-axis connector plate arc joins.
Phosphating Rinse
Chemical descaling & corrosion barrier dipping.
Powder Curing
200°C baking tunnel for rock-hard adhesion.
Packing & QC Audit
Bundled nesting with angle guards for export.
Future Procurement Trends in Industrial Storage Racking
Procurement executives are moving away from treating industrial racks as passive fixtures. As automation accelerates, warehouse racking has evolved into an active kinematic infrastructure.
AMR & Shuttle-Ready Engineering
Pallet racking systems are increasingly mandated to incorporate tight millimetric tolerances to interface seamlessly with Autonomous Mobile Robots (AMRs) and 4-way radio shuttles. Floor track deflections must not exceed 1:1000 under dynamic carrier loads.
Vertical Cube Densification
With urban industrial land leases rising 8–15% year-on-year across logistics epicenters, brownfield warehouses are converting horizontal footprints into vertical cubic volume. VNA (Very Narrow Aisle) and multi-tier picking mezzanines have emerged as the fastest ROI options.
Low-Carbon & Non-Toxic Coatings
European and North American supply chain regulations are driving procurement mandates for zero-VOC, heavy-metal-free, RoHS-certified powder formulations. Suppliers using clean phosphating and recirculating water systems gain preferred procurement status in tender matrices.
Modular DFM Consolidation
Forward-looking distributors are migrating toward unified beam and upright perforations, enabling a single inventory of standardized modular parts to serve drive-in, selective, or cantilever formats, dramatically reducing local distributor stocking costs.
The Technological Evolution of Modern Industrial Rack Factories
Industrial racking manufacturing has shifted rapidly from low-margin boiler-room welding workshops into high-precision structural fabrication centers. The rapid growth of cold chain logistics, automated dark warehouses, and hyper-fulfillment centers requires structural tolerances unimaginable a decade ago.
Modern OEM/ODM factories operate continuous multi-station cold roll-forming lines capable of profiling high-tensile alloy coils with in-line laser thickness monitoring. Structural weldments utilize pulse MIG robotic arms to guarantee zero micro-porosity along beam end-plate connections. As a result, catastrophic collapse risks caused by dynamic forklift strikes are mitigated by fail-safe ductile deformation mechanics.
Crucial Procurement Evaluation Checklist:
- Mechanical Yield Stress: Verification of authentic yield stress (>235 MPa for beams, up to 355 MPa for high-bay uprights).
- Tolerances & Straightness: Profile camber and bow limited to within 1/1000 of span under EN 15512 specifications.
- Surface Pre-Treatment: Complete chemical pickling and iron phosphating to ensure zero paint flaking under heavy daily impact.
- Certified Export Loading: Direct container blocking and wood-free strapping schemes designed to pass stringent port inspections.
Industrial Rack Procurement & Engineering FAQ
Expert answers to the most common structural, compliance, and logistics questions asked by international supply chain directors, warehouse builders, and racking distributors.
What precise technical data is required to generate a custom 3D layout & quotation?
To deliver an accurate static structural calculation and CAD drawing, our engineering team requires: (1) Warehouse architectural drawings indicating clear height below rafters, column grid spacing, sprinkler clearances, and floor slab load capacity; (2) Pallet specifications (width, depth, overall load height including pallet, and maximum gross weight); (3) Material handling equipment (forklift turning radius, mast lift height, and aisle clearance specifications); and (4) Site seismic and climatic parameters.
How do you guarantee rack safety in earthquake zones across Southeast Asia and the Pacific?
We engineer our racking according to site-specific ground acceleration coefficients (Ss and S1 values). For earthquake-prone zones like the Philippines, Indonesia, and Japan, we expand baseplate footprint surfaces, implement heavy-duty floor anchor bolts (Hilti or equivalent M12/M16 wedge anchors), increase upright gauge thicknesses, and insert back-to-back reinforced X-bracing to absorb lateral kinetic energy without column buckling.
What is the difference between Hot-Dip Galvanizing and Electrostatic Powder Coating?
Powder coating (80–120μm) provides excellent mechanical impact resistance, chemical stability, and varied RAL color identification suited for general indoor ambient warehousing. For outdoor environments, coastal warehouses subject to saline sea air, or blast-freezer cold chain stores (-30°C) where condensation is frequent, we recommend Hot-Dip Galvanizing (HDG) per ISO 1461, forming an alloyed zinc-iron protective metallurgical bond exceeding 65–85μm.
Can you provide white-label OEM manufacturing for regional racking distributors?
Yes. Over 40% of our production capacity is dedicated to private-label OEM manufacturing. We support custom column hole punching profiles (teardrop, diamond, keyhole, European 75mm/50mm pitch), custom brand laser cutting on beam end connectors, bespoke color-matched powder formulations, customized pallet load charts featuring distributor branding, and neutral export packaging.
How are long racking components protected from shipping damage inside sea containers?
Uprights and beam profiles are nested using precision wood-free metal strapping and heavy-duty corrugated board corner protectors. Beams are bundled with connectors arranged alternately to prevent scratch friction. All bundles are labeled with itemized part barcodes and secured within 40ft High Cube containers using heavy-duty polyester lashing to prevent shifting during turbulent ocean transit.
What structural safety documentation accompanies completed factory shipments?
Every completed project export is shipped with: (1) Raw Material Steel Mill Test Certificates verifying yield strength and chemical composition; (2) Powder Coating Adhesion (Cross-Hatch) and Salt-Spray test records; (3) Detailed 2D/3D Installation Assembly Blueprints with torque tension tightening tables; and (4) CE Declaration of Conformity and load capacity warning plaques.
Launch Your Warehouse Storage Project With Certified Factory Engineers
Connect directly with Guangzhou Heda Shelves Co., Ltd.'s engineering center. Receive complimentary space optimization consultations, AutoCAD floor plans, 3D structural renderings, and mill-direct price quotations within 24 to 48 hours.
- Direct Guangzhou Factory Pricing
- CE & ISO 9001:2015 Certified
- Complete Structural Calculation Dossiers
