FIFO Flow
Factory Direct Inventory
High-Efficiency Warehouse Racking & Material Storage Systems
Engineered to international mechanical load thresholds (EN 15512, ANSI MH16.1). Explore our modular heavy-duty cantilever lines, gravity flow solutions, and pallet storage architectures designed for zero defection under peak load.

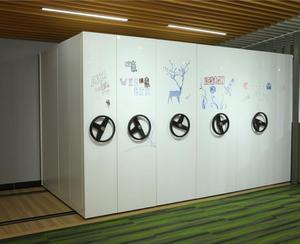

Compact Storage

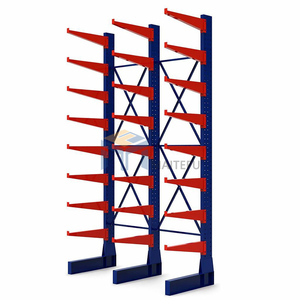

Flagship Cantilever
Pallet Gravity
Heavy Pallet
4-Tier Steel
High Bay 2800KG

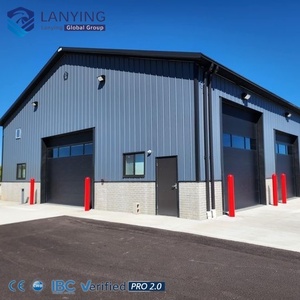

Prefab Structure
25+
Years Industry Engineering
30,000m²
Guangzhou Factory Hub
30,000Tons
Monthly Manufacturing Cap
120+
Global Export Markets
Engineering White Paper
Structural Mechanics of Custom OEM Cantilever & Hybrid Pallet Racking
A comprehensive technical analysis of structural cantilever deflection formulas, cold-formed versus hot-rolled steel properties, and dynamic warehouse footprint optimization.
In modern industrial logistics, non-standard long-load profiles—such as structural steel beams, extruded aluminum profiles, industrial PVC/steel tubing, timber packs, engineered lumber, and composite furniture panels—present acute material handling and spatial density challenges. Standard selective pallet racking configurations rely fundamentally on vertical front columns that inevitably obstruct horizontal continuous product loading. Cantilever racking systems circumvent this physical obstruction through unhindered, continuous linear shelving bays anchored to robust central or perimeter vertical columns.
Key Engineering Standard Compliance:
All OEM and custom structural systems manufactured at our plant conform strictly to EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design), RMI ANSI MH16.1, and Australian standard AS 4084-2023.
1. Material Selection: Roll-Formed vs. Hot-Rolled Structural I-Beams
Procurement teams frequently debate between roll-formed and hot-rolled structural steel columns. As an OEM factory with both continuous cold-roll forming mills and heavy-duty profile processing centers, we engineer racking tailored to specific mechanical duty profiles:
Roll-Formed Steel (Q235B / Q355B)
Manufactured by cold-coiling strip steel through progressive roller dies. Provides high tensile yield-to-weight ratios, adjustable pin/bolt connections at 75mm or 100mm increments, and cost-effective shipping for light to medium-heavy duty loads (500 kg to 1,200 kg per arm level).
Hot-Rolled Structural Steel (H-Beam / IPE)
Engineered with heavy hot-rolled European or American standard wide-flange beams. Demonstrates exceptional torsional rigidity and high resistance against forklift mast impacts. Optimal for external open yards, heavy rebar bundles, and loads scaling from 1,500 kg to over 4,500 kg per arm.
Hybrid Cantilever-Pallet System
Incorporates horizontal structural wire decking, bar grating, or longitudinal steel spreaders across cantilever arm planes. Enables distribution centers to store both out-of-gauge continuous goods and standard pallets within the exact same structural bay footprint without structural compromises.
2. Cantilever Arm Kinematics, Moment Loads & Deflection Criteria
Unlike standard pallet racking beams where static loads are distributed between two upright end connectors, cantilever arms operate as true horizontal overhanging beams with one end rigidly or semi-rigidly secured to the vertical column. Consequently, structural calculation models account for maximum bending moments at the arm-to-column intersection:
Bending Moment Calculation: M = (W × L) / 2 (where W represents total uniformly distributed load across the arm, and L is the effective cantilever arm length). In structural engineering calculations performed by our Guangzhou design department, allowable vertical arm tip deflection is restricted to maximum L/250 to L/300 under full static design load, ensuring product loads never slide off the front tip.
| Storage Architecture | Material Standard | Typical Load/Level | Optimal Load SKU Profile | Space Utilization | Direct Accessibility |
|---|---|---|---|---|---|
| Heavy-Duty Cantilever Rack | Q235B / Q355B H-Beam | 1,000 – 4,500 kg / arm | Pipes, Rebar, Lumber, Sheet Metal | 80% - 90% | 100% Instant Pick |
| Selective Pallet Racking | Cold-Rolled Strip Steel | 1,000 – 3,500 kg / level | Standard Euro / ISO Box Pallets | 50% - 65% | 100% Instant Pick |
| Carton Gravity Flow Rack | Q235B Steel + Poly Rollers | 200 – 600 kg / tier | High-velocity cartons, split-case picking | 85% - 95% | Strict FIFO First-In-First-Out |
| Drive-In Pallet Racking | Structural Cold-Rolled Q235B | 1,000 – 2,500 kg / pallet | Bulk identical commodities, cold storage | 75% - 85% | LIFO (Last-In-First-Out) |
| Multi-Tier Mezzanine Rack | Universal Beam + Cold Profiles | 300 – 1,000 kg / m² | Small components, spare parts, archival | 150% - 200% Floor Area | Manual Multi-Tier Pick |
Direct Manufacturer Strengths
Guangzhou HEDA Shelves: 25 Years of Factory-Direct OEM/ODM Precision
Operating since 2001, we deliver accountable supply chain stability, in-house steel profiling, robotic welding, and automated surface treatment to EPC contractors, brands, and industrial distribution clients worldwide.
Verified Global Credentials
We supply authenticated certification documents for municipal permits and customs: CE Factory Production Control Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System Certification (No. 18624Q00169R0M), and full RoHS compliance on all powder coatings.
30,000 Ton Monthly Production
Spread across 30,000 square meters of modern manufacturing lines with over 300 experienced engineers and operators. Short sea transit lines via South China ports (Nansha, Huangpu, Shenzhen) offer competitive freight transit windows across Southeast Asia, South Asia, Middle East, and the Americas.
Free 2D CAD & 3D Engineering Layouts
Send our design engineering group your warehouse architectural DWG drawings. Within 24 to 48 hours, our civil and mechanical racking specialists return full 2D spatial layouts, 3D parametric renderings, structural load capacity checks, and container volume packing calculations free of charge.
10-Stage Precision Production & Quality Assurance Architecture
01
Raw Steel Coil Testing
02
Laser & Shear Cutting
03
Automated Punching
04
Continuous Cold Bending
05
Precision Roll Forming
06
Deburring & Polishing
07
Robotic Beam Welding
08
Pickling & Phosphating
09
Electrostatic Powder Line
10
QA Load Test & Bundling
Industry Foresight
Future Procurement & Technological Trends in Industrial Racking (2026–2030)
How automation integration, rising land lease premiums, seismic mitigation building codes, and green supply chain certifications are transforming global warehouse asset procurement.
1. Cantilever Shuttle Automation & AS/RS
Traditional manually picked cantilever storage is rapidly evolving into semi-automated and crane-assisted long-load systems. Automated Storage and Retrieval Systems (AS/RS) tailored for 6-meter to 12-meter long materials use sensor-guided cantilever shuttles to retrieve raw material profiles automatically, reducing aisle widths from 4.5 meters down to 1.8 meters.
2. Total Cost of Ownership (TCO) Racking Sourcing
Global logistics operators are replacing spot purchasing with programmatic OEM factory supply agreements. By establishing long-term standard profile tooling (punching patterns, beam connections, electrostatic coatings) directly with our Guangzhou manufacturing hub, enterprise buyers eliminate regional intermediary margins and lower lifecycle expansion costs.
3. Climate Resilience & Heavy Marine Coating
Warehousing expansion across tropical monsoon belts and coastal free-trade zones (e.g., Vietnam, Malaysia, Indonesia, UAE, Saudi Arabia) requires heightened anti-corrosion chemistry. Our advanced multi-stage pickling and phosphating lines are coupled with epoxy-polyester architectural powder finishes or EN ISO 1461 hot-dip galvanizing for coastal durability.
Procurement Knowledge Base
Frequently Asked Questions by Industrial Warehouse Buyers
Straight engineering and commercial answers to help procurement managers, logistics consultants, and structural engineers specify the right racking systems.
What precise technical parameters are required to generate an accurate OEM cantilever rack quote? +
To provide an exact structural calculation and bill of materials, our engineers require: (1) Total warehouse building footprint in DWG or dimensioned PDF, noting internal clear height under beams; (2) Product specifications: length, width, height, and unit weight of stored items; (3) Loading profile: single-sided (wall positioned) or double-sided (central run) columns; (4) Required vertical storage tiers per column and arm length; (5) Material handling equipment: forklift model, mast collapsed and extended heights, turning radius, and required aisle clearance (AST); (6) Site civil parameters: concrete slab thickness and seismic zone requirements.
How does HEDA Shelves engineer racking systems for high seismic activity zones? +
For projects located in active seismic regions (such as the Philippines, Indonesia, Japan, and Taiwan), our design team incorporates dynamic horizontal acceleration forces into finite element structural calculations. We increase column web and flange thicknesses, utilize high-tensile Q355B structural steel, integrate heavy-duty X-bracing in the vertical plane, expand footprint baseplate surface areas, and specify high-shear chemical capsule or mechanical anchor bolts to satisfy local civil structural permit authorities.
What is the key engineering difference between roll-formed and hot-rolled structural cantilever arms? +
Roll-formed arms are cold-bent from heavy coil steel and typically feature bolted or pinned wedge connectors with upright slots, ideal for applications requiring frequent vertical adjustability and capacities under 1,200 kg per arm. Hot-rolled structural cantilever arms are manufactured from solid structural IPE or European H-sections, featuring rigid flange plates bolted with high-tensile Grade 8.8 or 10.9 structural bolts. These structural arms withstand high point-loads, impact forces, and carry capacities exceeding 3,000 kg per arm.
How do you guarantee corrosion resistance for outdoor yards or high-humidity tropical installations? +
Indoor components pass through an automated 8-stage pre-treatment line, including degreasing, acid pickling, and iron phosphating, followed by electrostatic thermosetting polyester powder coating baked at 200°C (yielding a dry film thickness of 70 to 110 microns). For exterior yard installations, extreme chemical environments, or cold-storage facilities, we supply full hot-dip galvanized components per ISO 1461 / ASTM A123, providing a sacrificial zinc layer of 80 to 120 microns that offers 20+ years of maintenance-free service.
Can hybrid decking be added to custom cantilever racking for irregular or non-long materials? +
Yes. One of our most common OEM adaptations is transforming standard cantilever into continuous hybrid shelving. We engineer custom welded wire mesh panels with bottom support channels, galvanized steel drop-in shelves, or structural steel I-beam stringers that sit directly across adjacent cantilever arms. This allows warehouse managers to store mixed inventory—such as standard pallets, machinery crates, split coils, and sheet stock—on the same continuous level.
What are the standard factory lead times, container packing, and global shipping arrangements? +
Standard OEM production turnaround is 15 to 25 working days from approved layout drawings and deposit receipt. Racking components are bundled with steel strapping, protected by non-scratch polyethylene bubble wrap, and isolated with custom wooden dunnage to avoid transit damage. We formulate custom 3D container loading schematics (40ft HQ / 20ft GP) ensuring maximum weight and cubic utilization while facilitating balanced unloading with conventional forklifts upon arrival at destination ports.
Request Your Custom OEM Cantilever Engineering Proposal
Connect with our technical design office today. Receive a free 2D CAD layout, 3D photorealistic rendering, pallet-position count, and structural load analysis within 24 to 48 hours.
