Do you supply pallet racking to Southeast Asia and the Middle East?

Yes. We regularly ship racking, shelving and mezzanine systems to Malaysia, Singapore, Thailand, Vietnam, Indonesia, the Philippines, South Asia and the Gulf region. Goods are loaded FCL or LCL from Guangzhou-area ports, and sea transit to major Southeast Asian ports is typically around one to two weeks depending on the route.

How is racking protected against heat and humidity in tropical warehouses?

All steel components go through pickling and phosphating pre-treatment followed by electrostatic powder coating. For cold rooms, coastal sites or very humid facilities, pre-galvanized or hot-dip galvanized options can be specified.

Can your racking be designed for earthquake-prone regions?

Yes. When you share the project location and the local design code, our engineers can include seismic load cases in the structural calculation and adjust upright profiles, bracing, base plates and anchor specifications accordingly.

What information do you need for a free warehouse layout design?

Please provide the floor plan (CAD or PDF), clear building height, pallet or carton dimensions and weight, forklift type and maximum lift height, number of SKUs, daily throughput and whether you need FIFO or LIFO rotation.

What is the typical production lead time?

Lead time depends on tonnage, finish and system type. Standard selective racking orders usually ship within about 15 to 25 working days after drawing confirmation; the exact date is confirmed in the contract.

Do you provide installation support in Asia?

Every project ships with installation drawings, a component list and assembly guidance. Remote video support is available, and on-site installation supervision can be arranged on request.

Hot Sale Products

Heavy Duty Pallet Racking

Medium Duty Rack

Mould Rack

Cantilever Rack

Mezzanine Floor

Wire Mesh Container

Product Description

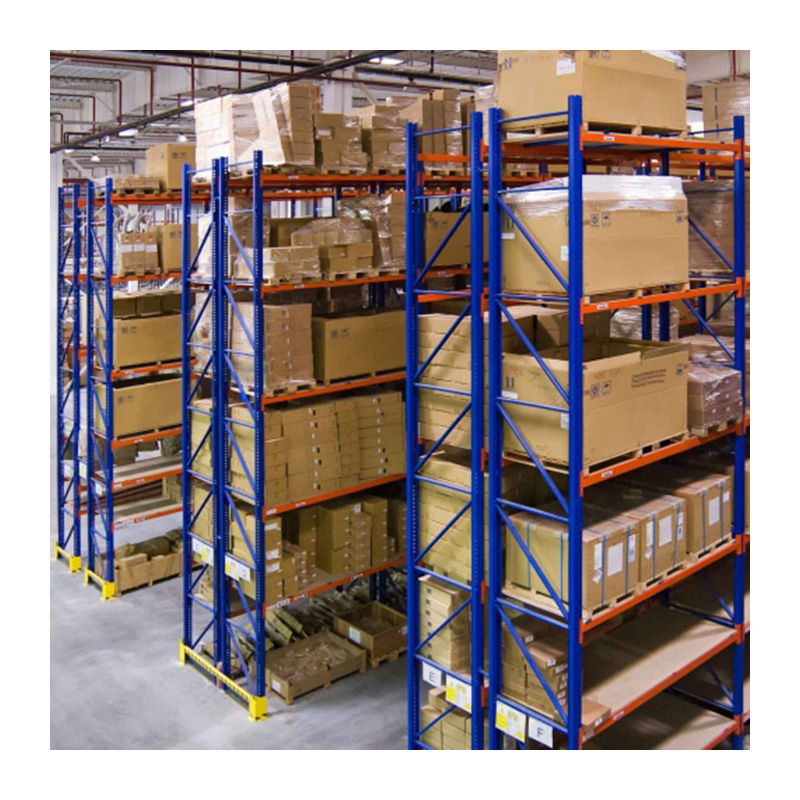

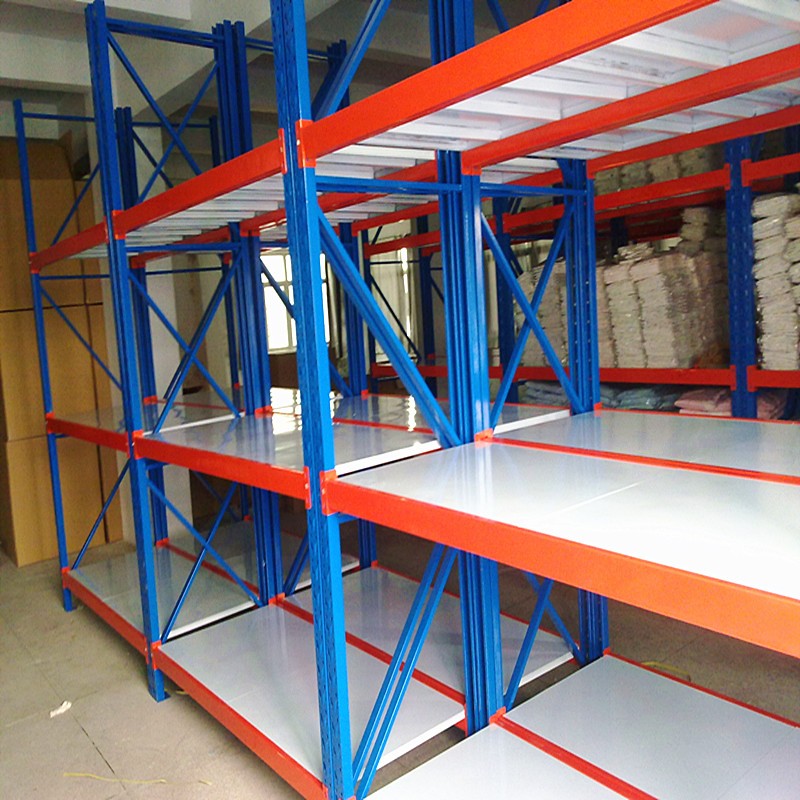

Heavy Duty Rack: Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 50mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chosen as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouse for its advantages of appropriate height, and convenience in accessing goods.

Brand	XINMIAO
Product Name	Warehouse Heavy Duty Pallet Racking Storage Shelf
Raw Material	High-Quality Q235 Cold Rolled Steel
Color	Upright frame is blue, Beam is orange, can be customized.
Standard Size	L2300D1000H4500 mm, can be customized according to your requirement
Height	1500-8000mm or Customized
Width / Depth	400-1500mm or Customized
Length	1500-3200mm or Customized

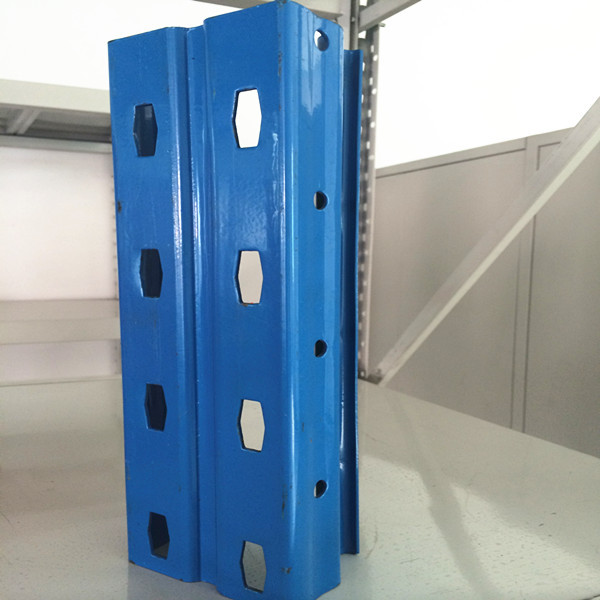

Upright Section	80601.5/1.8/2.0mm, 90651.5/1.8/2.0mm, 100702.0/2.5mm, 120952.0/2.5mm etc.
Loading Capacity	1000~6000 kgs or 2200~13200 lbs per layer
Beam Section	8045mm, 10045mm, 12045mm, 14045mm, 16045mm, 18045mm etc.
Feature	Corrosion protection, easy to assemble and dismantle
Surface Treatment	Powder Coated
Packing Term	Air bubble film, Wooden Case, etc.
Delivery Time	10-15 workdays upon receipt of deposit

Feature and Application

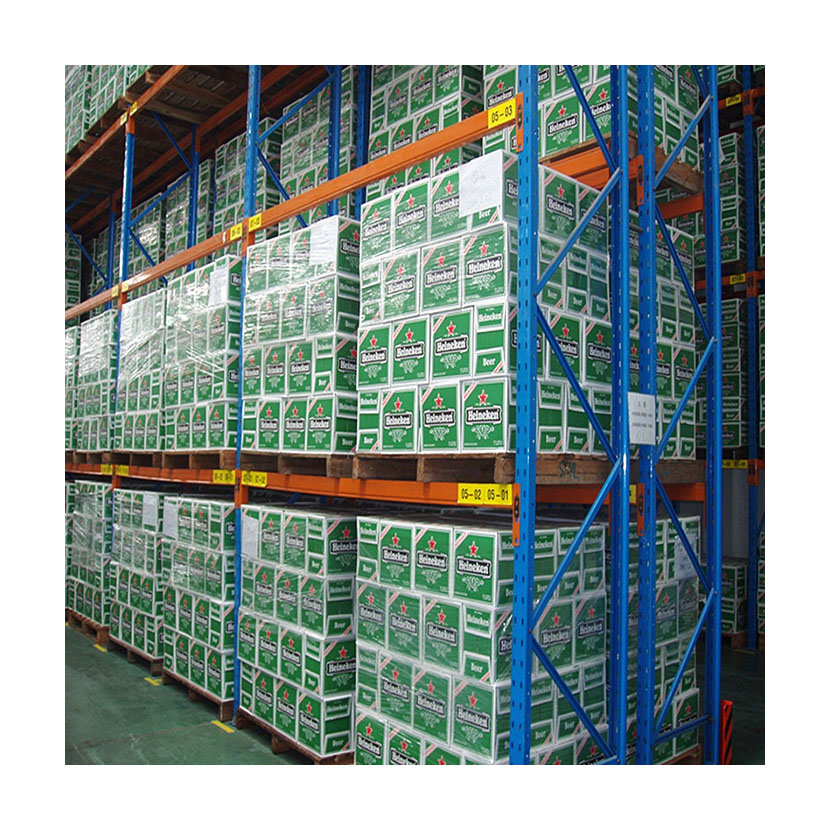

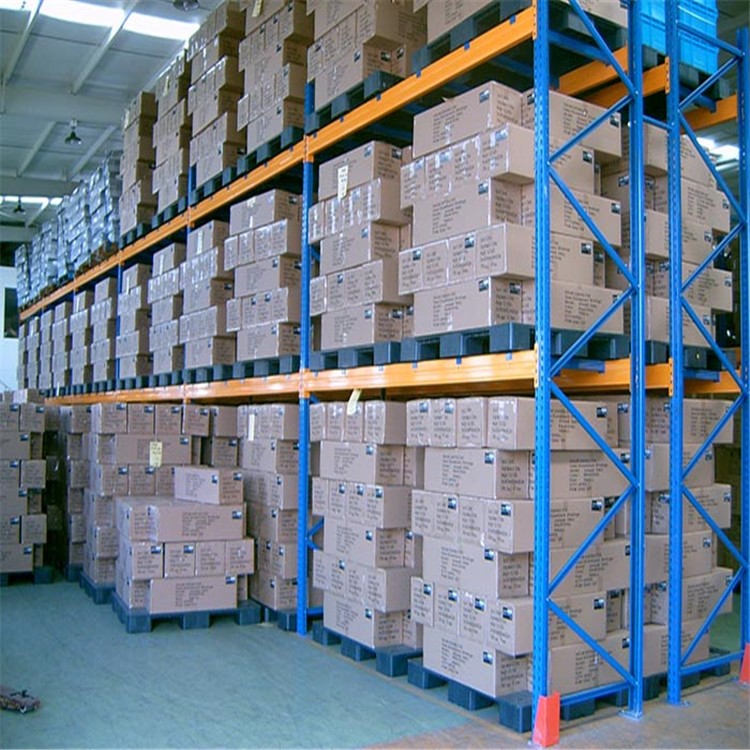

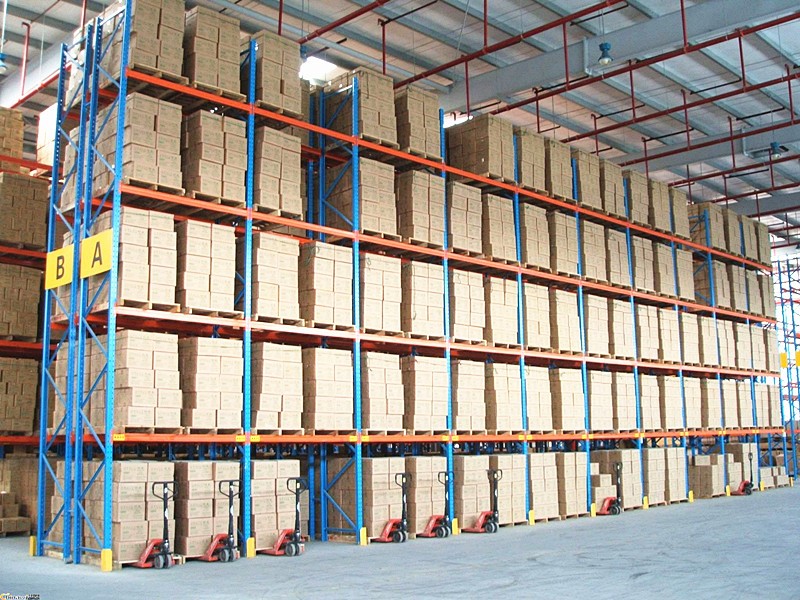

✓ Heavy Duty Racks are widely used in manufacturing, Third-Party Logistics (3PL), and distribution centers. Applies to multi-varieties and small batch goods, as well as few varieties and large batch goods.

✓ Low cost, high safety and reliability, with convenient and simple assembly and disassembly.

✓ Suitable for manual box handling, or matching with separate parts boxes and turnover boxes to carry heavy goods.

✓ Widely applied in industrial fields, warehousing logistics, and standard distribution hubs.

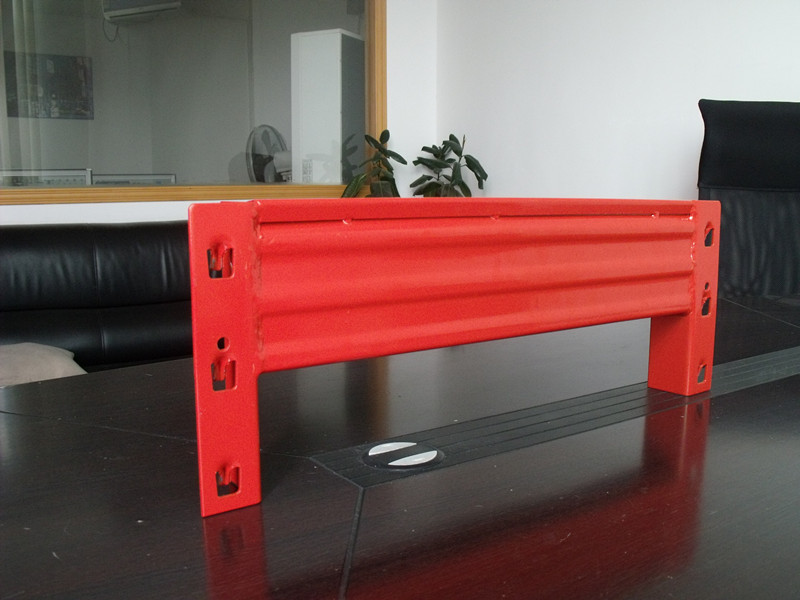

Box Beam

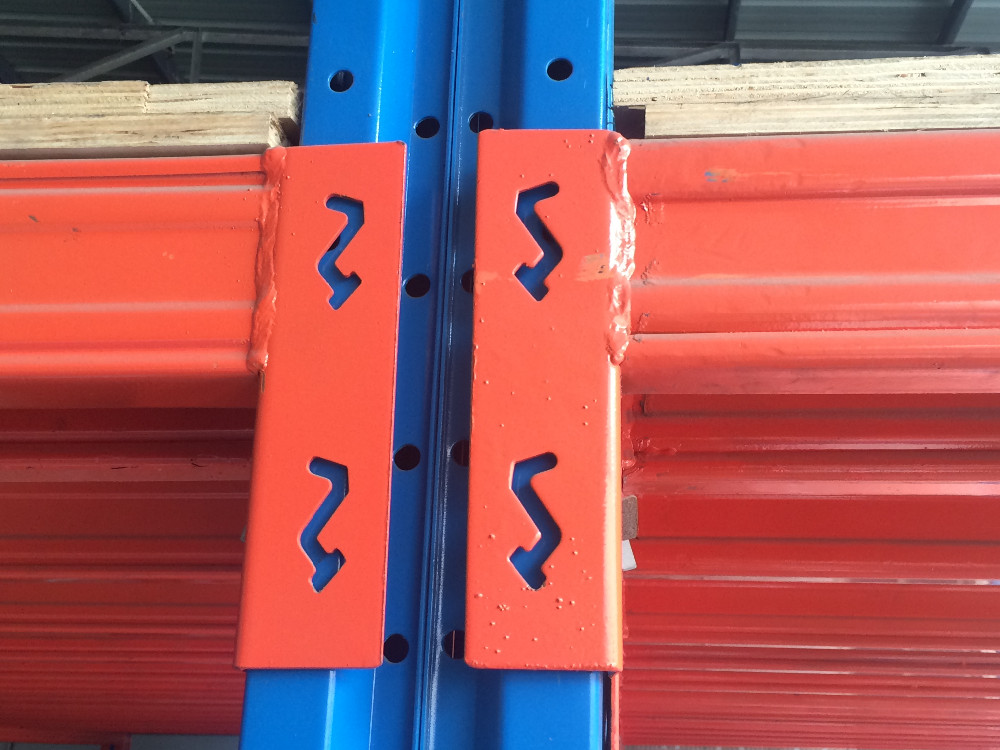

Upright & Beam Connection

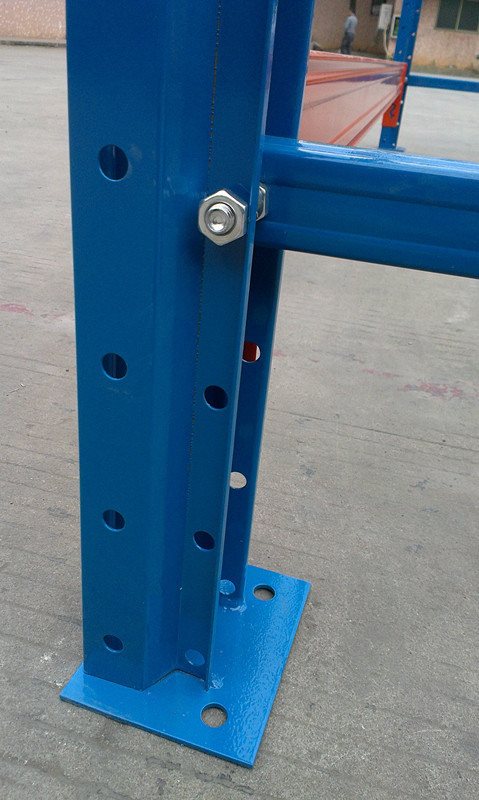

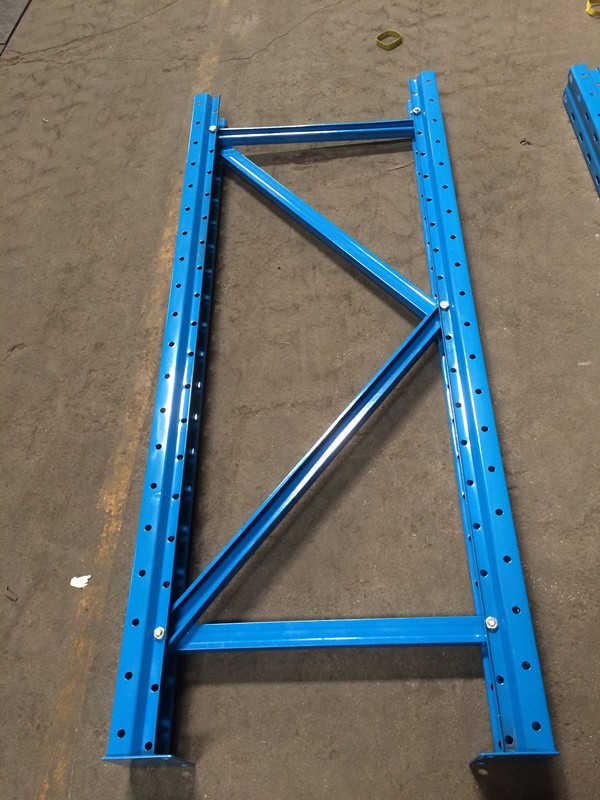

Frame

Color As You Request

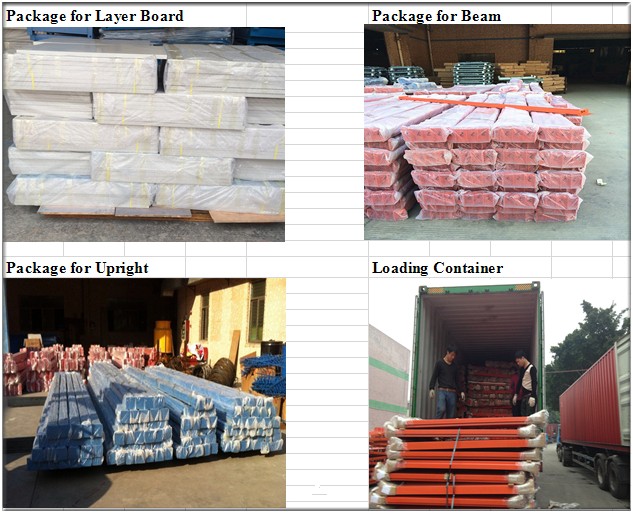

Packaging & Shipping

About XINMIAO

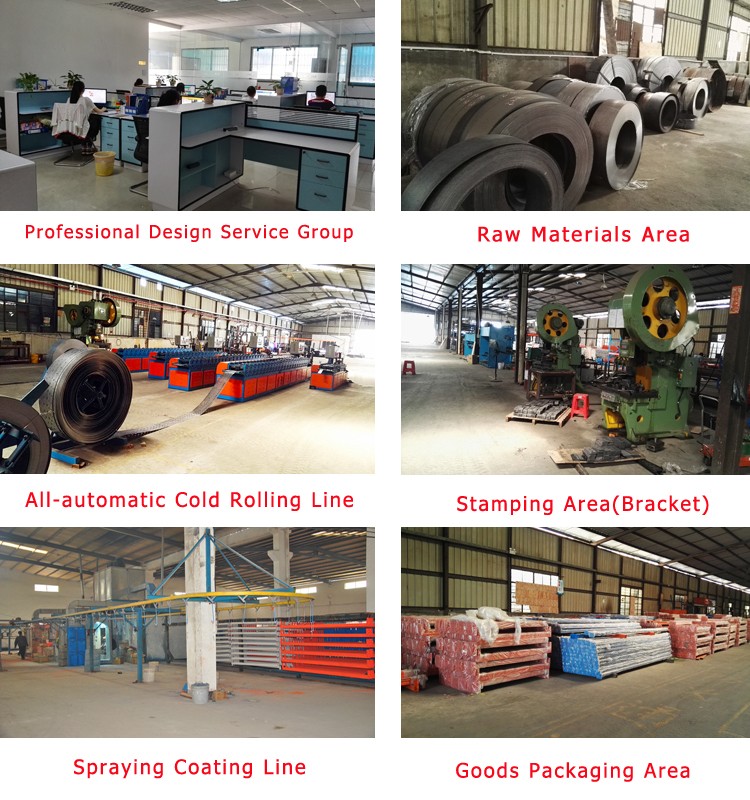

Dongguan Xinmiao Storage Equipment Co., Ltd. devotes itself to the design and manufacture of high-standard storage equipment. We specialize in producing various pallet racking, longspan shelving, warehouse racks, mould racks, wire containers, mobile filing cabinets, cantilever racks, rivet shelving, drive-in racks, mezzanines and platforms, carton flow racks, stacking racks, and other related warehouse equipment.

Through products and services aimed at providing complete assistance for all warehousing, showcasing, and distribution outlet requirements, we offer customers a wide range of premium-quality storage solutions at competitive prices, backed by rapid delivery and first-class after-sales service.

Frequently Asked Questions

Are you a factory or trading company?

We are a direct manufacturing factory specializing in the production of high-quality warehouse storage racking and shelving systems.

Where is your factory located, and how can I visit?

Our factory is located in Chang'an Town, Dongguan City, Guangdong Province, China, convenient to Shenzhen. You can fly directly to Shenzhen or Guangzhou Airport. All our clients from home and abroad are warmly welcome to visit us!

What raw materials are used for your storage racks?

The primary material used is high-grade Q235 Cold Rolled Steel, ensuring structural strength and long-term durability. We can also select alternative materials based on specific customer requirements.

Can I request samples prior to placing a bulk order?

Yes, we are pleased to offer rack section samples to customers for quality evaluation and structural confirmation.

How does your factory ensure product quality control?

Quality is our priority. We attach great importance to quality control throughout every step of production. Our facilities and products comply with ISO9001 and SGS authentication standards.

Can sizes and colors be customized according to warehouse requirements?

Yes, dimensions (height, depth, length) and powder coating colors can be fully customized according to warehouse layout and load capacity requirements.

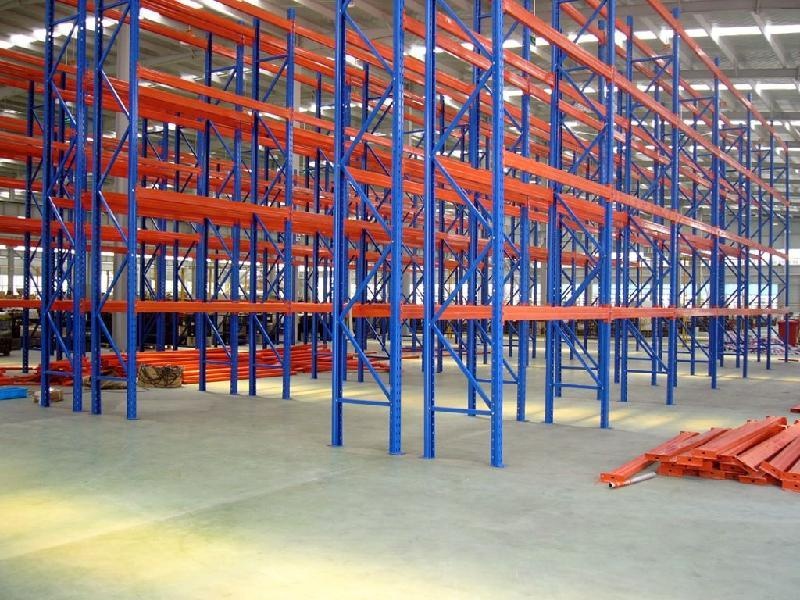

China Rack Factory Manufacturer Custom Warehouse Heavy Duty Pallet Racking Storage Shelf
