Precision Heavy-Duty Catalog
Engineered Industrial Storage & Long Span Racking Solutions
Discover our versatile spectrum of industrial longspan, cantilever, structural multi-tier, and high-density warehouse racking systems engineered to optimise vertical cube utilization and operational throughput.
2001EST.
25+ Years Racking Experience
30,000m²
Guangzhou Modern Factory
30,000t
Monthly Processing Capacity
120+
Countries Shipped Worldwide
Technical Whitepaper: Industrial Long Span Shelving Engineering & Procurement Architecture
In modern industrial intralogistics and high-density fulfillment centers, long span shelving systems represent the critical bridge between lightweight boltless archive racking and heavy-duty selective pallet racks. Specifically designed for manual handling, carton picking, oversized carton staging, and high-SKU inventory consolidation, longspan configurations offer clear span widths ranging from 1,200 mm to 2,700 mm without obstructive intermediate vertical columns.
As premier China wholesale long span shelving system manufacturers, Guangzhou HEDA Shelves Co., Ltd. formulates all structural profiles strictly adhering to FEM 10.2.02 and EN 15512 industrial testing standards. Manufactured using premium cold-rolled steel (grades Q235B and Q355B), our long span upright frames and step beams undergo robotic cold continuous profile rolling, precision punching with standard 50 mm or 75 mm adjustment pitches, and automated electrostatic polyester thermosetting powder coating.
Direct Engineering Insight: When engineering high-density longspan shelving for distribution hubs across humid tropical climates or high-seismic zones (such as Southeast Asia and the Pacific Rim), section modulus, post-punching torsional rigidity, and anchor footplate surface areas must be calculated against regional seismic acceleration factors (PGA) rather than standard static dead-loads alone.
Structural Comparison: Long Span Shelving vs. Alternative Racking Systems
Procurement directors and supply chain integrators frequently analyze the trade-offs between manual longspan shelving, multi-tier rack-supported mezzanines, and narrow-aisle pallet systems. The table below outlines technical thresholds across crucial logistical metrics:
| Storage System Type | Typical Beam Span | Uniform Distributed Load (UDL) | Floor Decking Media | Primary Operational Application |
|---|---|---|---|---|

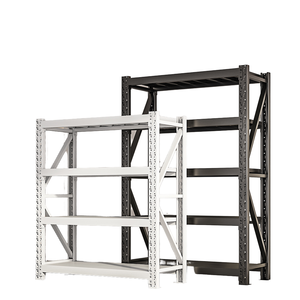

| HEDA Heavy Longspan (Type A) | 1,500 – 2,500 mm | 500 – 1,000 kg / level | Steel Deck / Wire Mesh / 18mm Plywood | Heavy industrial components, automotive parts, machinery |
| HEDA Medium Longspan (Type B) | 1,200 – 2,000 mm | 200 – 500 kg / level | Cold-rolled steel drop-in shelves | Retail stockrooms, e-commerce carton picking, apparel |

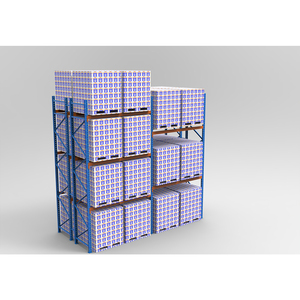

| Selective Pallet Racking | 2,300 – 3,900 mm | 1,000 – 4,500 kg / pair | Pallet support bars / Wire decking | Bulk unit load storage, forklift-operated pallets |
| Cantilever Racking System | Continuous arms | 500 – 3,000 kg / arm | Open arm or heavy steel grating | Extrusions, steel pipes, timber, sheet lumber |
| Rack-Supported Mezzanine | Configurable grid | 300 – 1,000 kg / m² | Galvanized perforated grating / Bimodal steel | Multi-tier manual fulfillment, parts distribution centers |
Material Selection, Surface Pre-treatment & Anti-Corrosion Standards
The operational lifecycle of industrial warehouse shelving depends heavily on metallurgy and chemical surface preparation. At HEDA Shelves' Guangzhou manufacturing facility, every steel coil is inspected for yield strength, elongation, and chemical homogeneity before entering the roll-forming lines. Our automated surface preparation line features an 8-stage pre-treatment bath incorporating alkaline degreasing, ultrasonic water rinsing, acid pickling, and microcrystalline zinc phosphating. This guarantees a coating adhesion strength exceeding Grade 1 (ASTM D3359 cross-hatch tape test), preventing underfilm rust migration even under 90%+ relative humidity common in equatorial distribution facilities.
Certified Q235B Steel
Exclusively built from certified high-tensile hot and cold-rolled steel coils for uncompromised structural integrity.
80-100µm Powder Coat
Electrostatic dry powder applied evenly, curing at 200°C for superior scratch, impact, and chemical resistance.
50mm Step Precision
CNC punched teardrop or butterfly upright perforations allow shelf reconfigurability without requiring special tooling.
Integral Safety Locks
Spring-loaded zinc safety clips prevent accidental beam displacement during forklift or heavy tote loading.
Strategic Sourcing Outlook: Future Trends in Long Span & Warehouse Racking (2025–2030)
As international supply chains evolve toward hybrid distribution models, third-party logistics (3PL) providers and manufacturing plants face shifting operational parameters. In the coming decade, wholesale procurement strategies for long span shelving and industrial storage systems will be dictated by four macro-shifts:
01
Integration with AMR & AGV Robotics
Longspan shelving is rapidly transitioning from passive manual racks to hybrid goods-to-person (G2P) pick zones. Shelving upright bases, clear bottom spans, and aisle clearances are now specifically dimensioned to accommodate Autonomous Mobile Robots (AMRs), automated carton shuttles, and guided robotic picking carts.
02
Modular Vertical Cube Optimization
Rising industrial land valuations in global distribution centers—including Singapore, Dubai, Rotterdam, and Los Angeles—are driving demand for vertical expansion. Multi-tier shelving-supported mezzanines constructed upon heavy-duty longspan uprights double or triple effective floor space without requiring physical building expansion.
03
Lifecycle Carbon Accounting & Green Steel
International procurement tenders increasingly audit Scope 3 embodied carbon emissions. HEDA Shelves utilizes electric arc furnace (EAF) steel with recycled scrap inputs, non-toxic RoHS-compliant thermoset powders, and tight container nested packing algorithms that dramatically shrink sea freight shipping footprint per cubic metre.
Factory Authority & Reliability
Why Global Logistics Leaders Partner with HEDA Shelves
Headquartered in Guangzhou since 2001, Guangzhou Heda Shelves Co., Ltd. is a verified Tier-1 Chinese direct manufacturer delivering certified turn-key storage infrastructure worldwide.
Full In-House Fabrication
Our 30,000 m² plant operates continuous roll-forming lines, automated laser plate cutters, robotic seam welders, and dual electrostatic coating tunnels under a single roof.
CE & ISO Quality Control
Certified under CE No. 2435-CPR-8605159 and ISO 9001:2015 No. 18624Q00169R0M, alongside rigorous third-party mechanical load testing and SGS raw-material assays.
Free 2D/3D CAD Layouts
Our structural engineering team produces preliminary CAD floor plans, pallet capacity projections, and realistic 3D renderings within 24 to 48 hours at zero cost to clients.
Optimized Global Freight
Close proximity to Guangzhou and Shenzhen deepwater ports enables rapid departure and tailored container nesting plans, driving down ocean freight cost per pallet position.
Procurement FAQ: Sourcing Long Span Shelving & Industrial Storage from China
Direct responses from our engineering and export departments to assist procurement professionals, project contractors, and logistics consultants evaluate supplier capability.
What is the standard lead time for wholesale long span shelving orders?
For standard medium-duty and heavy-duty longspan shelving configurations (500–1,000 kg UDL), our manufacturing cycle typically spans 15 to 20 working days for full 40ft HQ container volumes. Custom dimensions, bespoke RAL powder-coat shades, or structural mezzanine frameworks require approximately 20 to 25 business days, including complete pre-shipment trial assembly.
How do you verify structural load ratings and ensure job site safety?
Every structural profile generated by HEDA Shelves undergoes rigorous Finite Element Analysis (FEA) calculation and physical hydraulic destructive stress testing in our laboratory. Uprights and beams are tested to exceed European FEM 10.2.02 and SEMA guidelines with a minimum 1.5 safety factor. Mill test certificates (MTC) and formal load calculation dossiers accompany all commercial shipments.
Can HEDA Shelves engineer systems for active seismic zones?
Yes. Our engineering division regularly designs compliant racking installations for high seismic zones across Southeast Asia (the Philippines, Indonesia), Japan, and the Americas. By reinforcing upright column cross-sections, increasing baseplate anchor diameters, and integrating heavy cross-bracing frameworks, we deliver engineering calculations that meet local municipal building inspection standards.
What specific details are required to generate a custom 3D layout?
To obtain a complete 2D CAD architectural plan and 3D rendering, clients should provide: warehouse architectural drawings (DWG/PDF) with ceiling clear height and column locations, stored product dimensions and weights, handling equipment specifications (reach truck turning radius, stacker lift heights), and preferred picking methodologies (LIFO/FIFO).
