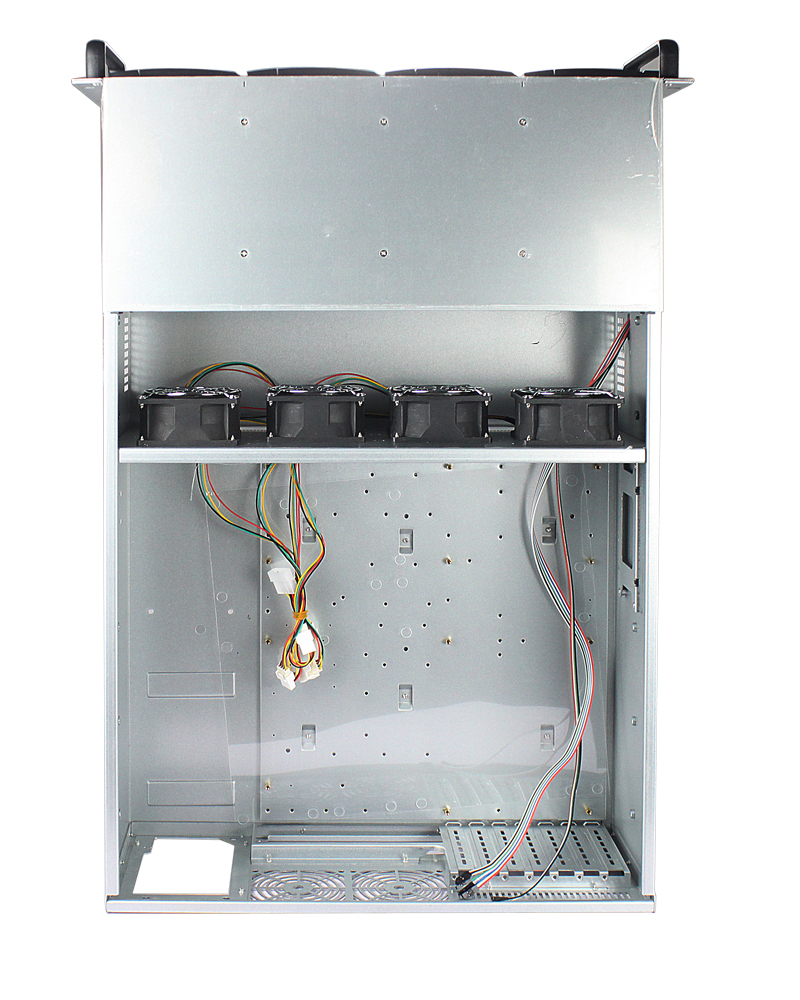

Hot Swap 4U 24-Bay Server Case High Storage Rackmount Chassis 3.5\" HDD ATX Horizontal Style Plastic Form Factor Fan for IPFS
Product Description
Product Description
4U 24 Bays Hot swap Server Case High Storage Rackmount Server Chassis 4U with 3.5" HDD for IPFS

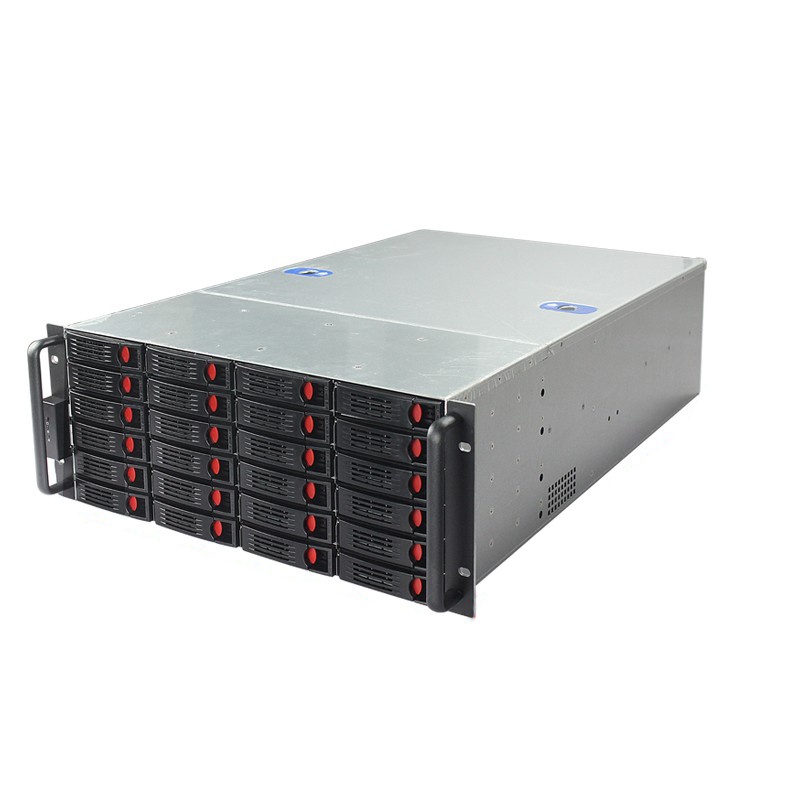

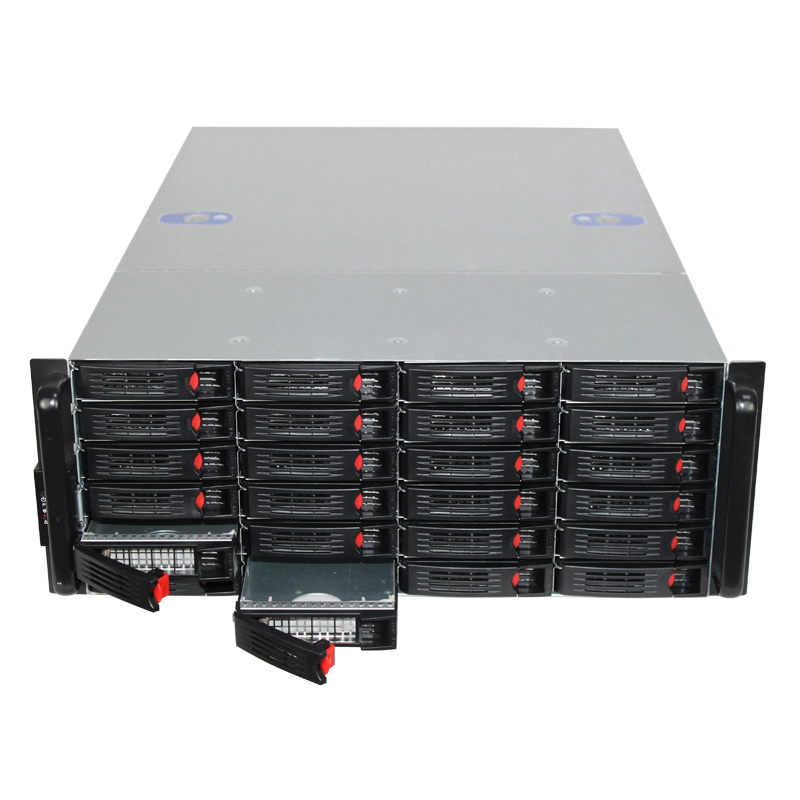

24 Bay Rackmount Hot Swap 4U Server Case
The 4U 24 bays chassis server takes away optical drives, drive cages and other clutter and leave a big open platform allowing for creative modification.
It's Strong, with no wobble , It's ideal for many applications where old style chassis no longer make sense.
Feature
✔
24 x hot-swappable SATA/SAS interfaces, twenty-four 3.5" OS drive brackets for maximum configuration flexibility (also 2-24 bays alternative).
✔

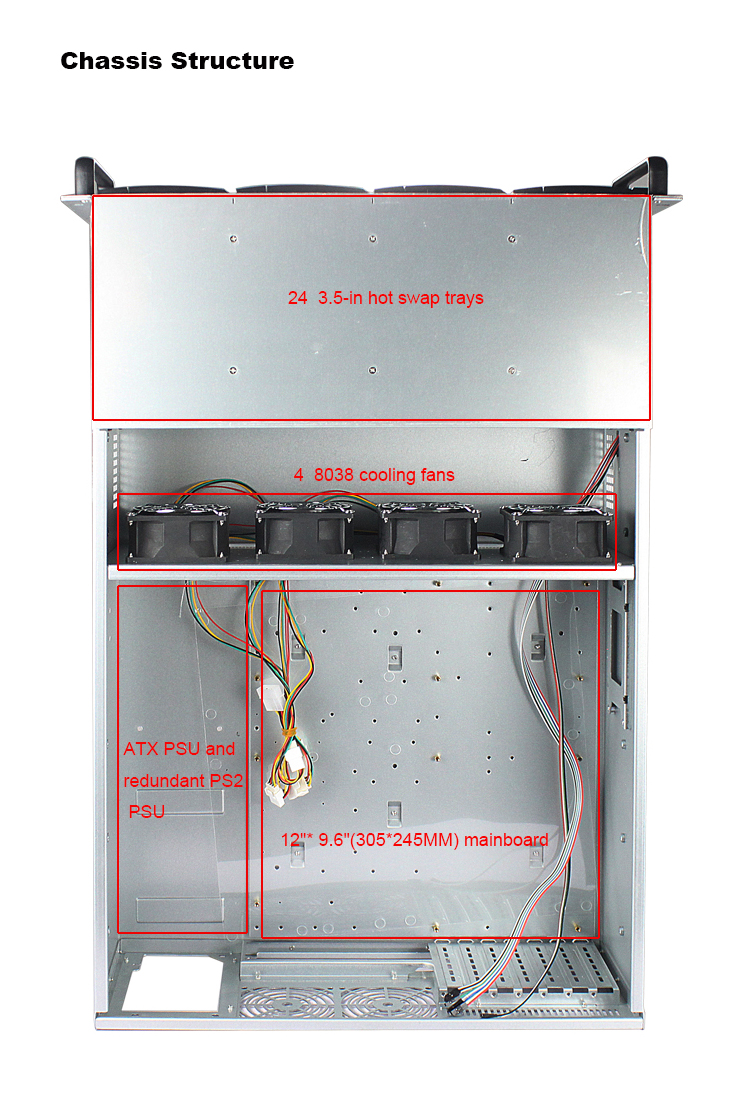

Support mainboard up to 12" * 9.6" (305 * 245MM), compatible with ATX, MATX, ITX mainboard.
✔
Support twenty-four hot swap SAS/SATA III drives.
✔

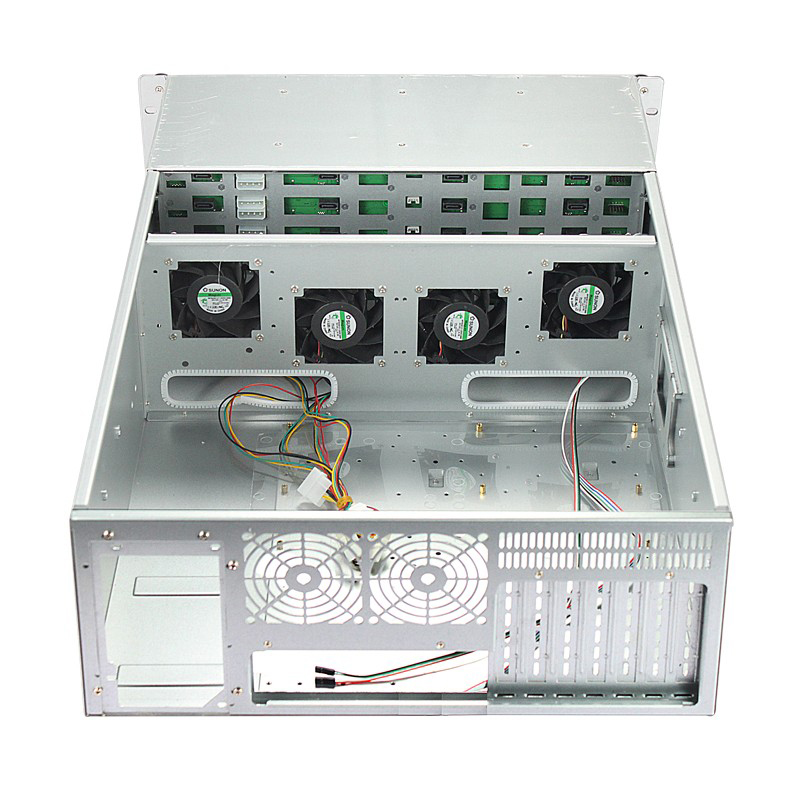

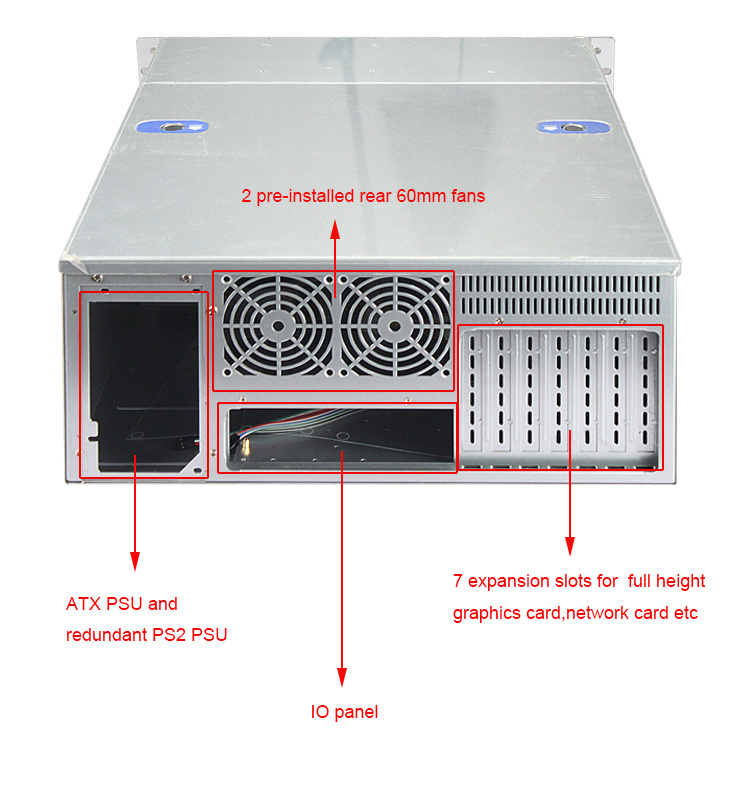

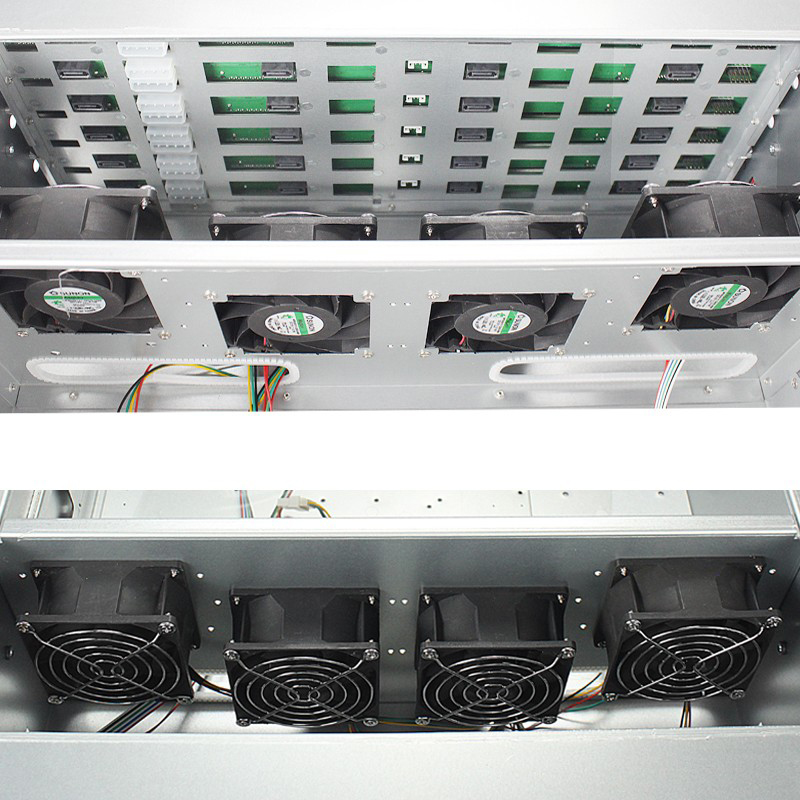

Come with four standard 80mm fans and pre-installed two rear 60mm fans for superior airflow.
✔
User friendly design on lifting handle (stand-alone).
✔
Truly isolated anti-vibration design on internal HDD and drive cages.
✔
Support ATX power supply and redundant PS2 PSU.
✔

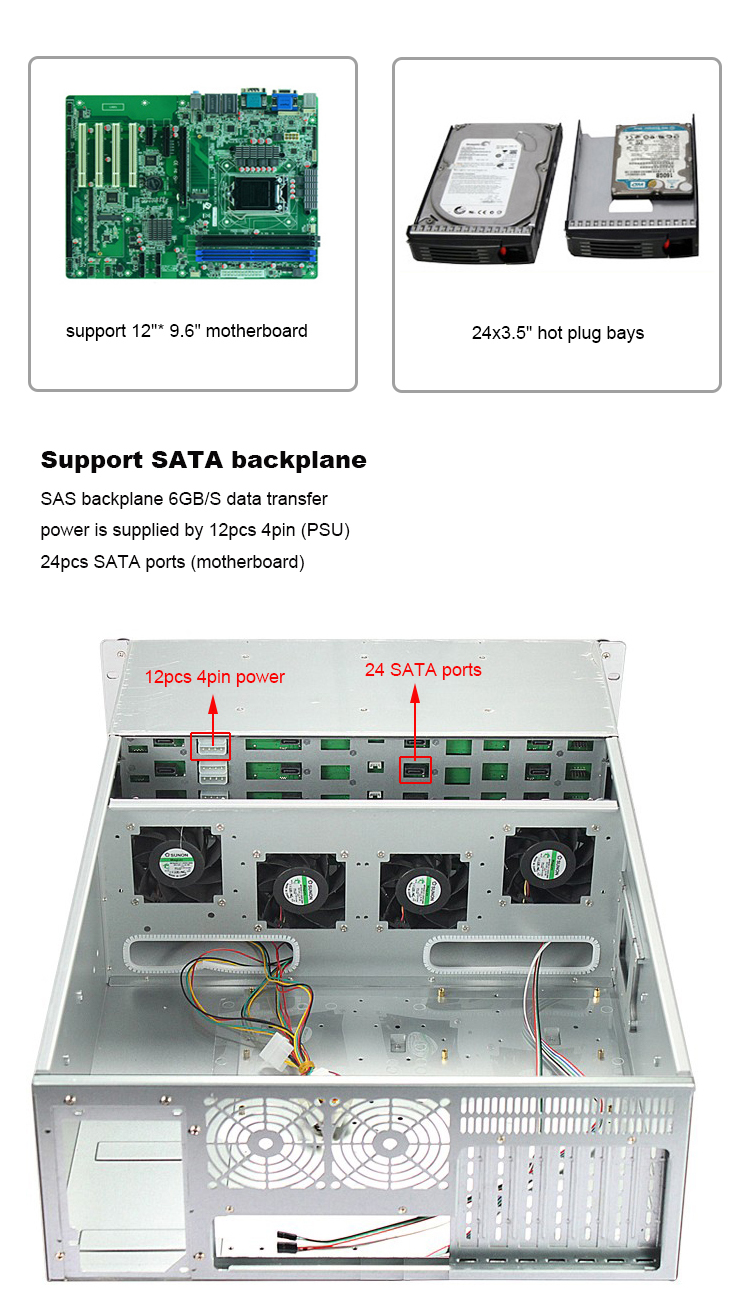

Come with SATA backplane.
✔
Front two USB2.0 ports.
✔
Card retainers to hold seven full height and vertical add-on cards.
✔
Support all operating systems.
✔
CE, RoHS Compliant.
Application
All typical industrial market segments:
- 1. Data acquisition for Gauging, Statistical Process Control and automatic machinetool control applications
- 2. Stand-alone or networked controller for data collection
- 3. Handling equipment, motion control
- 4. Manufacturing, cell controllers
- 5. General automation and factory applications
Technical Details
| Model | R466-24 |

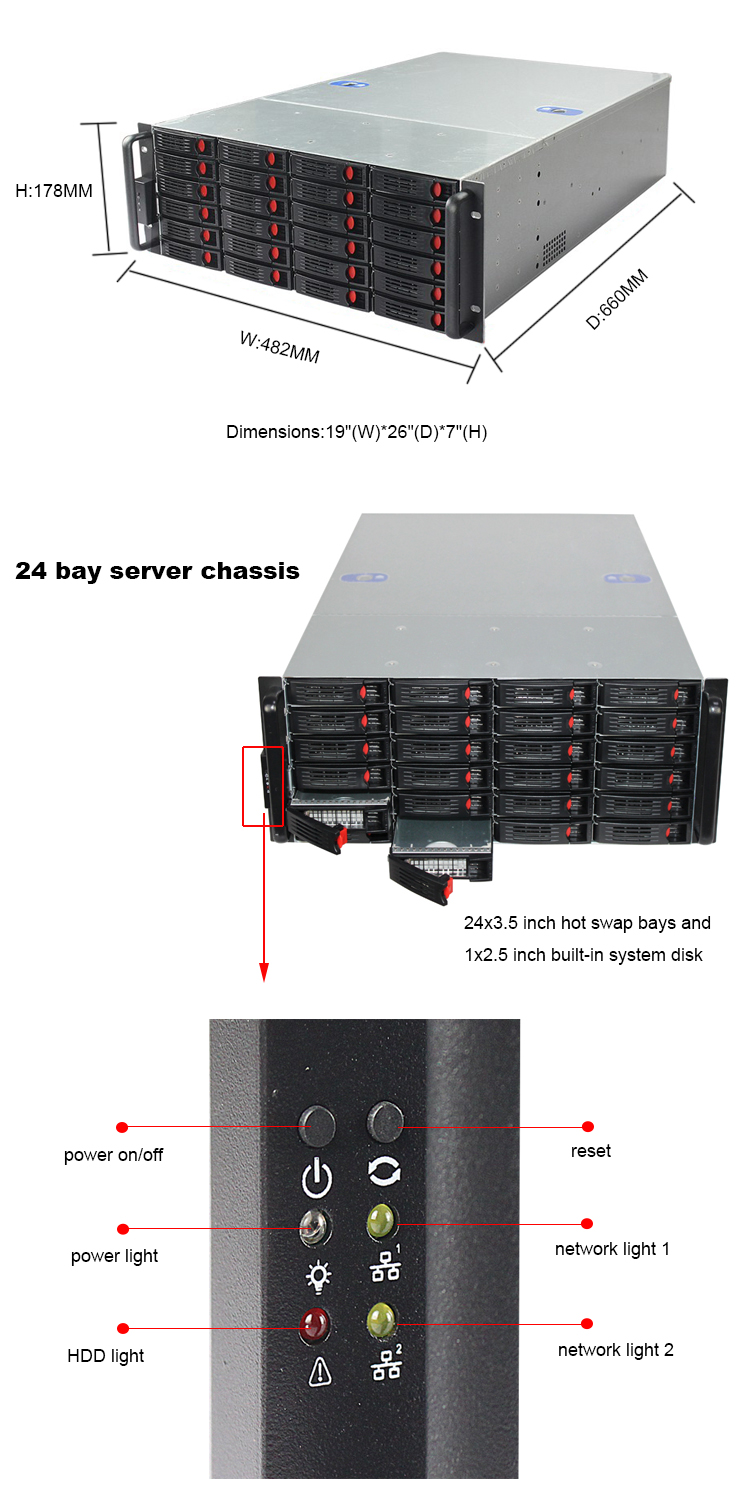

| Dimensions | 482(W)*660(D)*178mm(H) |
| Main Board | 12"* 9.6"(305*245MM) |
| Hard Disk | 24*3.5-inch Hot Swap Hard Disks + 1*built-in 2.5in system disk |
| CD-ROM | No |
| Power | ATX power supply and redundant PS2 PSU |
| Fan | 4*8038 cooling fan + 2 pre-installed rear 60mm fans |
| Expansion Slot | 7 full height and vertical expansion slots |
| Panel Setting | 1 Power button, 1 reset button, 1 hard disk light, 1 power light, 2 network light |
| Case Material | Ma Steel flowers-free zinc plating |
| Material Thickness | 1.2MM |
| Packaging size | 85*60*31cm |
| G.W | 16kg |
| N.W | 15.68kg |

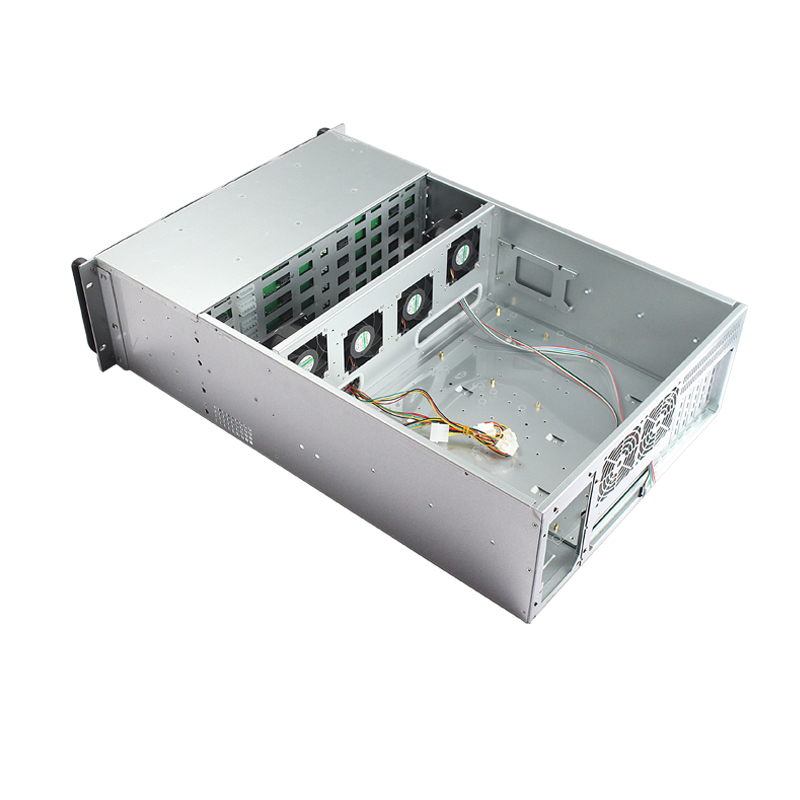

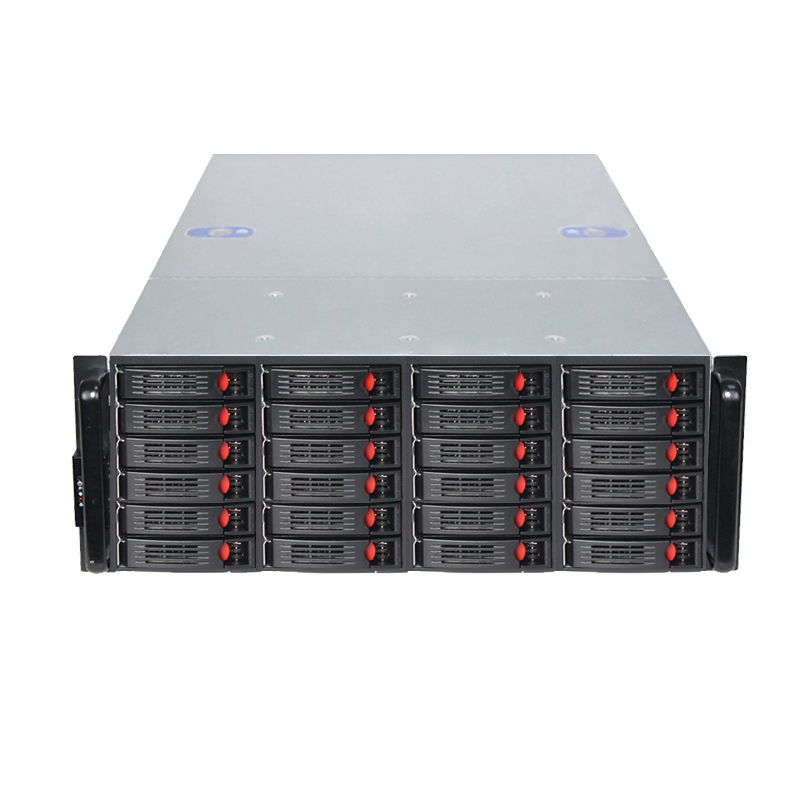

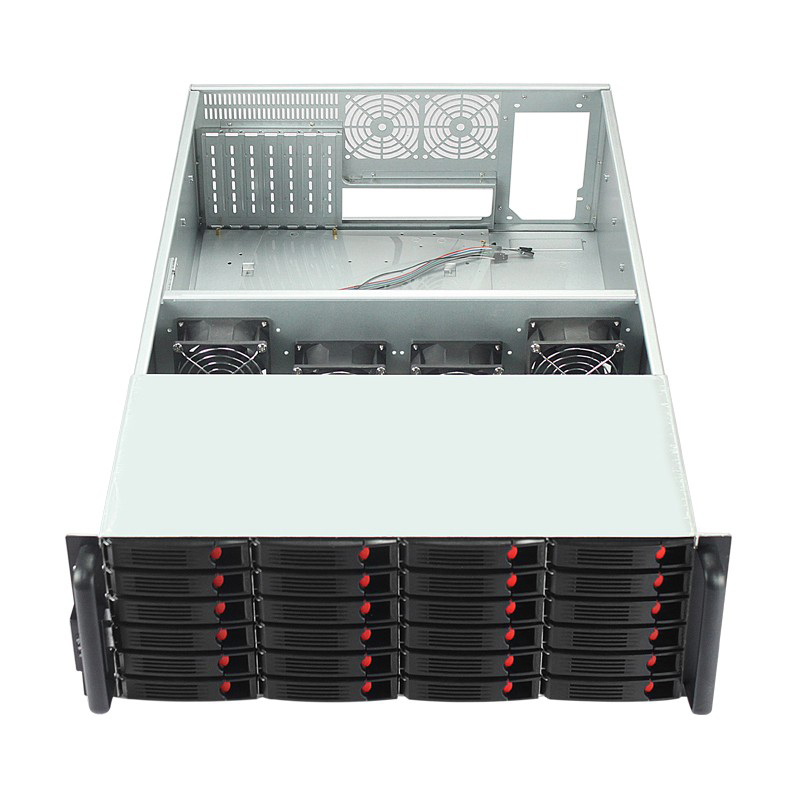

Detailed Images
Related Products

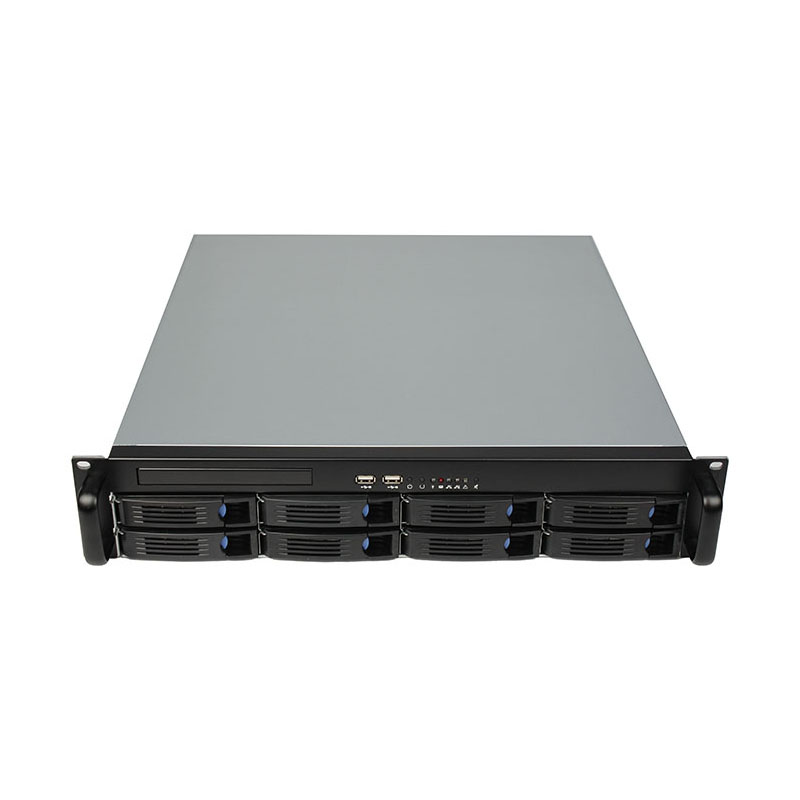

R248-8
8 Bays Hot Swap Server Case

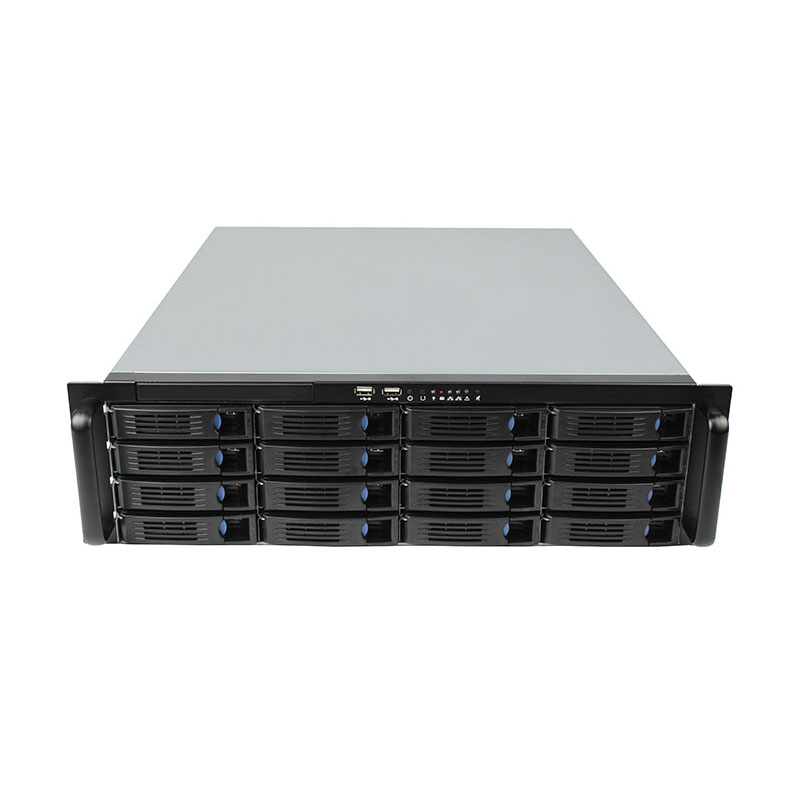

R355-16
16 Bays Hot Swap Server Case

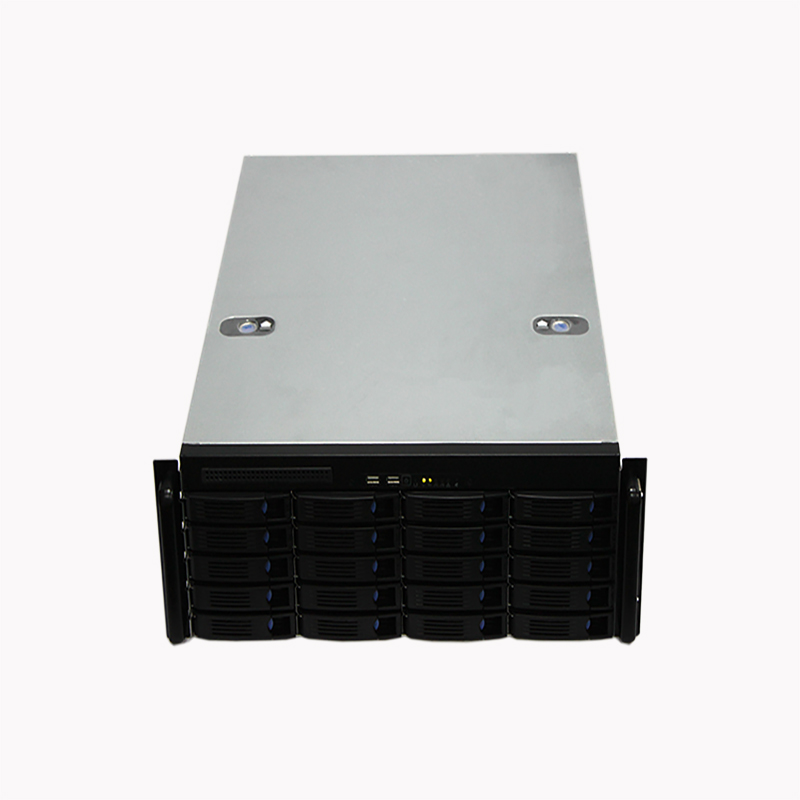

R466-20
20 Bays Hot Swap Server Case
Packing & Delivery

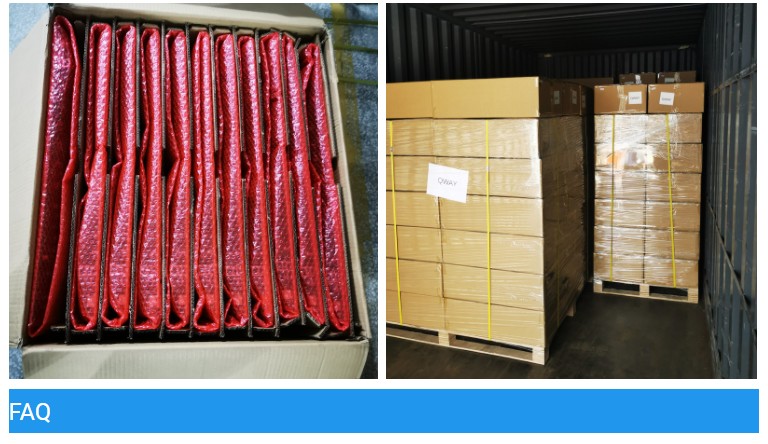

Packing Materials: Double carton and PE foam
Packing Size: 85*60*31cm
Weight: 16KG
Delivery: 3-7 days after payment via DHL, FedEx, UPS or your forwarder.
OEM Service
MOQ: 1 Set standard product for sample checking is available. OEM products MOQ is 50 Set.
OEM Process:
1st. Let us know your requirements or application and your planning QTY.
2nd. My sales engineer gives the best solution and quote according to your requirements.
3rd. Sign a sample contract and pay the payment.
4th. Make a sample and confirm it. Satisfy or modify some parts.
5th. Place a mass order. Return the sample cost. Pay the payment.
6th. We arrange the production. Deliver goods as agreed date.
