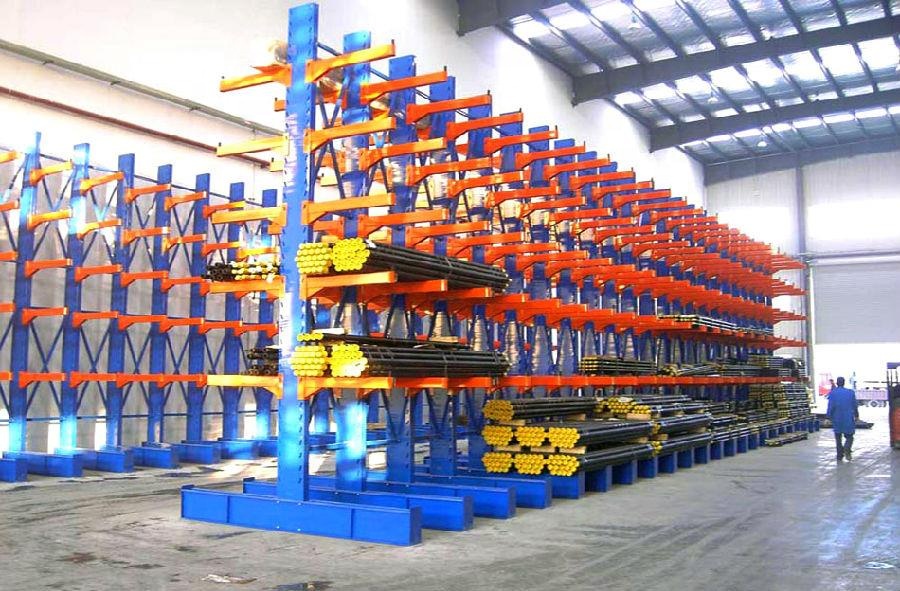

Heavy Duty Industrial Cantilever Racking System Steel Warehouse Shelves For Storage Durable For Warehouses Industrial Settings
Product Description
Heavy Duty Cantilever Rack Pallet Racking Industrial Warehouse Shelving
Technical Specifications
| Product Name | Heavy Duty Cantilever Racks | Usage | Warehouse Storage |
| Brand Name | NESRACK | Color | Blue, Orange |
| Place of Origin | Shandong, China | Application | Goods Storage |
| Type | Selective Pallet Rack | Surface Treatment | Powder Coating |
| Material | Steel | Size | Custom Size |
| Feature | Corrosion Protection | Packing | Customized Standard Export Package |
| Use | Warehouse Rack | Certification | ISO9001 / CE |
| Weight Capacity | 2000-5000kg/layer | Structure | Assembled |
| Width | 60/80 cm or Customized | Height | Max 12000mm |
| OEM & ODM | Supported |

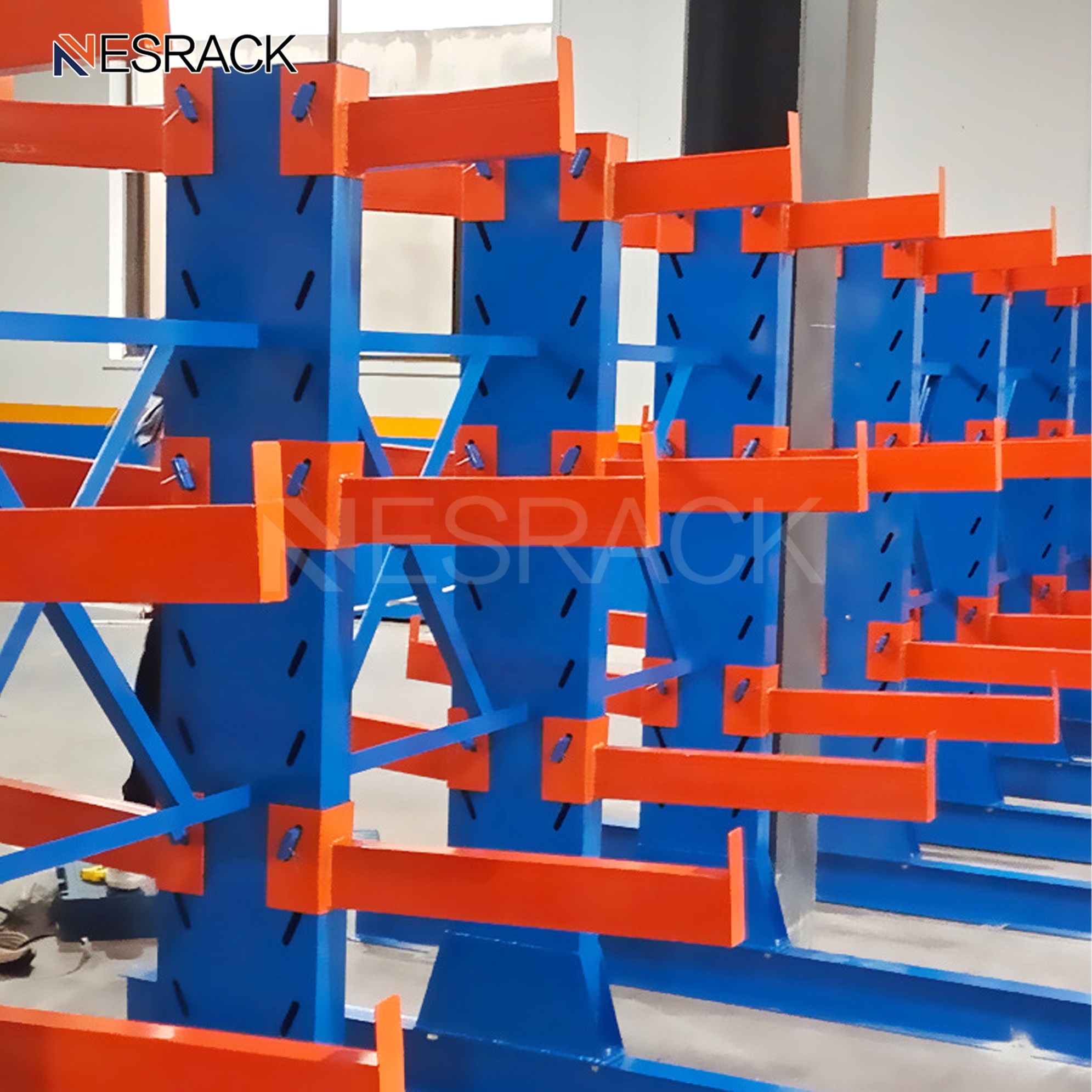

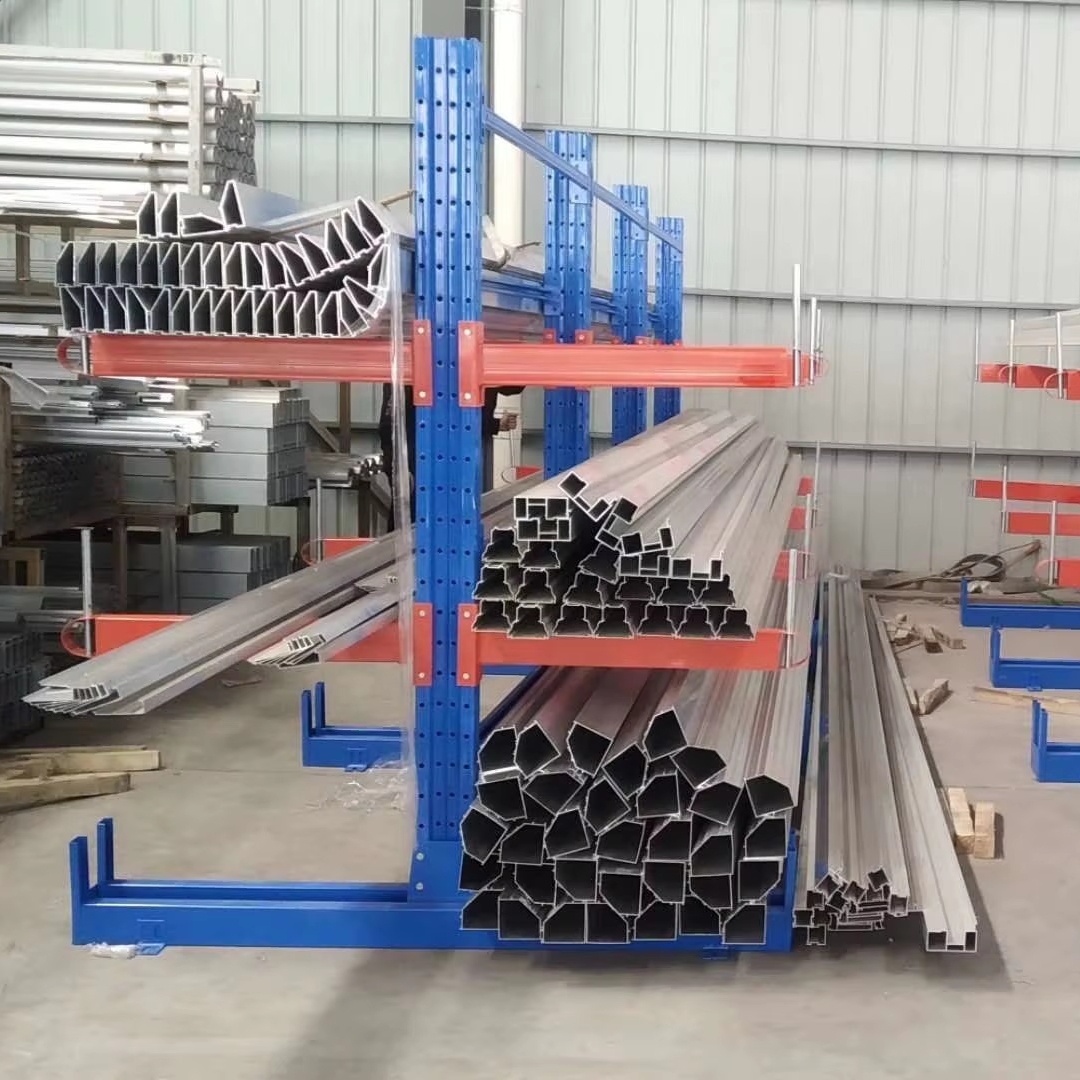

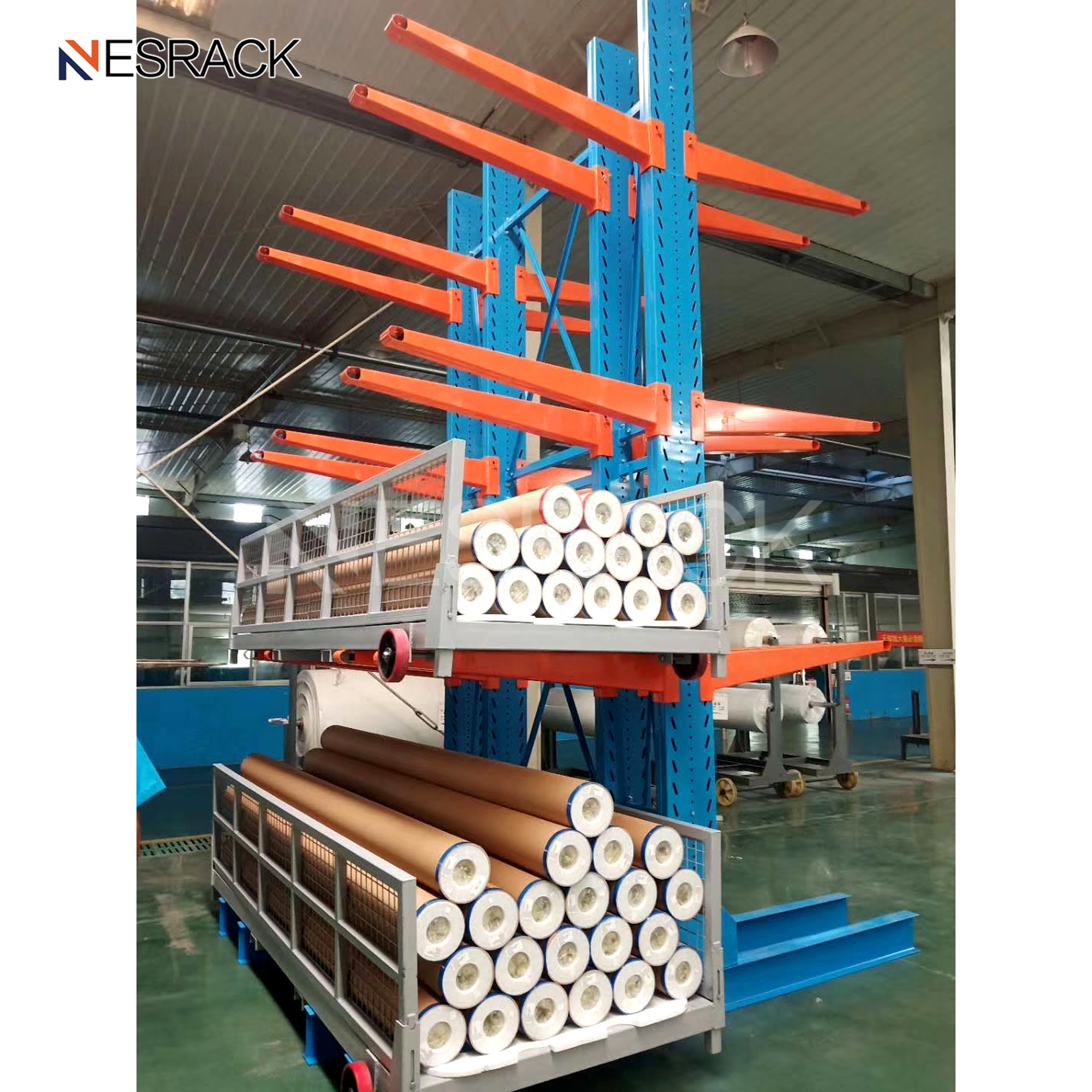

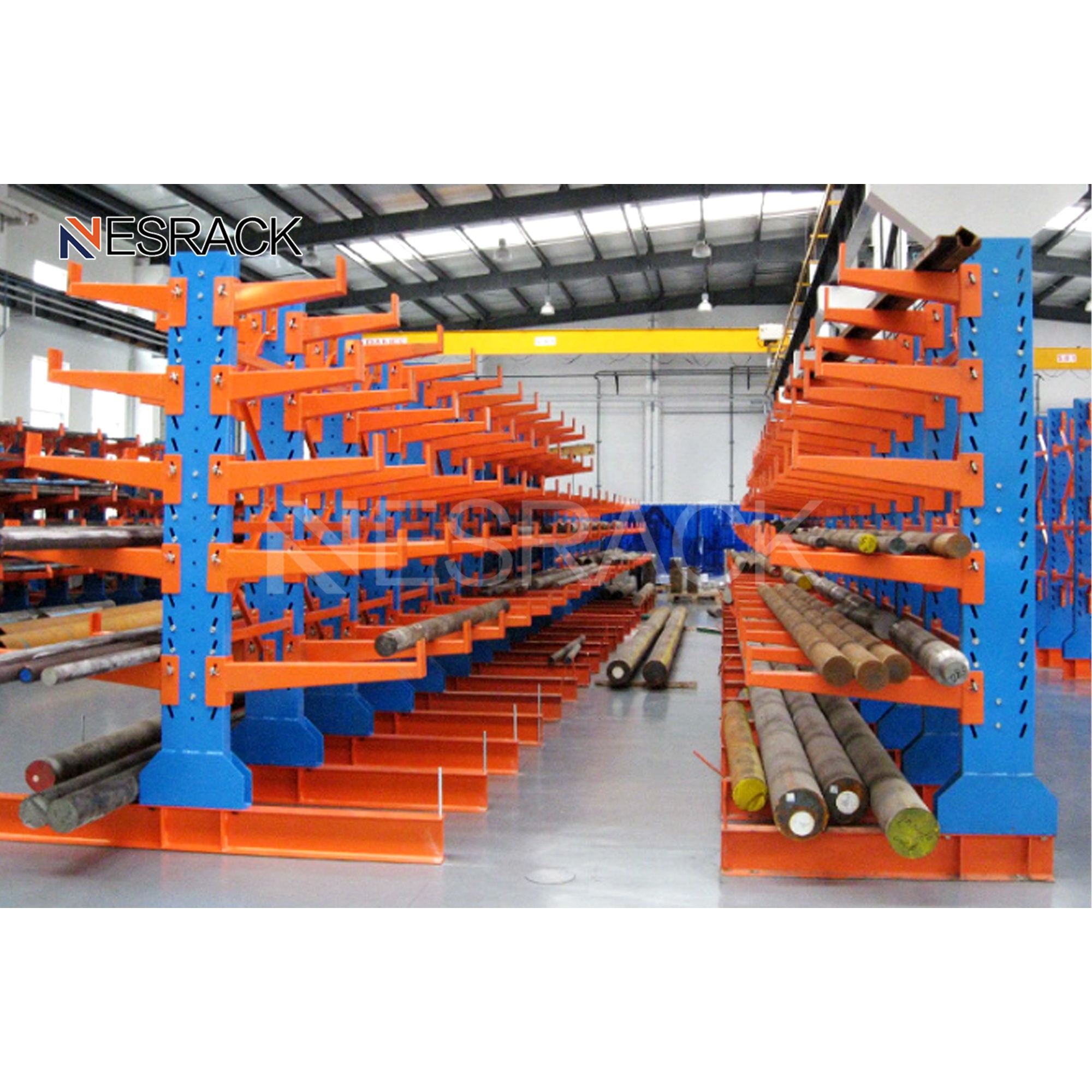

Cantilever Rack Efficiency
Cantilevered shelves are suitable for storing long-term and irregular goods. The front cantilever has a light structure and strong load-carrying capacity, which can greatly improve the utilization and working efficiency of the warehouse when storing irregular or special length materials.
Column Specification and Bearing Capacity
01.
Easy installation and reasonable structure.
02.
High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03.
Fix the columns and beams to prevent the beams from falling due to improper operation.
04.
Increase the shelf load and adapt to more types of pallets.
| Column Height (mm) | 3 Layers Beam (kg) | 4 Layers Beam (kg) | 5 Layers Beam (kg) |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
Main Components
Frame Architecture
The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates, and screws.
•
Upright Columns
•
H-bracing and D-bracing
•
Base Plates
Beam Structure
The longest beam can be 4.5m, and the max loading capacity can be 4000kg per level. For other specifications, please contact us for details.
Success Cases
Exhibition
Company Profile
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD has focused on top quality storage and logistics equipment for over 15 years in China. With 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry. Today, NELSON has been one of the producers of quality pallet racking and other racking equipments, such as: drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, light duty shelving. NELSON Racking is located in the beautiful Chinese city Jinan. As a global supplier in the heavy duty, medium duty, light duty racking equipment and related accessories, NELSON Racking is dedicated to creating added value for customers around the world.
Our Partner
Packing & Delivery
Standard Export Packaging
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that I can quote the most cost-effective option.
Recommend Products
Frequently Asked Questions (FAQ)
Q1: Why choose NESRACK storage systems?
We have a professional design team, adequate production capacity, and hold ISO and CE certificates. All products comply with AS4084, RMI, and FEM international standards.
Q2: What steel materials are used for your racks?
We strictly use high-grade Q235 and Q345 industrial steel for structural integrity and high weight capacities.
Q3: What is the complete purchasing process?
Design Drawing
→
Confirm Drawing
→
Quotation
→
PI
→
Confirm PI
→
30% Deposit
→
Manufacture
→
QC Inspect
→
Pay Balance
→
Shipping
Q4: How are products packed for shipment?
We use standard export packaging: all components are bundled securely with steel belts and fully covered with protective wrapping film.
Q5: What is the Minimum Order Quantity (MOQ)?
The MOQ is normally one 20ft container; this can also vary depending on the specific dimensions and specifications of your racking requirements.
Q6: What are the payment terms and delivery times?
We accept T/T, L/C at sight, etc. Delivery normally takes 3 to 4 weeks upon receipt of the deposit.
