Industrial-Grade Heavy Duty Racking Systems
Designed and manufactured under strict ISO 9001:2015 and CE certification standards. Sourced directly from our Guangzhou manufacturing facility with custom load checks, high-yield steel coils, and automated structural fabrication.
Engineering White Paper: Heavy-Duty Racking Procurement & Manufacturing Ecosystem in China
As logistics operations face unprecedented pressure from rising industrial land costs and automated omnichannel fulfillment, the global supply chain relies extensively on high-efficiency, structurally validated warehouse infrastructure. Sourcing directly from specialized Chinese wholesale heavy-duty racking factories offers international EPC contractors, 3PL logistics giants, and facility managers a critical balance between structural resilience and capital expenditure efficiency.
Modern heavy-duty racking manufacturing transcends simple metal folding. It demands high-yield certified Q235B and Q355B structural steel coils, progressive continuous roll-forming lines, automated punching centers ensuring sub-millimeter connector tolerances, and multi-stage anti-corrosion chemical pre-treatments. Guangzhou Heda Shelves Co., Ltd. leads this industrial paradigm with 25 years of end-to-end manufacturing excellence, providing bespoke engineered installations across Southeast Asia, the Middle East, Central Asia, and the Americas.
Structural Comparison: Primary Heavy-Duty Warehouse Storage Modalities
| System Classification | Space Utilization | Pallet Selectivity | Handling Equipment Required | Ideal Industry Application |
|---|---|---|---|---|

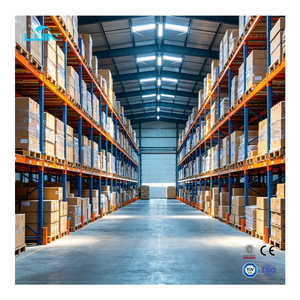

| Selective Pallet Racking | 40% - 50% Floor Density | 100% Direct Access | Standard Counterbalance / Reach Truck | Omnichannel DCs, Retail, High-SKU Fulfillment |
| Very Narrow Aisle (VNA) | 65% - 75% Floor Density | 100% Direct Access | Articulated or Guide-Rail Turret Trucks | High-Ceiling Logistics Hubs, Expensive Urban Real Estate |
| Radio Shuttle System | 80% - 85% Floor Density | LIFO / FIFO (Per Channel) | Semi-Automated Pallet Shuttle + Forklift | Cold Storage Facilities, FMCG Bulk, Beverage |
| Push-Back Racking | 70% - 75% Floor Density | LIFO Rotation | Standard Reach / Counterbalance | Medium Rotation SKUs, Food Processing Buffer |

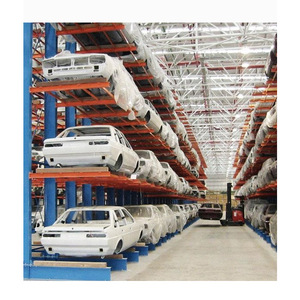

| Heavy-Duty Cantilever | Linear Variable Density | 100% Longitudinal Access | Side-Loader or Wide-Fork Reach Trucks | Steel Tubing, Timber, Extrusions, Automotive Frames |
Direct Factory Advantages: The Guangzhou Heda Manufacturing Standard
Operating from a 30,000 square meter standardized production hub in Guangzhou, Heda Shelves executes total vertical integration across all manufacturing phases. This singular internal custody eliminates subcontracting quality drift and provides project procurement officers with uncompromising traceability:
- Certified Raw Coil Stock: Directly procured primary hot-rolled steel featuring certified chemical analysis and yield strength documentation.

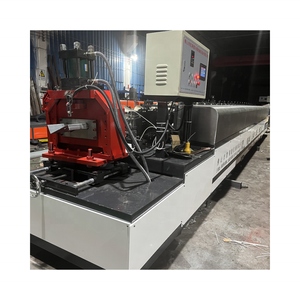

- Automated CNC Cold Roll-Forming: Dedicated production lines preserving material tensile integrity without micro-cracking across heavy profiles.
- Automated Robotic Welding: Precision beam-connector welding lines delivering consistent penetration and zero joint embrittlement.
- Eco-Phosphate Surface Pretreatment: Advanced acid pickling and immersion phosphating prior to electrostatic polyester powder coating.
Future Sourcing & Procurement Trends (2025–2030)
Industrial storage procurement is transitioning from passive catalog purchasing to data-driven structural integration. Facility planners must align racking investments with evolving automation and regulatory standards.
ASRS & Shuttle-Ready Engineering
Traditional static storage is rapidly retrofitting for semi-automation. Forward-looking procurement mandates tighter beam deflection tolerances (down to 1/300 or 1/500 of span) to ensure immediate compatibility with Autonomous Mobile Robots (AMRs) and automated pallet shuttle carts.
Standardized Modular Expansion
Supply chain volatility demands flexible warehouse architecture. Buyers increasingly prioritize modular teardrop and universal slotted uprights that allow rapid vertical tier additions and effortless reconfiguration into rack-supported mezzanines as volume demands scale.
Extreme Climate Coatings
With massive cold-chain expansion and regional logistics hubs situated in humid coastal zones (such as Southeast Asia and the Gulf), procurement specifications have shifted toward epoxy-polyester anti-corrosive powder chemistries and continuous hot-dip galvanization.
Require a Verified Structural Load Calculation & Layout?
Collaborate directly with our senior structural engineering team. Submit your architectural floor plan, clear ceiling height, slab load ratings, and pallet profiles for a free, fully engineered 2D CAD layout and 3D architectural rendering within 24 to 48 hours.
Critical Quality Verification Standards for China Factory Sourcing
Sourcing wholesale industrial steel racking from China requires a robust supplier evaluation methodology. Global engineering contractors must look beyond gross per-ton quotation metrics to analyze manufacturing physics and structural integrity safeguards.
1. Structural Steel Chemistry and Yield Performance
A reputable heavy-duty racking factory must furnish Mill Test Certificates (MTC) per batch of coil steel. For critical load-bearing upright frames, high-yield Q355B (equivalent to ASTM A572 Grade 50) is mandated for optimal section properties with minimized dead weight. Substandard mills often substitute lower-yield construction steel, resulting in early localized buckling under maximum rated dynamic storage loads.
2. Advanced Pre-Treatment and Powder Metallurgy
Structural longevity is predominantly determined before the powder paint is electrostatically cured. High-capacity Chinese manufacturing plants maintain enclosed continuous chemical dipping or spraying tunnels including: degreasing, hot alkaline wash, dual rinse, eco-friendly zinc or iron phosphating, and deionized water passivation. This ensures coating adhesion meeting ASTM cross-hatch standards and salt-spray resistance exceeding 500 hours.
3. Global Compliance Certifications
Wholesale racking factories serving global EPC contracts must maintain accredited third-party certifications. Guangzhou Heda Shelves Co., Ltd. holds CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Accreditation (No. 18624Q00169R0M), and environmental RoHS compliance for all finishing coatings, ensuring seamless customs clearance and building permit validation worldwide.
Frequently Asked Questions on Heavy-Duty Racking Procurement
Essential technical, operational, and commercial insights for international procurement officers sourcing directly from China factories.
