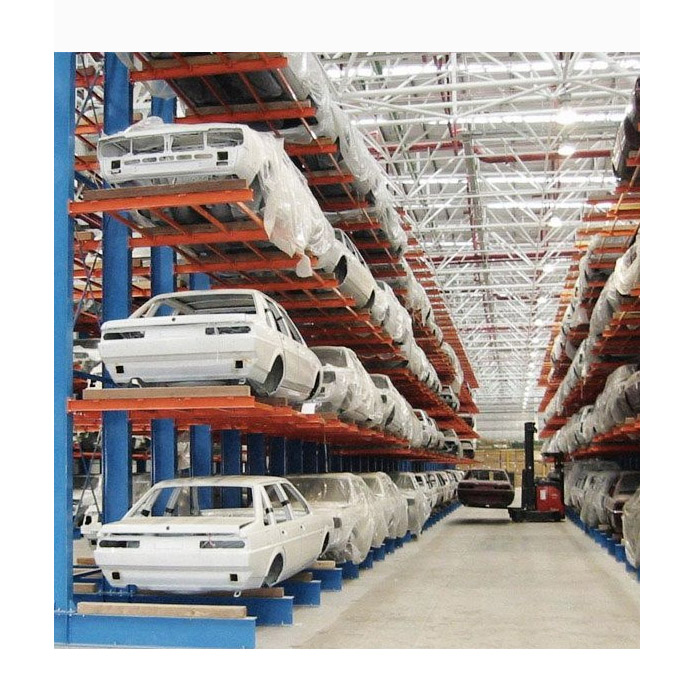

Jracking CE Certified Industrial Shelving Warehouse Racks Heavy-Duty Cantilever Racking System for Car Storage
Product Description
| Name | Cantilever Racking | Material | Q235B Steel |
| Size | Customized Size | Color | Customized Color |
| Depth | Customized | Weight Capacity | 1000kg/arm |
| Width | Customized | Height | Customized |
| Finish | Powder coating; Hot Dip Galvanized | ||
| Packing | Export Package | ||
| Certification | RMI/CE/ISO/TUV/AS4084-2012 | ||
| MOQ | One 20ft/40ft Container | ||
| Free Sample | Available (Delivery Cost on Buyer) | ||
| OEM | Available | ||
1

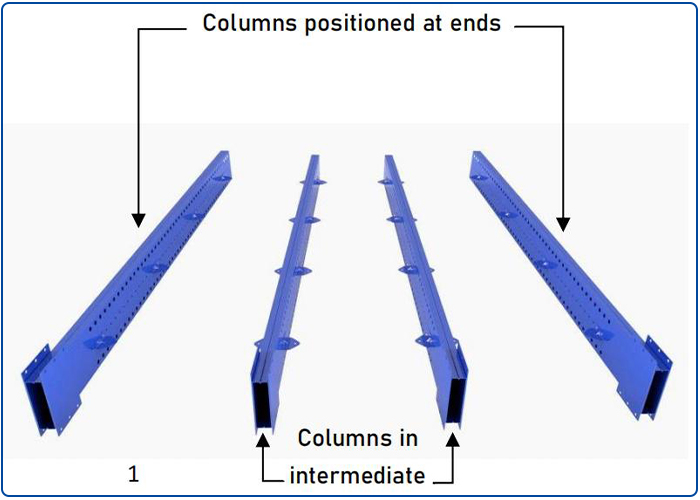

Connect 1 row of MK bracing brackets at the inside of columns positioned at ends, meanwhile connect 2 rows of brackets at both sides of columns in intermediate, as shown.
2

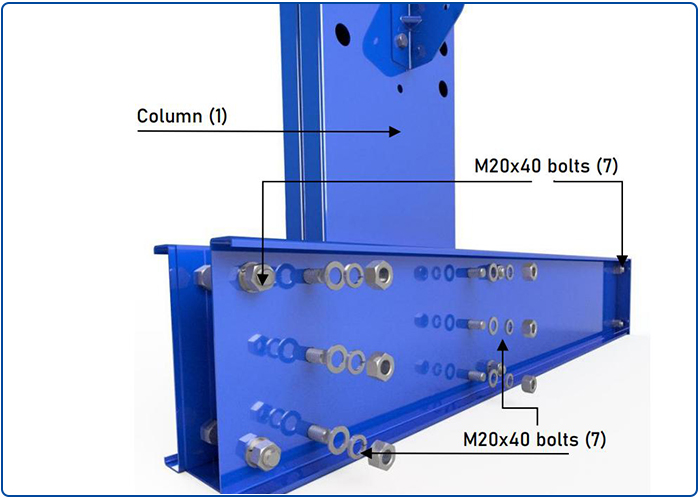

Position the column (1) vertically. Position the column (1) into the fixing MK base, as shown. Connect the column and the base with M20x40 bolts (7). Fastening the other M20x40 bolts (7) on the base. Recommended torque: 86~103N.M.
3

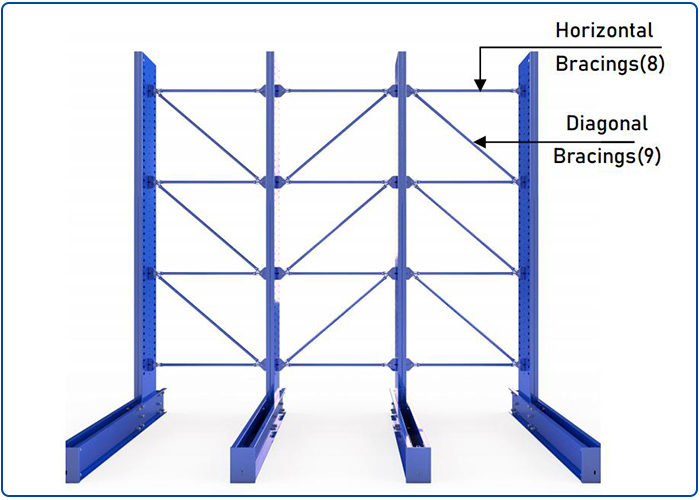

The standard composition of the vertical bracing, after it has been fastened to the columns, is as shown in the illustration.
4

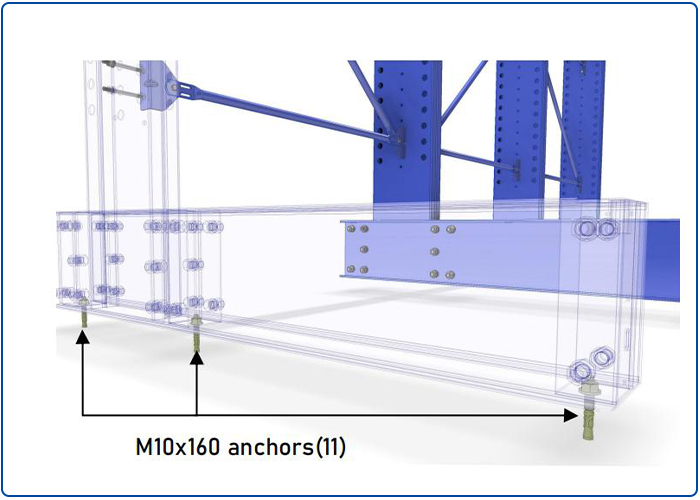

The bases must be leveled with metal leveling plates if necessary. Then, fully tighten the M20x40 bolts (7) on the base front as indicated in step 2. Using the drill-holes in the bases for fastening them to the floor use a 014 bit and drill a hole with a minimum depth of 100 mm. Remove the drilling remains and carefully hammer in the fastening M10x160 anchors (11). Firmly bolt the fastening plate in place. Recommended torque: 50 MN.
5

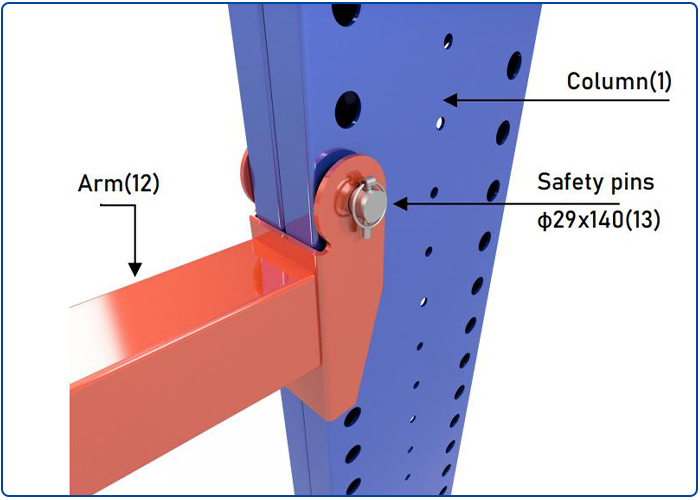

The arm (12) is fastened to the column (1) using safety pins Φ29x140 (13). Fit the arms (11) according to the heights and distribution shown on the corresponding project drawing, where applicable.
6

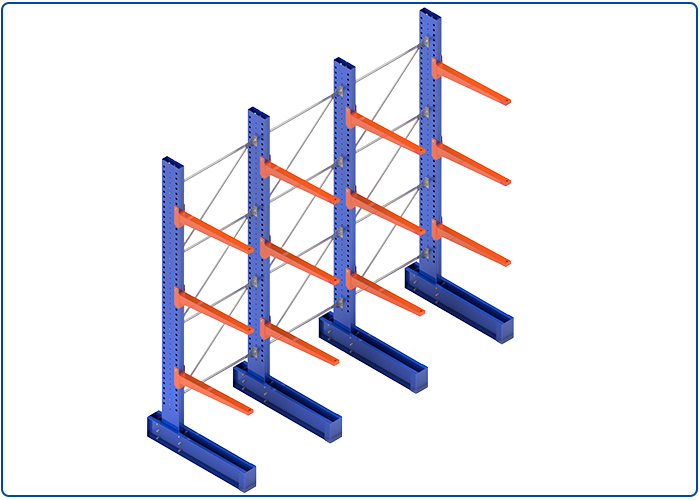

Finally, the completed structure should look like the illustration.
Frequently Asked Questions
❓ What are your trading and payment terms?
- Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. L/C and O/A are also available.
- Lead time: Normally 20-25 days after deposit received.
- Sample policy: Samples are always available for each model, ready in 7-15 days once payment received.
- Shipping port: Shanghai / Nanjing, China.
- Discounts: Offered for large quantities.
❓ How can my goods be delivered?
- Sea freight: Updated once destination seaport details are provided.
- Designated agent: Delivery can be coordinated directly with your nominated forwarder.
❓ What customer services do you provide?
- Inquiries replied to within 12 hours by professional English-speaking staff.
- Full OEM & ODM services to customize storage racks to specification.
- Professional engineering support to design optimal warehouse solutions.
❓ What is the complete purchase process?
Design drawing → Confirm drawing → Quotation → Proforma Invoice (PI) → Confirm PI → Arrange 30% deposit → Manufacture → QC inspection → Pay balance → Shipping.
❓ What advantages do you offer?
- Flexible Payment: Support for O/A 40-60 days.
- Fast Dispatch: Expedited production for urgent orders.
- Direct Pricing: Competitive factory-direct rates.
- Warranty: 2-year warranty with free replacement parts.
❓ Do you have MOQ limits and tooling charges for custom molds?
There is no strict MOQ, though a minimum of one 20ft container (~15 tons) is recommended for cost efficiency. For tooling requirements, the mold opening cost is collected before the initial order and is partially or fully refundable after reaching agreed volume thresholds.
