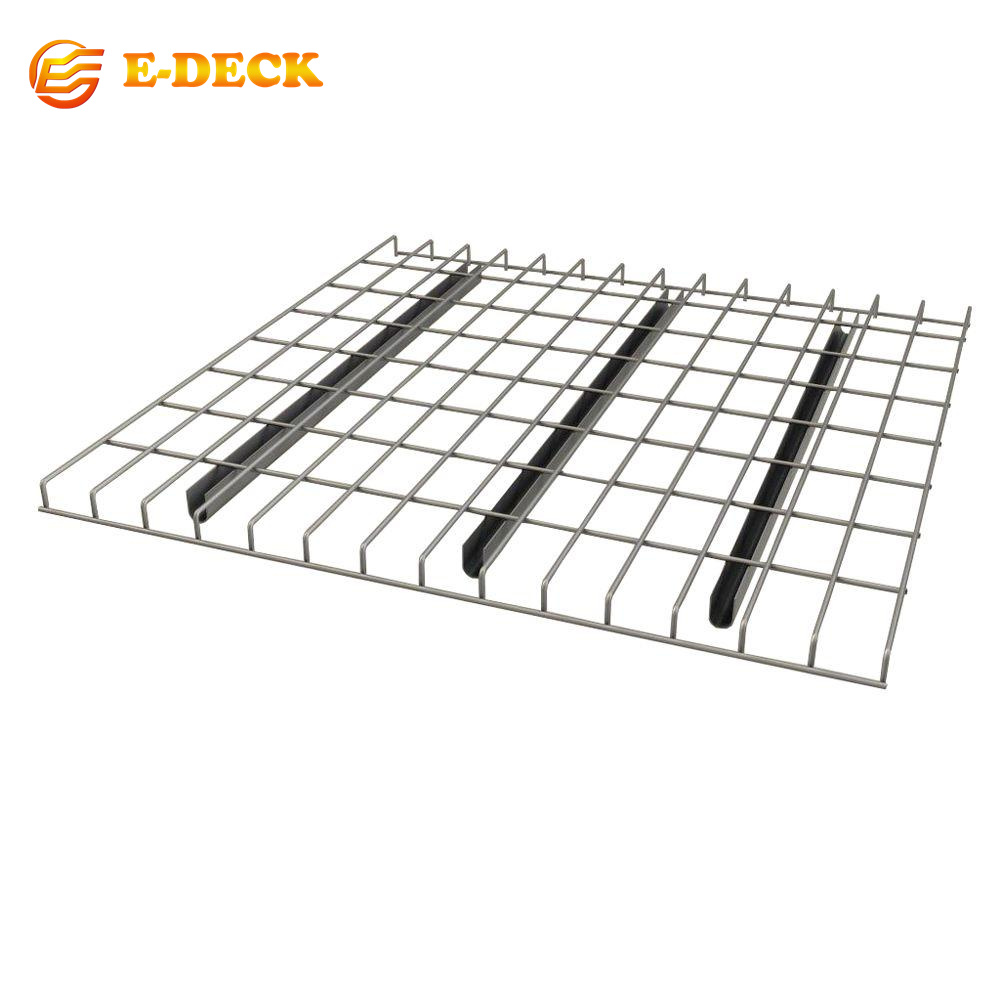

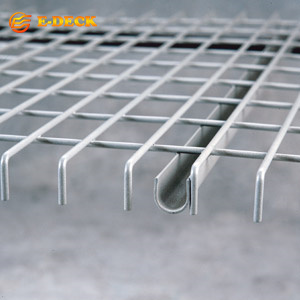

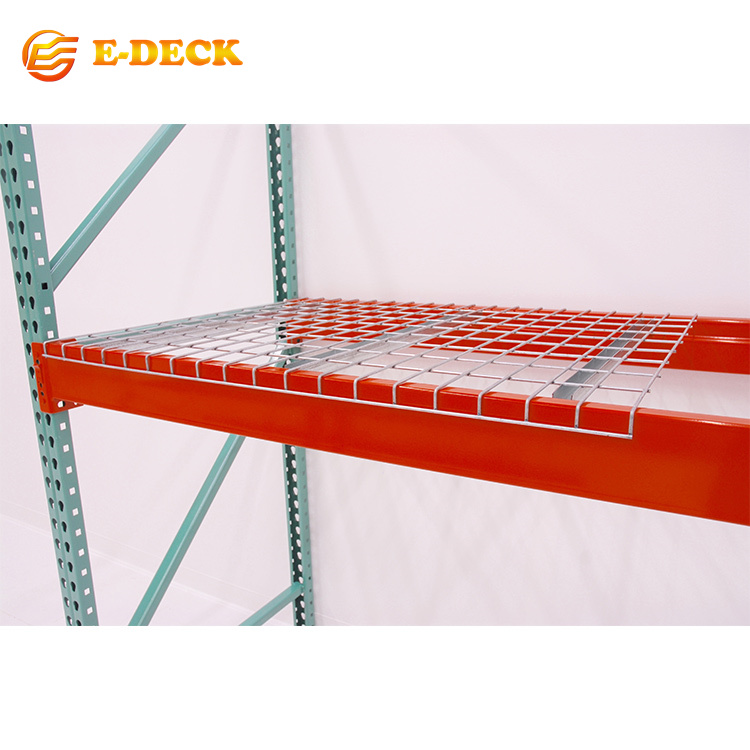

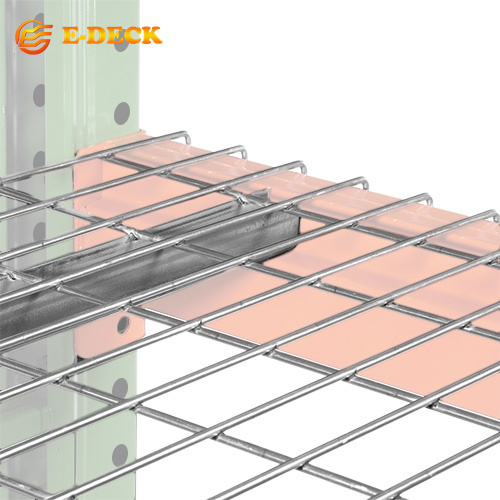

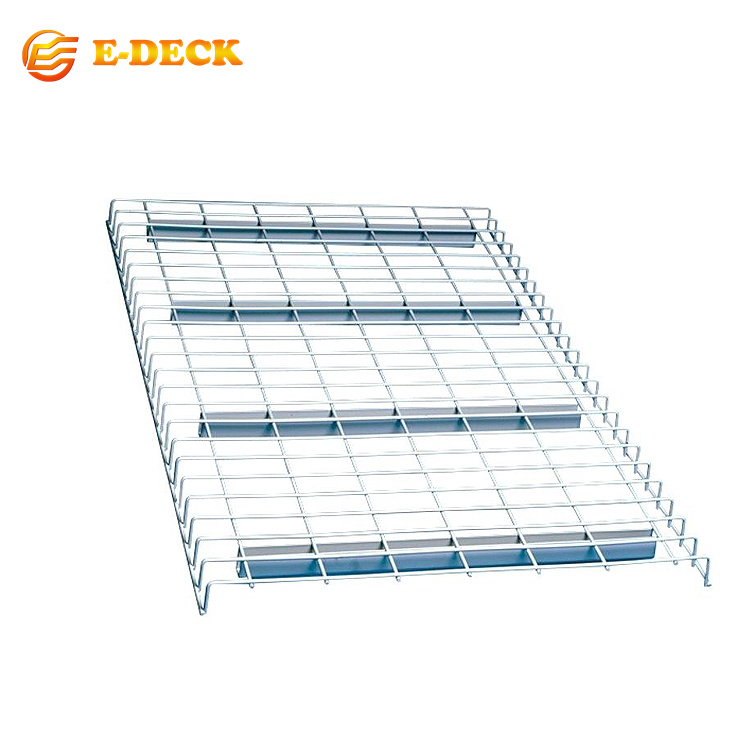

Custom Warehouse Storage Shelves U Channel Wire Mesh Decking For Pallet Racking System
Product Description

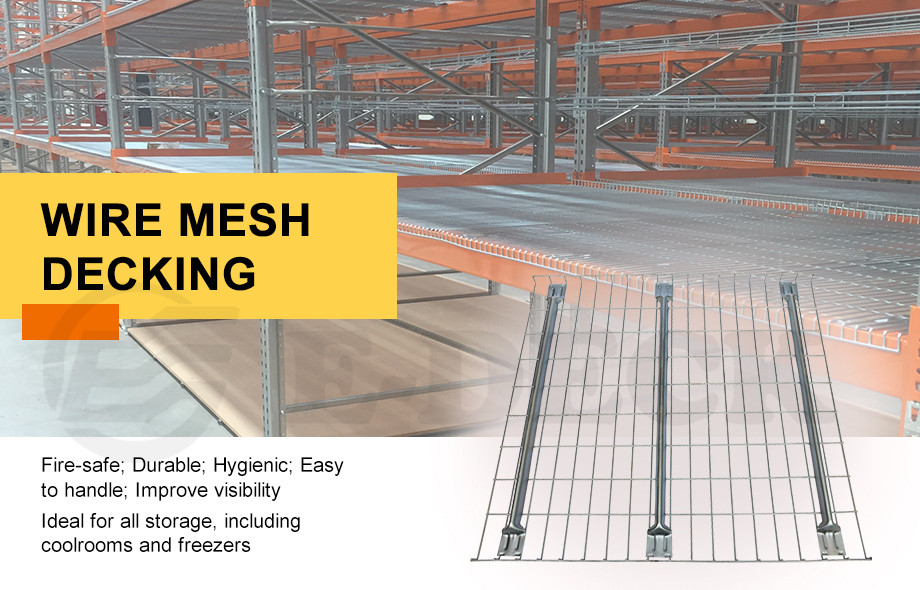

Designed for safety to meet fire code requirements and allows for dust and dirt to collect below your racking instead of on the shelves.
| A. Loading capacity 300kg | B. Loading capacity 800kg | C. Loading capacity 1000kg | |
|---|---|---|---|
| Mesh 50×150 mm | Mesh 50×100 mm | Mesh 50×100 mm | |
| Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) | |
| 600×880 | 1000×880 | 1050×1090 | 1000×1340 |
| 1000×880 | 1050×880 | 800×880 | 1050×1340 |
| 1050×880 | 1100×880 | 1200×880 | 800×1340 |
| 1100×880 | 1000×1090 | 1200×1090 | 1200×1340 |
American Size

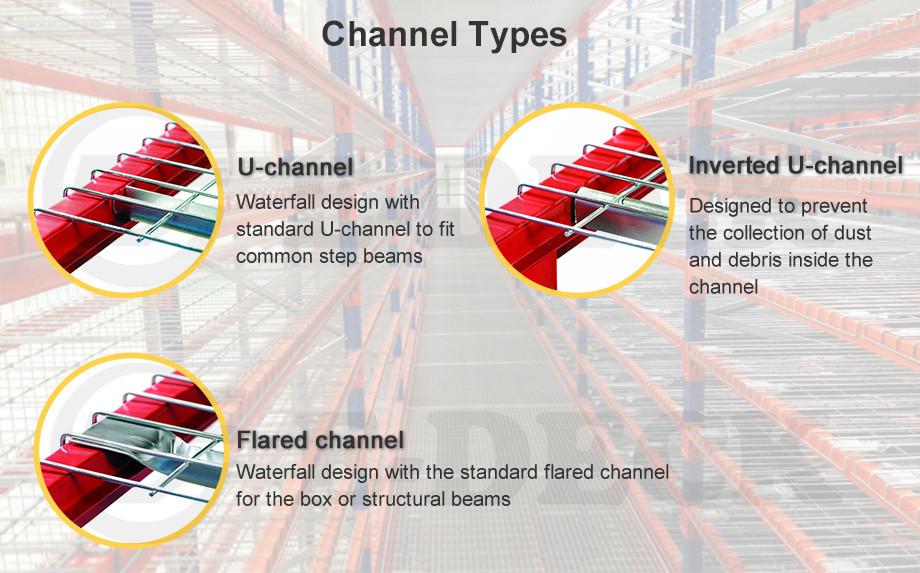

| Standard U-channel | Pallet Deck | |
|---|---|---|
| Dim (D×W) (inch) | Dim (D×W) (inch) | |
| 24"×46" | 42"×46" | 24"×46" |
| 30"×46" | 42"×52" | 36"×46" |
| 36"×34" | 42"×58" | 36"×52" |
| 36"×46" | 48"×34" | 42"×46" |
| 36"×52" | 48"×46" | 42"×52" |
| 36"×58" | 48"×52" | 44"×46" |
| 42"×34" | 48"×58" | 48"×46" |
Tell us what you need and we’ll make our wire decking to suit your specific application based on loading capacities, equipment used, load handling and other criteria.

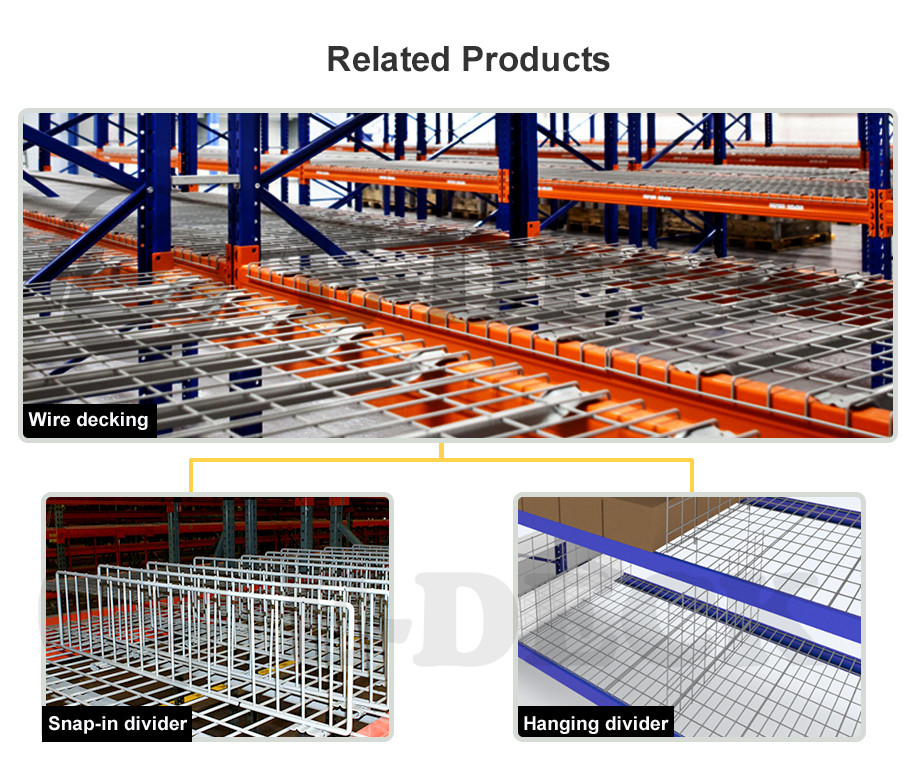

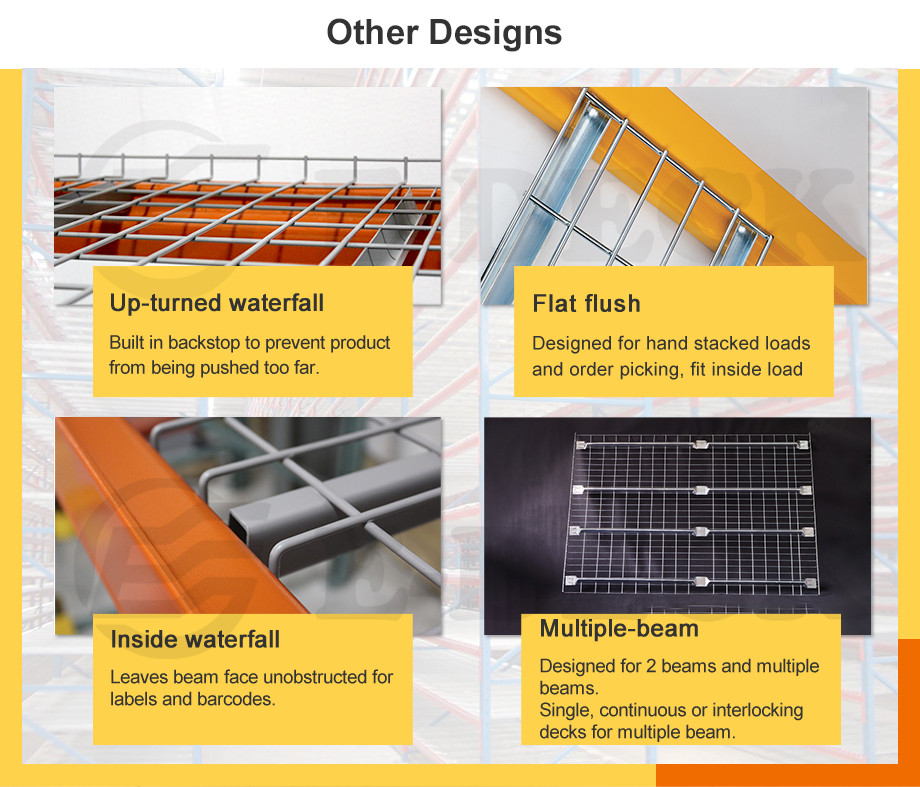

Other designs of Wire Mesh Decking for Pallet Racking System

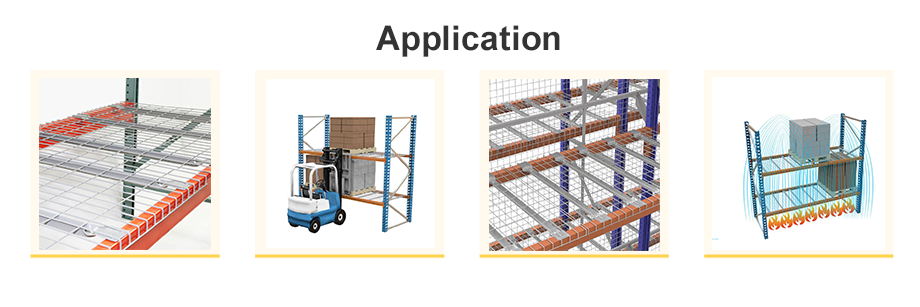

Usage: Warehouse, supermarket, logistics.

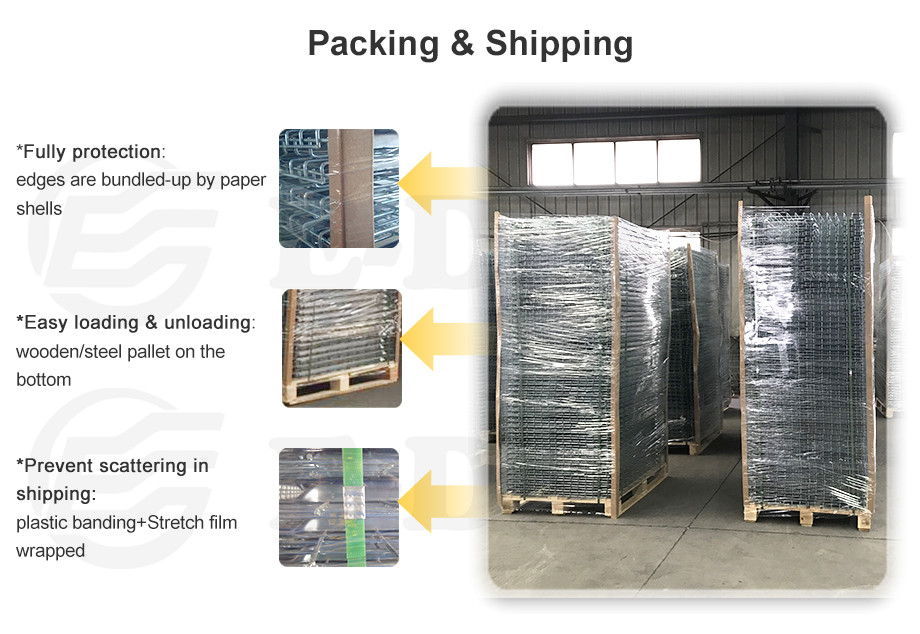

Packing
- Plastic banding
- Stretch film wrapped
Delivery time
25-30 days for Wire Mesh Decking for Pallet Racking System after receiving 30% deposit
E-deck are specialized in material handling products/equipments, O.E.M, product development, raw materials and factory sourcing, and production planning and monitoring. In addition, we offer services in quality assurance, export documents handling and shipping coordination.
E-deck act as an extension of your own business to manage all vital aspects of your supply chain so that you can focus on your clients at ease.
- Custom-made solutions
- One-stop services
Q1: What material is used for Wire Mesh Decking?
High quality mild steel Q235 is used for manufacturing to guarantee high structural strength and durability.
Q2: What surface finishes are available?
We provide three primary finishes: Electro-galvanized/Zinc plated (ideal for standard indoor storage), Hot-dip galvanized (highly corrosion-resistant for indoor/outdoor and cold storage), and Powder coating (dry powder finish for indoor/outdoor environments).
Q3: What are the available load capacity options?
We offer light-duty (100–300 kg), medium-duty (400–800 kg), and heavy-duty (1,000–1,700 kg) configurations according to your storage and beam support needs.
Q4: Can you manufacture custom sizes and provide OEM designs?
Yes, we provide fully customized solutions. Even if you do not have technical drawings, our engineering team can design the proper deck system once you provide your dimensions, capacity requirements, stackability, and operational environment.
Q5: What are the packaging, MOQ, and delivery details?
Goods are secured with plastic banding and stretch film, palletized for standard forklift or pallet jack handling. The standard MOQ is a 1x20'GP container, and average production lead time is 25-30 days (or 2-3 weeks) after deposit receipt.
Q6: What warranty and usage conditions apply to the decking?
We provide a 3 to 10-year warranty covering proper operation (correct forklift handling, no overloading, and appropriate dry, non-corrosive indoor conditions for zinc/powder-coated models; hot-dip galvanized features no environmental limitation).
