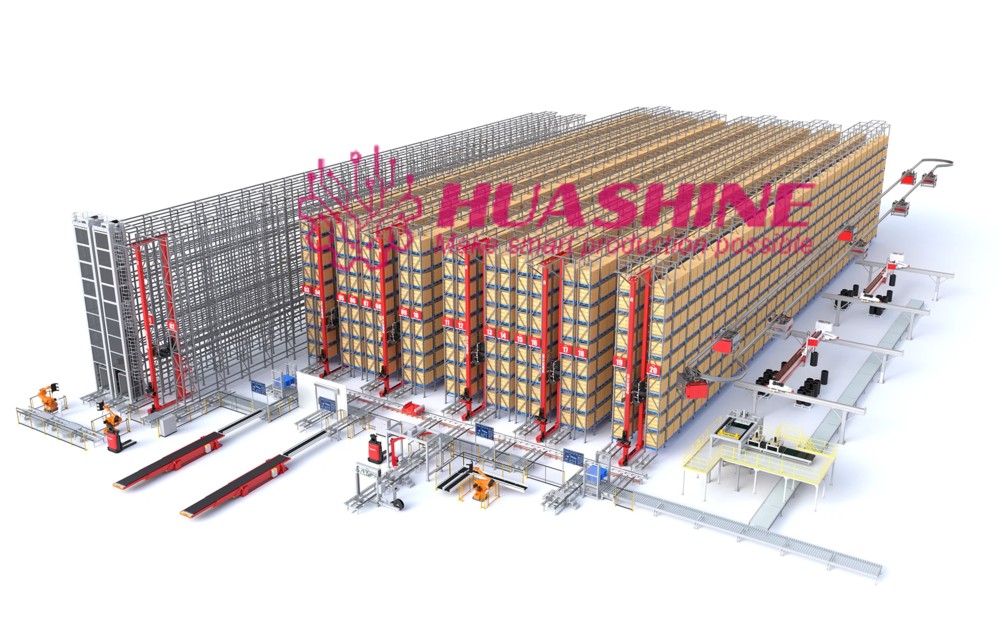

Heavy Duty Scale STACKER CRANE and on Request Capacity Pallet Racking Auomated ASRS Warehouse HUASHINE INTELLIGENT
Product Description
Direct Manufacturer • Jiaozhou MESNAC Factory

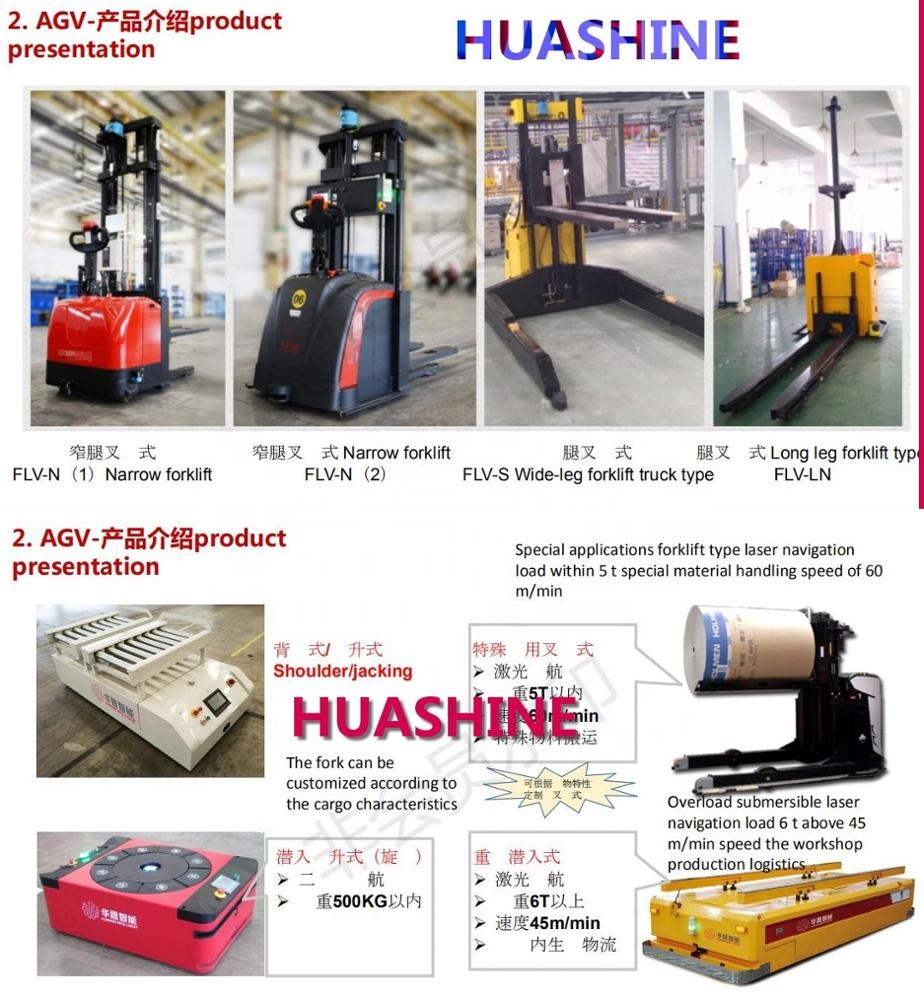

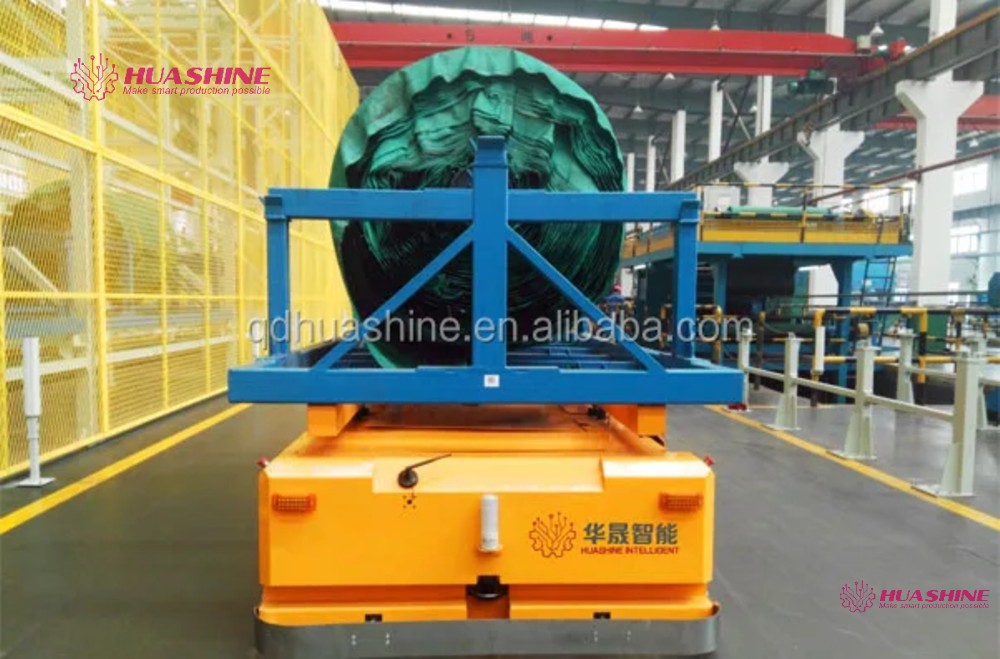

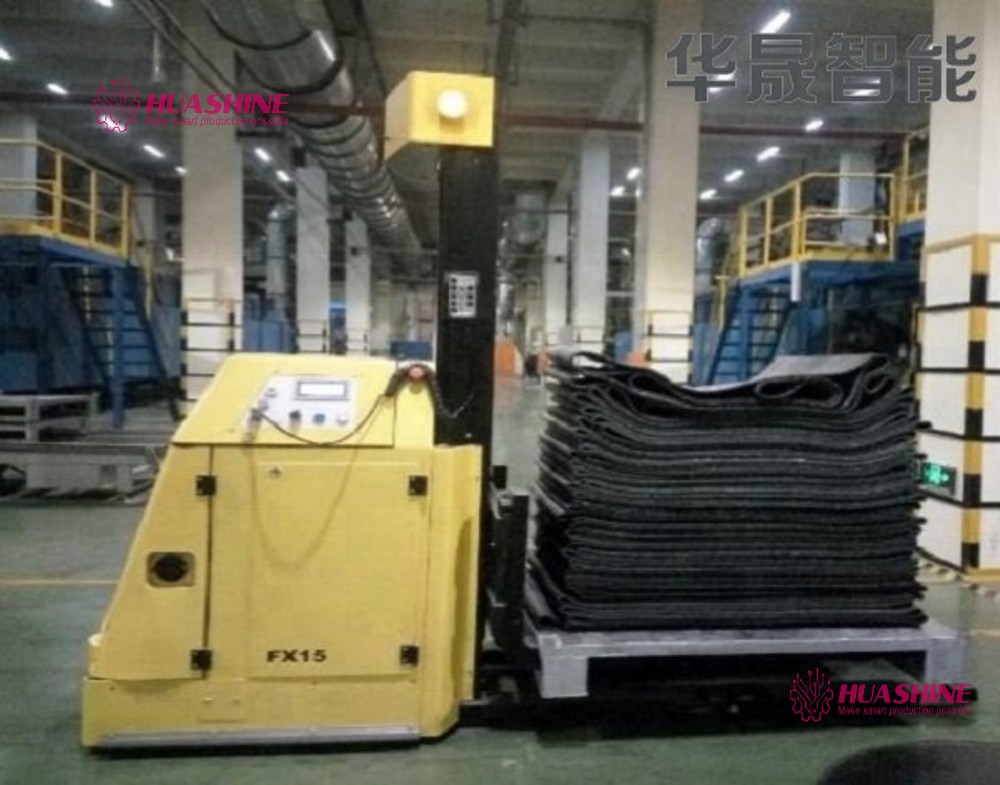

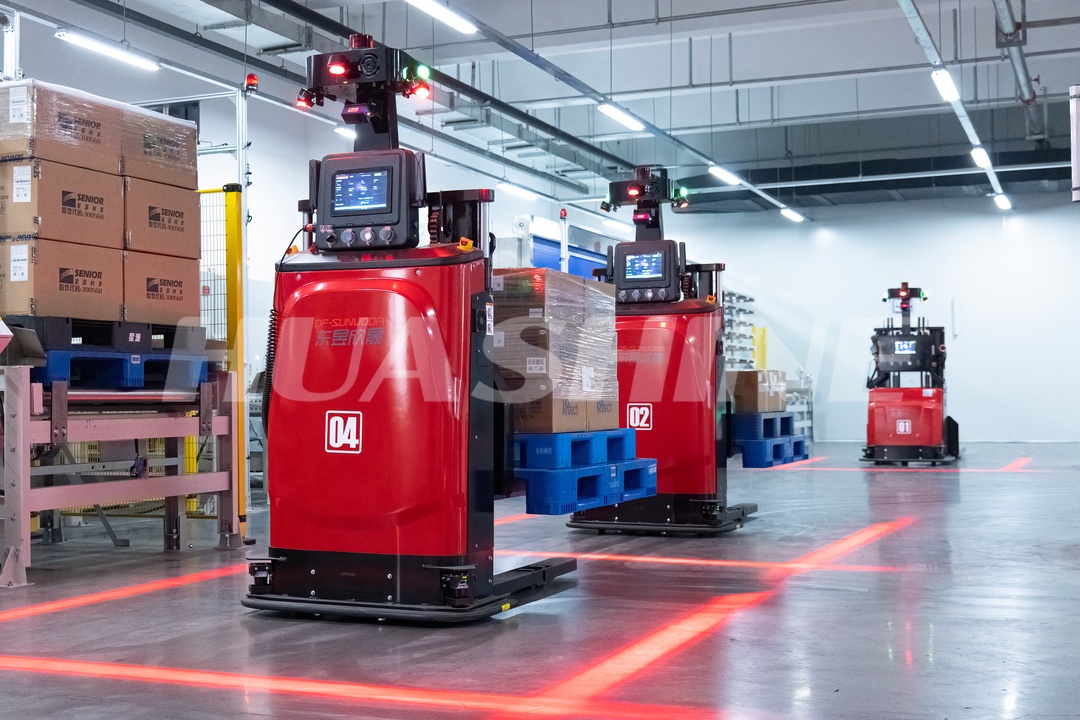

HUASHINE Intelligent • Heavy Duty AGV, RGV & High-Bay Stacker Crane

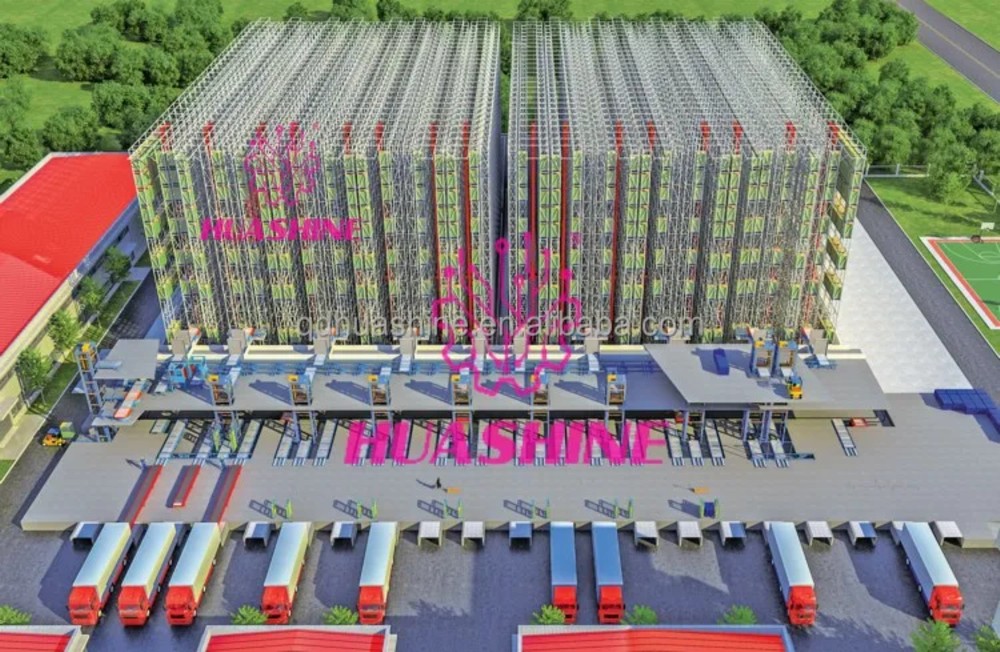

Tailored on-request capacity pallet racking and automated ASRS warehouse solutions. Manufactured directly in-house with full system integration.

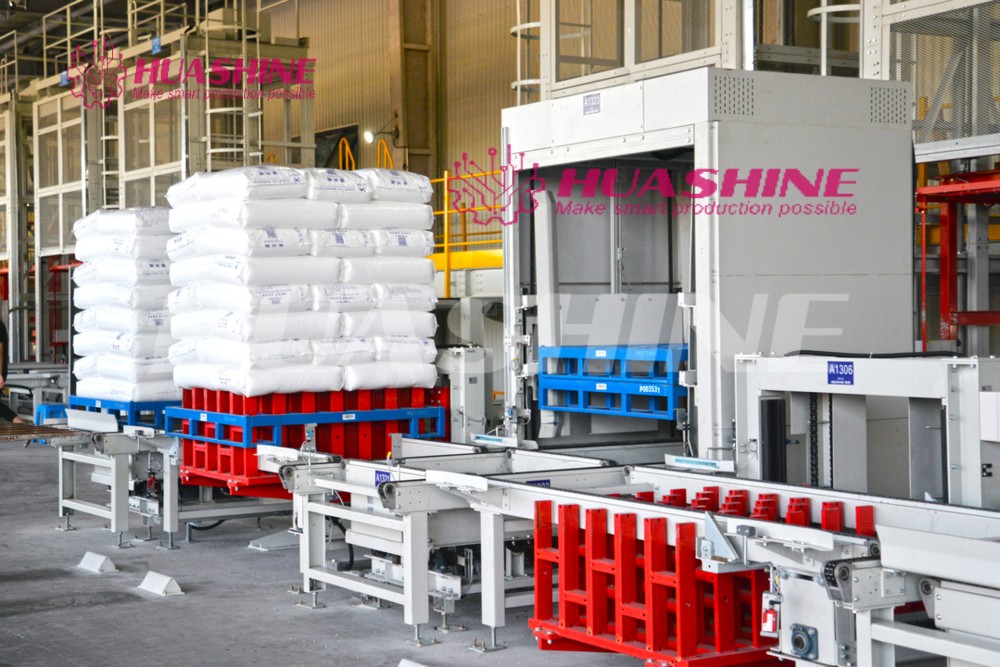

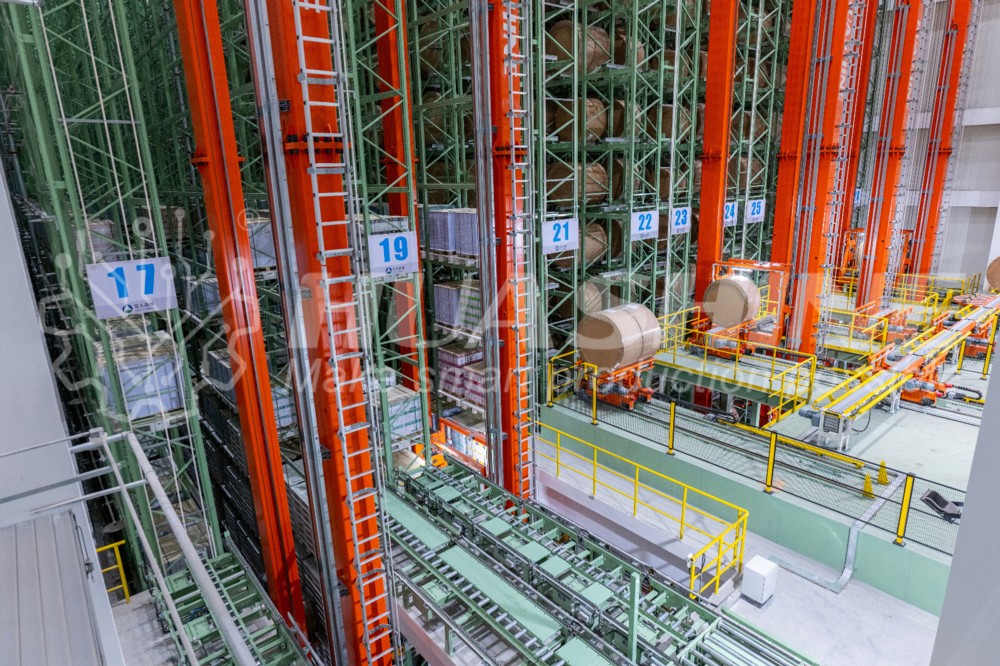

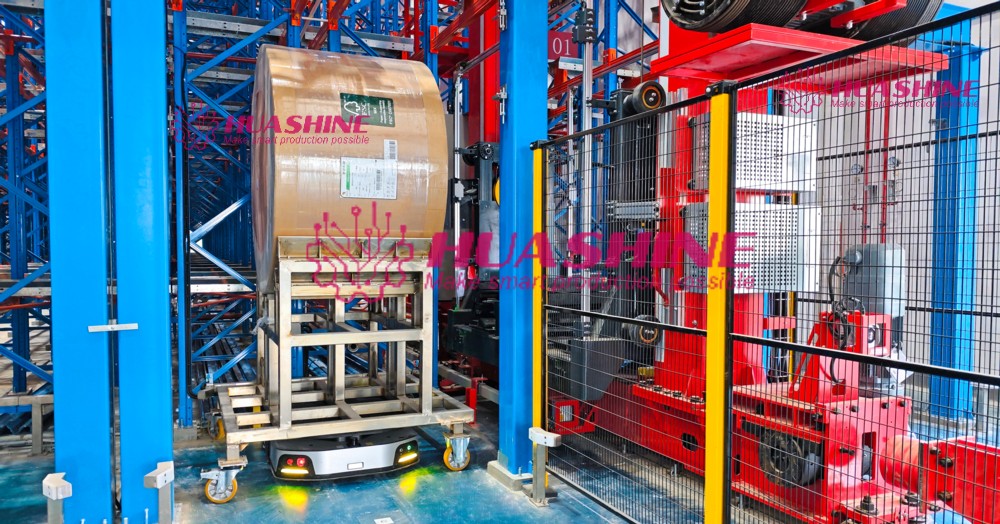

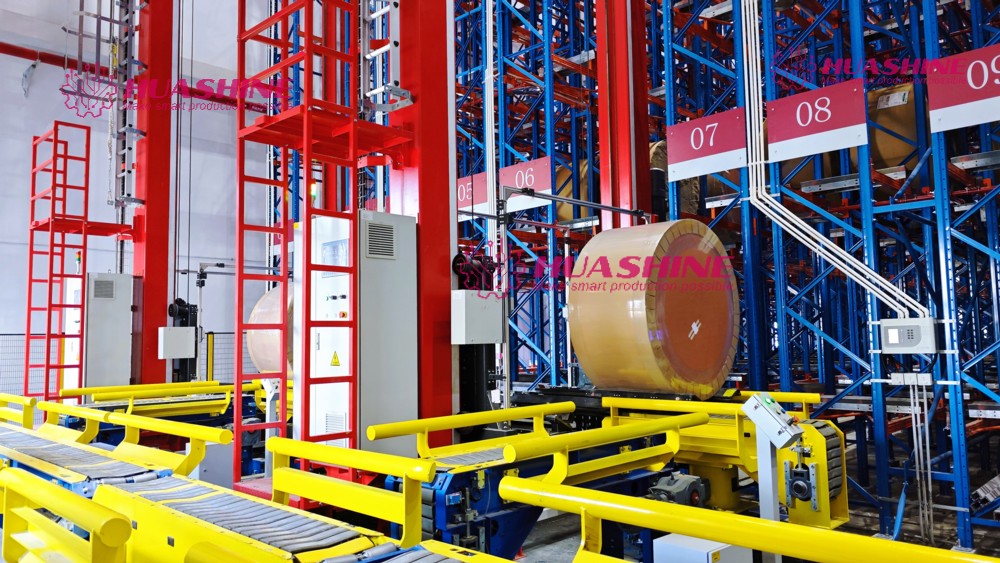

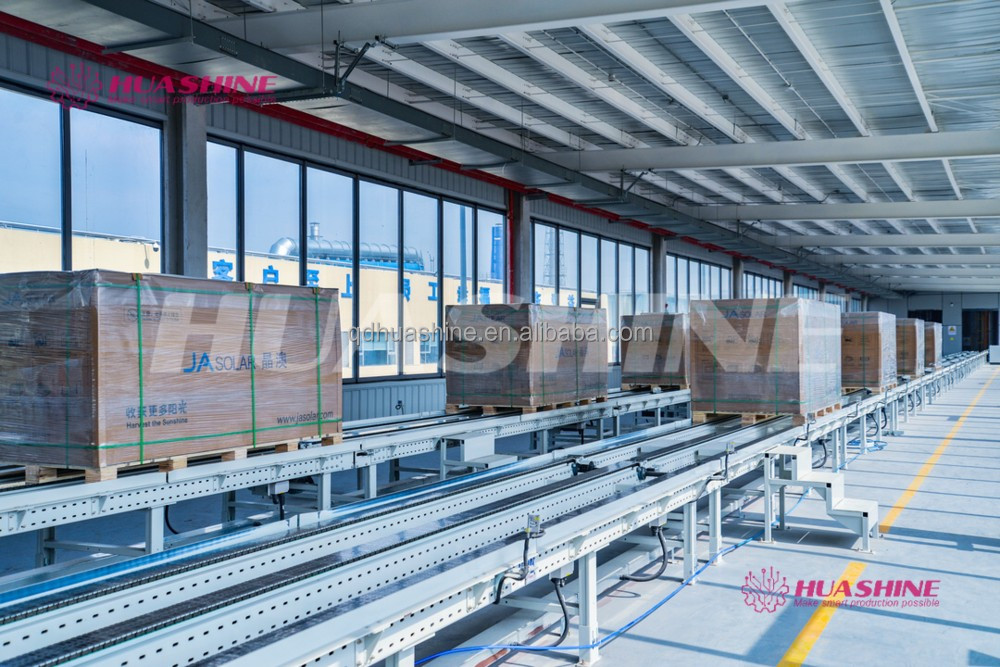

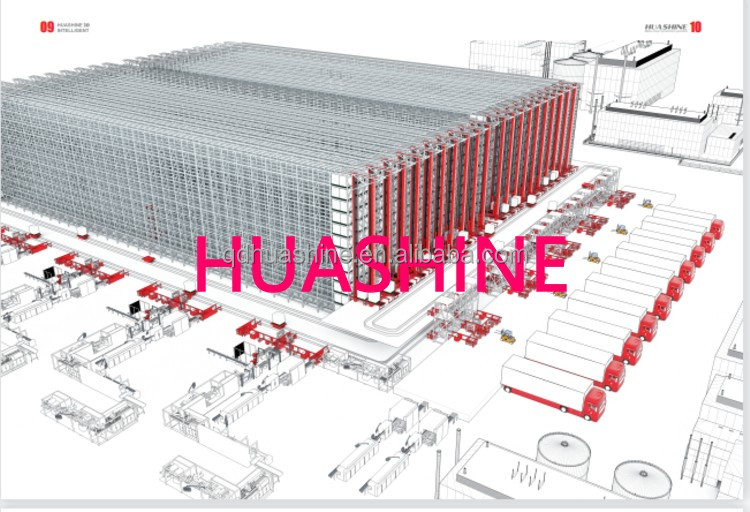

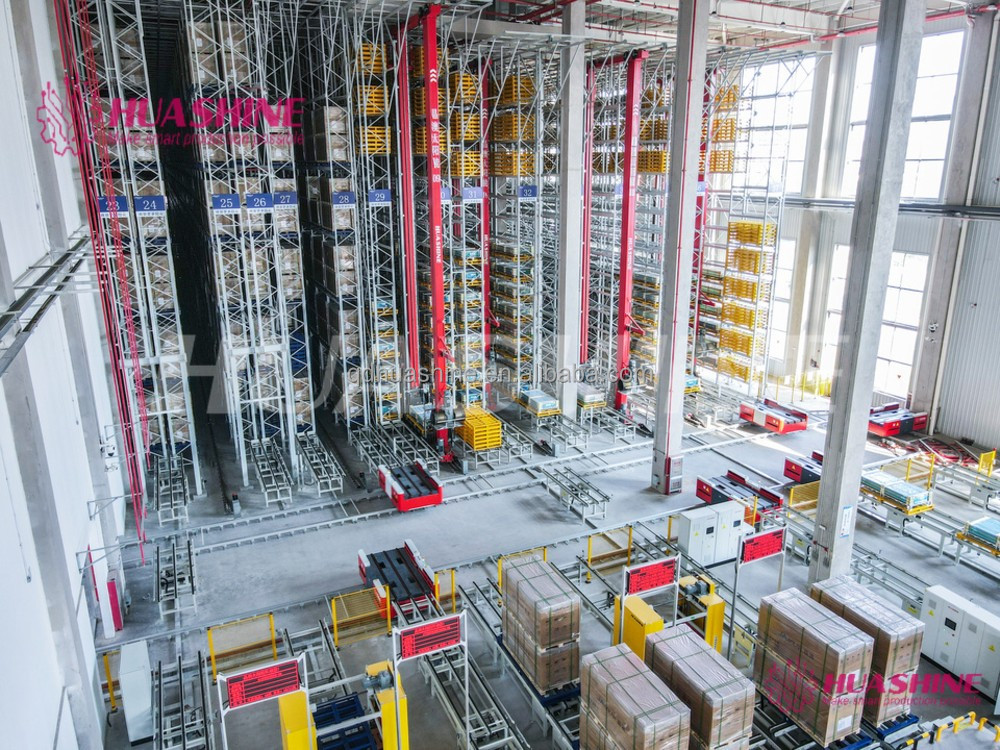

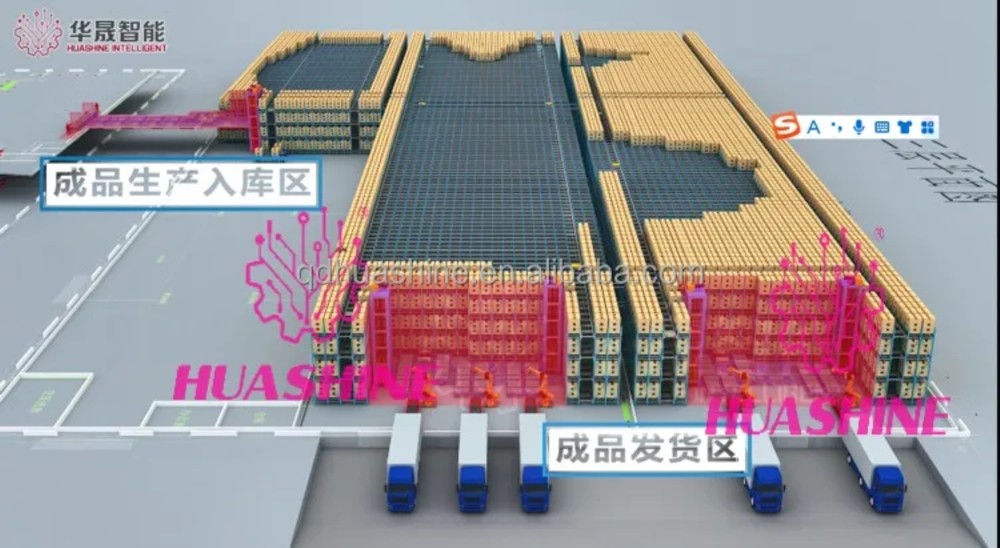

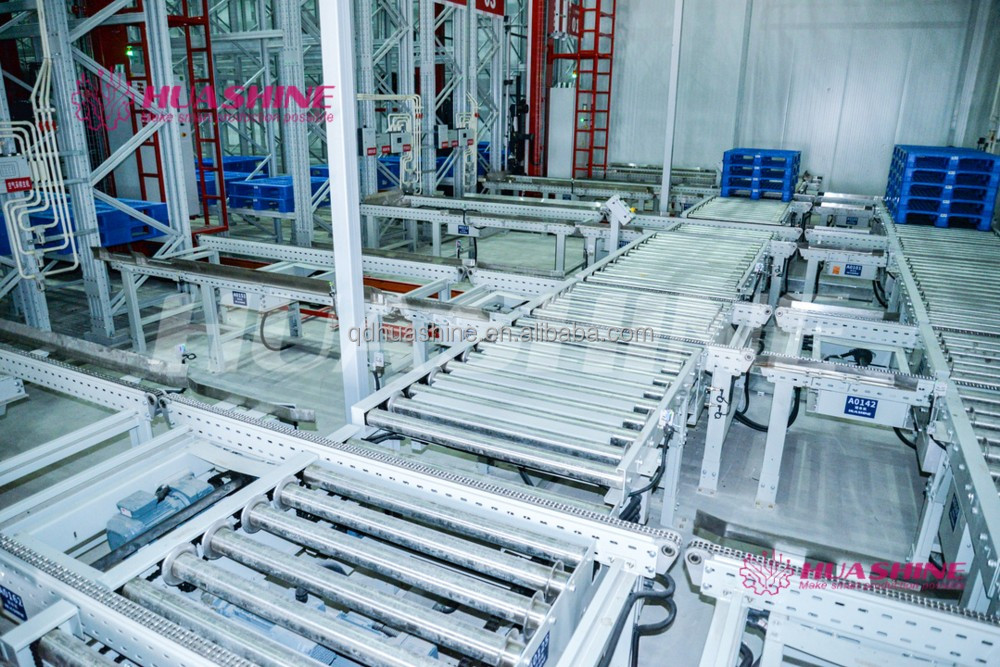

Equipment & Automated Warehouse Gallery

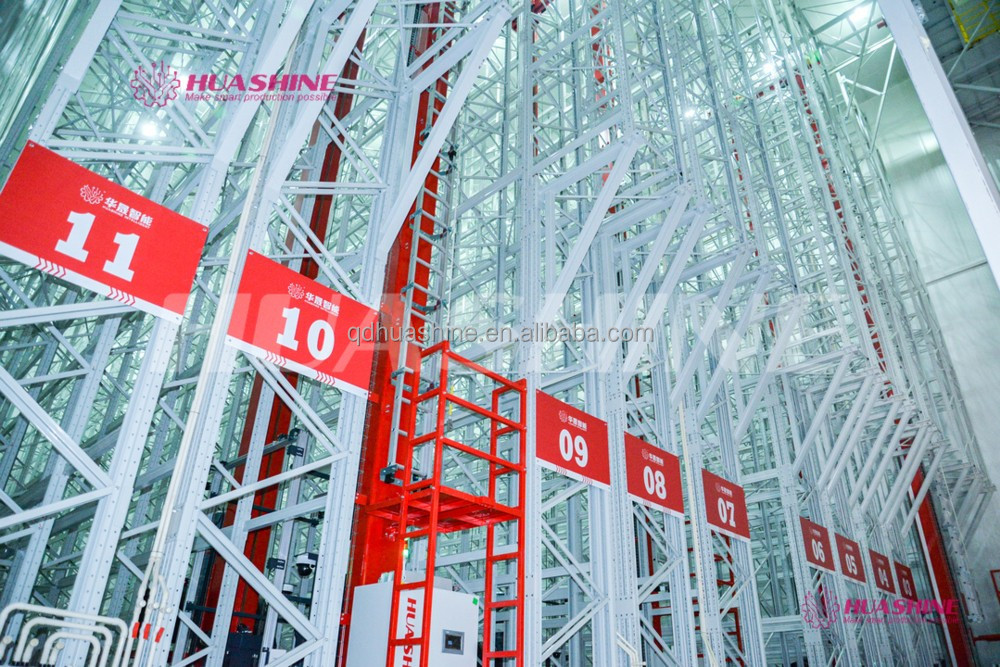

Product Description: High-Bay Stacker Crane
Structural Features
The stacker crane mainly consists of an upright frame (column), dispatch bays, horizontal traveling mechanism, lifting mechanism, extension mechanism of telescopic forks, guide wheel device, safety protection device, control cabinet, rails, and related sub-systems. Featuring a simple structure, beautiful appearance, lightweight body, high operational speed, impact resistance, refined engineering, extended service life, and low maintenance overhead.
Technical Parameters
Horizontal Travelling Speed
Max. 160 m/min (Acceleration: 0.5 m/s²)
Lifting Speed
Max. 60 m/min (Acceleration: 0.5 m/s²)
Fork Speed
Max. 40 m/min (Acceleration: 0.5 m/s²)
Operational Height
Max. 36 meters
Positioning Mode
Laser Positioning / Barcode Positioning
Communication Mode
Radio Communication (Infra-red / AP)
Operation Mode
Automatic / Semi-Automatic / Manual / Maintenance
About Qingdao Huashine Intelligent Technology Co., Ltd.
500+
Patented Technologies
2009
R&D Established
100+
Technical Staff
200M¥
Tire Smart Factory Project
Qingdao Huashine Intelligent Technology Co., Ltd. holds more than 500 patent items and serves world top-class tyre factories. Focusing on delivering overall solutions for intelligent manufacturing across diverse sectors, Huashine is one of the verified professional suppliers with proven cases for proposal planning, core equipment manufacturing, and complete project implementation for smart factories. Supported by over one hundred technical personnel, Huashine is a high-tech enterprise covering integrated logistics systems, R&D, manufacturing, sales, and global field service.
Since 2009, the company has focused on the research and development of Stacker Cranes, RGV, EMS, Gantry Robots, AGV, Conveyors, WMS, and WCS, successfully applied across automated logistics networks. The automated sorting, scheduling, and storage system accomplished in 2014 was awarded “National Advanced Level”. In 2016, Huashine planned and implemented the first Smart Factory in the rubber tire industry with a total project contract of 200 million RMB.
Today, Huashine has formed a complete industrial chain covering advanced technology, high-end equipment, and customized turnkey automation. Business operations serve rubber tires, new energy, pharmaceuticals, home appliances, electronics, chemicals, apparel, and many other intelligent production industries.
Our Engineering & Integration Services
ENGINEERS WORKING FOR SOFTWARE AND EQUIPMENT TOGETHER DESIGN FOR YOU — MAKING FACTORIES INTELLIGENT IS OUR CORE STRENGTH.
Frequently Asked Questions (FAQ)
Q1: How do you ensure product and service quality?
All our manufacturing and engineering processes strictly adhere to standardized quality management procedures. We hold over 500 patent items and maintain long-term partnerships delivering automated logistics equipment to world top-class tire manufacturers and industrial enterprises.
Q2: How are the pallet racks and stacker crane systems installed?
Every project is backed by comprehensive installation blueprints and technical guidelines. In addition, our experienced mechanical and software engineers provide on-site direction or technical supervision to ensure smooth installation and commissioning.
Q3: What details are required prior to receiving an engineering quotation?
A. If you already have a project layout: Send us the drawings and specifications; our engineering team will review the details and provide an accurate quotation promptly.
B. If you do not have a layout: Provide your warehouse dimensions, pallet and rack load capacities, ceiling height, and number of storage levels. Our technical team will design a customized layout for you free of charge.
B. If you do not have a layout: Provide your warehouse dimensions, pallet and rack load capacities, ceiling height, and number of storage levels. Our technical team will design a customized layout for you free of charge.
Q4: What are the key performance metrics of your high-bay stacker cranes?
Our stacker cranes operate at horizontal speeds up to 160 m/min, lifting speeds up to 60 m/min, and fork extension speeds up to 40 m/min (acceleration: 0.5 m/s²). They reach vertical heights up to 36 meters, utilize high-precision laser or barcode positioning, and feature infrared/AP communication.
Q5: Which industries can benefit from Huashine smart logistics systems?
Our automated systems are deployed across rubber tires, new energy batteries, pharmaceutical manufacturing, consumer electronics, household appliances, chemical production, textiles and apparel, and automated manufacturing warehouses.
Q6: How can global distributors and partners become an authorized agent?
We warmly welcome regional partners, integrators, and agents worldwide. Please reach out to our team with your corporate profile and market coverage to initiate a detailed agency discussion.
