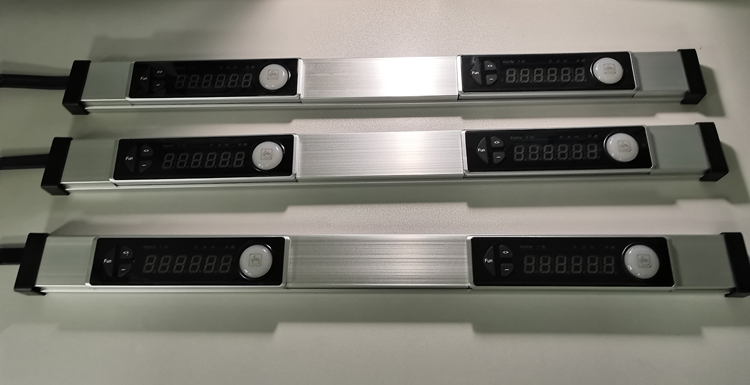

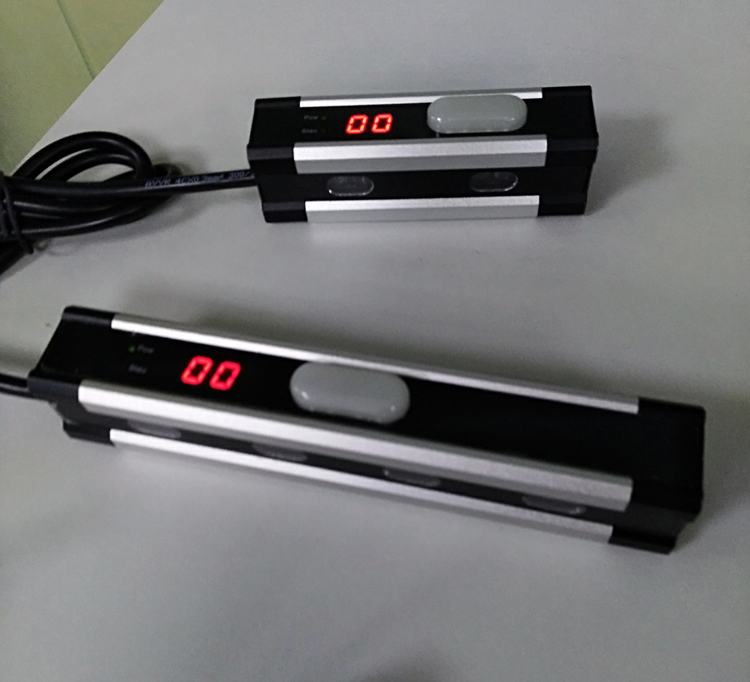

Sophia 6 Digit Display Pick to Light Picking Tag Electronic TagT- P6 for Warehouse Rack
Product Description

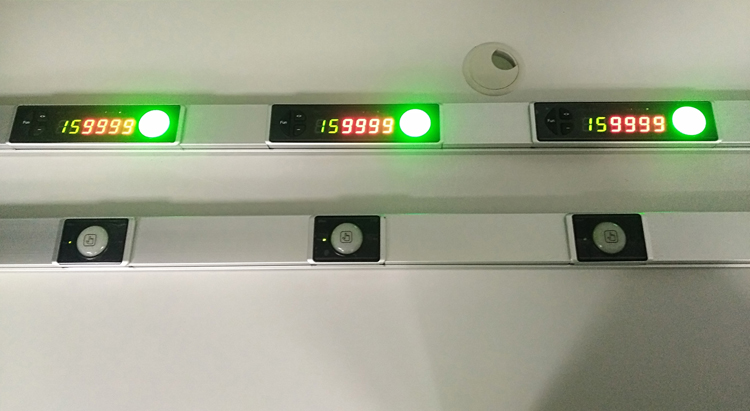

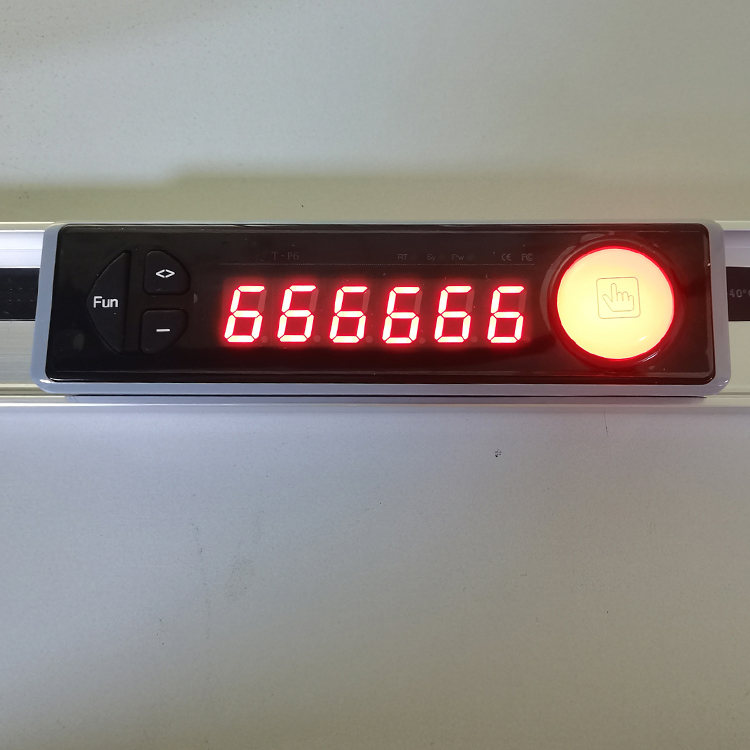

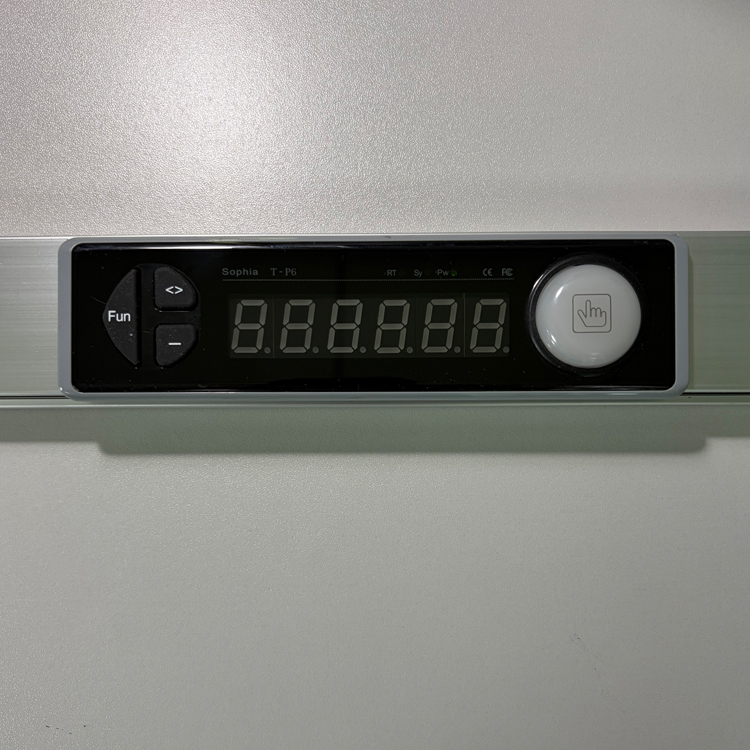

Sophia 6 digits Pick to light, put to light system, 6 digit in red or 2 green, 4 red

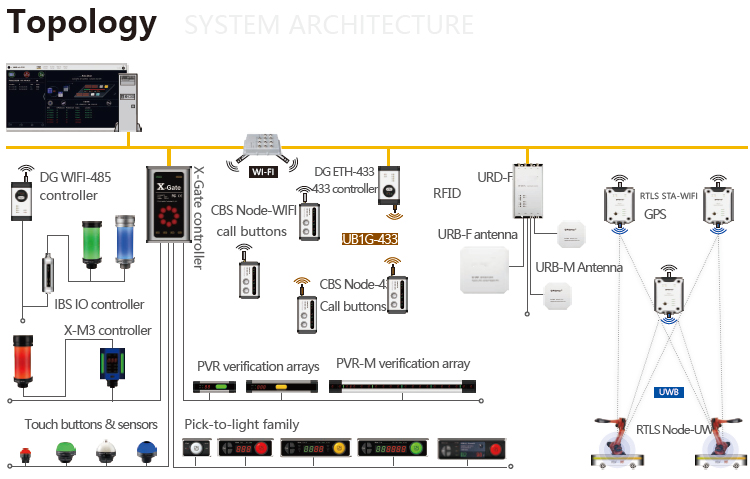

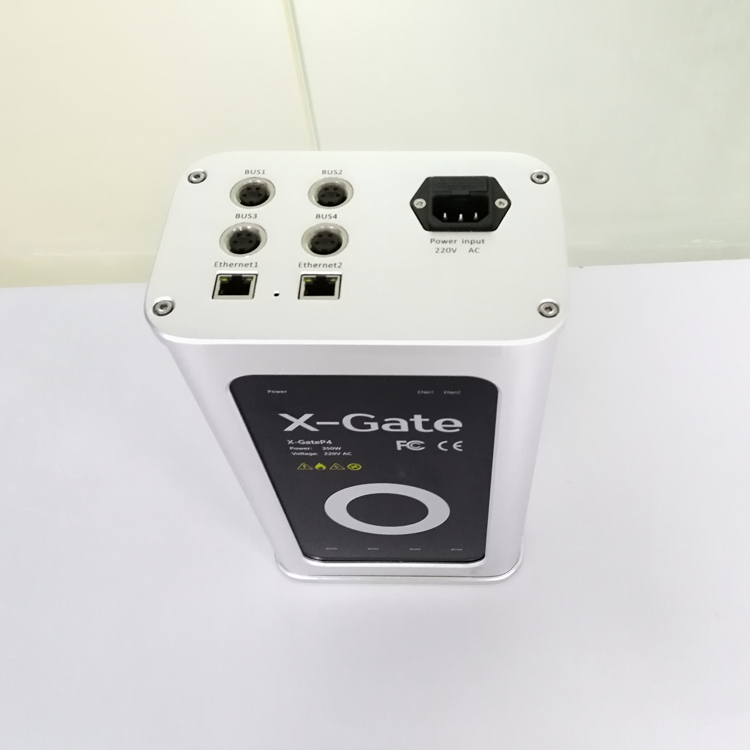

X Gate controller, Four Bus Ports, two Ethernet ports, Power 350W, can load 200 Pick tags
Output: 24V, communication distance 200 meters
| Model | P6 |
| Indicator color | Red, Yellow, Green, Blue, 7 colors |
| Address | 1-247 |
| Power supply | 12-30Vdc |
| Consumption power | Less 2W |
| Control style | Private controller or PLC |
| Communication | RS485 |
| Dimension | 168x44.5mm |
| Lifetime | More than 1 million times |
| IP rating | IP54 |
| Material | Aluminum alloy |
Similar products
Frequently Asked Questions (FAQ)
1. What is the Sophia P6 Pick to Light system used for?

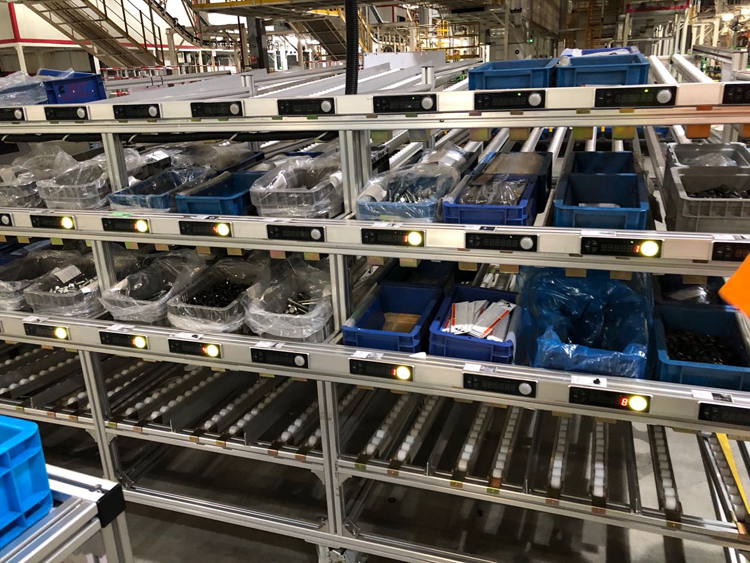

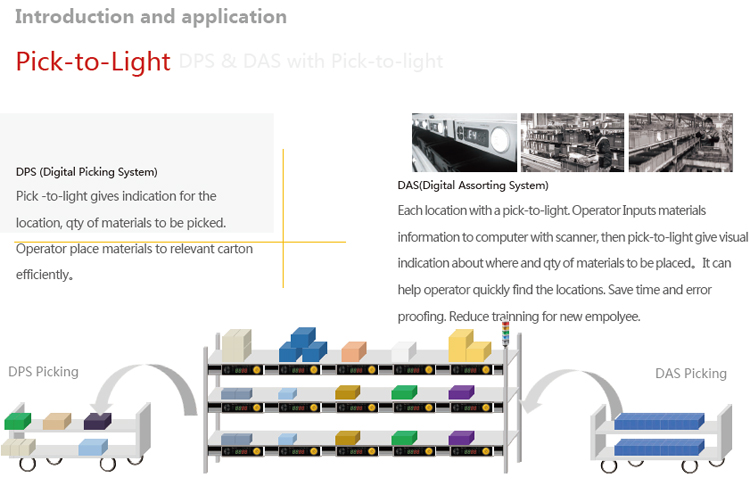

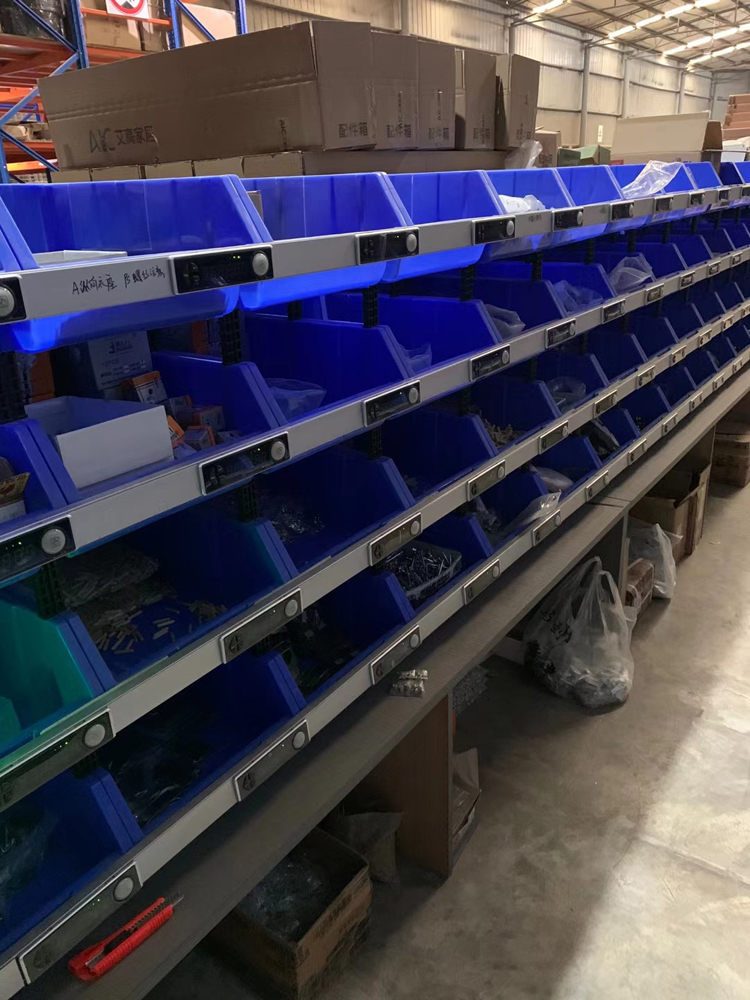

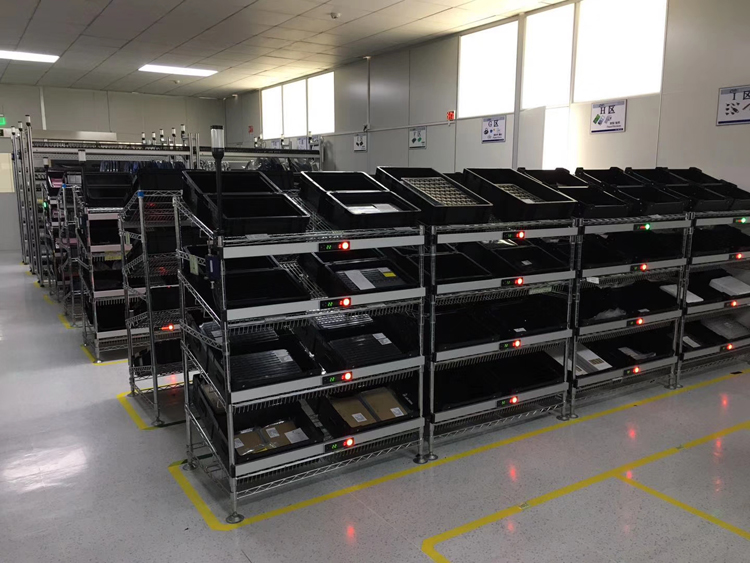

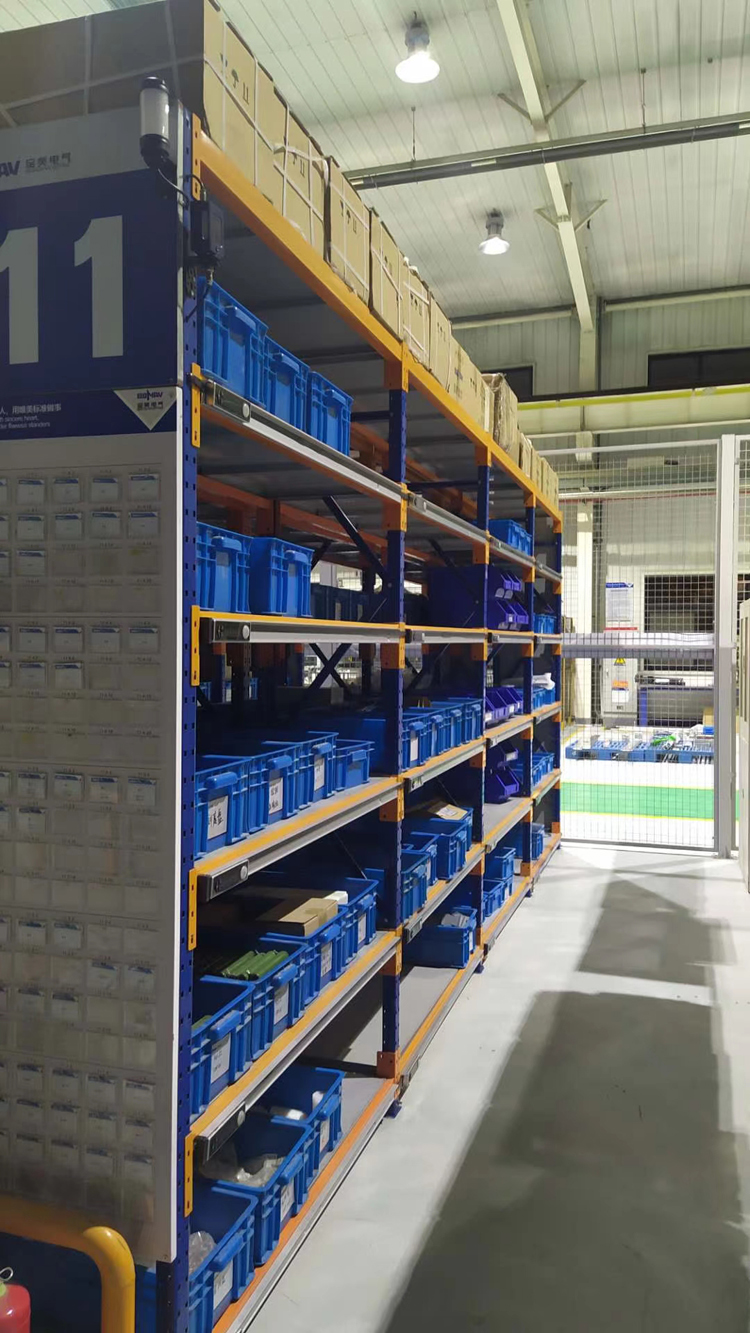

The Sophia P6 Pick to Light (and Put to Light) system is designed for warehouse racks, sorting stations, and logistics management to guide operators to the exact item location and display the precise quantity needed using vibrant digital displays.
2. How many pick tags can the X Gate controller support?
The X Gate controller provides 350W of power, four Bus ports, and two Ethernet ports, allowing it to load up to 200 pick tags with a reliable communication distance of up to 200 meters.
3. What communication protocol is used by the P6 electronic tag?
The P6 picking tag utilizes an industrial standard RS485 communication interface and can be controlled via a dedicated controller or directly through a PLC system.
4. What indicator colors are available on the display?

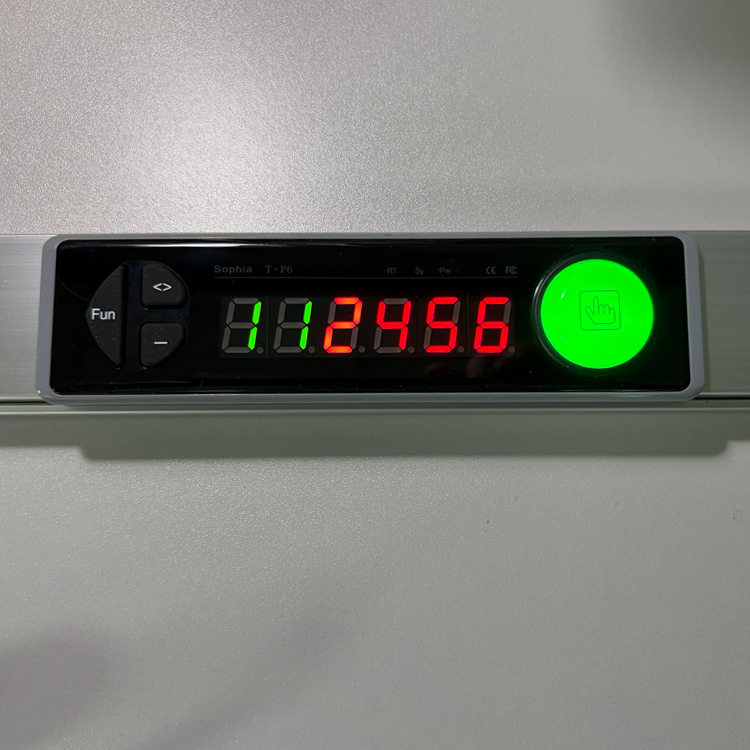

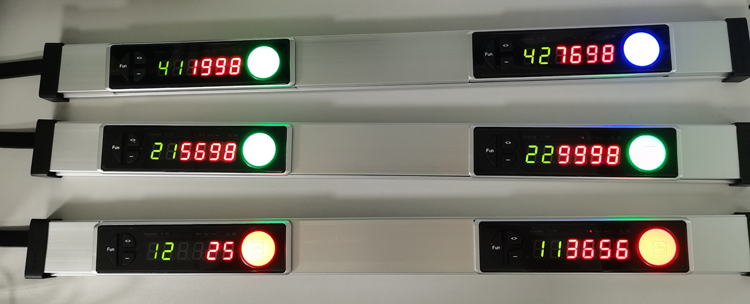

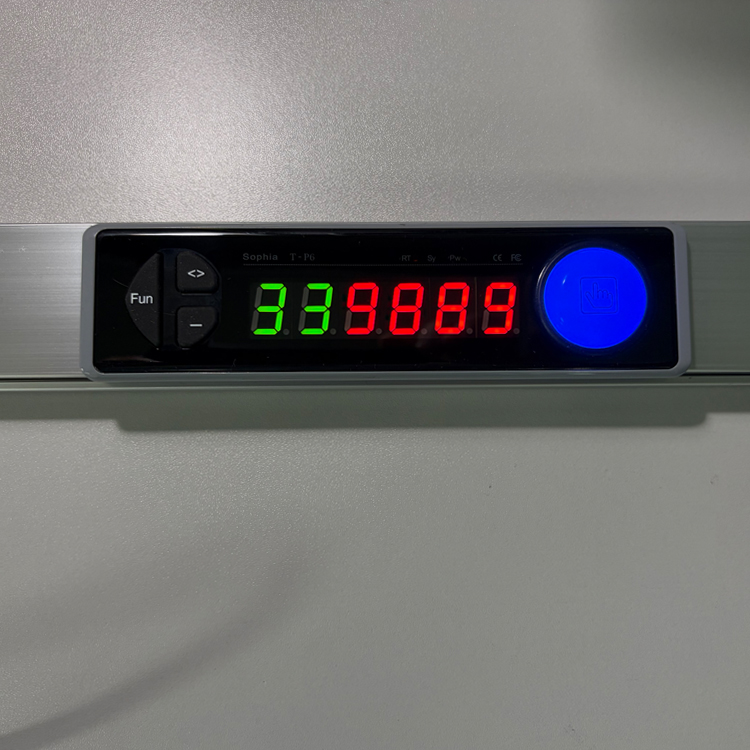

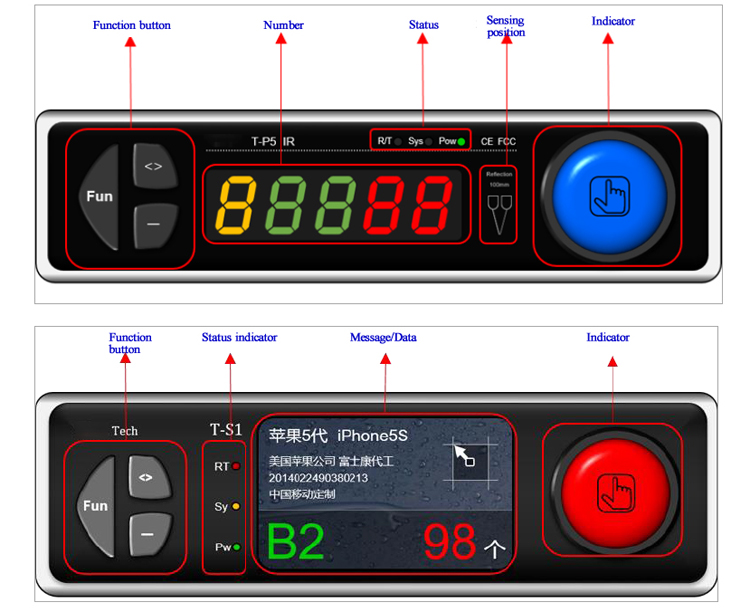

The tag features high-visibility indicators supporting Red, Yellow, Green, Blue, and multi-color combinations up to 7 colors, including dedicated configurations like 6 digits in red or 2 green and 4 red digits.
5. Is the Sophia P6 durable enough for industrial warehouse environments?
Yes, it is built with a sturdy aluminum alloy housing, provides an IP54 protection rating against dust and moisture ingress, and has an operating lifetime exceeding 1 million cycles.
