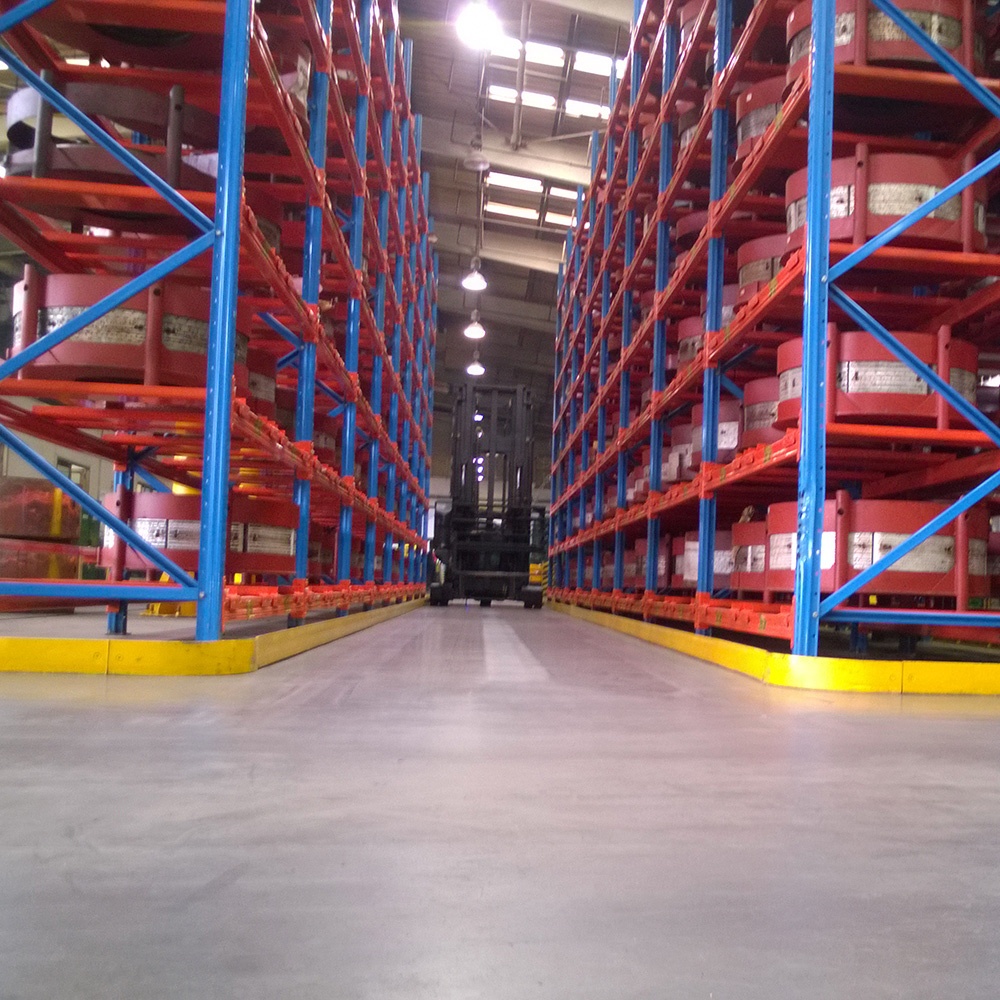

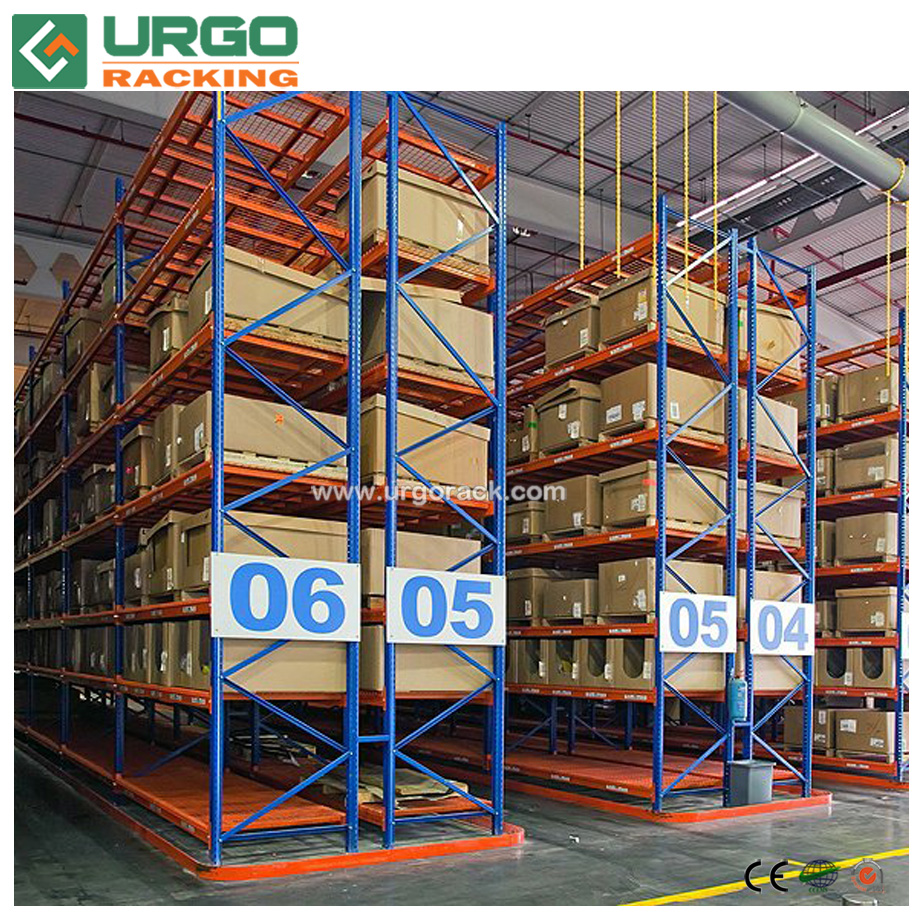

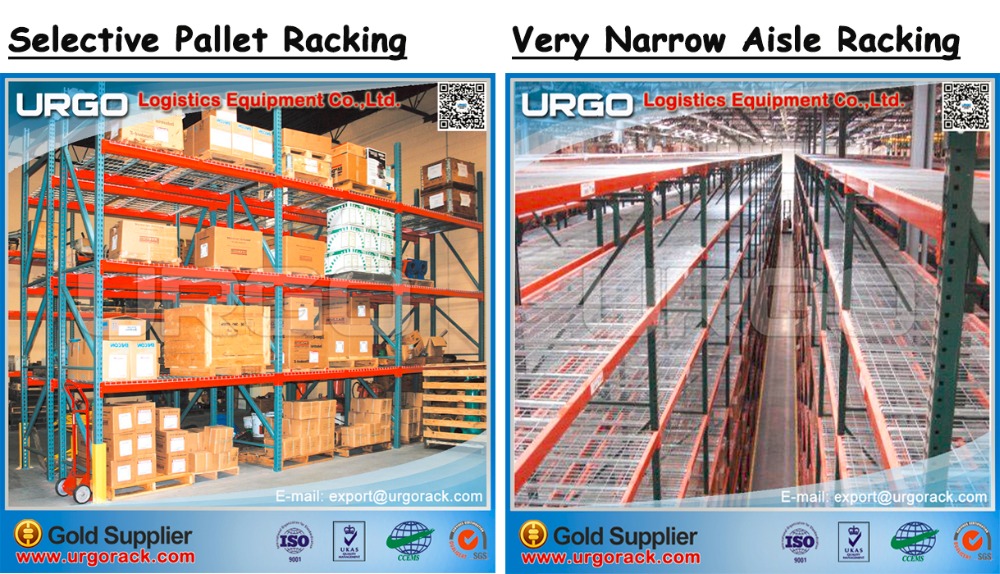

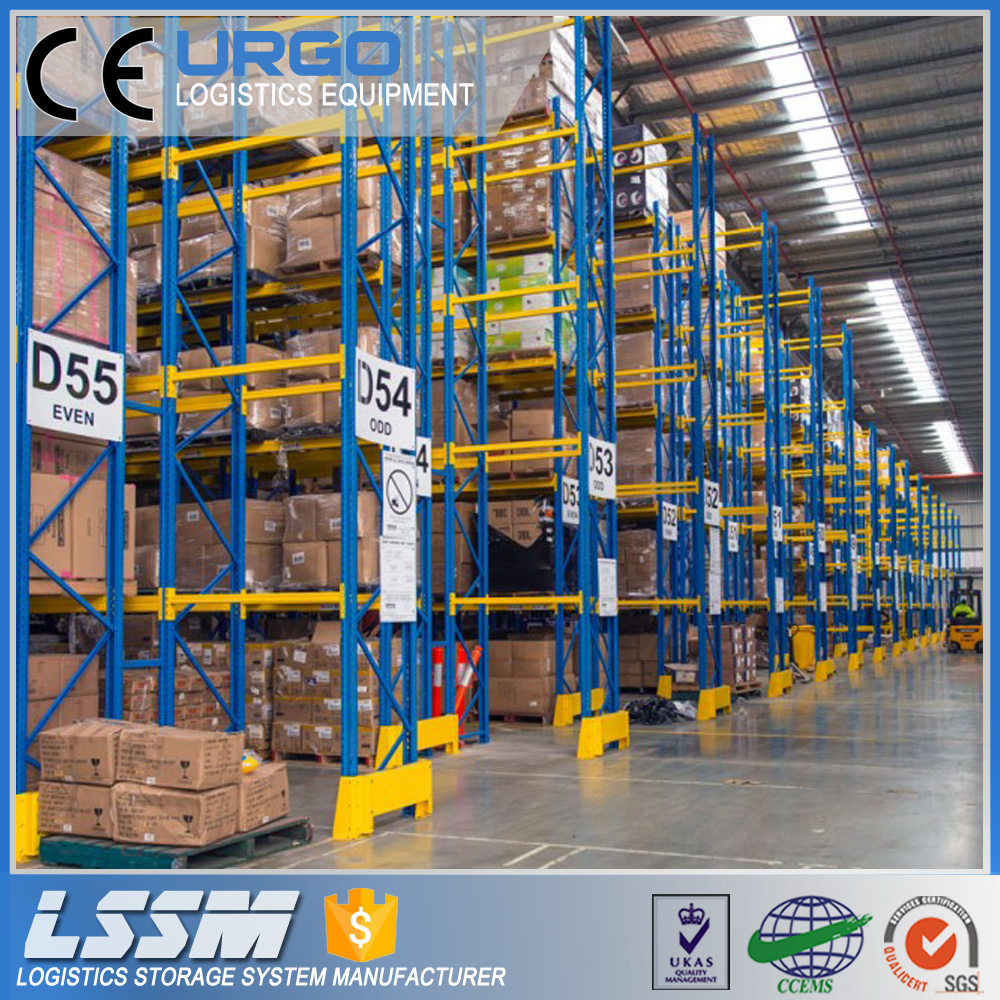

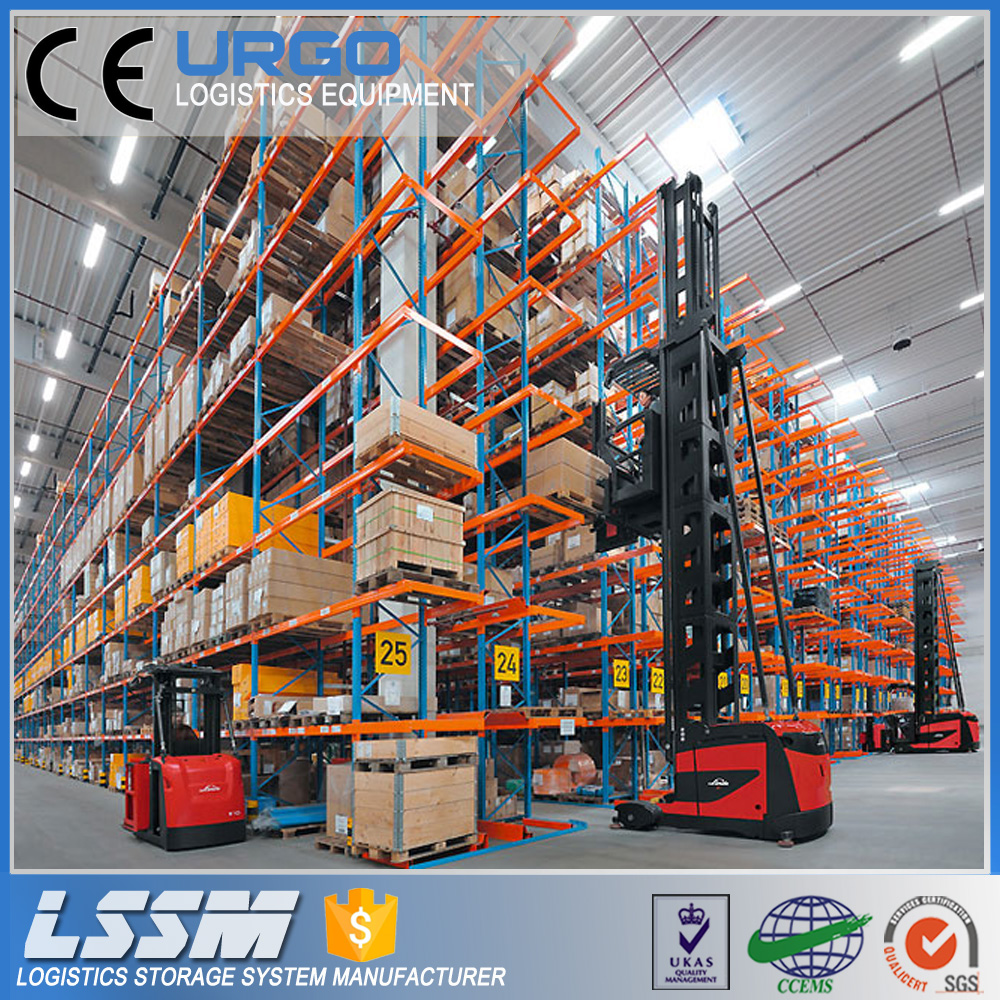

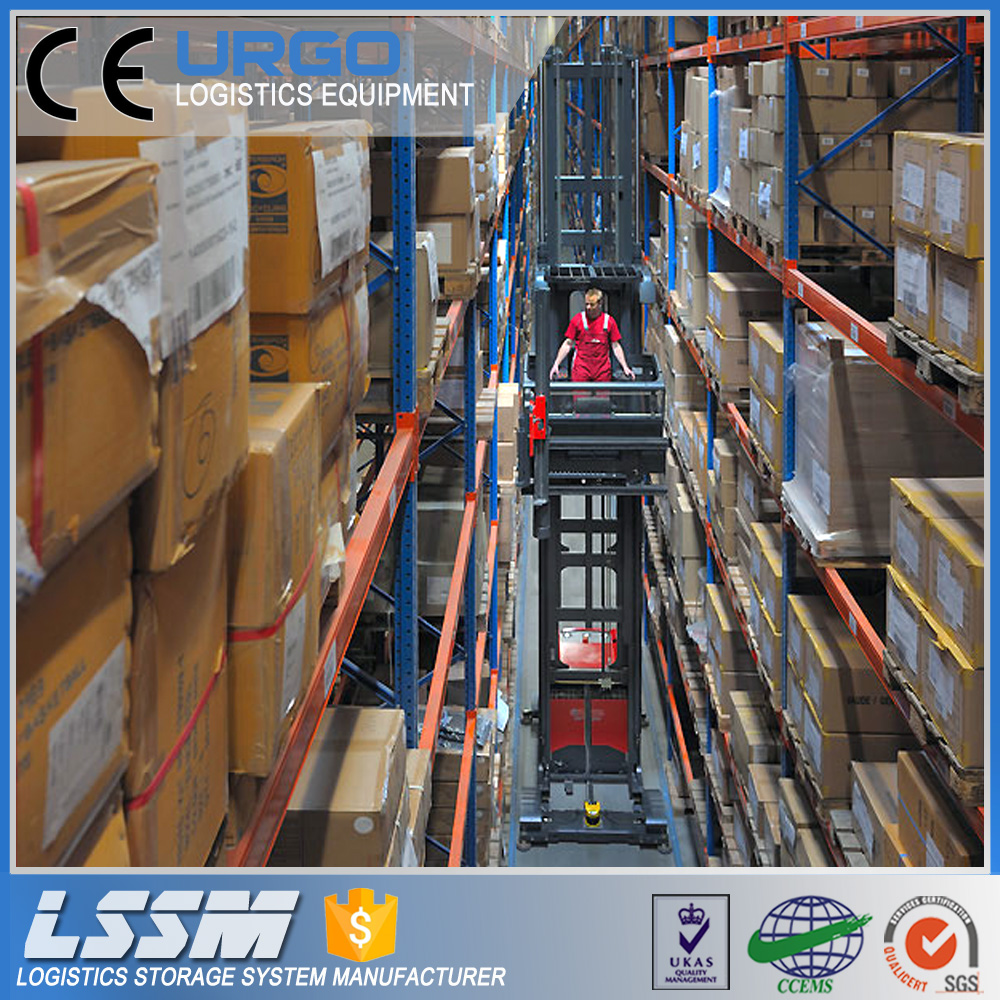

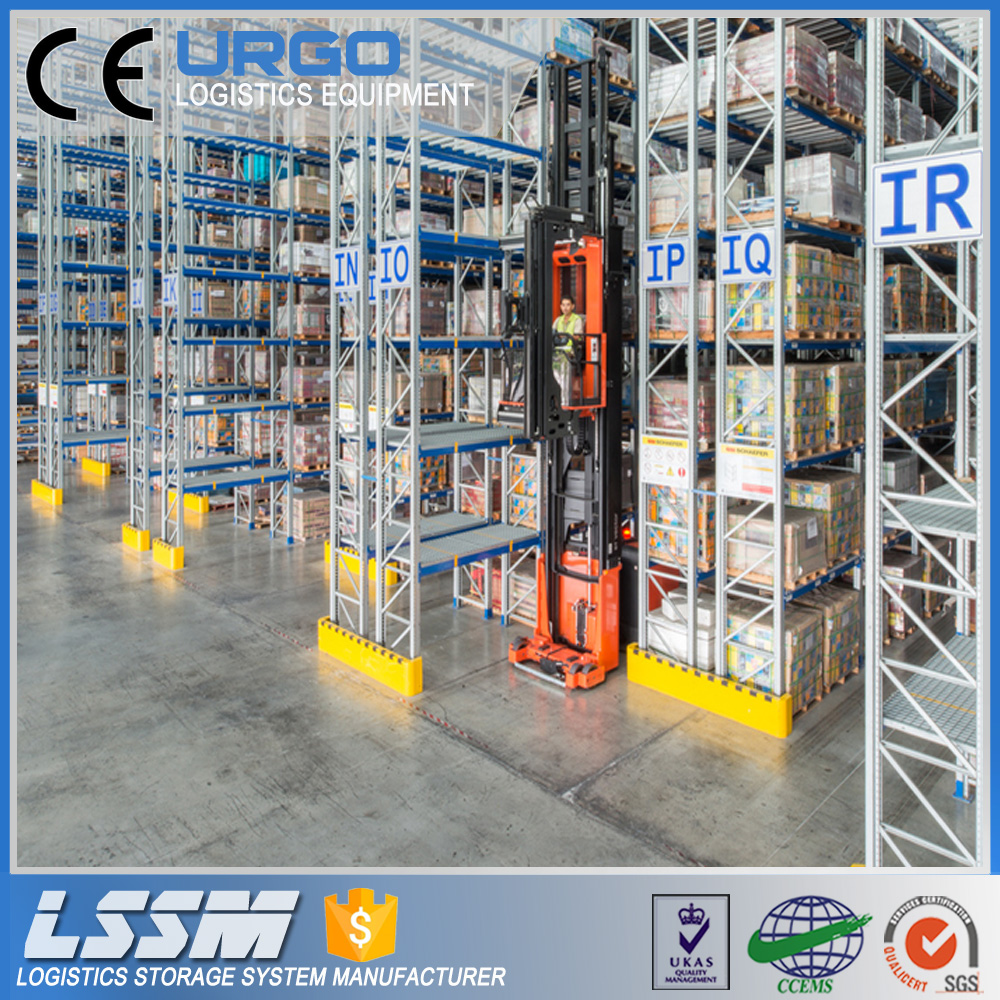

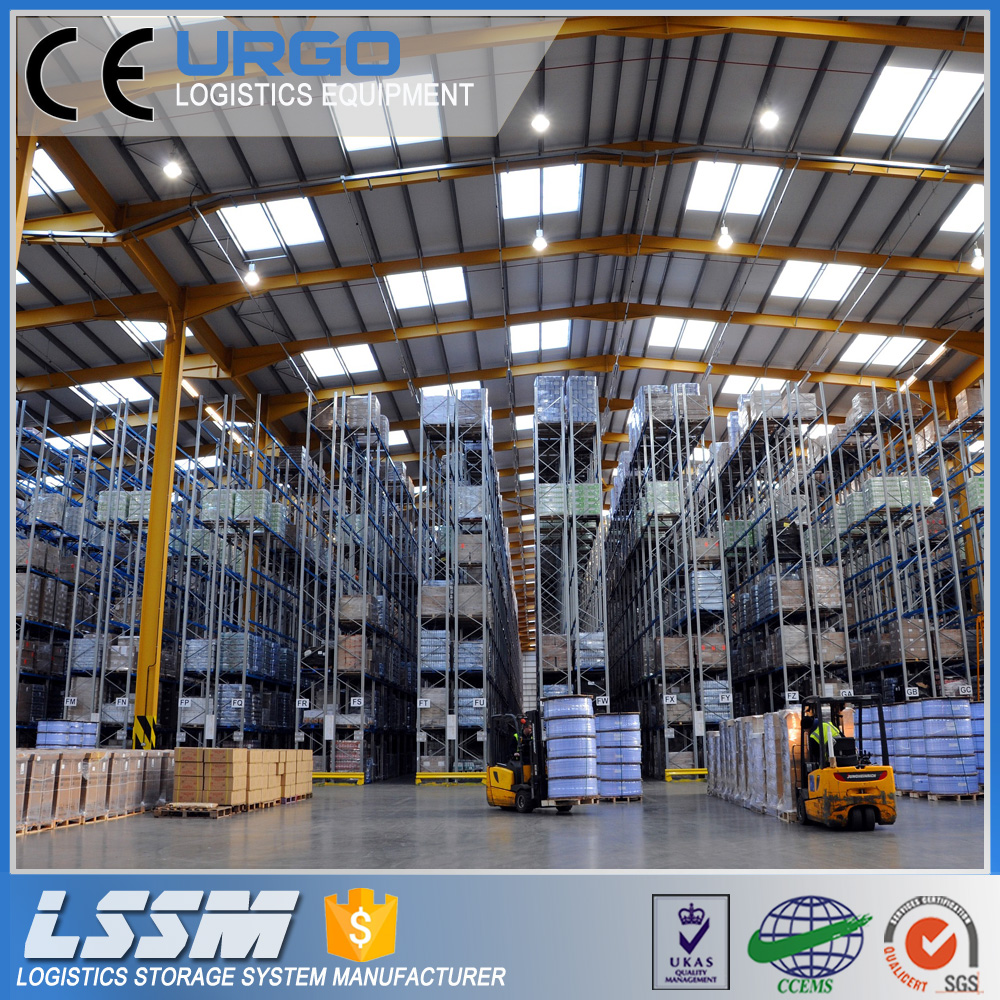

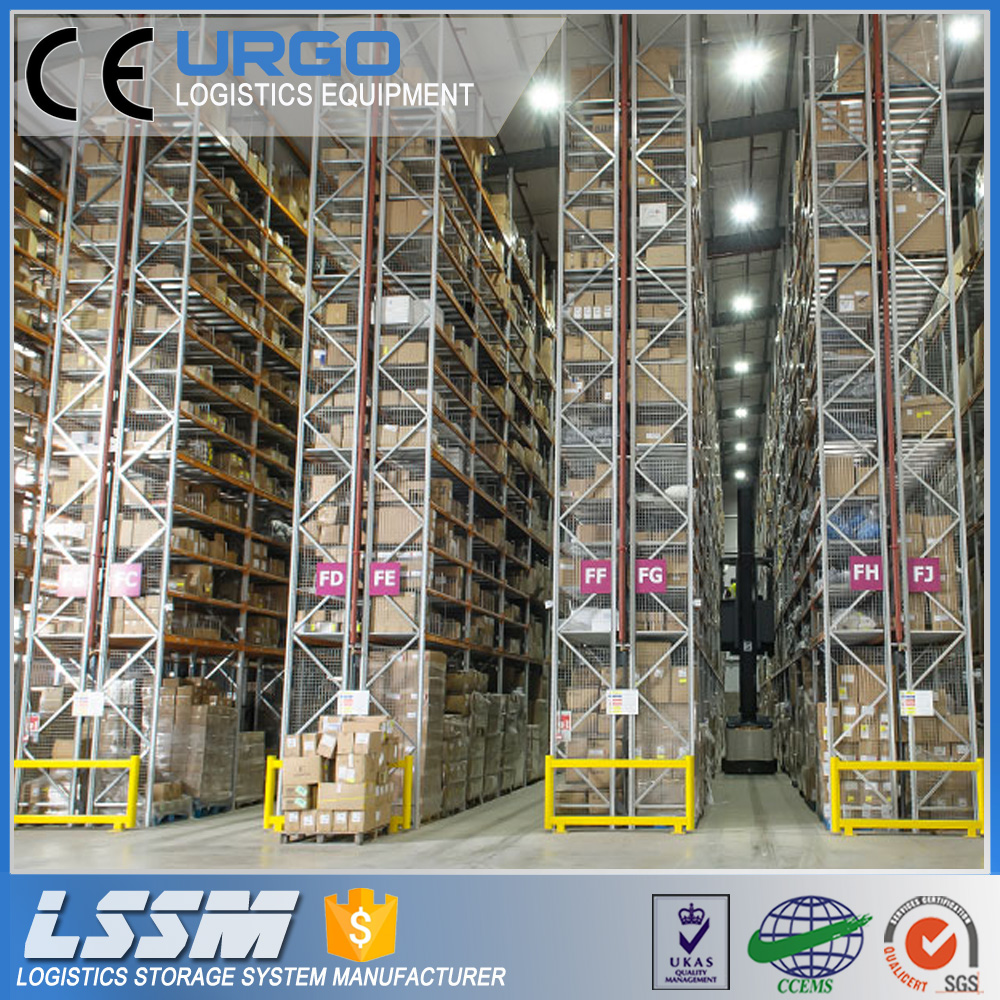

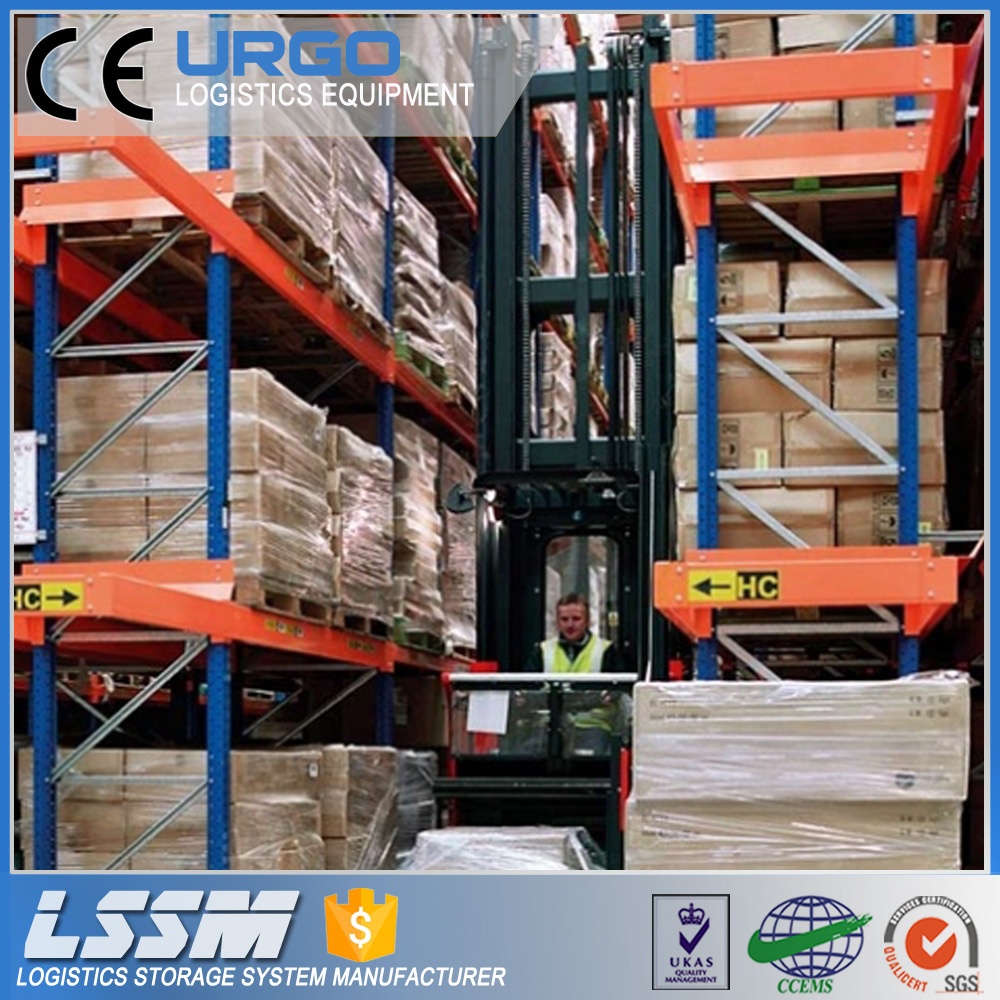

URGO Very Narrow Aisle Pallet Rack / VNA Racking System
Product Description

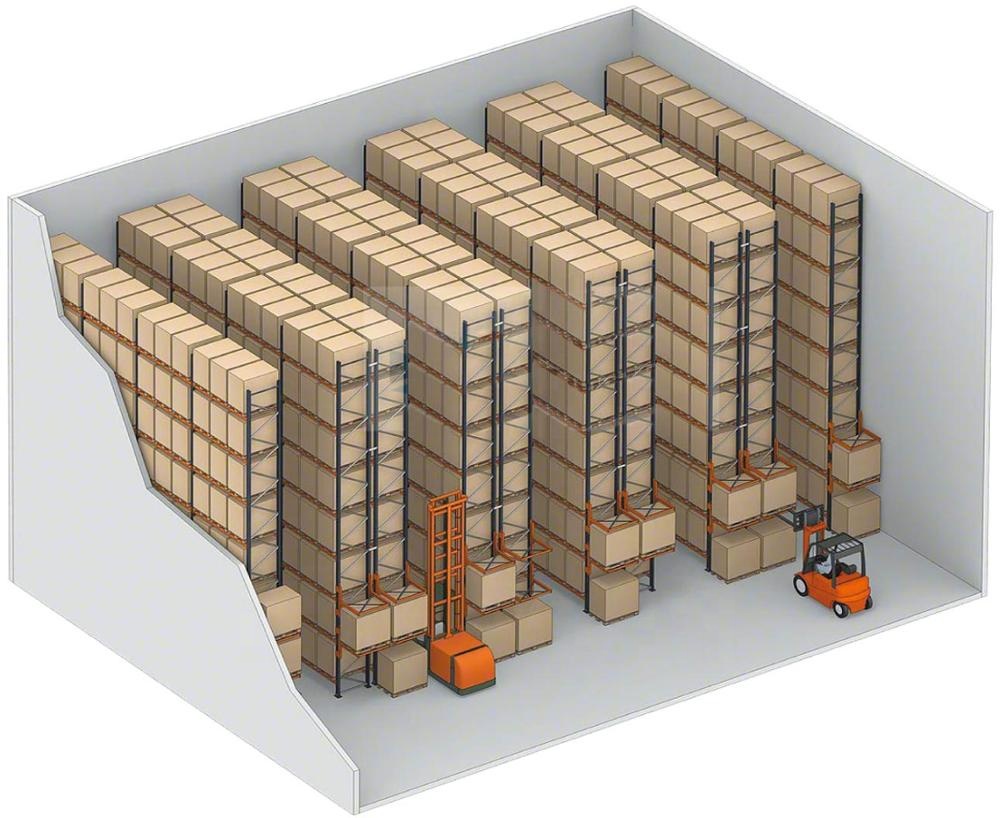

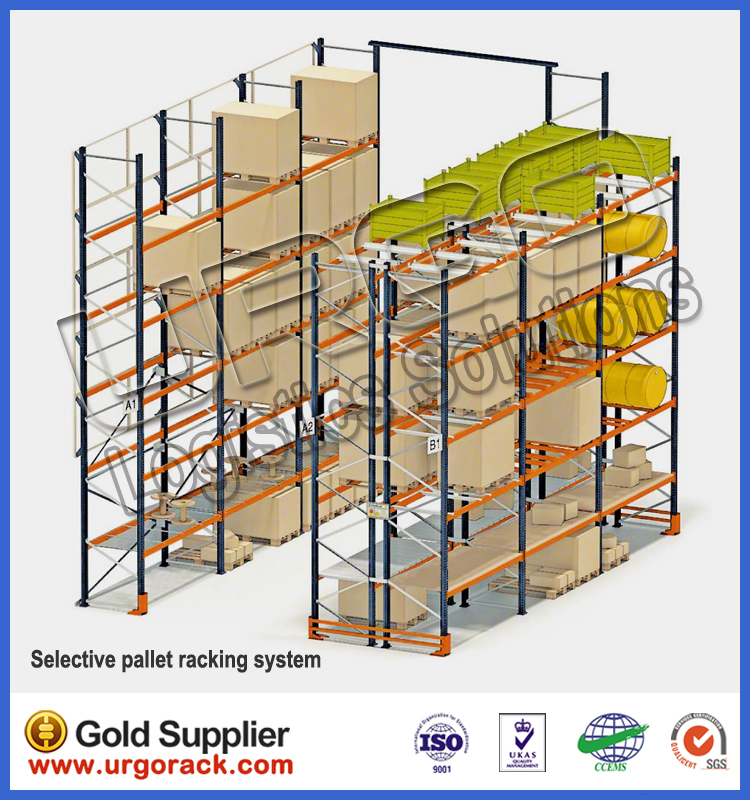

Product Structure
The structure of URGO heavy duty pallet rack includes uprights and beams. According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.

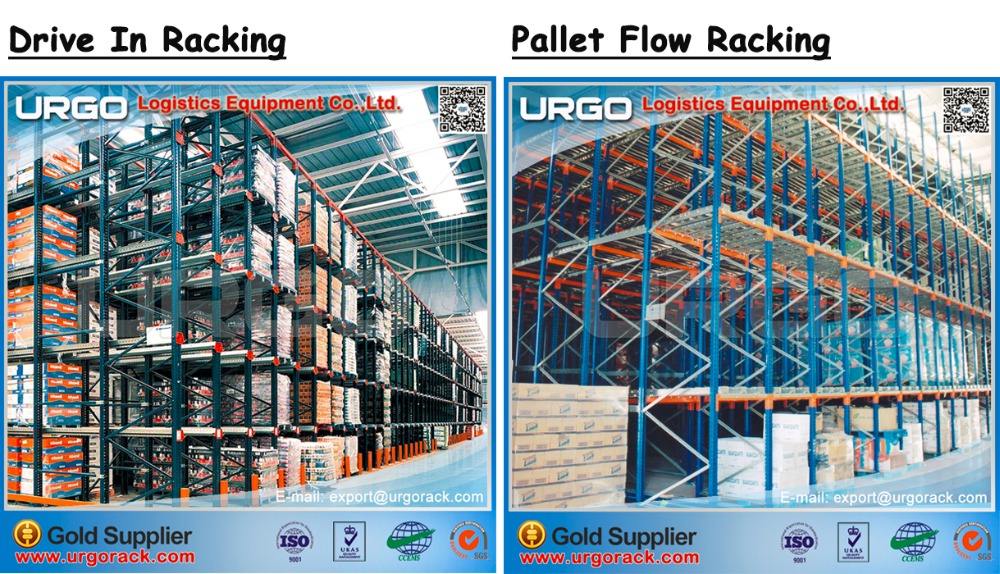

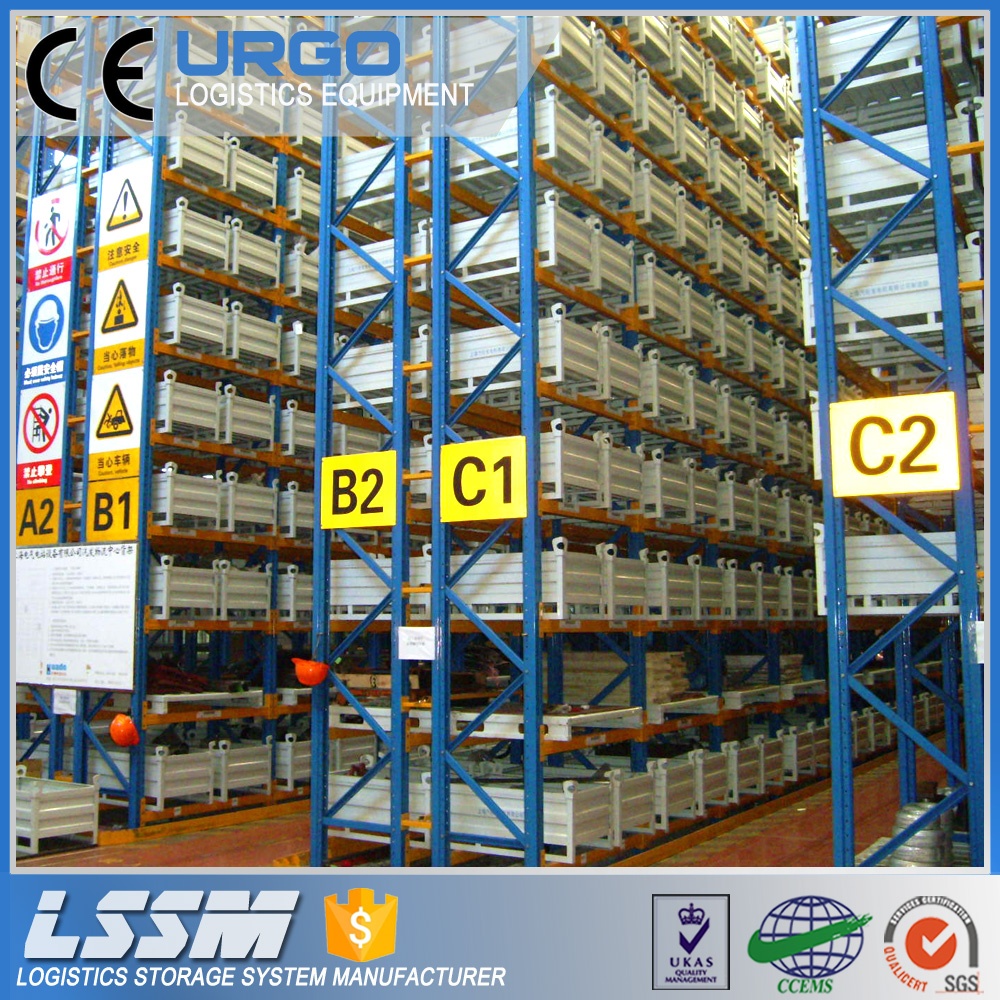

Warehouse Rack Use & Customized Width Drive In Pallet Racking
| Features |
|
|---|---|
| Beam & Frame |
1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck. |
| Main Parts Specs |
1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc. 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Load Capacity & Dimension |
1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Special sizes also available to specific storage needs. |
| Delivery Time | Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery. |
Upright Specifications
- High load capacity up to 21,000kg.
- Frames include all the elements needed for assembly: bracing, feet, and nuts & bolts.
- Blue epoxy coated (RAL 5012/5015/5017).
- Standard heights: From 2 to 11.5m.
- Adjusted by 50/75mm pitch.

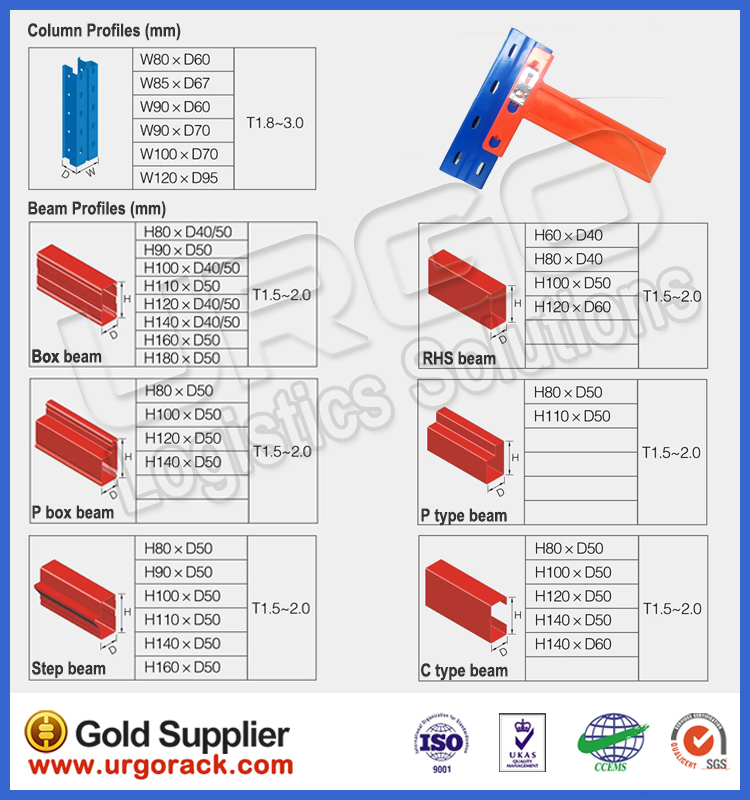

Column Profiles
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
Beam Specifications
- High load capacity up to 5000kg.
- Manufactured with the highest quality steel Q235.
- Orange epoxy coated (RAL 2004).
- Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
- Boltless connection with 3/ 4/ 5 connector hooks.
- A security pin per beam to prevent accidental dislodgement.
- Powder coating finish.
Beam Profiles (Box Beam Loading)
| Loading (kg) Specification (mm) |
The Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
P Box Beam Profiles
| Loading (kg) Specification (mm) |
The Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |

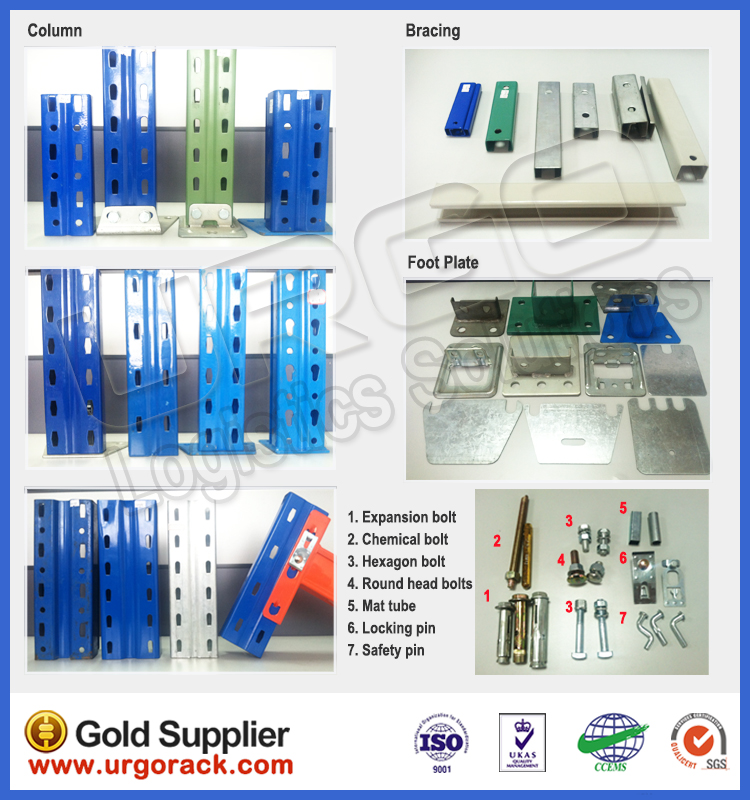

Main Spare Parts Profiles
Optional Accessories
Available Components:
Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.
