High Density Warehouse Storage Equipment 1500kgs Load Warehouse Live Storage Gravity Flow Pallet Rack
Product Description
Products Description

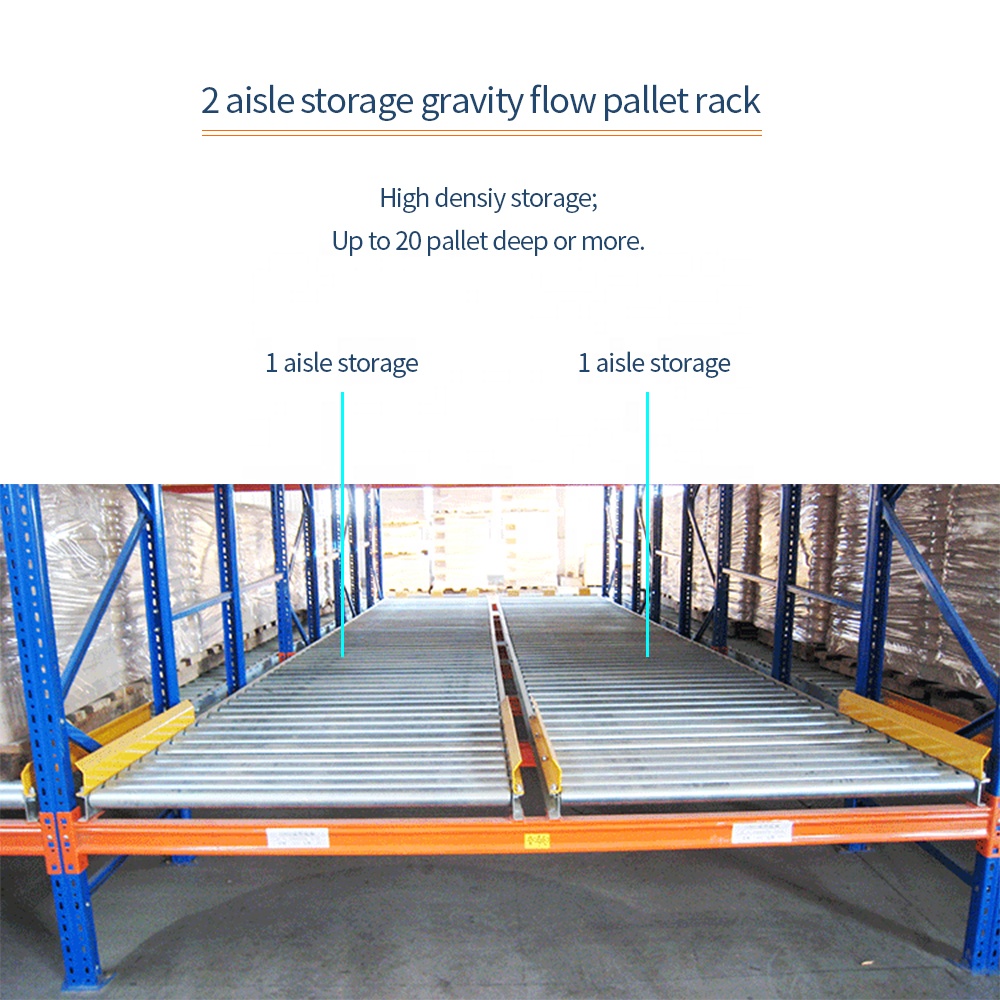

Gravity flow pallet rack (also called live pallet rack) is one of the high density storage racks. The rack depth could be up to 30 pallets deep. The pick-up mode is "First in first out (FIFO)". One channel is better for one goods type or goods that taken out in order.
Product Information
| Rack Type | Live pallet racking |
|---|---|
| Rack Cost | Low, Medium Low, Medium, Medium High, √High, Higher |
| Pick-up Mode | First in, first out (FIFO) |
| Structure | Knock down or bolted, welded structure available |
| Forklift Aisle | Around 3200mm, depends on customer's forklift parameter |
| Load Capacity | ≤1500kgs/pallet |
| Length | 1000mm ~ 3000mm |
| Depth / Width | 2000mm ~ 30000mm |
| Height | ≤10000mm |
| Level | ≥2 |

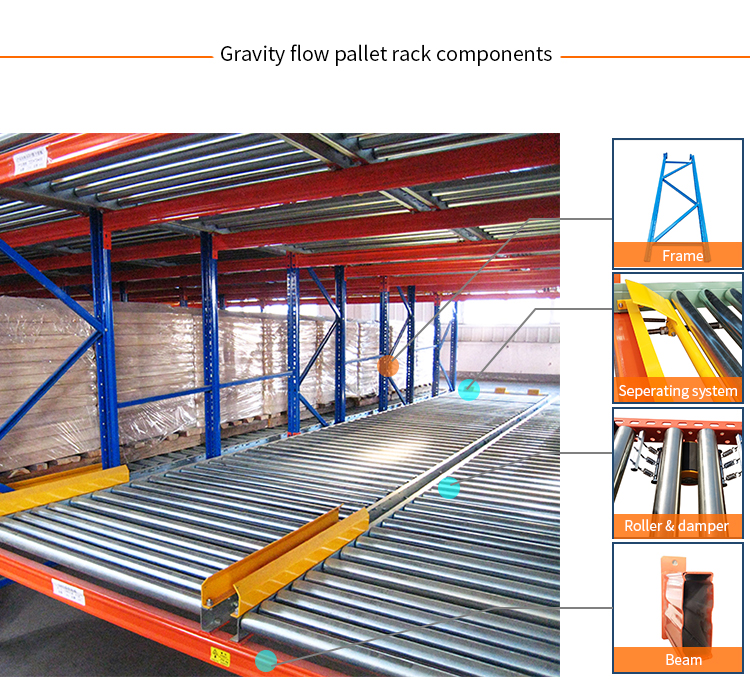

| Core Components | Frame (upright/column/post, bracing, base plate, fasteners), spacer, beam, roller line, damping, separator |
| Other Components | Upright protector, frame protector, forklift stopper, etc. |
| Upright Section (Face) | 80*60mm, 90*60/67mm, 100*67/95mm, 120*95/135mm |
| Adjust Step | 75mm |
| Roller Thickness | 2.0mm, 2.5mm |
| Damper Diameter | 92mm, 120mm |
| Beam Section (Height) | 80*50mm, 100*50mm, 110*50mm, 120*50mm, 130*50mm, 140*50mm, 160*50mm, 180*50mm |
| Material | Q235 (SS400), Q355 (S355B, S355JR) |
| Finish | Epoxy resin electrostatic spraying (powder coating), galvanized |
| Coating Thickness | No less than 60um average thickness for powder coating |
| Color Options | RAL5015 (sky blue), RAL5005 (signal blue), RAL2004 (pure orange), RAL1003 (signal yellow), RAL7035 (light grey). Customized colors available when order is above 2*40GP containers. |

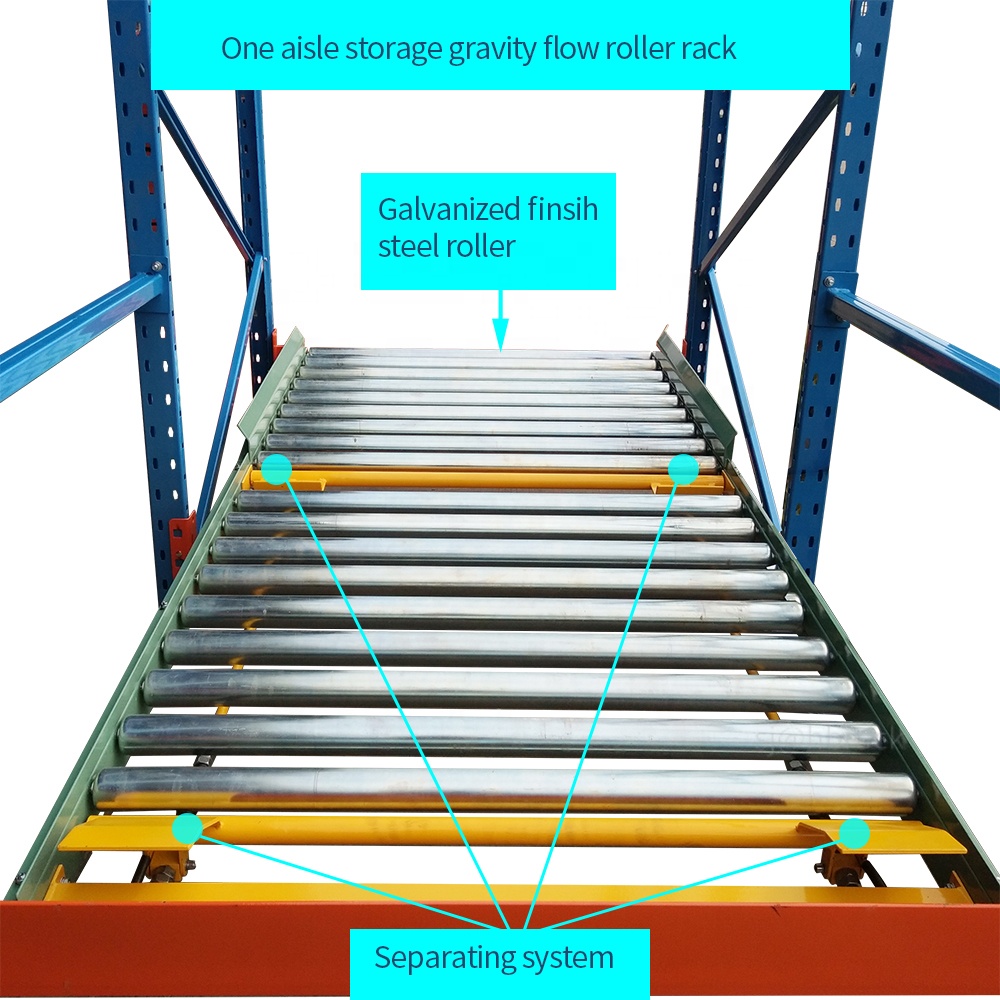

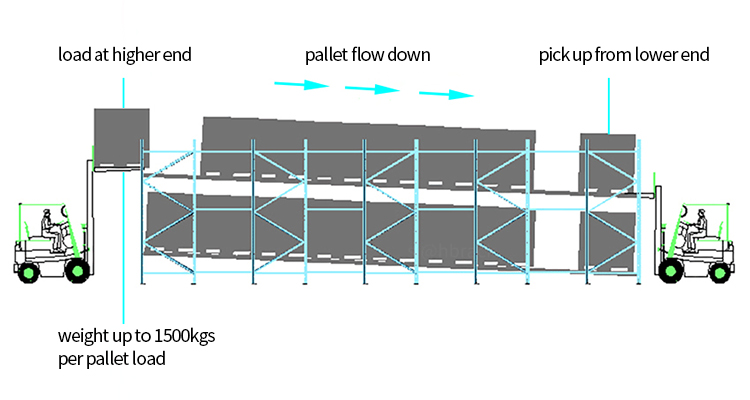

Working Principle
-
1The higher end is equipped with guide rails.
-
2The pallet is placed on the higher end and flows down under the effect of gravity.
-
3Guide rails ensure the pallet flows smoothly in the proper direction.
-

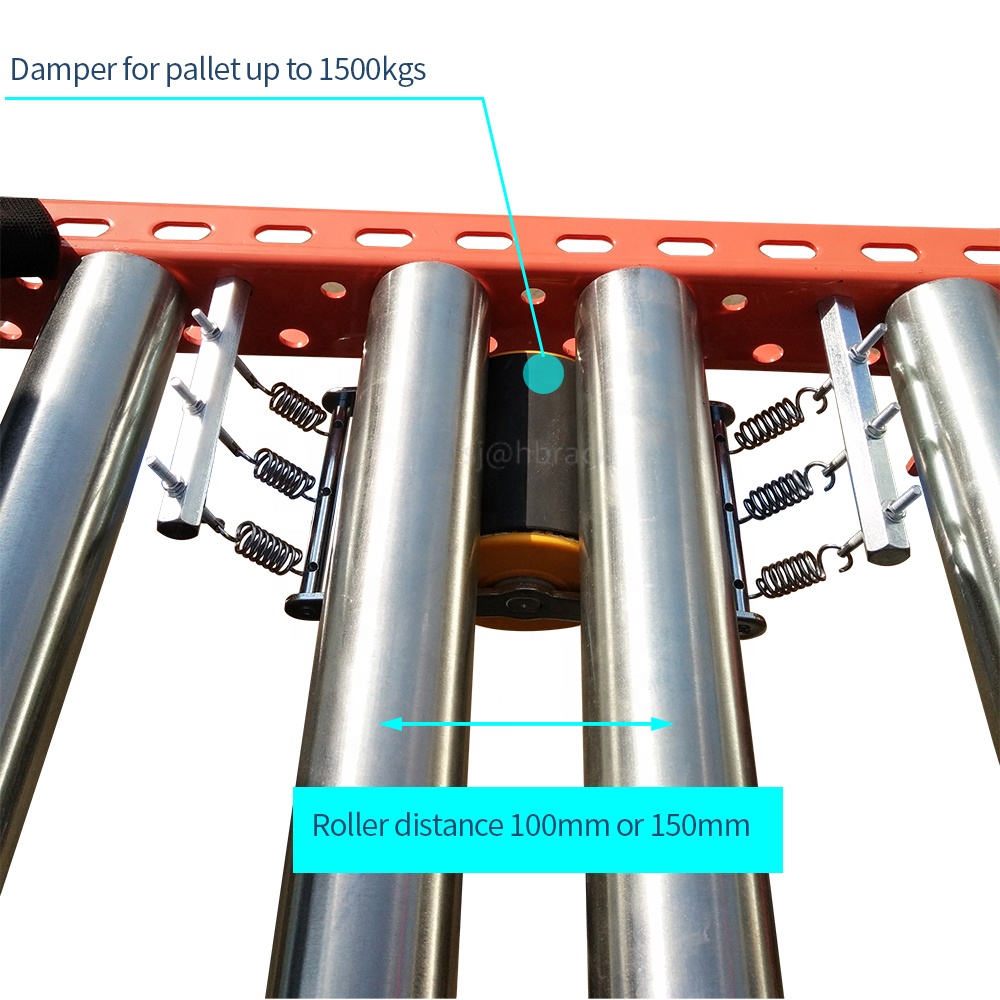

4Damping systems equipped along the roller line regulate descent speed to approximately 200mm per second.
-

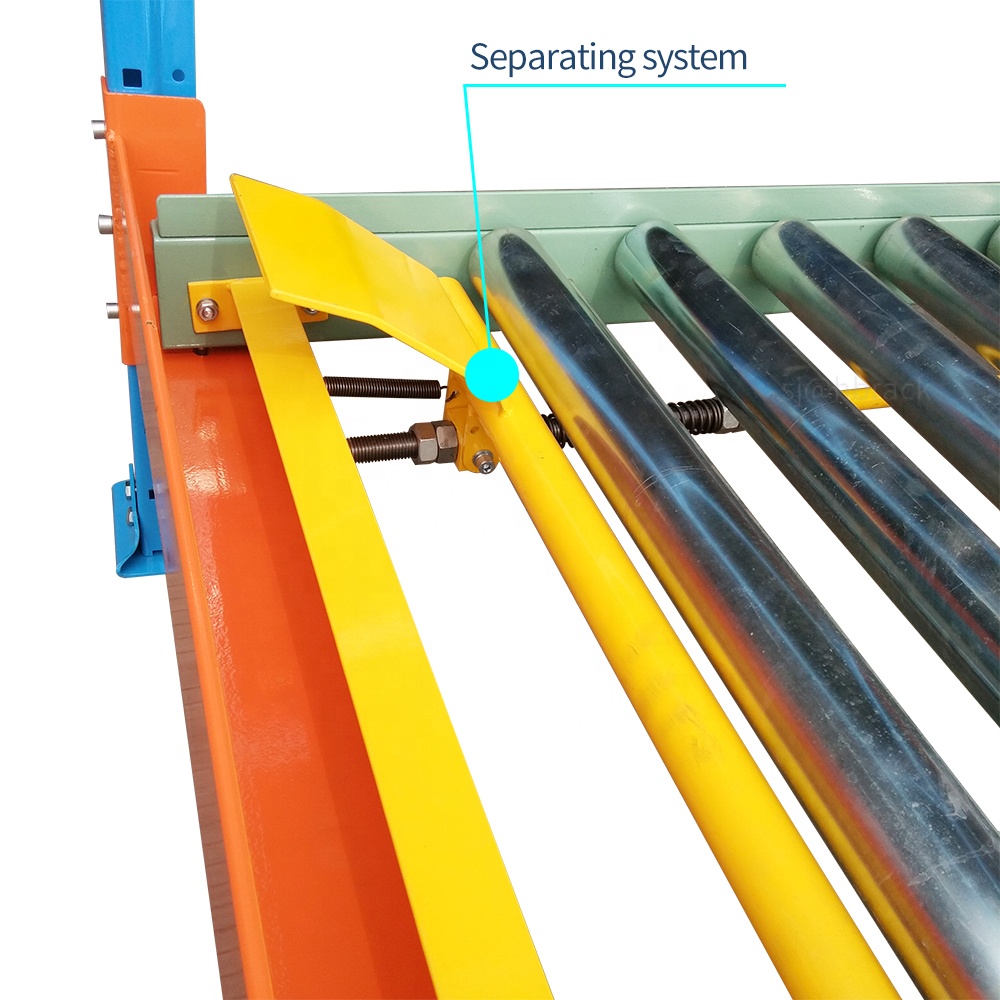

5A separator is positioned at the lower end between the first and second pallets.
-
6When the first pallet reaches the end, the separator engages to hold the second pallet. Once picked, the separator releases, and the next pallet flows into the pick position.

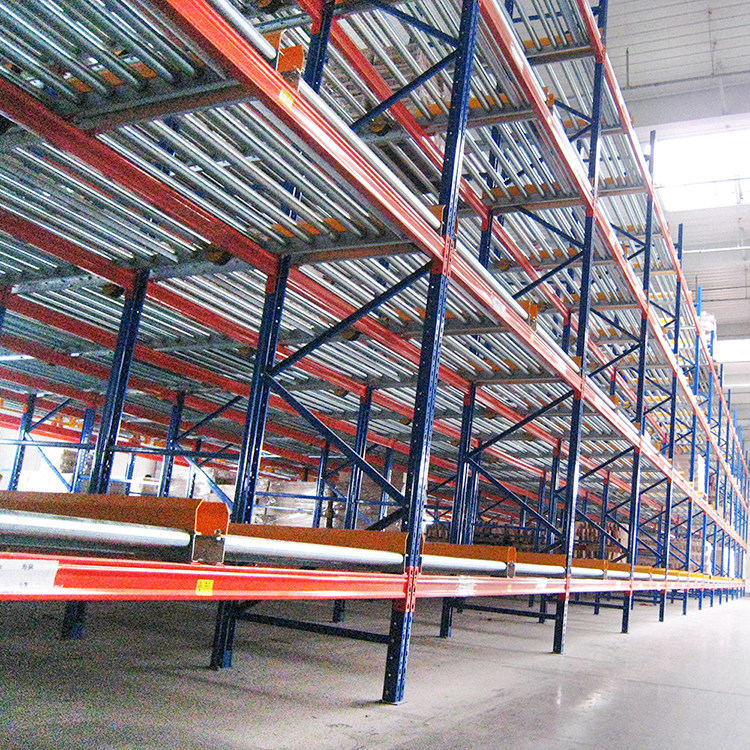

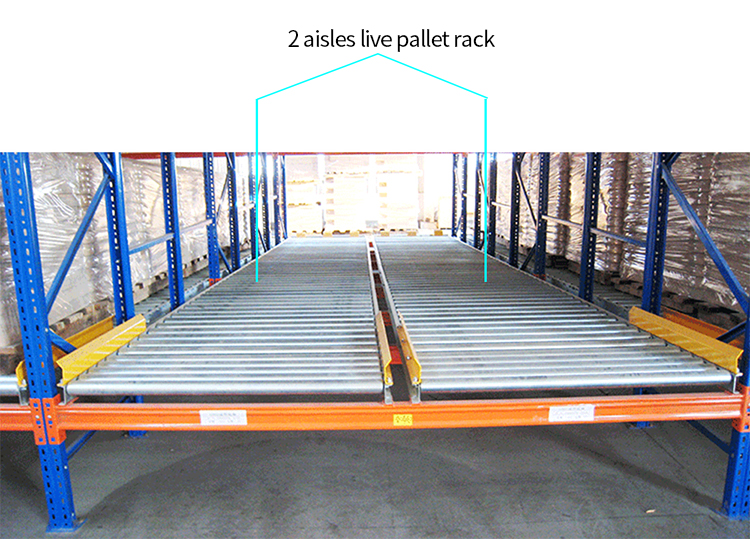

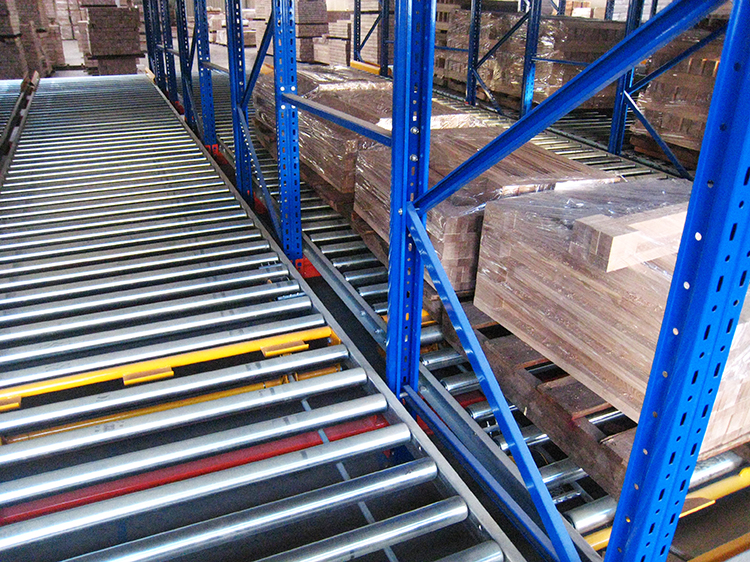

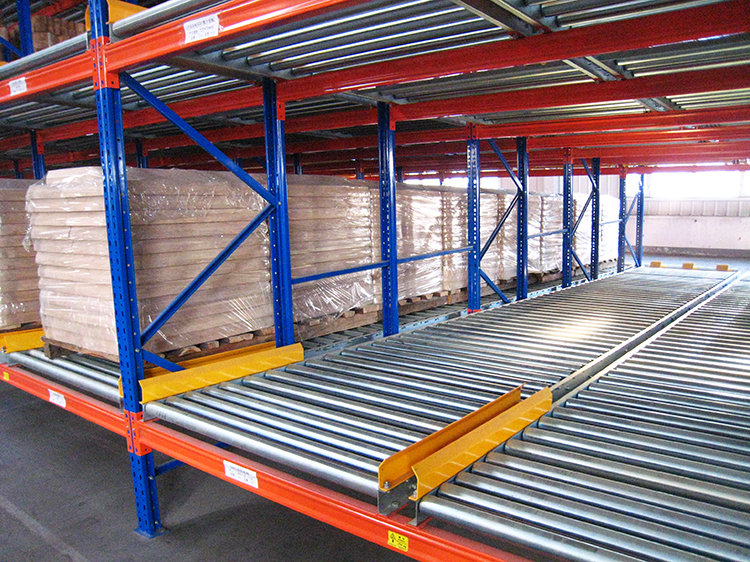

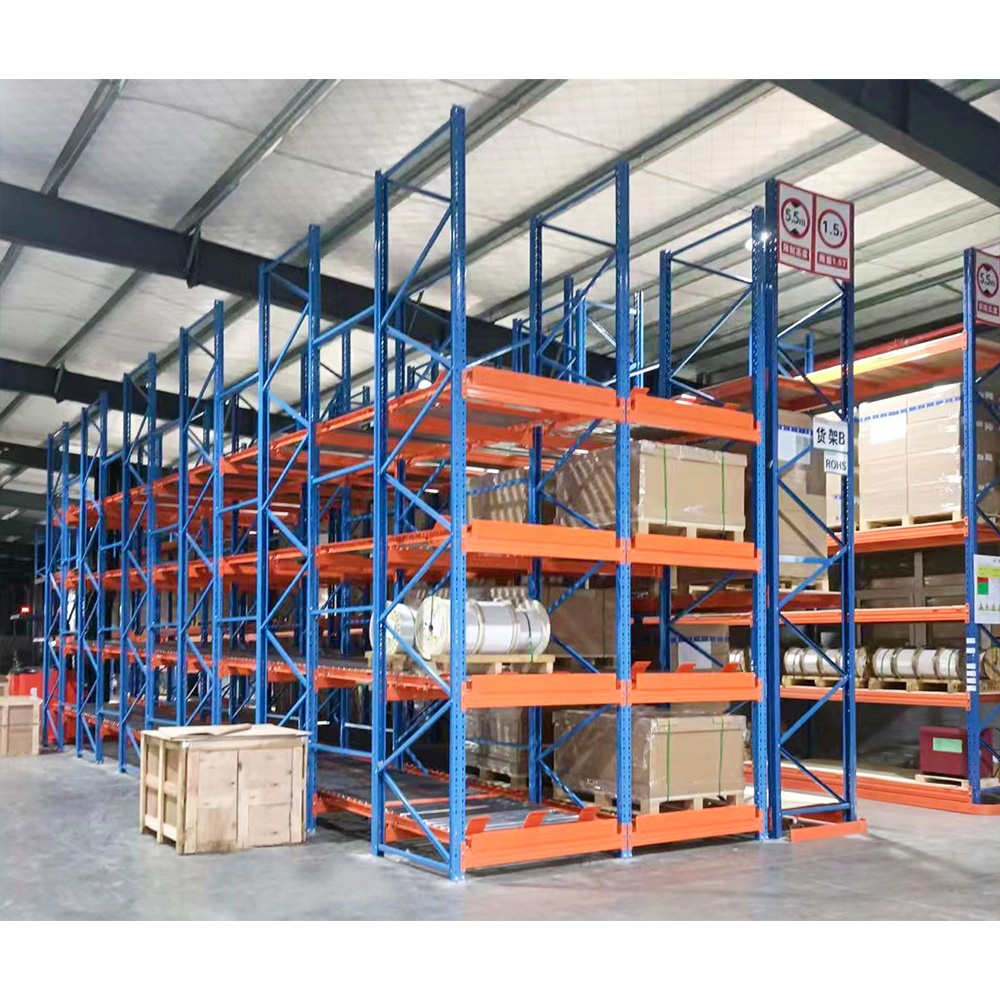

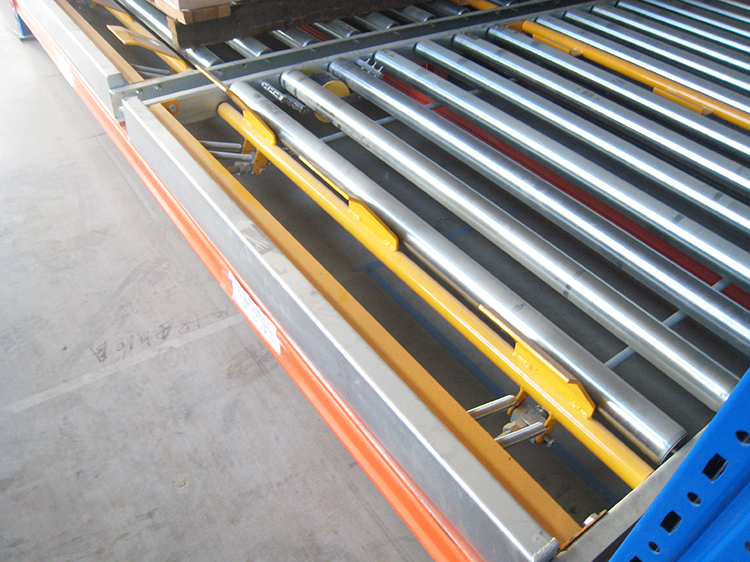

Project Showcase

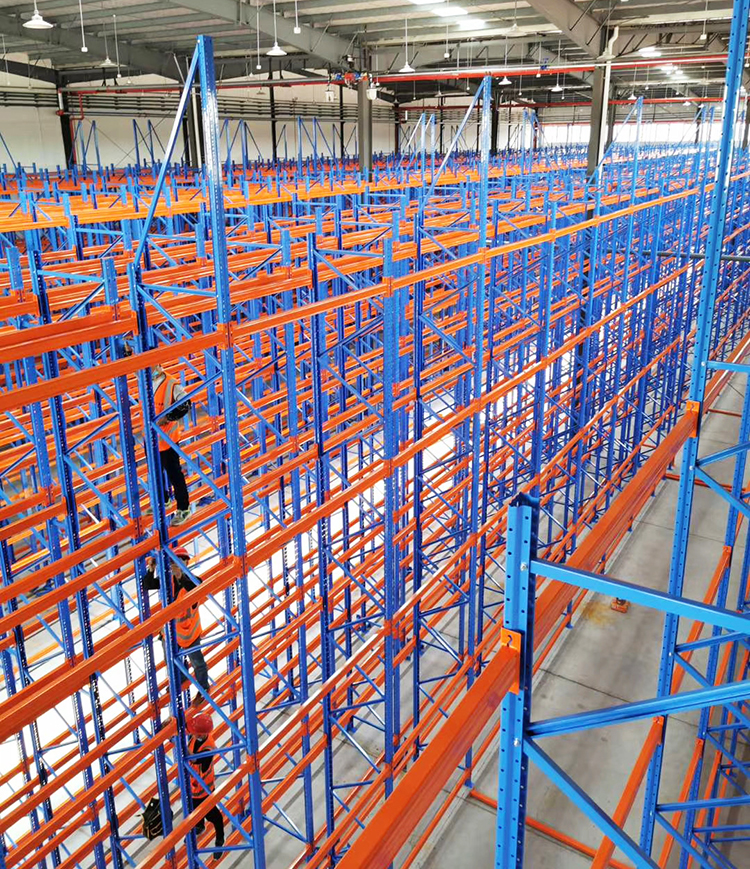

Comprehensive Installation Services
3 Flexible Solutions for Installation:
- Option 1: HBrack offers detailed installation drawings and technical descriptions; the client handles execution.
- Option 2: HBrack dispatches a professional installation engineer on-site to assist and supervise.
- Option 3: HBrack provides full turnkey service to complete the entire installation.
Contact us for detailed installation support.
Our Services
Product Packaging & Shipping

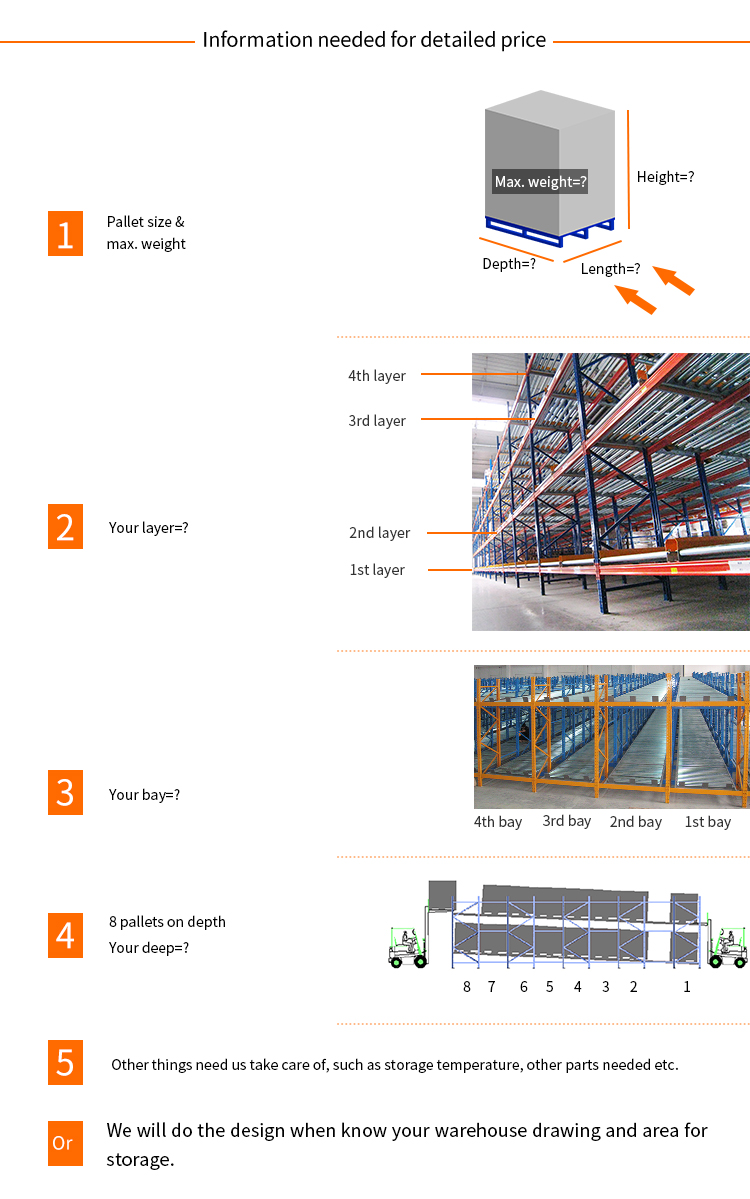

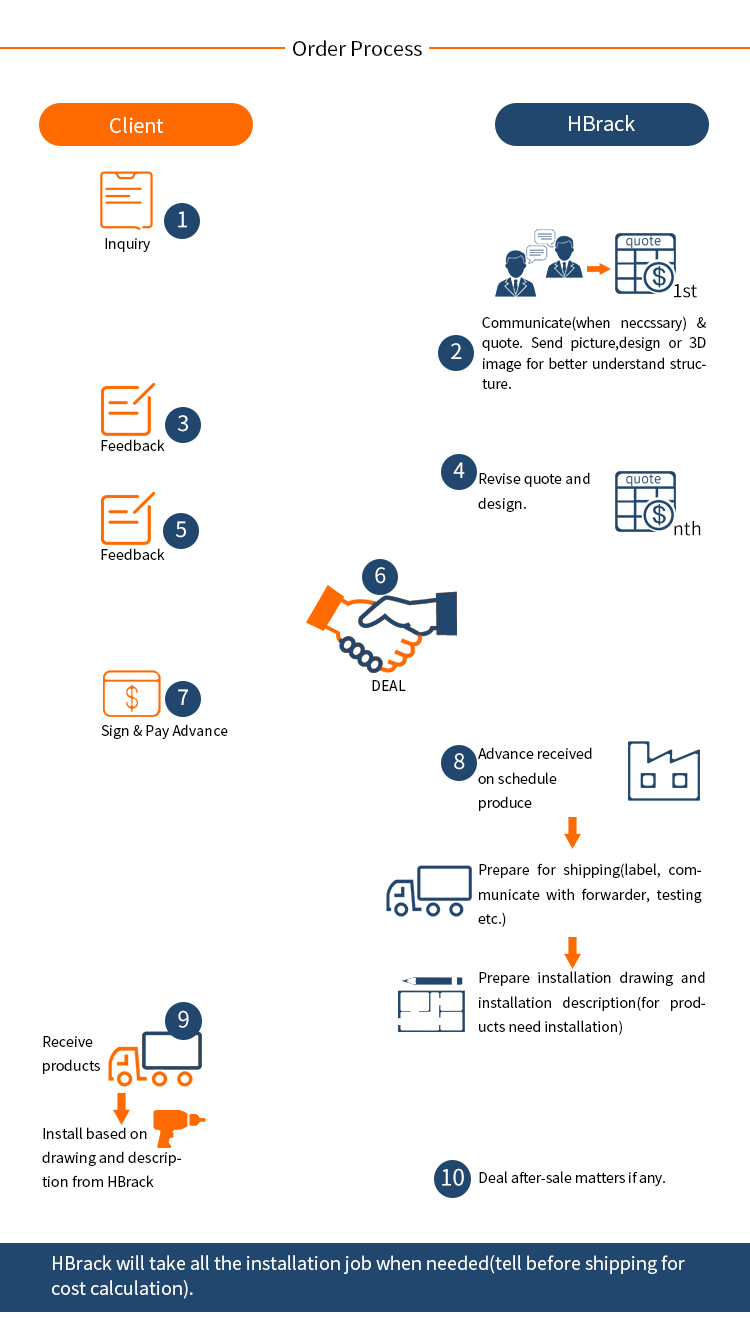

Buying Guides
Company Profile
Nanjing Hongbo Metal Products Co., Ltd. (HBrack) is a dynamic organization dedicated to delivering top-tier metal products and specialized engineering services. Our engineering team brings over a decade of hands-on expertise in warehouse rack design, specializing in complex, high-density structures.
Our broad portfolio includes adjustable pallet racking, industrial shelving, cantilever racks, drive-in racking, mezzanine floors, live racking, drawer racking, stacking racks, wire containers, steel pallets, steel cages, and complementary warehouse storage solutions. Comprehensive services span from initial rack conceptual design through in-house manufacturing to complete installation.
Frequently Asked Questions (FAQ)
Q1: Are you a factory or a trading company?
Answer: We are an integrated manufacturing factory with trading capabilities for complete warehouse storage rack solutions.
Q2: Do you provide samples? Are they free or extra?
Answer: Component parts samples are provided free of charge; you only need to cover the freight cost. For complete sample rack units for operational feasibility testing, please contact us for specific sample pricing.
Q3: How can I visit your facility? Which city should I travel to?
Answer: Our company is located in Nanjing. Upon request, we will assist with booking hotel accommodations and transit tickets. Dedicated sales representatives and drivers will meet you and accompany your entire visit for a smooth experience.
Q4: Why should we choose HBrack?
Answer: HBrack employs professional rack designers with over 10 years of engineering experience across both standard and highly complex structures. We support secure transactions via third-party guarantees and provide value engineering options to accommodate project budgets.
Q5: What are the main advantages of gravity flow pallet racking?
Answer: Gravity flow racks deliver exceptional high-density storage up to 30 pallets deep while strictly enforcing FIFO inventory rotation. The system minimizes forklift travel distances and maximizes space utilization without requiring electrical power for pallet movement.
Q6: What customization options are available for colors and dimensions?
Answer: Standard RAL colors include Sky Blue, Pure Orange, Signal Yellow, and Light Grey. Custom color schemes and tailored dimensions (heights, depths, and weight capacities) are supported based on warehouse layouts and order volumes.
