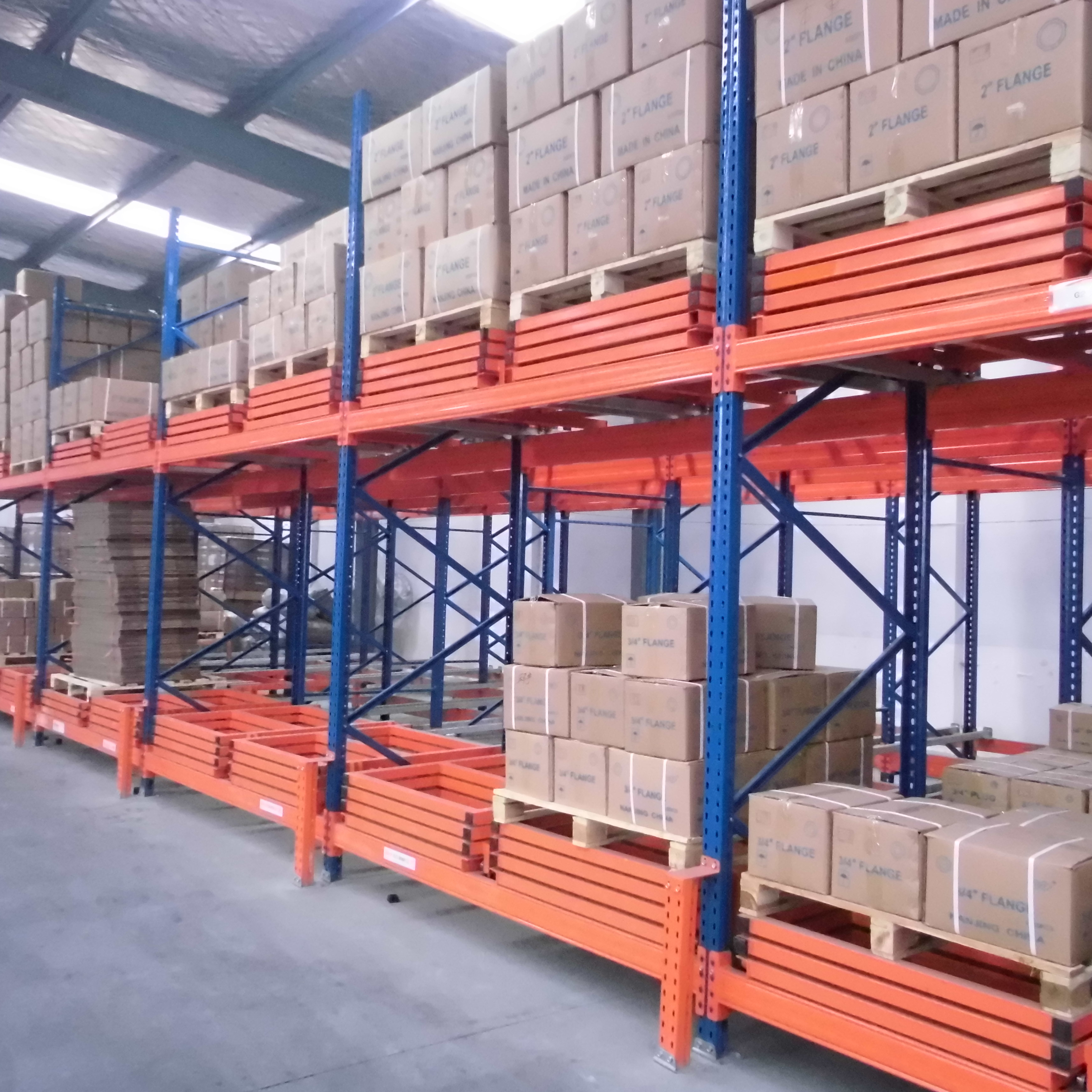

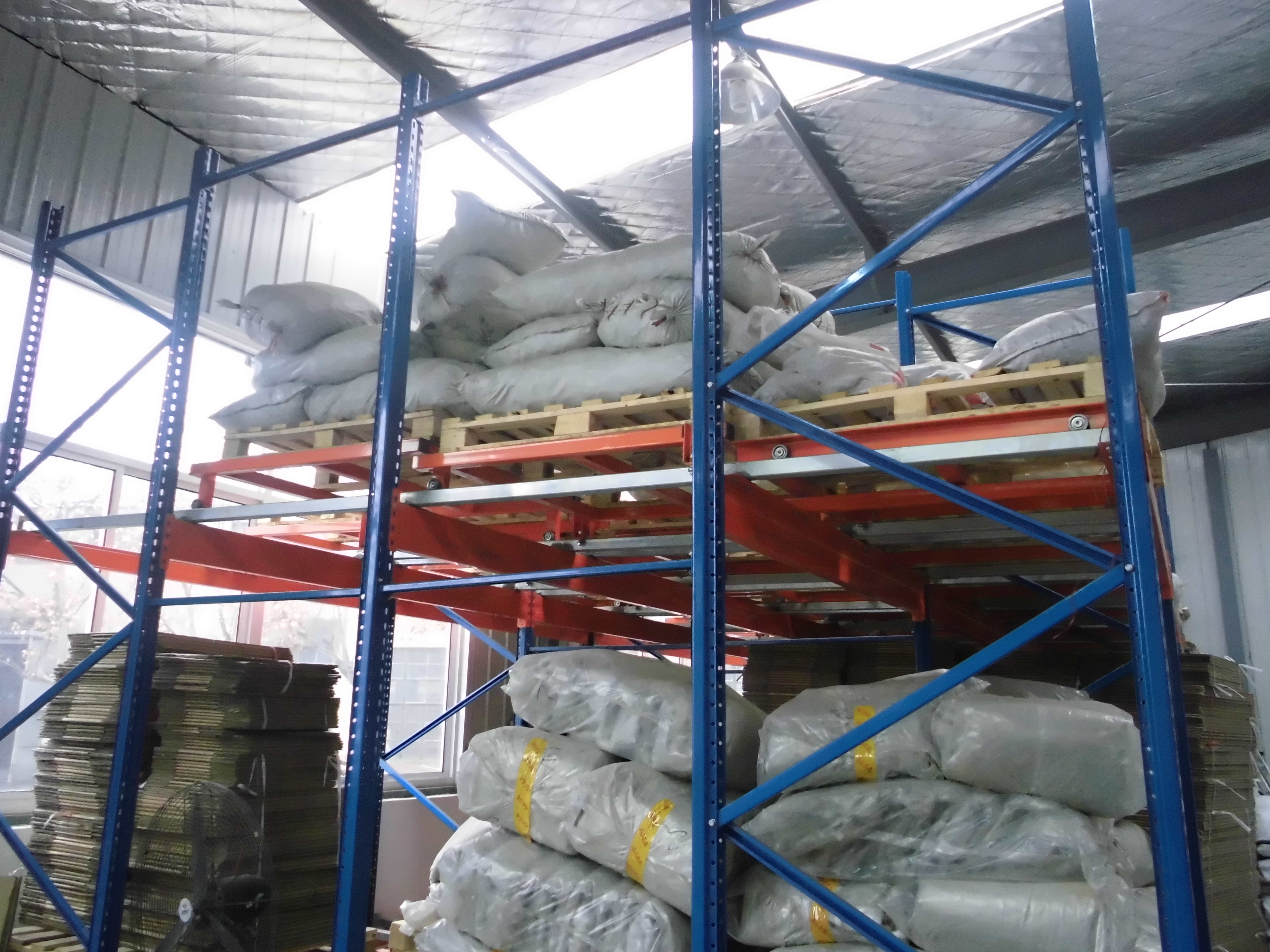

High Effective Heavy Duty Warehouse Storage Racking Push Back Pallet Rack
Product Description
Specification
| A full variety of ranges and accessories available | |
|---|---|
| 1. Item: | Push Back Pallet Racking System |
| 2. Style: | Quick access, Adjustable |
| 3. Material: | Grade Q235 (or SS400) Q345 |
| 4. Certification: | CE/ISO9001 |
| 5. Standard Color: | Blue(RAL5017), Orange(RAL2004), Green(RAL6000), Light Grey (RAL7035), Yellow(RAL1037) |
| 6. Adjustable Pitch: | N/A |
| 7. Access Style: | High accessibility & selectivity |
| 8. Finishing: | Powder Coated or Galvanized |
| 9. Application Environment: | Normal Temperature or Freezer |
| 10. Design Service: | CAD service available |
| 11. Back-up Service: | Installation Drawing/On Site Instruction |
| 12. MOQ: | 1 unit |
| 13. Lead time: | 3 weeks for 2*40' container |
| 14. Standard package: | Palletized, Export-Purpose Packaging |
| 15. Container Load: | 10-15tons/1*20' container, 20-25tons/1*40' container |
| 16. Trade Term: | EXW/FOB/CNF/CIF |
Company Profile
Customer Photos
Our Advantages
Packing & Delivery
Frequently Asked Questions
Q
How does a push back pallet racking system work?

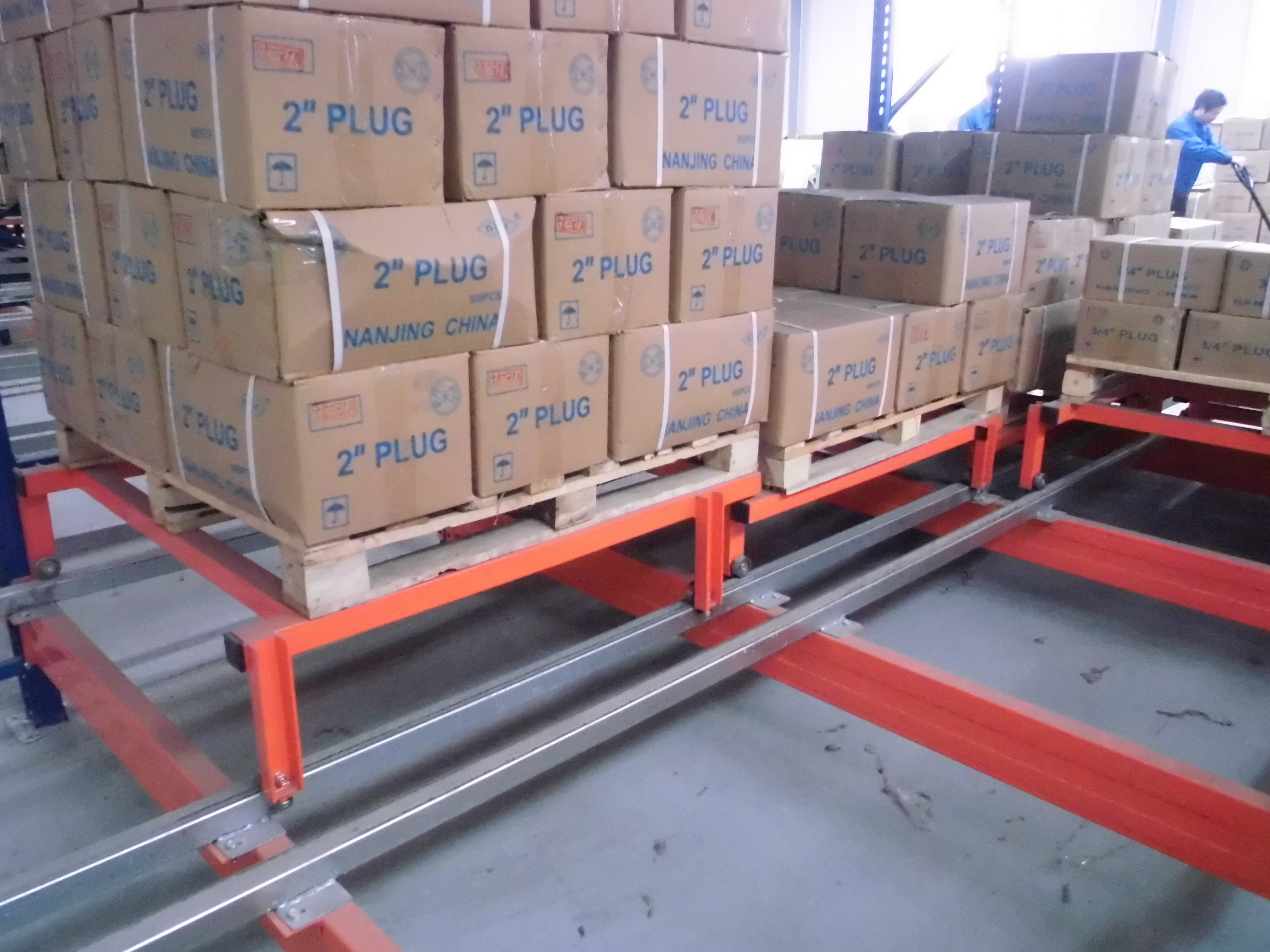

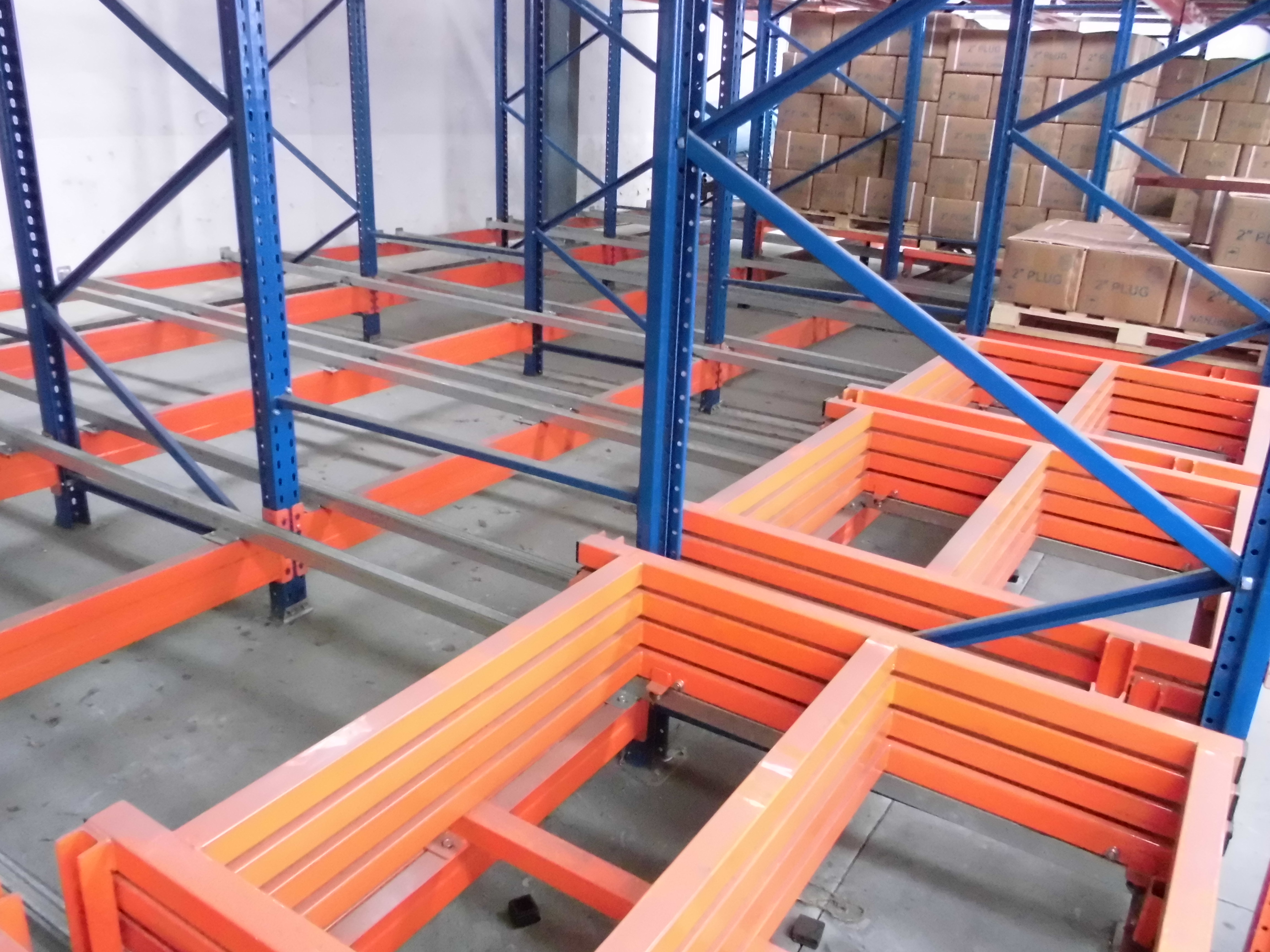

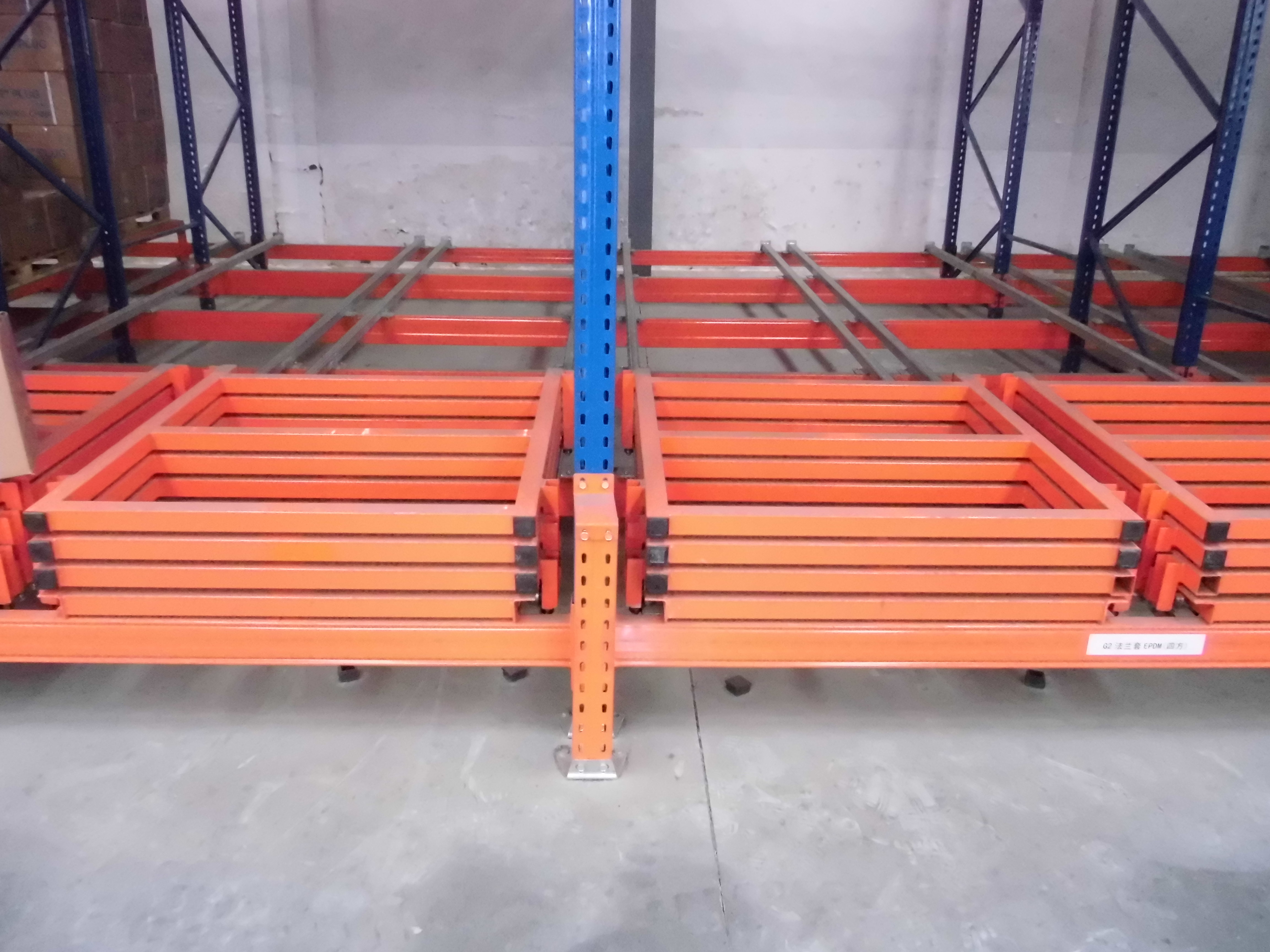

Pallets are loaded onto nested carts that ride along inclined structural rails. As each pallet is inserted at the front, it gently pushes the preceding pallet back. When picking, gravity moves the rear pallet safely forward to the front aisle position, following a Last-In, First-Out (LIFO) inventory pattern.
Q
What advantages does push back racking offer over drive-in racking?
Push back racking provides higher selectivity because each lane can store a different SKU. Forklifts operate solely in the front aisle without entering the rack structure, which reduces pallet handling times and significantly minimizes the risk of frame damage.
Q
Can this system be used in cold storage or freezer facilities?
Yes. The system is engineered to perform reliably in both normal temperature warehouses and sub-zero freezer environments. Specialized low-temperature bearings and corrosion-resistant powder or galvanized finishes ensure smooth continuous operation.
Q
What is the typical production lead time and MOQ?
The minimum order quantity (MOQ) is 1 unit. The standard lead time for an order of two 40-foot containers is approximately 3 weeks from drawing confirmation and deposit receipt.
Q
Do you provide warehouse CAD design and installation support?
Yes, professional CAD design services are available to customize lane depths, pallet capacities, and layout dimensions. Comprehensive installation drawings and on-site guidance instructions are supplied with every order.
Q
What certifications and structural steel grades are used?
All racking components are built using certified high-strength structural steel grades Q235, SS400, or Q345. Production strictly complies with international CE and ISO9001 quality and safety standards.
