Hot Sale Customized Heavy Duty Single-Faced Euro Pallet Racks 4-Way Steel Plate Converter Storage Post Pallet Stacking Racks for
Product Description

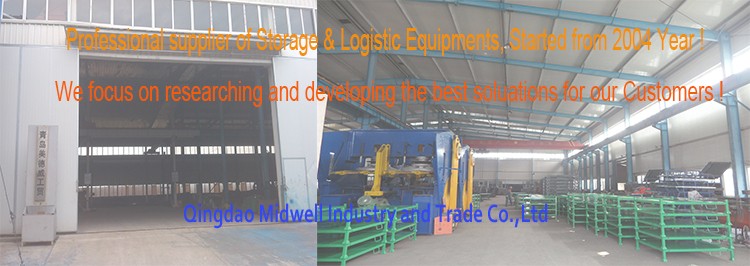

Our Company
QINGDAO MIDWELL INDUSTRY & TRADE CO., LTD specializes in storage, packaging, and logistical solutions, with specific expertise in steel, aluminum, and high-quality industrial plastic products.
With more than 10 years of professional manufacturing experience, our operations service multiple international industries including supermarkets, food processing, postal and laundry logistics, automotive supply chains, general industrial manufacturing, airports, outdoor operations, and global tire distribution.
Company Purpose: Creating Value for Partners
Customers, suppliers, shareholders, and employees are valued collaborative partners. Dedicated value creation for our partners forms the foundational path to mutual development, enduring success, and realized potential.
Company Principle: Honesty, Tolerance, Innovation, Service
Honesty remains the bedrock of genuine cooperation; tolerance fosters sustainable problem-solving; innovation serves as the engine for continuous progress; and service excellence creates lasting value.
Related Products
Product Specifications & Parameters
| Item No. | Outer Dimensions (L*W*H, mm) | Loading Capacity (kgs) | Surface Treatment | Loading Quantity per 40’HQ (Sets) |
|---|---|---|---|---|
| M1-Base | 1395 × 1060 × 310 | 1500 | Hot dip galvanized | 256 |
| M1-Post | 60 × 2.5 × 1200 | Hot dip galvanized | ||
| M2-Base | 1875 × 1060 × 310 | 1500 | Hot dip galvanized | 150 |
| M2-Post | 60 × 2.5 × 1200 | Hot dip galvanized | ||
| M3A-Base | 950 × 950 × 310 | 1200 | Hot dip galvanized | 160 |
| M3A-Post | 60 × 2.5 × 2000 | Hot dip galvanized | ||
| M3B-Base | 950 × 950 × 310 | 1200 | Hot dip galvanized | 160 |
| M3B-Post | 60 × 2.5 × 2000 | Hot dip galvanized | ||
| M4-Base | 1545 × 1050 × 310 | 1500 | Powder coating | 250 |
| M4-Post | 60 × 2.5 × 1500 | Powder coating | ||
| M5-Base | 1200 × 1000 × 310 | 1200 | Hot dip galvanized | 255 |
| M5-Post | 60 × 2.5 × 2000 | Hot dip galvanized | ||
| Kr-Base | 1200 × 1000 × 250 | 1000 | Hot dip galvanized | 400 |
| Kr-Post | 48 × 2.5 × 1500 | Hot dip galvanized |
Standard Material:
Mild steel Q235 compliant with GB/DIN/ASTM international standards.

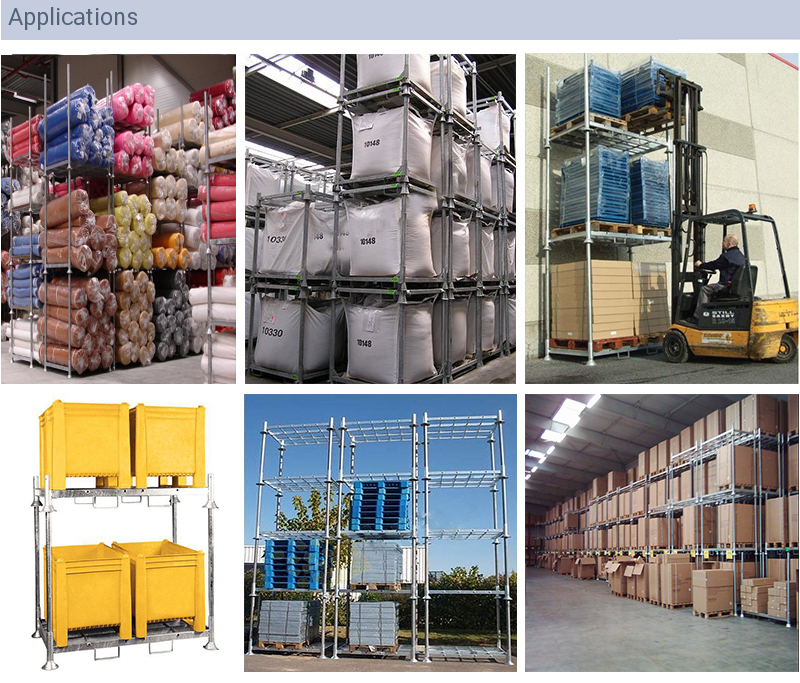

Application Scope:
Industrial warehouse storage, comprehensive logistics, material handling, recycling distribution, etc.
Customization Options:
Full OEM & ODM support; post lengths, upright profiles, and deck sizes can be engineered to demand.
Key System Features:
1. Detachable, stackable, and easily movable.
2. Maximizes vertical warehouse volume and saves valuable floor footprint.
3. Fast assembly and disassembly without specialized tool sets.
4. Robust load-bearing structure with dynamic high capacity.
5. Adaptable storage architecture for versatile logistical environments.
6. Multi-finish capability: Hot dip galvanized, electro zinc-plated, or durable powder coating.
2. Maximizes vertical warehouse volume and saves valuable floor footprint.
3. Fast assembly and disassembly without specialized tool sets.
4. Robust load-bearing structure with dynamic high capacity.
5. Adaptable storage architecture for versatile logistical environments.
6. Multi-finish capability: Hot dip galvanized, electro zinc-plated, or durable powder coating.
Product Description

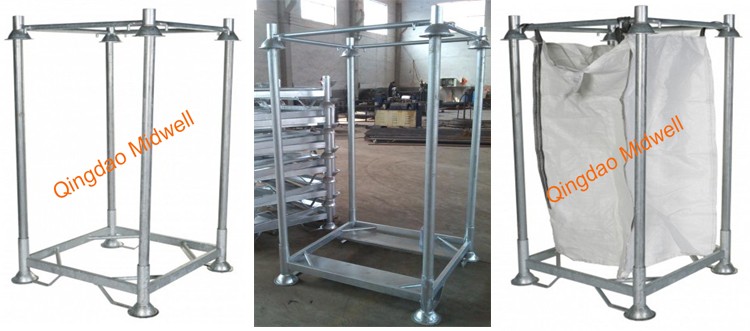

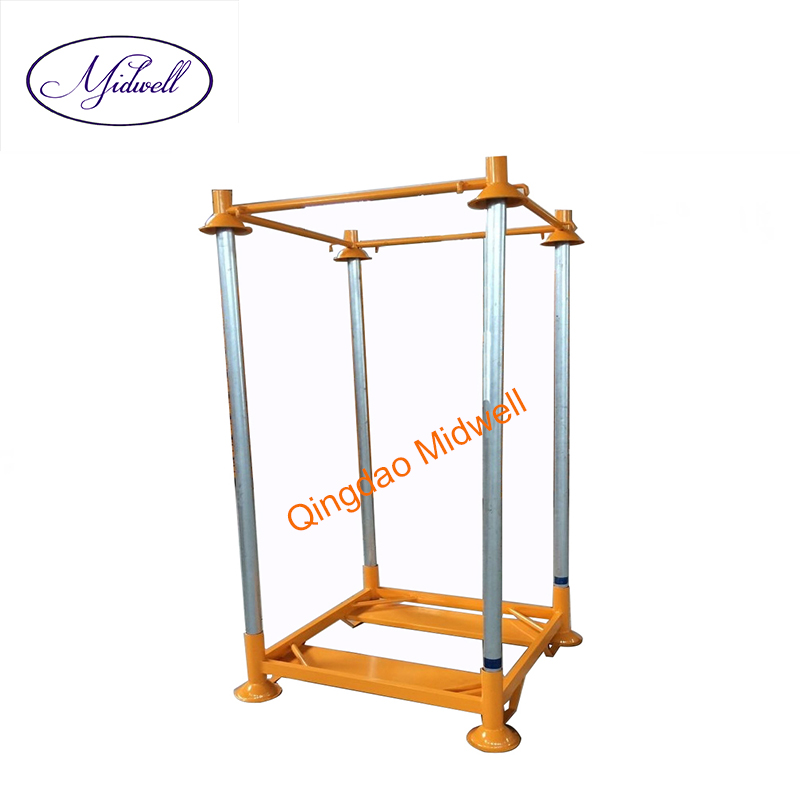

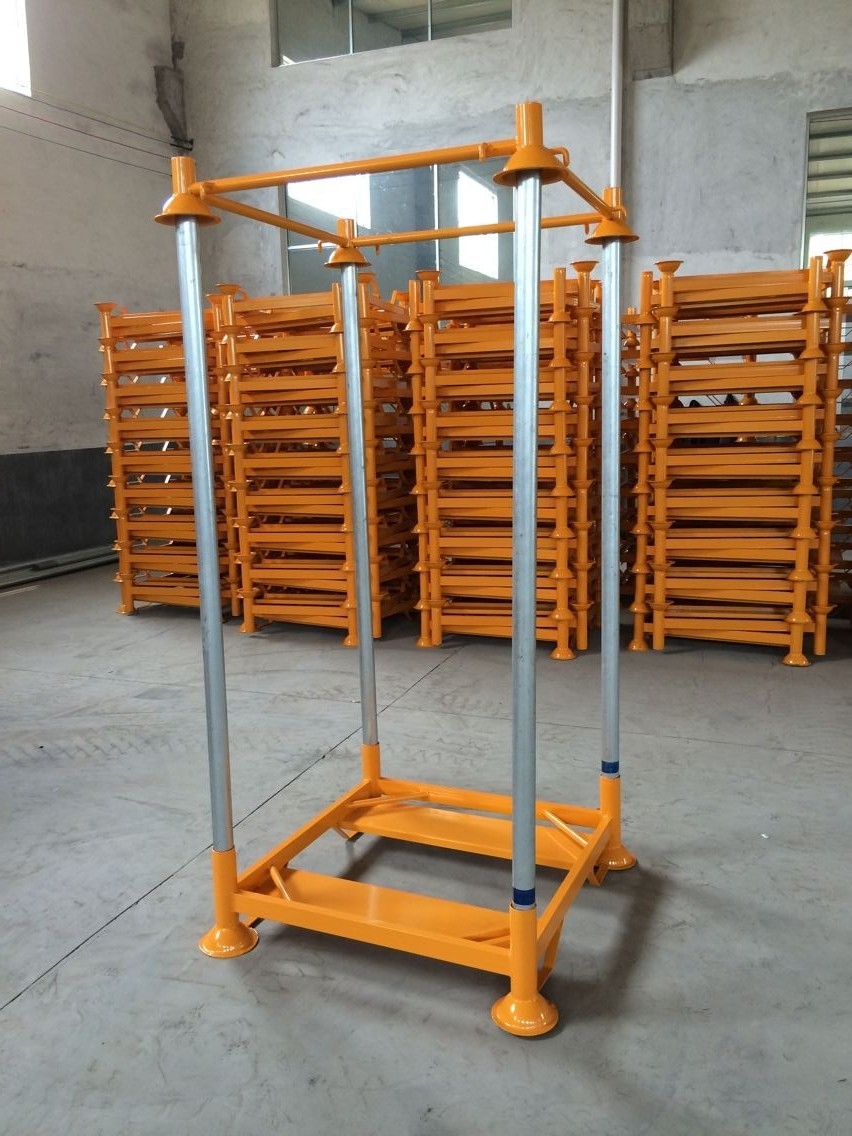

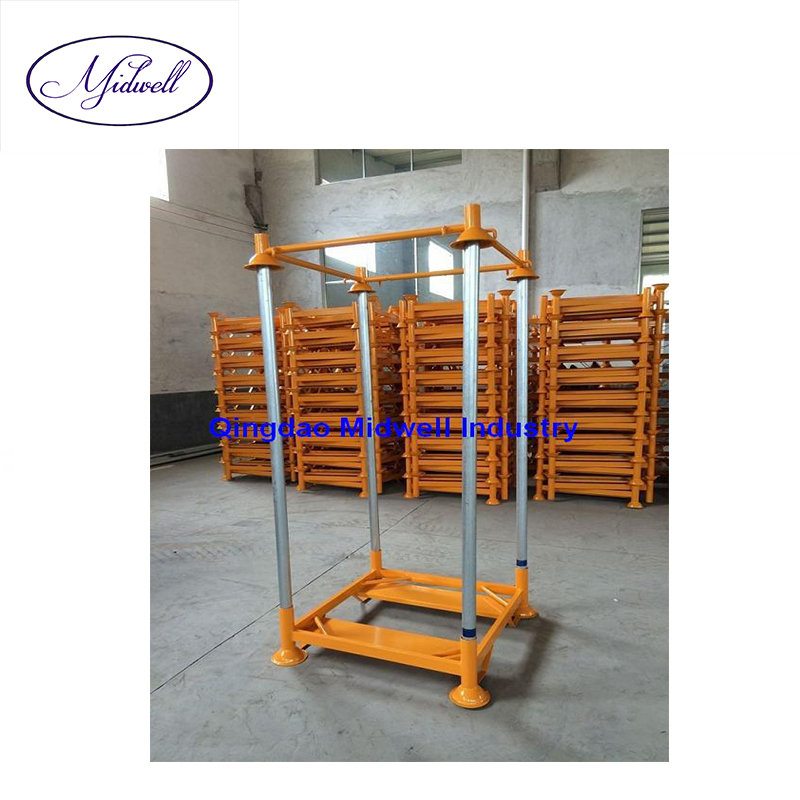

Industrial Logistics Equipment: Durable Powder-Coated & Galvanized Steel Stacking Post Pallet Converter Racks / Manuracks
The M1 Manurack is widely deployed across European supply chain centers as a premier detachable, stackable, and maneuverable storage pallet rack system.

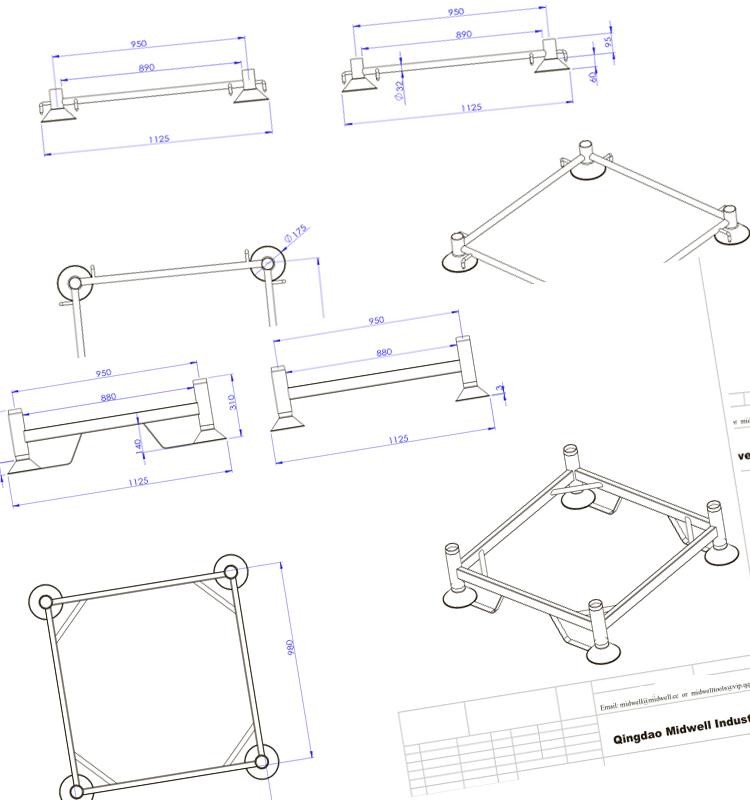

Model Identifier:
MDW-M3
Frame Dimensions (L×W×H):
950 × 950 × 310-140 mm (Base & Top Frame)
Upright Posts:
60 × 2.5 × 2100 mm (Custom dimensions available)
Dynamic Load Capacity:
1500 kgs
Static Load Capacity:
3500 kgs
Stacking Performance:
3–4 layers when fully loaded in operation; up to 25 layers nested/stacked when disassembled
Container Capacity:
150–160 sets per 40’ container

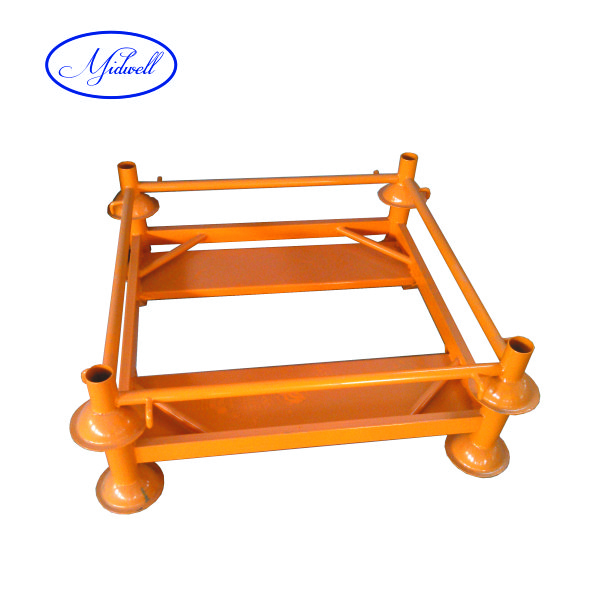

Engineered Pallet Feet
Round heavy-duty steel pallet feet designed for secure, precise interlocking and steady vertical stacking.
Strengthening Rib Welds
Reinforced structural gussets and welded ribs ensure exceptional load endurance under stress.
Forklift Guides
Optional "U"-shaped channel entry guides allow safe, rapid forklift engagement and transit.
Core Product Characteristics
1. Portable Modular Racks: Straightforward to stack and relocate via standard forklifts. Provides immediate layout adaptability compared with inflexible traditional warehouse racking.
2. Removable / Detachable Posts: Minimizes logistics transit freight cost and optimizes warehouse layout during operational lulls; recovers up to 80% open footprint when disassembled.
3. Hot-Dip Galvanized Surface Finishing: Ensures comprehensive corrosion immunity and prolonged outdoor/indoor working life. Tubular columns and secondary channels provide supreme rigidity.

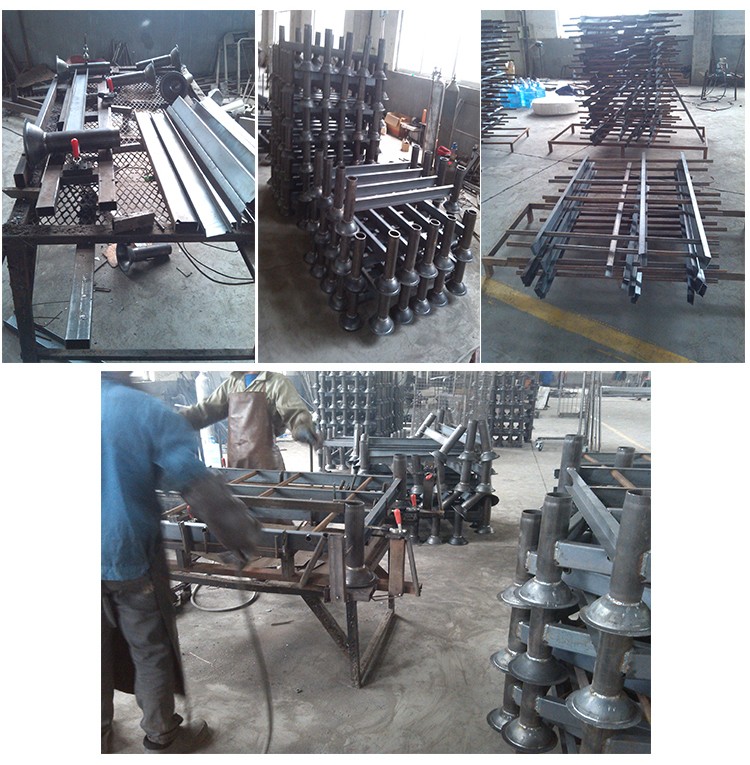

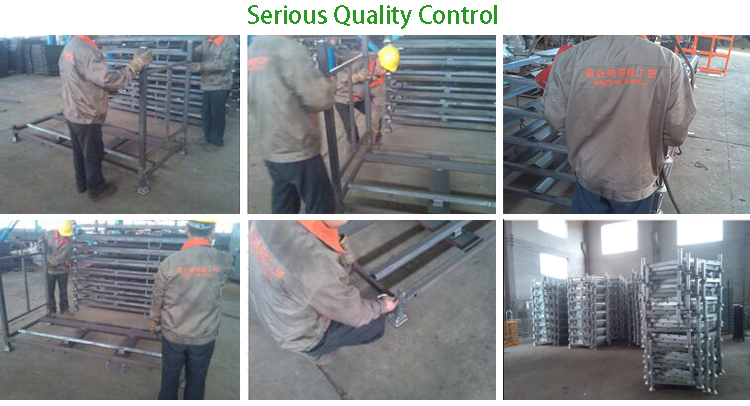

Production & Quality Testing

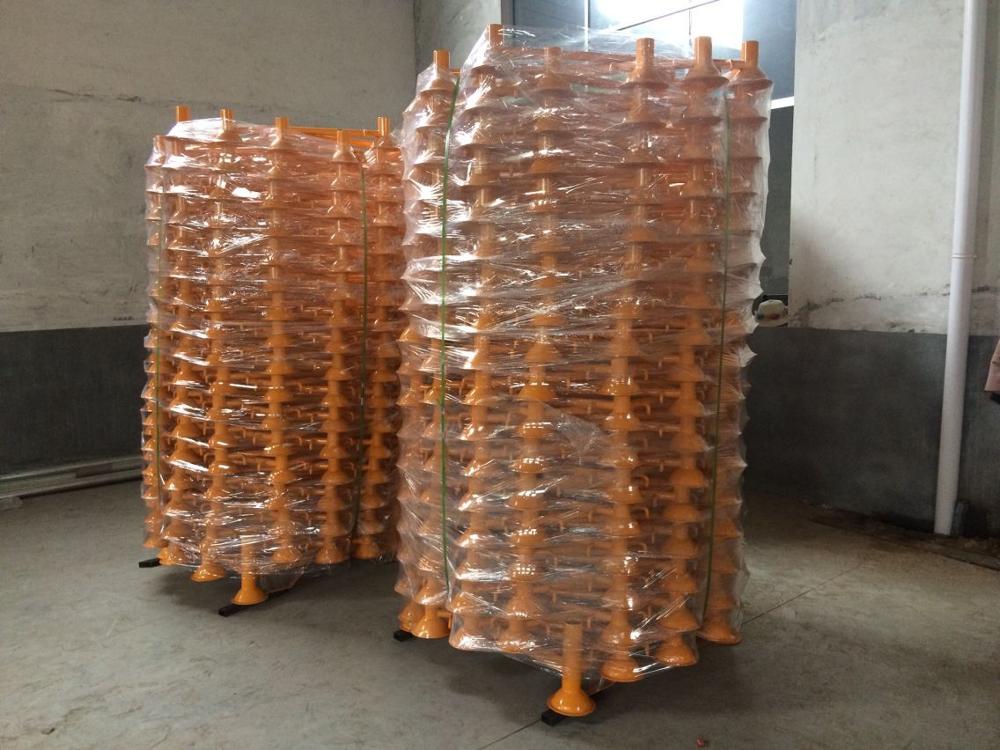

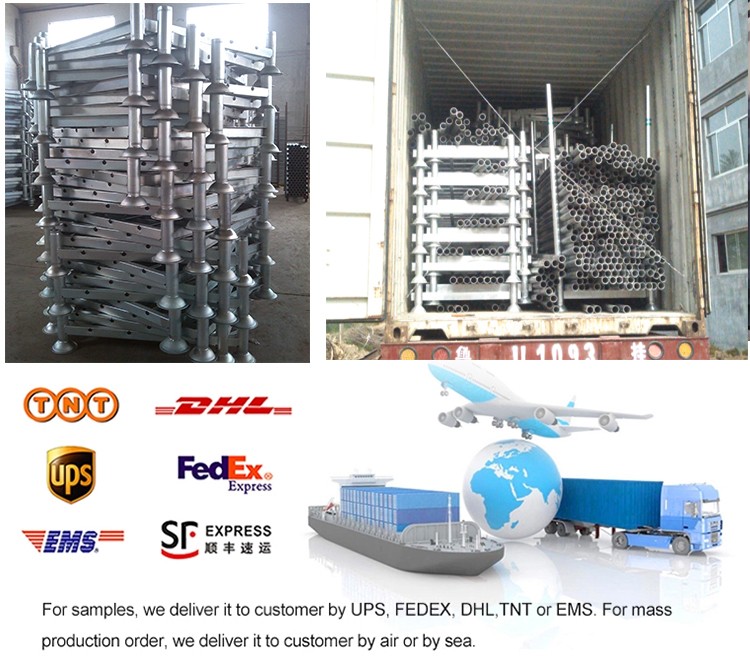

Packaging & Shipping
As a specialized manufacturer, Qingdao Midwell designs and constructs varied custom-dimension steel stacking pallet units for international domestic and export accounts. Our Manuracks offer foldable, nestable, and detachable configurations, serving as standard storage units for cartons, cold meats, bulk bags, automotive tires, and heavy hardware.
Main Product Portfolio
Galvanized Steel Post Pallet Manuracks
Aluminium Alloy Pallet
Steel Stacking Pallet Racks Palletainer
Heavy-duty Tyre Stacking Racks
Roll Cage / Roll Container
Logistic Cart Trolley
Wire Mesh Storage Pallet Cage
Steel Pallets
Detachable Tire Stacking Racks
Plastic Pallets
Plastic Pallet Boxes
Plastic Waste Bin
Frequently Asked Questions (FAQ)
1. Are you an original manufacturing plant or a commercial trading company?
We operate as both direct manufacturer and specialized trade supplier across designated storage and logistics product lines.
2. How do I determine which pallet configuration matches our facility requirements?
Provide our technical sales team with three primary variables for precise model recommendations:
• Dimensional sizing: Length × Width × Height.
• Intended application: Stackable operations, racking integration, flat floor usage, or direct one-way export.
• Working load capacities: Dynamic movement weight, static load, and beam racking load.
• Dimensional sizing: Length × Width × Height.
• Intended application: Stackable operations, racking integration, flat floor usage, or direct one-way export.
• Working load capacities: Dynamic movement weight, static load, and beam racking load.
3. Is branded logo application supported, and what is the Minimum Order Quantity (MOQ)?
Yes, custom logo placement is accommodated via welded or fastened identification nameplates. The minimum order quantity is 100 PCS.
4. Can your engineering department provide customized structural engineering?
Yes. Our in-house technical engineering team maintains extensive manufacturing and structural design expertise. Share your operational requirements or specifications to receive tailored blueprints.
5. What is the standard production schedule and dispatch turnaround time?
Production lead time generally averages 15–20 days following receipt of the advance payment deposit. Upon order confirmation, a precise manufacturing schedule is established to guarantee delivery.
6. What quality assurance and warranty guarantees are provided?
Products carry a 1-year functional warranty. In the event that accessories or structural components break during proper standard usage within this period, replacements are provided. Independent SGS testing is supported.
