Customized Gravity Flow Storage Shelf Heavy Duty Assemble Stacking Pallet Warehouse Rack
Product Description
⚙ Specification
| Item | Heavy Duty Pallet Flow Racking |
| Style | FIFO Racking System |
| Material | Grade Q235/Q345 |
| Certification | ISO9001 |
| Standard Color | Blue (RAL5017), Orange (RAL2004), Green (RAL6000), Light Grey (RAL7035), Yellow (RAL1037) |
| Access Style | High Accessibility & Selectivity |
| Adjustable Pitch | 50mm, 50.8mm, 75mm, 76.2mm |
| Finishing | Powder Coated Or Galvanized |
| Application Environment | Normal Temperature Or Freezer |
| Back-up Service | Installation Drawing / On Site Instruction |
| Design Service | Free CAD Service Available |
| Lead Time | 3 Weeks for 2*40' Container |
| Standard Package | Palletized, Export-Purpose Packaging |
| Container Load | 10-15 tons / 1*20' container, 20-25 tons / 1*40' container |
| Trade Term | EXW / FOB / CNF / CIF |
🏢 Company Profile
🤝 Customer Photos
★ Our Advantages
📦 Packing & Delivery
❓ Frequently Asked Questions (FAQ)
What is a Heavy Duty Pallet Flow Racking system?

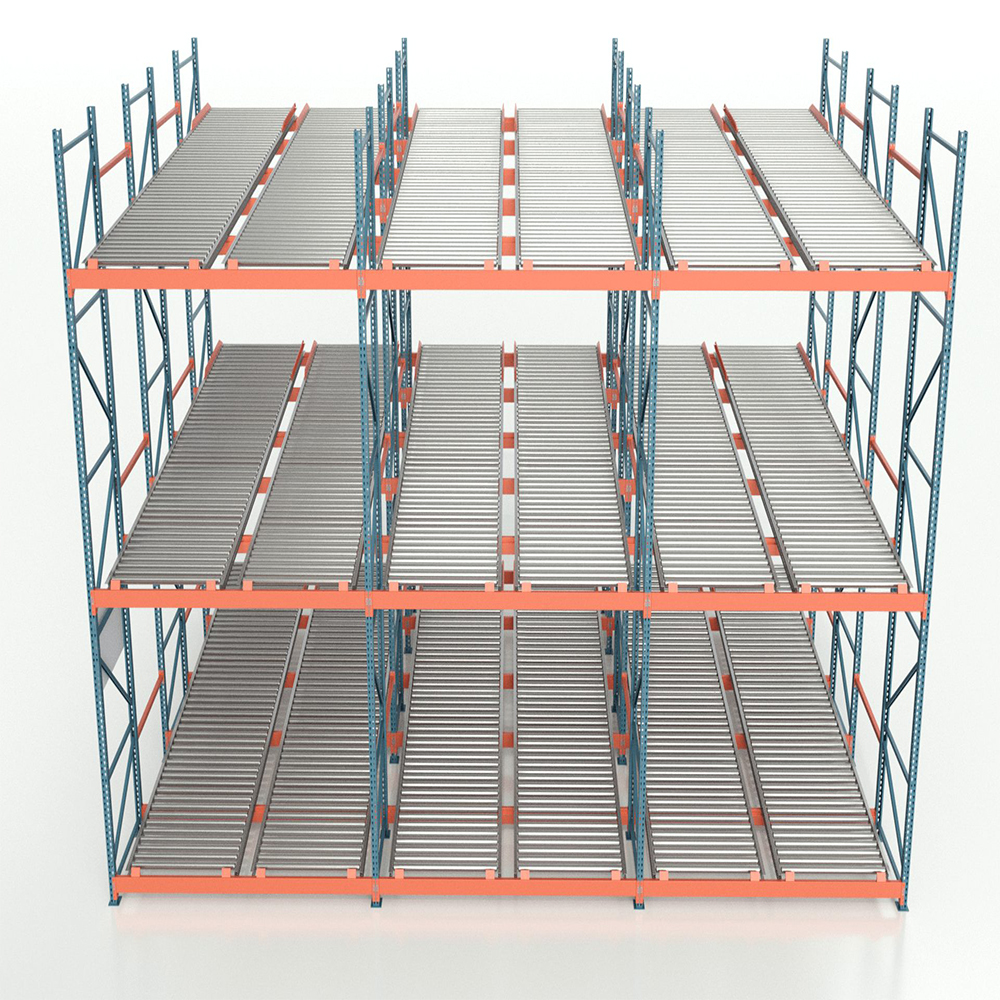

Pallet Flow Racking is a high-density, First-In-First-Out (FIFO) dynamic storage system. Pallets travel down slightly inclined roller tracks using gravity from the loading side to the retrieval face, maximizing floor space and ensuring efficient inventory turnover.
Can the flow racking system operate in cold storage or freezer environments?
Yes, our systems are built with Grade Q235/Q345 high-strength steel and are treated with powder coating or galvanization, making them fully reliable for both ambient normal temperatures and low-temperature freezer conditions.
Do you offer free warehouse layout and CAD design services?
Yes, we provide complimentary CAD layout services based on your specific pallet sizes, warehouse height, and workflow requirements to ensure optimal space utilization.
What is the standard production and delivery lead time?
Our standard manufacturing lead time is approximately 3 weeks for an order of two 40-foot containers, backed by our streamlined production capacity.
How is the equipment packaged to ensure safety during transit?
All racking components are bundled and palletized with professional, export-grade packaging materials to prevent surface abrasion and ensure cargo safety during international shipping.
What installation and after-sales support do you provide?
We supply comprehensive installation drawings and detailed technical documentation. On-site engineer instruction and installation support are also available upon request.
