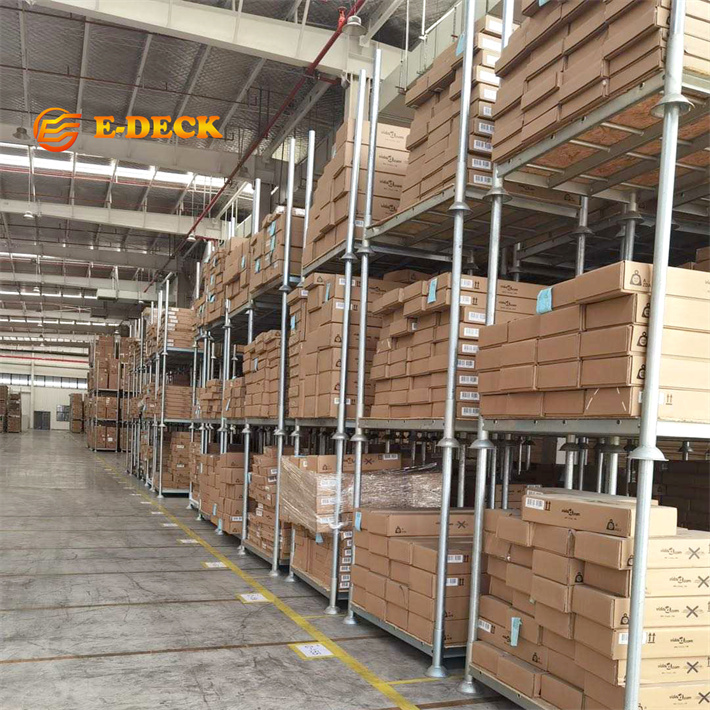

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks
Product Description
Product Description

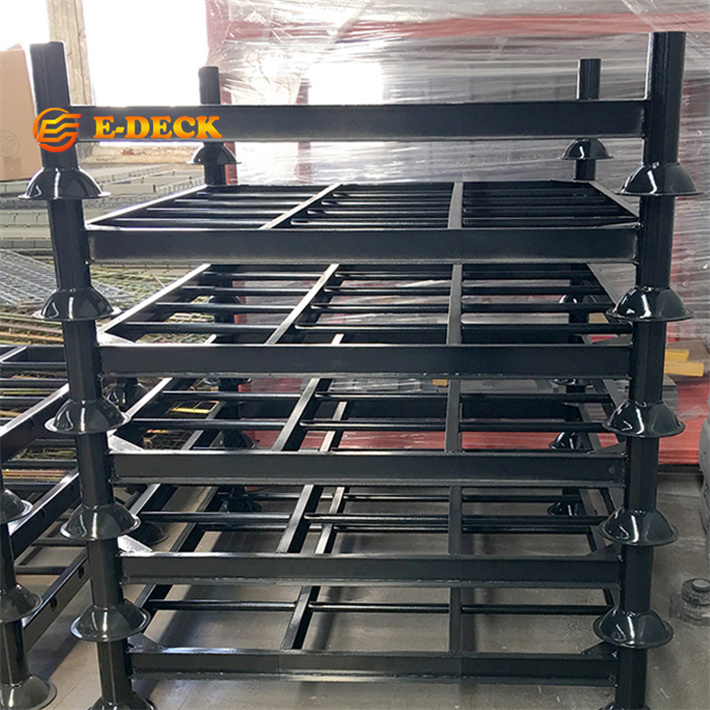

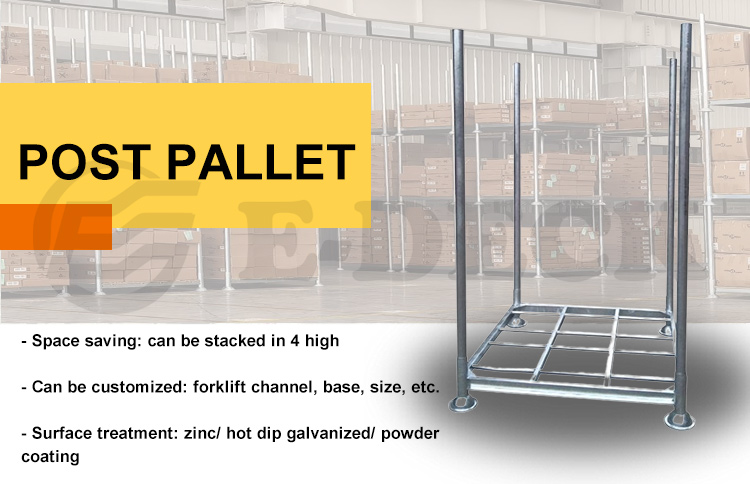

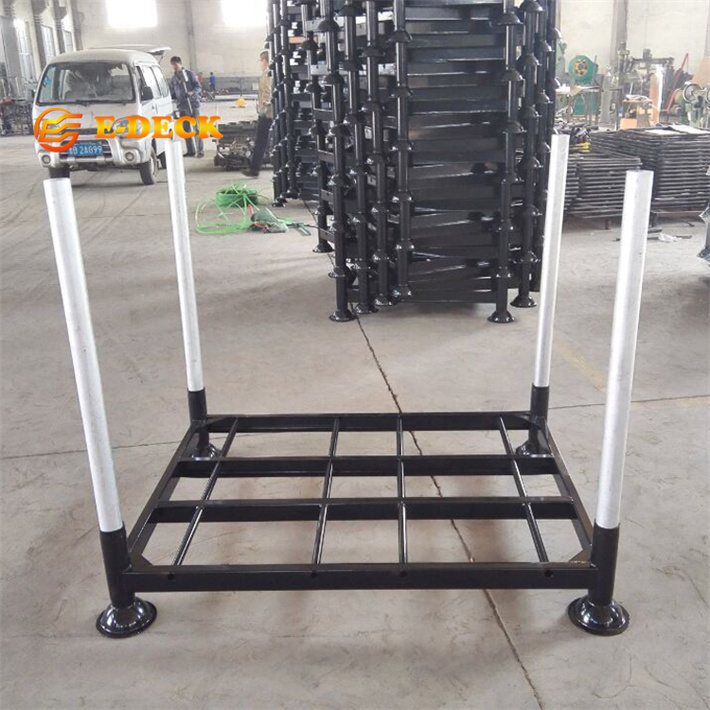

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks

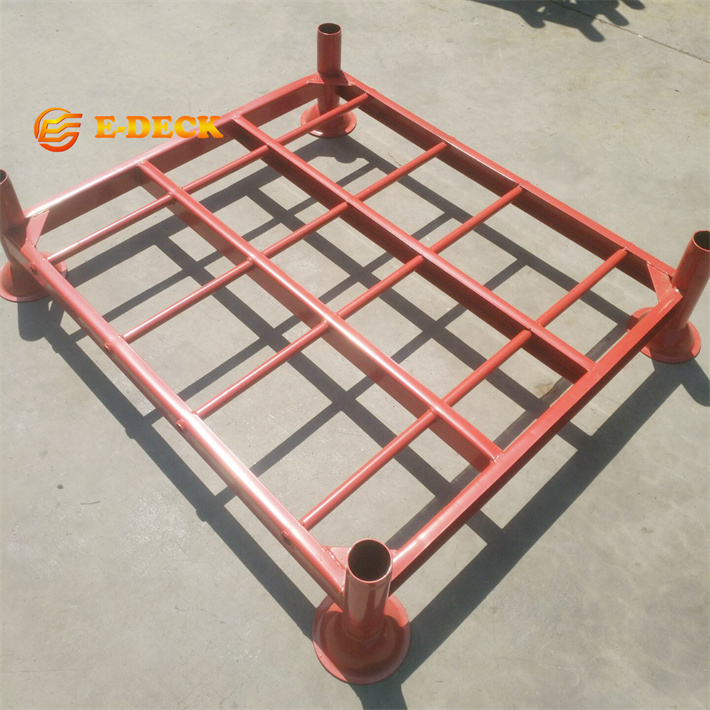

1 set = 1 base + 4 posts
Specification of Storage Post Pallet

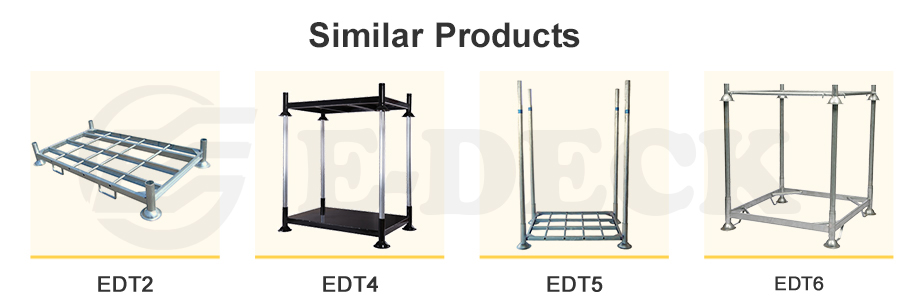

| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total Container |
|---|---|---|---|---|---|
| LxWxH (mm) | kg | - | sets | - | |
| EDT1-Base | 1395x1060x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT1-Post | 1200x60x2.5 | Zinc | 1000 | - | |
| EDT2-Base | 1875x1060x310 | 2000 | Zinc | 150 | 1x40'HQ |
| EDT2-Post | 1200x60x2.5 | Zinc | 600 | - | |
| EDT4-Base | 1545x1050x310 | 1000 | Powder coating | 247 | 1x40'HQ |
| EDT4-Post | 1510x60x2.5 | Zinc | 988 | - | |
| EDT5-Base | 1200x1000x310 | 1500 | Zinc | 250 | 1x40'HQ |
| EDT5-Post | 2000x60x2.5 | Zinc | 1000 | - | |
| EDT6-Base | 950x950x310 | 1000 | Zinc | 160 | 1x40'HQ |
| EDT6-Post | 1200x60x2.5 | Zinc | 640 | - | |
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||

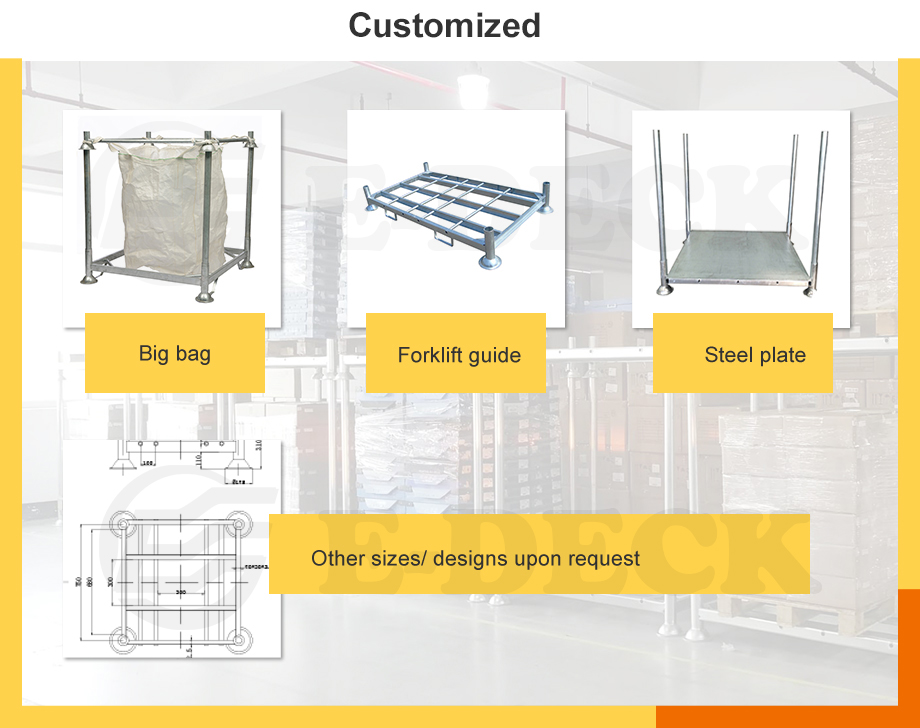

| Remark | Customized or OEM support | ||||

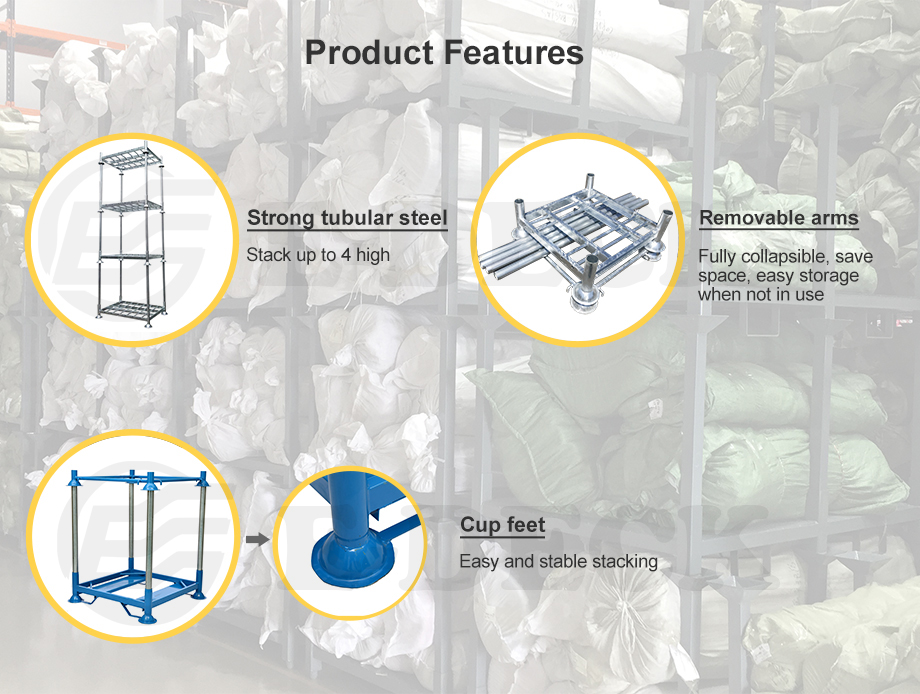

Key Features:
✓
Strong tubular steel: Stack up to 4 high safely.
✓
Removable arms: Fully collapsible, saves space, allows easy storage when not in use.
✓
Cup feet: Designed for easy, reliable stacking.
✓
Hot-dip galvanized finish: Highly corrosion-resistant, perfectly suitable for outdoor use.

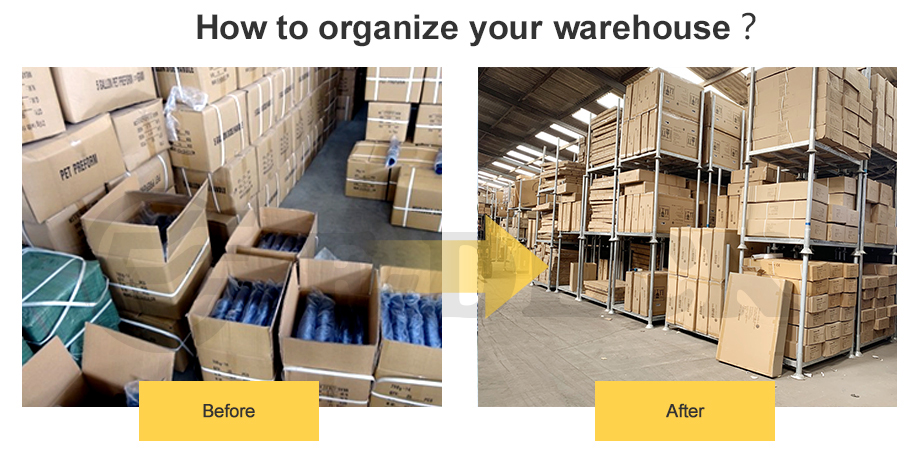

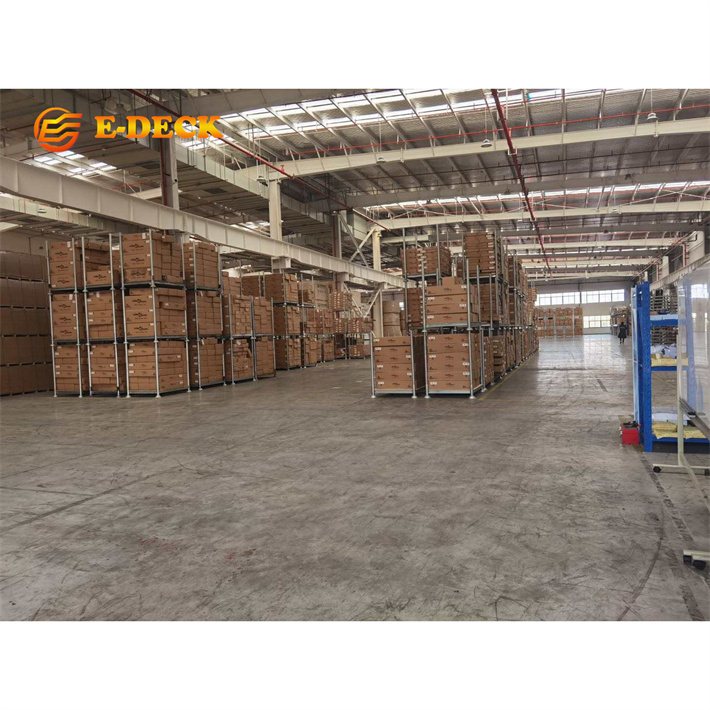

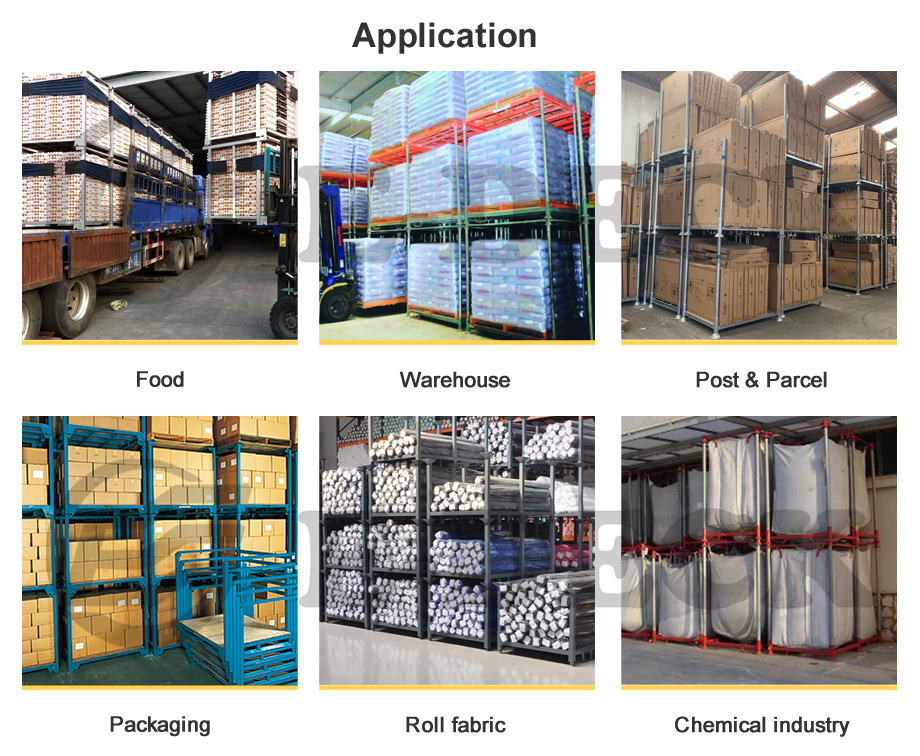

Product Uses
Packaging & Shipping

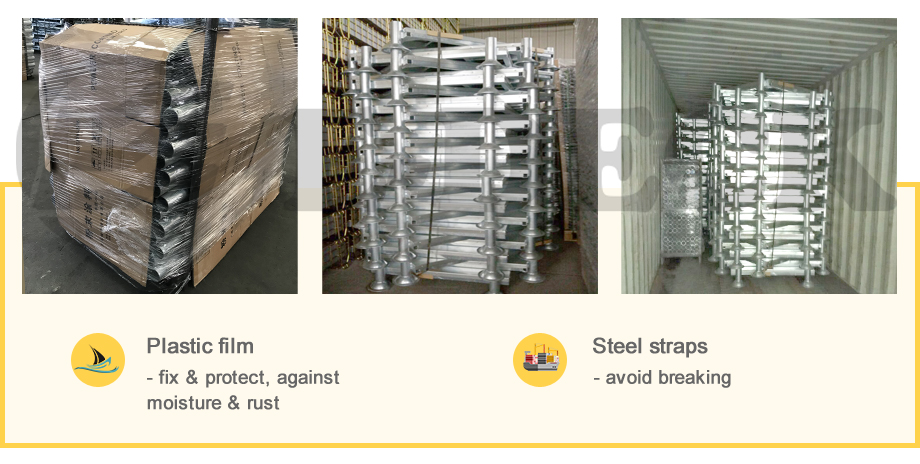

Packing Details
- Plastic banding with wooden pallet
- Stretch film wrapped
Delivery Time
- 30 days for Storage Post Pallet after receiving 30% deposit
Payment Options
- T/T: 3-5 Working Days to The Account
- Western Union: 1-24 Hours to The Account
- MoneyGram: 1-24 Hours to The Account
- PayPal: Immediately to The Account
Company Information

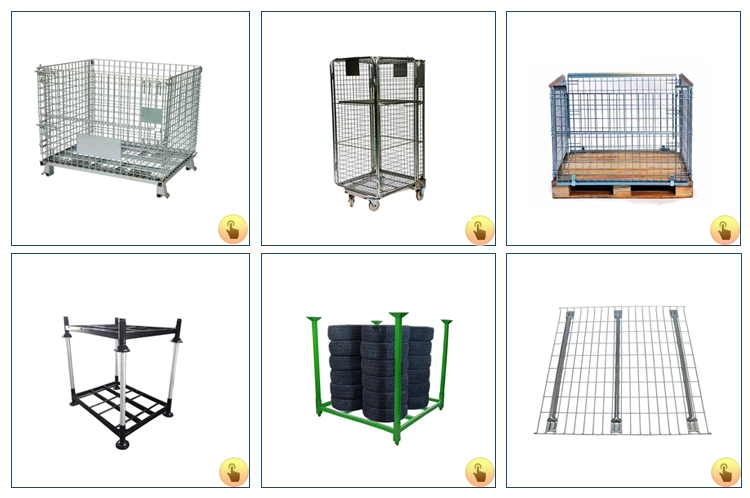

Main Products
Our Services
Frequently Asked Questions (FAQ)
QWhat is the material being used for Storage Post Pallets?
We use high-grade Mild Steel Q235, providing exceptional structural durability and reliable weight performance.
QHow are the goods packed for international shipment?
The goods are packed with plastic banding and wrapped in stretch film, then palletized for easy loading and unloading using a standard forklift truck or pallet jack.
QWhat kind of finish do you provide for the racks?
We offer three primary finishes:
• Electro galvanized / Zinc plated: Serves as a sacrificial anode, suitable for indoor storage.
• Hot-dip galvanized: Forms a thick coating of corrosion-resistant zinc, ideal for outdoor, indoor, and cold storage.
• Powder coating: Applied as a dry, protective powder coat suitable for versatile indoor/outdoor environments.
• Electro galvanized / Zinc plated: Serves as a sacrificial anode, suitable for indoor storage.
• Hot-dip galvanized: Forms a thick coating of corrosion-resistant zinc, ideal for outdoor, indoor, and cold storage.
• Powder coating: Applied as a dry, protective powder coat suitable for versatile indoor/outdoor environments.
QWhat is the loading capacity and can sizes be customized?
We offer light duty (100–300 kg), medium duty (400–800 kg), and heavy duty (1000–1700+ kg) options. Yes, we fully support custom sizes, OEM designs, and bespoke projects tailored to your requirements.
QWhat is your minimum order quantity (MOQ) and production lead time?
The MOQ is generally 1x20'GP container (exact quantities vary by product size). Average production lead time is 2-3 weeks upon receipt of the official order and deposit.
QWhat guarantee or warranty do you provide?
We provide a 3 to 10 years warranty subject to proper handling during operation, correct forklift handling during stacking/unstacking, no overloading, and operation in dry, non-corrosive indoor conditions (no environmental limitations for hot-dip galvanized units).
