Heavy Duty Metal Adjustable Warehouse Double-sided Cantilever Rack - Buy Cantilever Rack Heavy Duty Metal Cantilever Rack
Product Description
Product Specifications
| Product name | Heavy Duty Cantilever Racks | Brand Name | NESRACK |
|---|---|---|---|
| Place of Origin | Shandong, China | Usage | Warehouse Storage |
| Application | Goods storage | Color | Blue, Orange |
| Type | Selective Pallet Rack | Surface Treatment | Powder Coating |
| Material | Steel | Size | Customer Size |
| Feature | Corrosion Protection | Packing | Customize |
| Use | Warehouse Rack | Certification | ISO9001 / CE |
| Weight Capacity | 2000-5000kg/layer | Structure | Assembled |
| Width | 60/80 cm or customize | OEM & ODM | OEM & ODM |
| Height | Max 12000mm | ||
Product Description
Heavy Duty Cantilever Rack Pallet Racking Industrial Warehouse Shelving

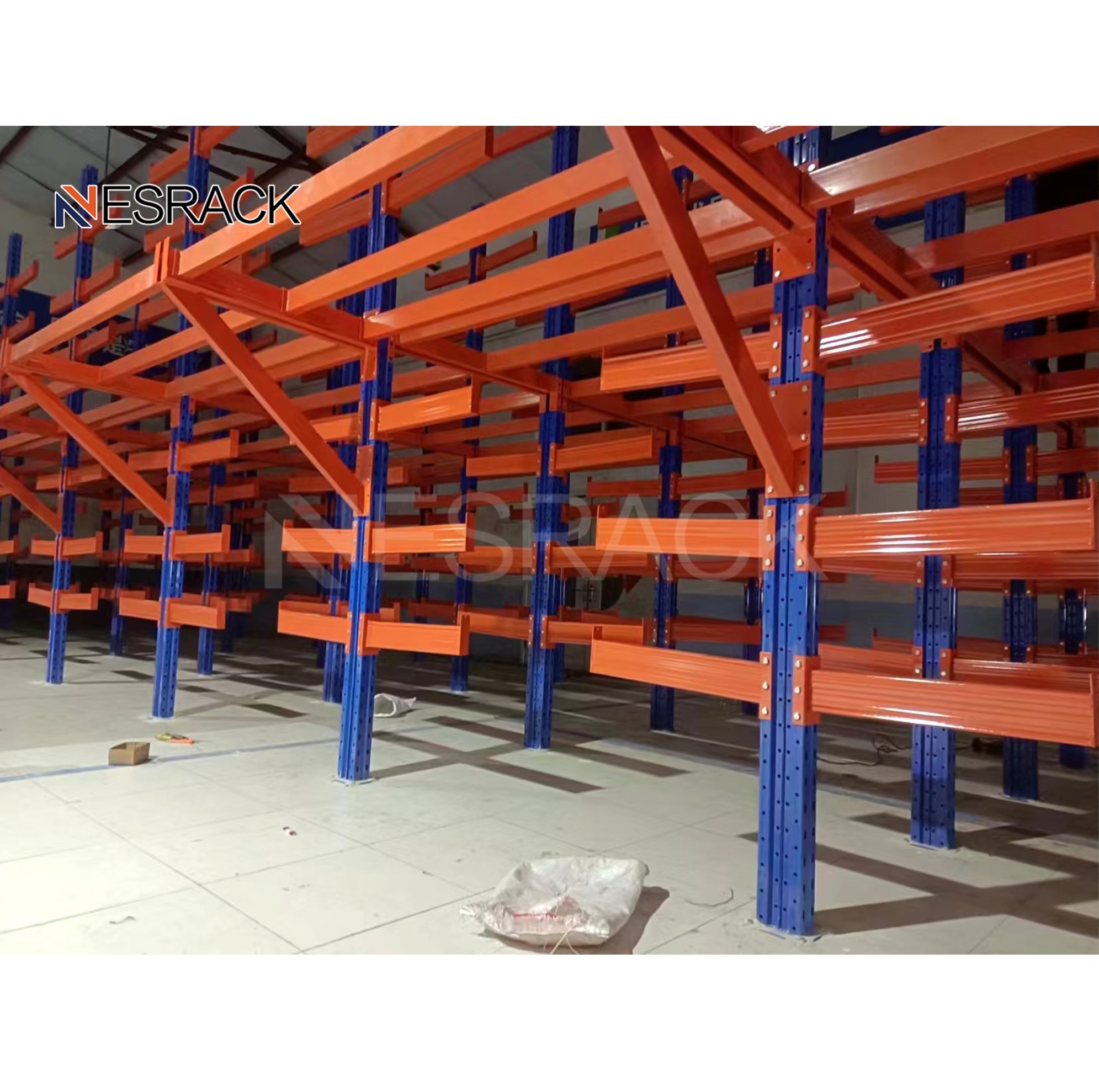

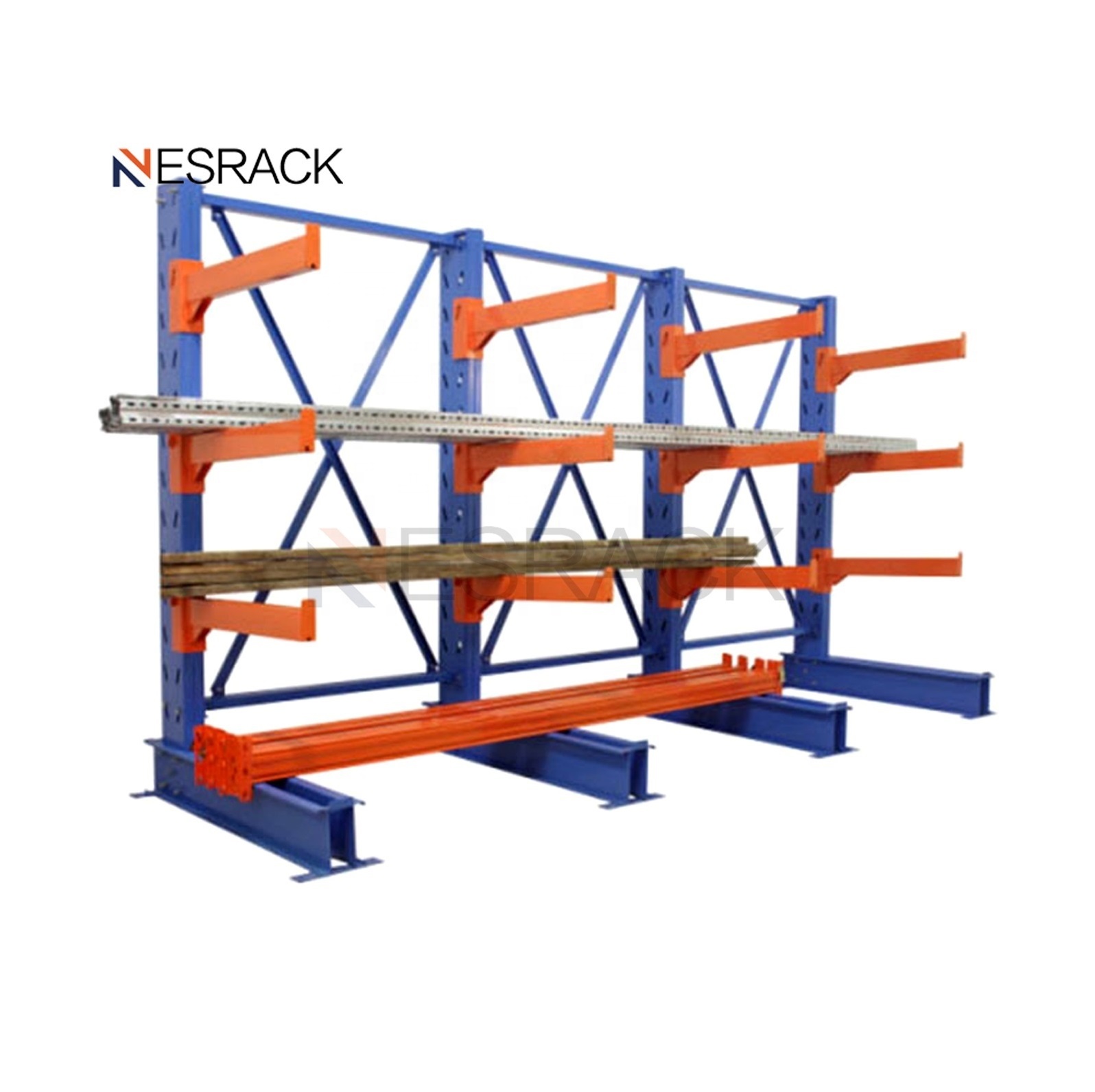

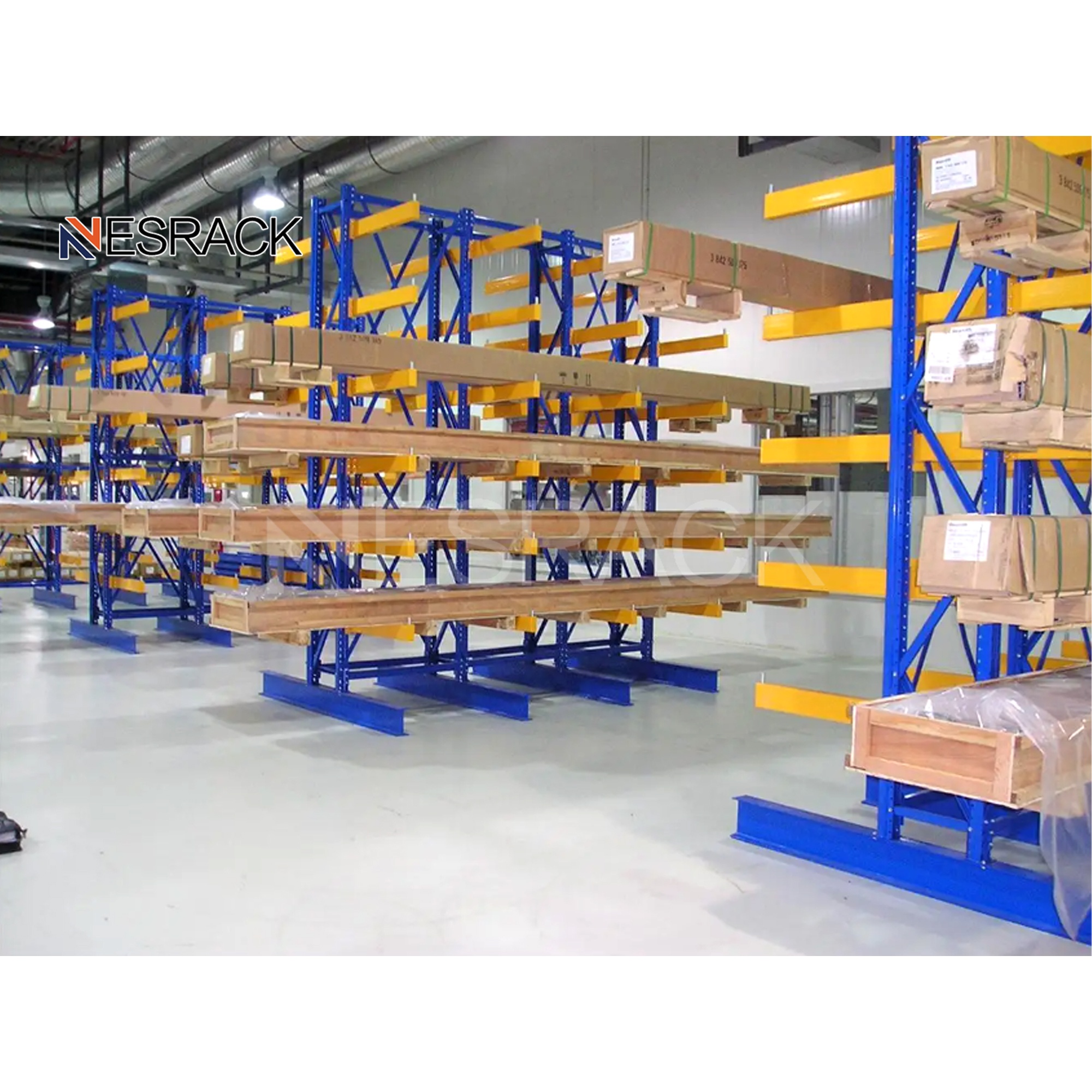

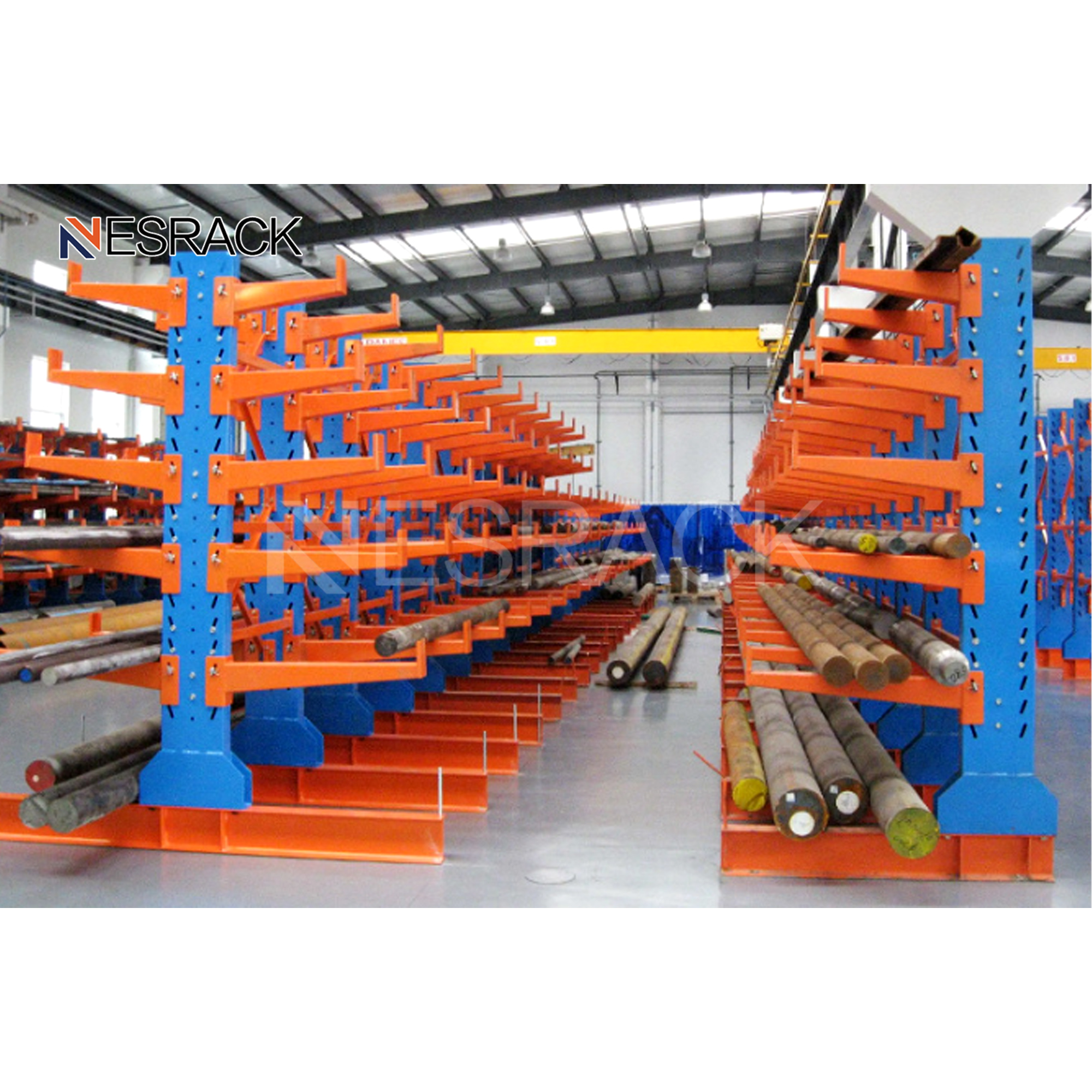

Cantilever Rack
Cantilevered shelves are suitable for storing long-term and irregular goods. The front cantilever has a light structure and strong load-carrying capacity, which can greatly improve the utilization and working efficiency of the warehouse when storing irregular or special length materials.
Column Specification and Bearing Capacity
01
Easy installation and reasonable structure.
02
High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03
Fix the columns and beams to prevent the beams from falling due to improper operation.
04
Increase the shelf load and adapt to more types of pallets.
| Column Height | 3 Layers Beam | 4 Layers Beam | 5 Layer Beam |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
Main Components
Frame
The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates and screw.
Upright
Sturdy vertical structural sections engineered for stability and modular height adjustments.
H-bracing and D-bracing
Rigid horizontal and diagonal support structures providing enhanced overall frame resistance.
Base Plates
Heavy-duty steel base fixtures anchored securely into warehouse flooring.
Beam
The longest beam can be 4.5mm, and the max loading capacity can be 4000kg/perlevel, otherspecification please contact us for details.
Success CASE
Exhibition
Company Profile
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD has focused on top quality storage and logistics equipment for over 15 years in China. With 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry.
Today, NELSON has been one of the producers of quality pallet racking and other racking equipments, such as: drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, light duty shelving.
NELSON Racking is located in the beautiful Chinese city of Jinan. As a global supplier in heavy duty, medium duty, light duty racking equipment and related accessories, NELSON Racking is dedicated to creating added value for customers around the world.
Our Partner
Packing & Delivery
Standard Export Packaging
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that I can quote the most cost-effective option.
Frequently Asked Questions (FAQ)
Q: Why choose us?
A: Professional design team, adequate production capacity, got ISO, CE certificate, comply with AS4084, RMI and FEM standard.
Q: What is the material on your products?
A: The material we choose is Q235/Q345 steel.
Q: What is the purchase process for your product?
A: Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping.
Q: What is the packaging of the products?
A: Standard export package. All parts are packed by steel belt and covered with film.
Q: What is the minimum order quantity (MOQ)?
A: Normally is one 20ft container, and it also depends on the size of your products.
Q: What are the payment terms and delivery time?
A: We accept TT or L/C at sight, etc. The delivery time is normally 3-4 weeks after receipt of the deposit.
