URGO 2023 New Push Back Racking Heavy Duty Pallet Rack For Intensive Storage Rack System
Product Description

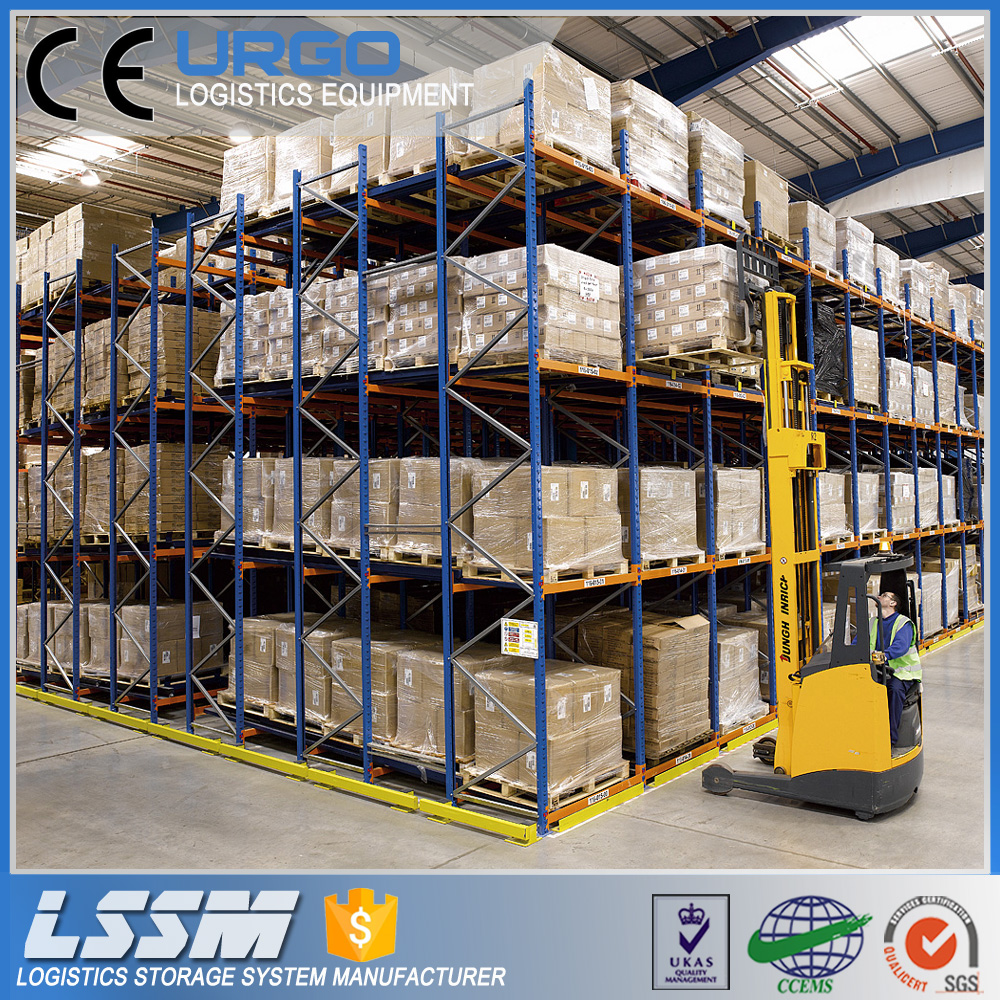

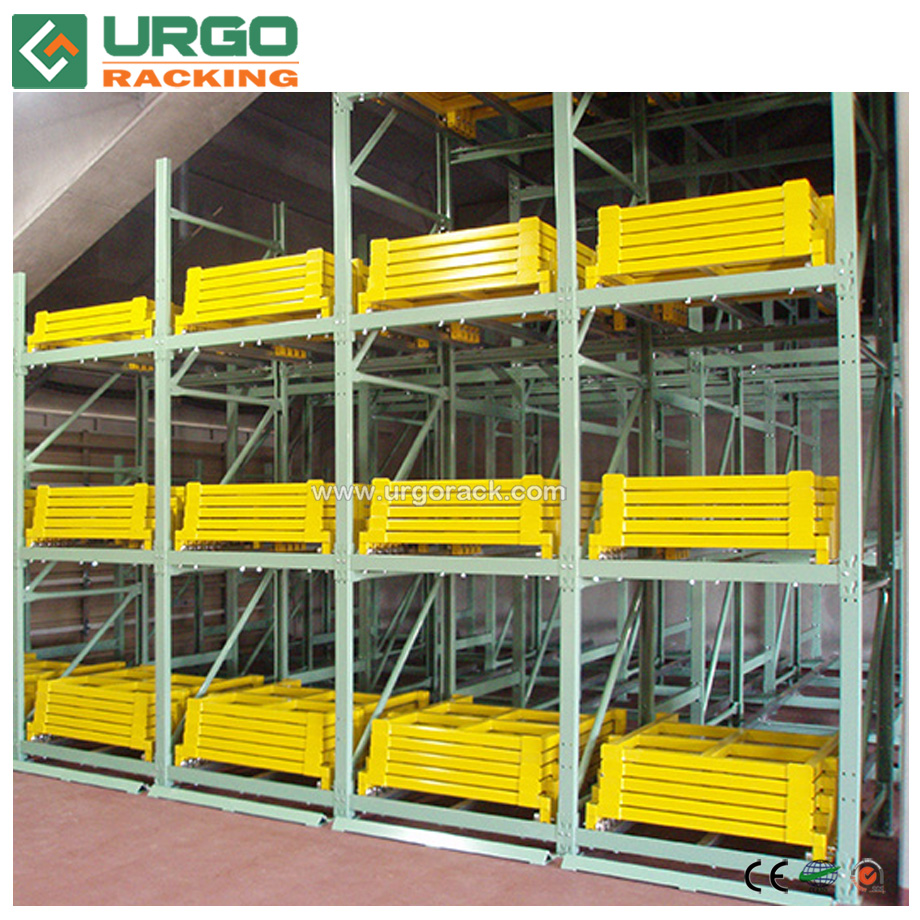

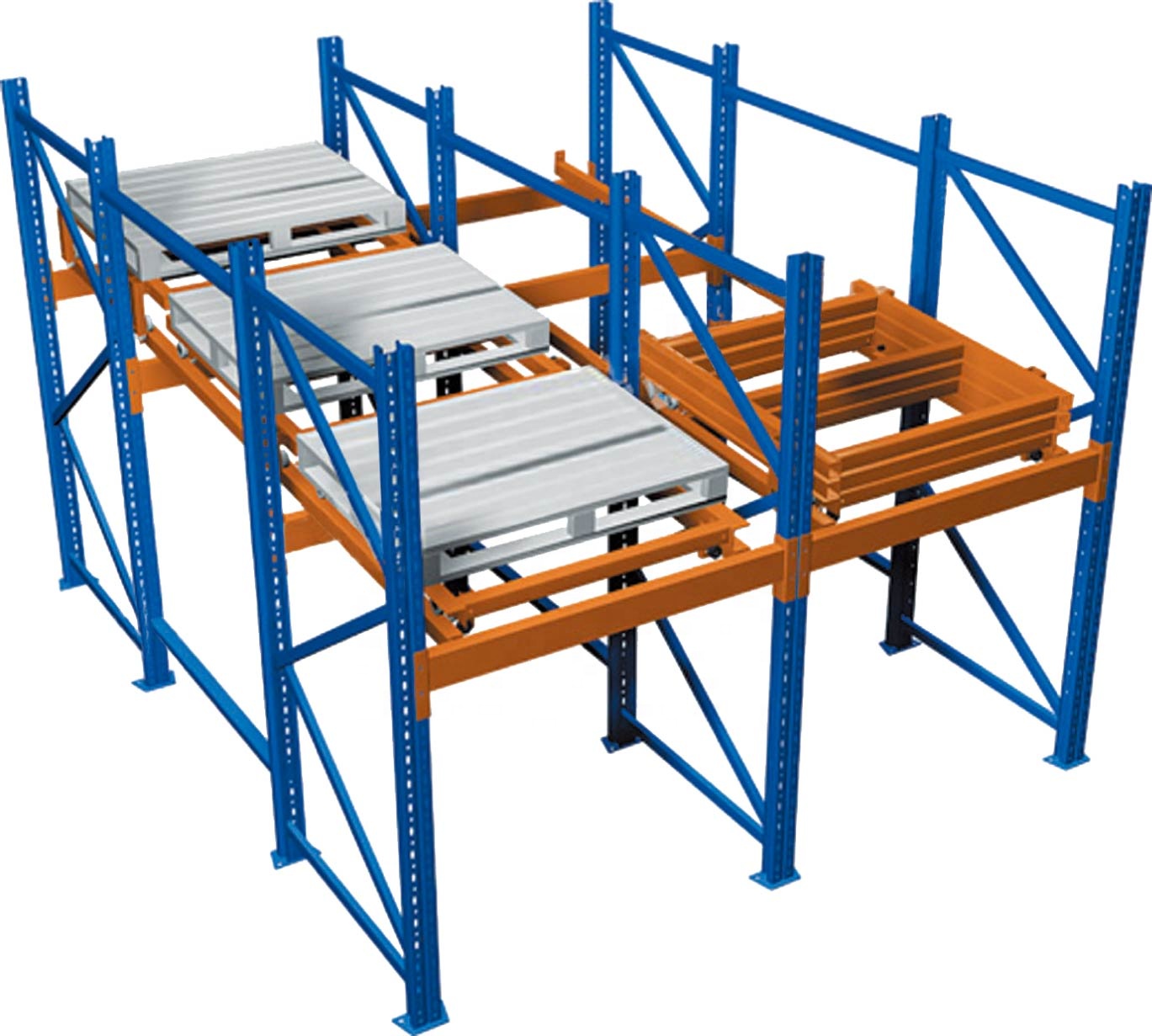

Push Back Pallet Racking System
Urgo Push Back Pallet Racking combines high-density bulk storage with rapid access by conventional forklift trucks, delivering an ideal engineering solution for warehouses requiring high-efficiency storage for large batches of uniform SKUs.

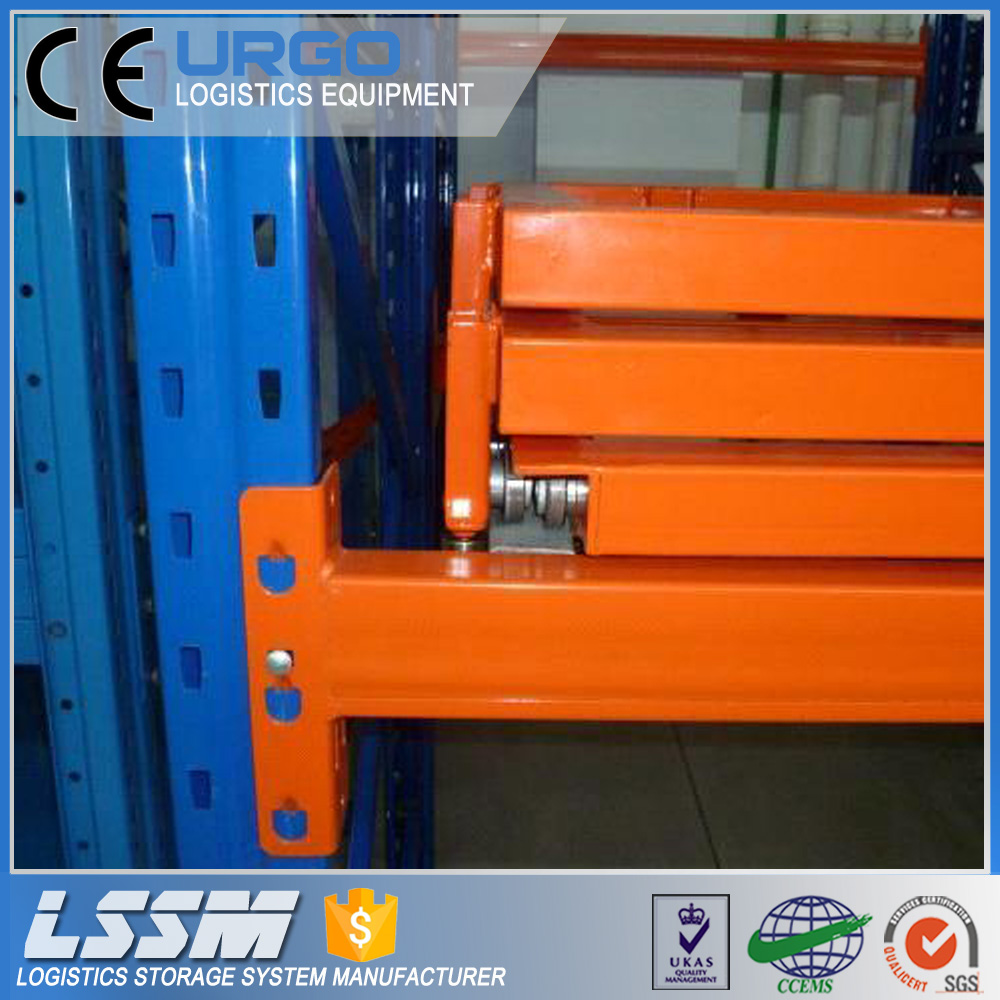

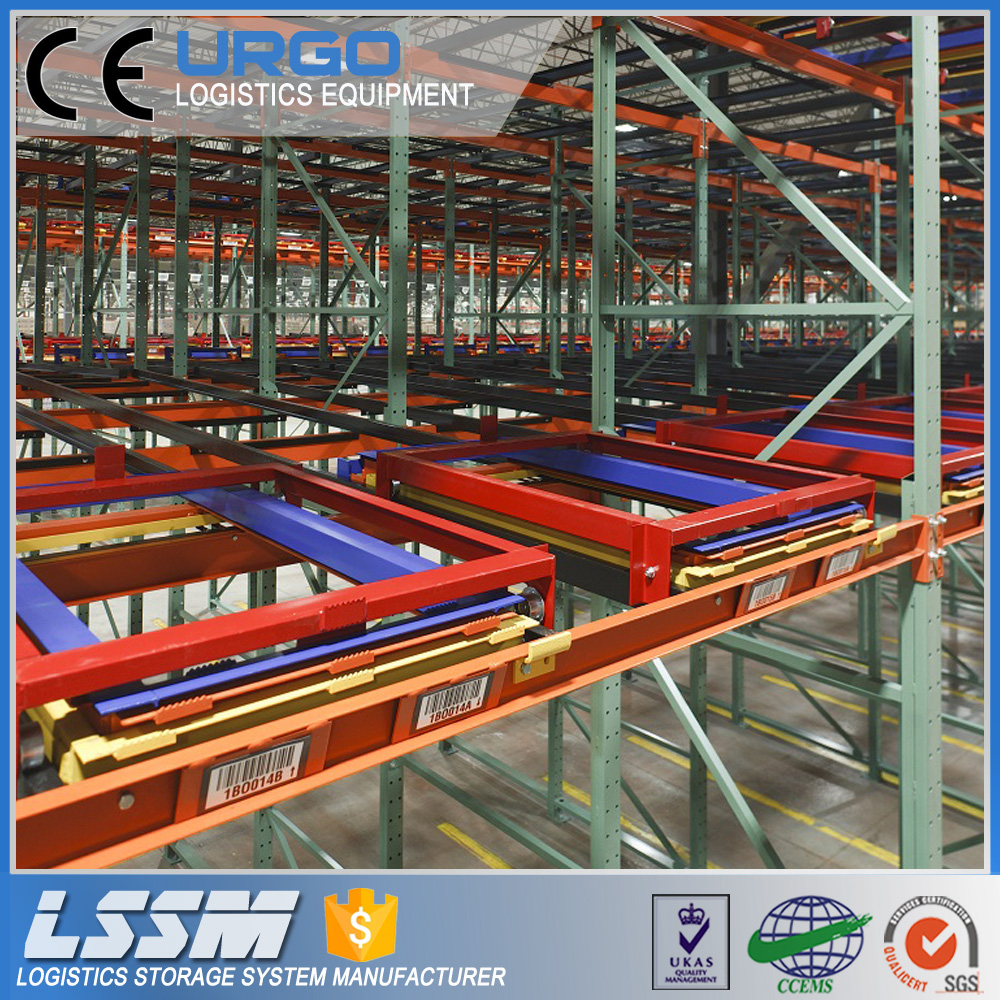

Engineered in both structural and roll-formed frame configurations, Urgo Push Back Racking systems utilize nesting carts placed on rigid structural steel rails. As pallets are placed onto nesting carts, gravity pushes them along inclined rail channels.

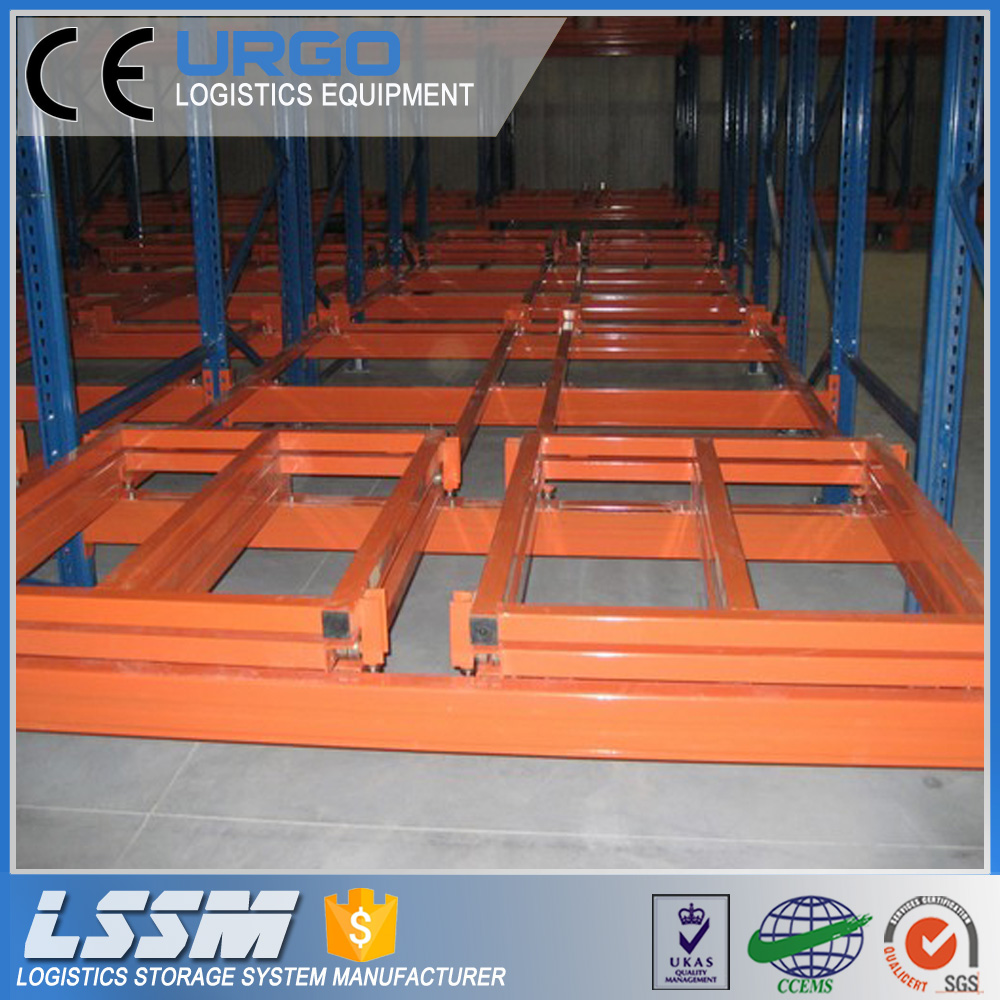

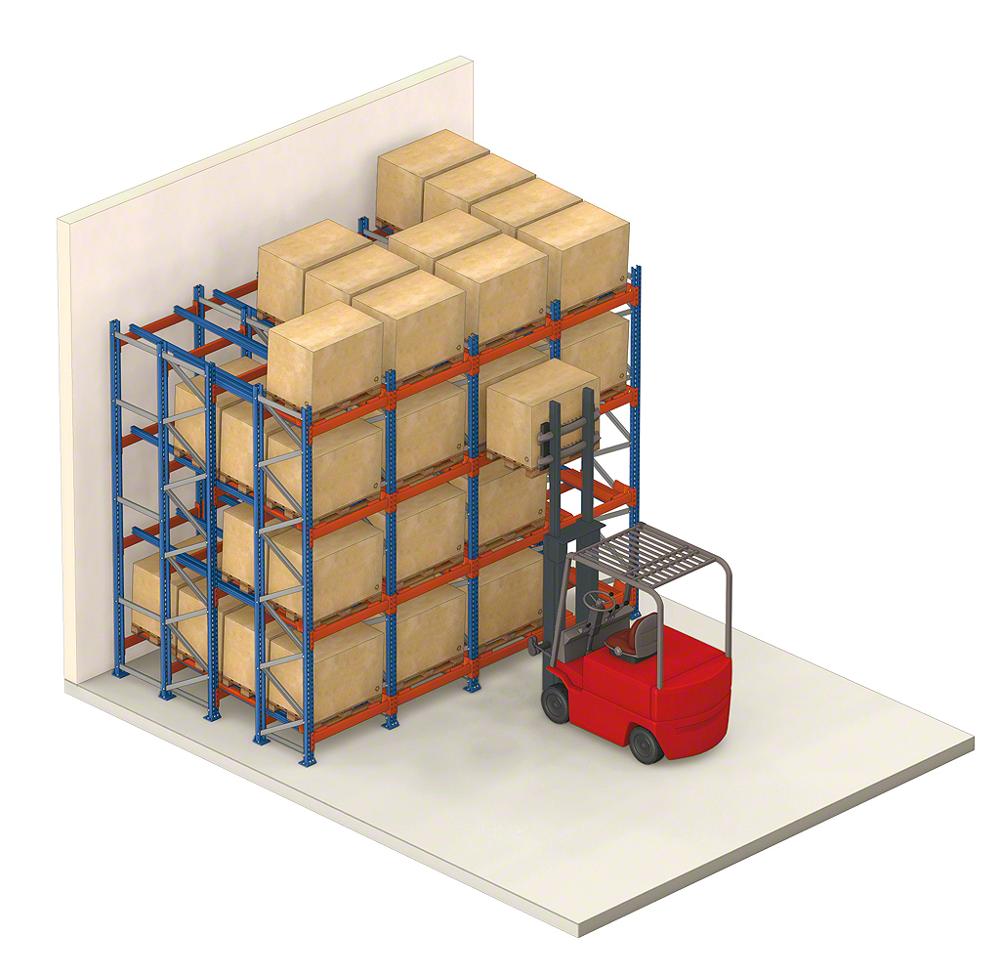

The low-profile nested carts help minimize vertical height requirements, preserving critical vertical clearance. When loading from the front aisle, each newly loaded pallet gently pushes back the previously placed pallet. Upon unloading, removing the front pallet allows rear pallets to seamlessly glide forward to the primary front pick face. This design facilitates an optimized Last-In-First-Out (LIFO) inventory system, accommodating storage configurations from 2 to 5 pallets deep from a single operating aisle.
Compared to conventional Drive-In racking, push-back systems provide superior operating versatility because each lane operates independently. Vertical levels operate separately without lane interference below, allowing multiple SKUs to be accessed and sorted simultaneously.
Key System Features & Performance Advantages
Constant Pick-Face Availability: Pallets systematically slide forward, keeping pick lanes perpetually filled.
Low-Damage Operation: Forklifts operate strictly outside the rack structure, significantly reducing collision risks.
High Density Storage: Maximizes warehouse floor utility with swift handling under a FILO/LIFO workflow.
Standard Equipment Compatibility: Uses conventional counterbalanced or reach forklift trucks without custom attachments.
Flexible Pallet Quality: The nesting cart platform uniformly supports pallet loads, reducing critical dependence on pallet condition.
Structural Overview & Visual Showcase

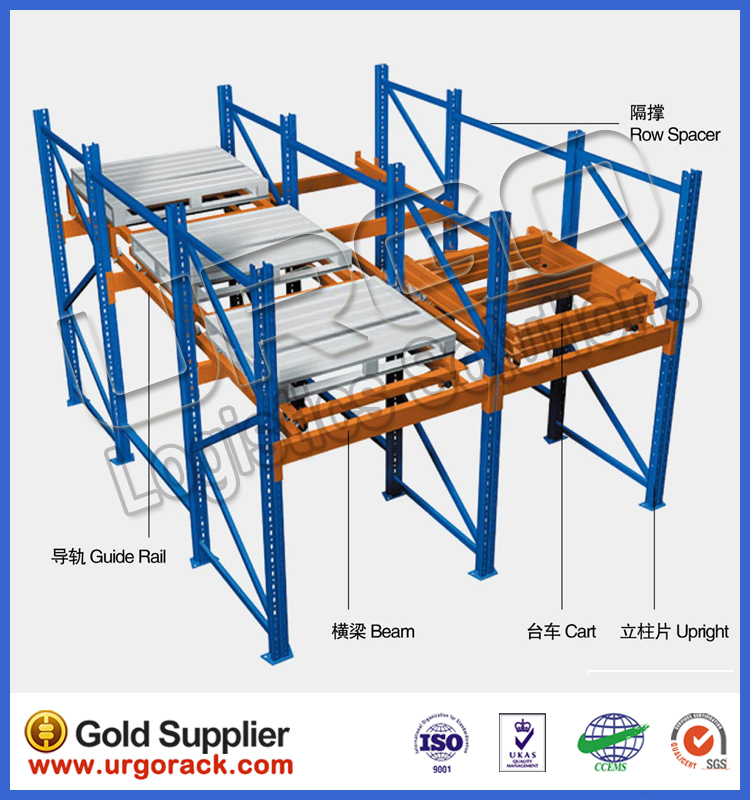

The structure of the URGO push back pallet rack includes upright frames, beams, support rails, nesting carts, and custom accessories. Upright column and beam dimensions are engineered specifically according to pallet load capacity and facility layout.
Structural Components & Beam Profiles
Beam Profiles
Main Spare Parts Profiles
Optional Accessories
Urgo heavy duty pallet racks feature an extensive selection of modular accessories to accommodate operational demands:
Cross Beam
Back Brake Beam
Back Mesh
Side Mesh
Steel Plate
Grid Plate
Wood Plate
Column Protector
Guard Bar
Packaging, Shipping & Logistics Assurance
URGO provides comprehensive logistical support to safeguard cargo during ocean and land transportation. Uprights are bundled with transparent plastic wrapping, and beams feature protective plastic end clips to prevent surface scratching. Every shipment phase is strictly monitored to assure on-time delivery under full contractual compliance.

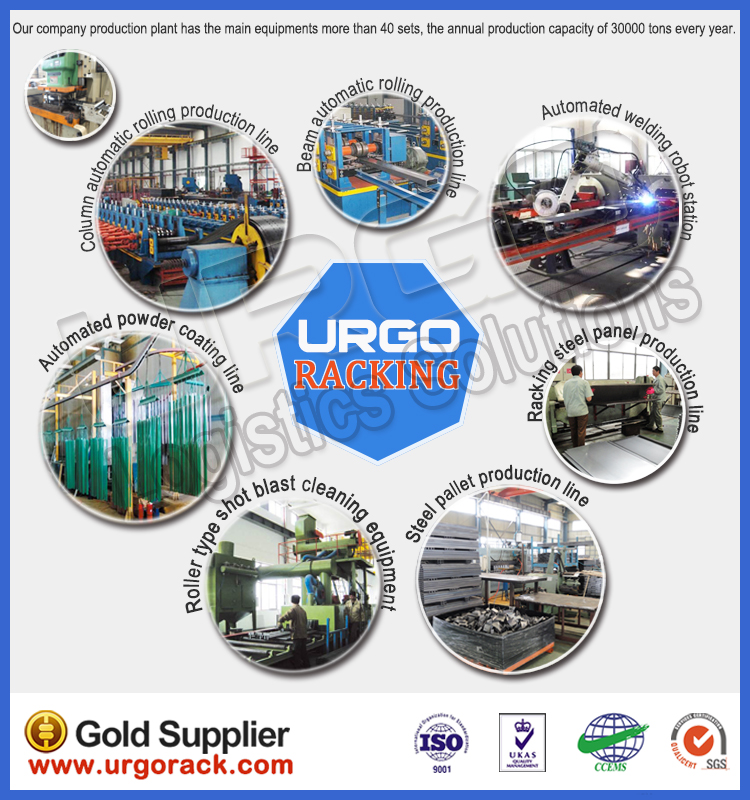

Manufacturing Infrastructure & Production Capacity
Factory Capacity: Over 40 sets of primary production equipment with an annual output exceeding 30,000 tons.
Core Production Machinery:
- Steel panel automatic production lines
- Upright column automatic roll forming lines
- Beam automatic rolling production lines
- Roller-type shot blast cleaning machinery
- Automated powder coating lines
- Robotic automatic welding stations
- Steel pallet manufacturing lines
- Workstation accessory production lines
Storage Plan Engineering, Installation & Service Commitment
URGO provides end-to-end design optimization for warehouse logistics systems. Our dedicated engineers evaluate your storage workflow to deliver maximum economic utilization. Customized CAD layout proposals are supplied within 24 hours.
- Technical Guidance: Dedicated engineering staff providing detailed specifications, drawings, and cost optimization.
- Risk Mitigation: Short manufacturing cycles and standardized QA reduce project lead times and capital risks.
- Installation Support: Professional onsite installation teams available for racking assembly, realignment, and facility relocation.
- 10-Year Warranty Commitment: Backed by over 15 years of industrial manufacturing experience, URGO structures include a 10-year warranty for normal usage.
Frequently Asked Questions (FAQ)
Q:
What makes URGO different from other warehouse racking manufacturers?
1) Responsive Quoting: Comprehensive quotation responses provided within 12 hours.
2) Quick Manufacturing: Standard selective and push back pallet rack orders manufactured within 15 days.
3) Export Protective Packaging: Standardized beam clips and fully wrapped upright frames protect structural finishes during transit.
4) 10-Year Manufacturer Warranty: Built to exacting design and testing standards, backed by a comprehensive 10-year warranty under normal operating conditions.
Q:
What is the typical production and delivery lead time?
Lead time depends on individual product specifications. Standard configurations are typically completed within 15 days. Custom-engineered components or tooling-dependent systems are scheduled according to tooling readiness and contract terms.
Q:
What payment terms are accepted for international orders?
Standard accepted payment options include:
1) 30% T/T advance deposit, with the remaining balance due prior to shipping.
2) 100% irrevocable Letter of Credit (L/C) at sight.
1) 30% T/T advance deposit, with the remaining balance due prior to shipping.
2) 100% irrevocable Letter of Credit (L/C) at sight.
Q:
Can clients track production progress and receive product samples?
Yes. Production stage notifications and status photographs are routinely updated throughout the manufacturing process. Additionally, profile and component material samples are available upon request via express courier.
Q:
Which shipping port is typically used for export cargo?
Nanjing Port is our closest departure port and is strongly recommended to minimize inland trucking expenses. Shanghai Port is also fully supported according to buyer preference.
Q:
What project information is needed to obtain a fast quotation and CAD layout?
To receive a rapid engineered design and quote within 24 hours, please share:
1) Racking dimensions (Height × Depth × Length), number of beam levels, and load capacity per level.
2) Alternatively, provide total pallet weight, dimensions with cargo (L × W × H), warehouse clear height/CAD layout, and internal handling equipment specifications.
