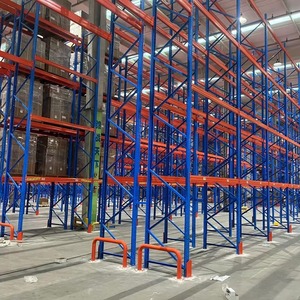

High Factory Warehouse Rack Thickened Steel Multi-Layer Durable Powder Coated Heavy Duty Display
View System Specs
Best Selling China Supplier Longer Service Life Back Rack Shopping Mall Display Shelf
View System Specs
Adjustable High Quality Heavy Duty Selective Pallet Racking 3000KG Load Storage Pallet Racks
View System Specs
Engineering Excellence in Very Narrow Aisle (VNA) Architecture
A technical examination of volumetric efficiency, dynamic load balancing, and footprint optimization for modern distribution centers.
Volumetric Optimization
Very Narrow Aisle (VNA) racking reduces working aisle widths from standard 3.5–4.0 meters down to 1.5–1.8 meters, reclaiming upwards of 45% wasted floor capacity and enabling up to 17 meters of usable vertical clearance.
Precision Track Guiding
Integrates mechanical low-profile steel floor guide rails or inductive wire-guided radio loops. This guarantees zero-tolerance mechanical deviation for specialized man-up or man-down turret trucks operating at maximum reach height.
Certified Metallurgy
Fabricated using prime cold-rolled Q235B and high-yield structural steel. Profiles undergo finite element modeling (FEM) to withstand intense dynamic lateral moments, seismic harmonics, and uniform distributed load (UDL) requirements.
Why Global Logistics Planners Rely on HEDA Racking
Direct manufacturer accountability backed by complete end-to-end processing under a single roof in Guangzhou, China.
Fully Integrated Production
From initial slit coil uncoiling, automatic punching, and cold roll forming to precision robotic welding and electrostatic powder coating, every stage is audited internally.
Bespoke Layout Engineering
Complimentary 2D CAD engineering layouts and realistic 3D volumetric renders delivered within 24–48 hours based on building clear heights, pallet types, and bay loadings.
Seismic & Climate Adaptation
Engineered base plate sizing and bracing calculations tailored for earthquake-prone zones like Indonesia and Japan, combined with marine-grade pre-treatments for humid regions.
Export Compliance & Freight
Certified under CE (No. 2435-CPR-8605159) and ISO 9001:2015. Optimized container stuffing plans maximize weight and cube boundaries to decrease CIF shipping expenses.
Procurement & Development Trends in VNA Systems (2025–2030)
How automation, warehouse management systems (WMS), and geopolitical supply resilience are reshaping high-density storage sourcing.
1. Convergence with Semi-Automation
Modern VNA infrastructures are no longer passive steel systems. Forward-looking procurement directives require integration readiness for automated guided turret trucks (AGVs), RFID sensor-embedded beam levels, and automated pick modules that sync directly with enterprise cloud WMS architectures to reduce picker travel time.
2. High-Durability Sustainable Finishes
With environmental compliance tightening across the EU and Southeast Asia, low-VOC electrostatic thermoset powder coatings and phosphate-free passivation cycles are baseline requirements. Furthermore, cold-chain operators demand multi-stage zinc galvanized and hybrid polymer coatings capable of preventing cold-room condensation corrosion down to -30°C.
3. Data-Driven Structural Procurement
Procurement teams are shifting away from commoditized catalog purchasing. Decision-makers demand site-specific structural calculation sheets verifying upright deflection factors (1/200th standard), floor slab load dispersion ratios, anchor shear tolerance, and cyclic loading resilience against heavy-load high-reach operations.
Frequently Asked Procurement Questions
Detailed insights addressed directly by our structural engineering and global project management divisions.
What distinguishes a Very Narrow Aisle (VNA) system from standard selective pallet racking?
Standard selective pallet racking requires aisle spans ranging between 3.2 to 3.8 meters to accommodate conventional counterbalance forklifts. A Very Narrow Aisle (VNA) rack system compacts these aisle dimensions down to approximately 1.5 to 1.8 meters. By partnering this layout with specialized turret trucks or order pickers that maneuver along fixed mechanical guide rails or inductive floor wire tracking, VNA systems unlock up to 45% additional storage density while maintaining 100% individual pallet selectivity.
What are the specific warehouse flooring requirements for high-bay VNA installations?
Because VNA systems often reach heights between 10 and 17 meters, floor levelness is critical to avoid mast sway and truck tilt. Facilities must adhere to stringent flatness specifications, such as DIN 18202 or TR34 (Category Superflat or Fmin standards). If slab irregularities exceed 1.5mm, floor grinding or leveling screeds must be applied along truck running tracks. Our engineering team conducts dynamic floor loading analysis to ensure the concrete slab can absorb high localized point loads beneath base plates.
How does HEDA customize racking configurations for dynamic seismic environments?
For clients operating across active seismic belts (such as Japan, the Philippines, Indonesia, and Taiwan), our structural engineering division computes spectral acceleration values and lateral displacement limits under local seismic design codes. We incorporate enlarged structural base plates, thickened anchor bolt patterns, high-tensile cold-formed omega upright posts, and heavy-gauge horizontal-diagonal K-bracing frames to prevent harmonic structural failure during seismic events.
What technical data is required to generate a custom 2D layout and 3D simulation?
To provide a turn-key engineered design within 24 to 48 hours, our engineers require: (1) Architectural warehouse CAD drawing or dimensioned sketch indicating column spacing, dock door placements, clear heights, and ceiling obstructions; (2) Pallet specifications including dimensions (W x D x H), overhang, and maximum gross loaded weight; (3) Turret truck or forklift specifications, including minimum turning radius, aisle interface clearance, and mast collapsed/extended reach limits; and (4) Throughput targets.
How do you handle quality assurance, pre-shipment trials, and overseas installation support?
Every production run adheres strictly to ISO 9001:2015 quality assurance protocols. Steel raw materials are laboratory-verified for yield and tensile strength. Completed beams and upright frames undergo batch test assembly and weld-penetration analysis. For export, systems are strapped using heavy-duty timber crating, protective edge guards, and vapor barrier liners. We provide step-by-step 3D structural assembly drawings and component tagging to empower your local contractor team to perform swift, error-free assembly.
