Engineered Industrial Racking Systems & Heavy-Duty Units
Explore our certified structural storage configurations, cold-formed upright assemblies, and dynamic gravity solutions deployed globally across high-throughput distribution hubs.
OEM Heavy Duty Galvanized Steel Stacking Racks For Warehouse Stack Pallet
Gravity Pallet Flow Rack Shelf Heavy Duty Selective Rack Steel Carton Customized ISO9001/CE
Custom Heavy Duty Industrial Steel Storage Carpet Roll Display Warehouse Beam Pallet Racking Systems
2800KG 5 Levels High Bay Industrial Pallet Racking Heavy Duty Warehouse Rack System
Factory Direct Steel 4Layer/500kg Load Heavy Duty Pallet Rack Bolt Metal Long Span Shelving
High-Performance 4U 24-Bay Rack Server Customizable Itx Storage Chassis

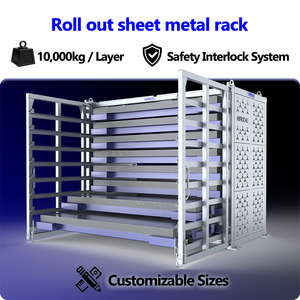

CE Certified Warehouse Storage Racks Steel Pallet Rack Heavy Duty Cargo Shelving System
AOCHEN Industrial Collapsible Adjustable Gravity Roller Shelves Steel Flow Rack Shelving System
Future Trends in Rack Shelving Systems & Warehouse Procurement
As logistics operations transition toward high-throughput, automated material handling, industrial rack procurement is evolving from simple static steel structures to integrated engineering assets.
High-Density Shuttle & ASRS Compatibility
Global procurement teams are heavily shifting from conventional selective pallet racks toward radio shuttle systems and Automated Storage and Retrieval Systems (ASRS). Modern upright columns and guide rails require tighter dimensional tolerances (within ±0.5 mm) to avoid automated carrier stalling, demanding computerized roll-forming and high-rigidity Q355B micro-alloyed structural steel.
Seismic Engineering & Finite Element Analysis
With rapid warehousing investments across earthquake-prone regions in Southeast Asia, the Middle East, and the Pacific Rim, structural compliance under Eurocode 8, RMI MH16.1, and AS 4084 is mandatory. Rack manufacturers must demonstrate structural load performance through computer-modeled finite element stress analysis, enlarged dynamic base plates, and optimized X-bracing geometries.
Advanced Anti-Corrosion for Cold Chains & Tropics
Expanding pharmaceutical and cold-chain grocery fulfillment centers require specialized metallurgy. Extreme temperature shifts from ambient -30°C blast-freezing create condensative corrosion. Leading exporters deploy automated nine-stage zinc phosphating combined with electrostatic epoxy-polyester coatings, alongside batch hot-dip galvanizing exceeding 85 μm coating thickness.
Modular Multi-Tier Mezzanine Verticalization
Skyrocketing industrial real estate square-meter lease costs in primary logistics nodes (such as Singapore, Hong Kong, Dubai, and Rotterdam) dictate vertical volumetric expansion. Rack-supported mezzanines and heavy structural steel multi-tier decks multiply usable picking surface by up to 300% without acquiring additional ground footprints or requiring new civil construction permits.
Structural Performance & Specification Comparison Matrix
Consult this engineering matrix to evaluate system attributes, load-bearing capacities, access selectivity, and application parameters across mainstream industrial rack classifications.
| Racking Configuration | Primary Steel Grade | Standard Pallet Capacity | Direct Accessibility | Inventory Rotation | Recommended Operational Sector |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B Cold-Rolled Carbon | 1,000 kg – 3,000 kg / level | 100% Direct Selective | FIFO (First-In, First-Out) | General FMCG, 3PL Distribution, Multi-SKU Hubs |
| Radio Shuttle Automation | Q355B Low-Alloy Structural | 1,000 kg – 1,800 kg / pallet | Medium-Low (Per Lane) | FIFO & LIFO Flexible | Cold Storage, Beverage Bottling, Raw Commodities |
| Gravity Pallet Flow Rack | Q235B / High-Impact Roller | 800 kg – 1,500 kg / pallet | Lane End Picking | Strict Automatic FIFO | Pharmaceuticals, Perishable Foods, Dairy Logistics |
| Drive-In / Drive-Through Rack | Heavy-Duty Q355B Channel | 1,000 kg – 2,000 kg / pallet | Low (High Density) | Strict LIFO (Drive-In) | Seasonal Crops, Chemical Drums, Homogeneous SKUs |
| Multi-Tier Rack Mezzanine | Hot-Rolled I-Beam & Upright | 300 kg – 1,200 kg / m² floor | 100% Manual Floor Picking | Configurable Flow | E-Commerce Hand-Picking, Auto Parts, Garment DCs |
Why Enterprise Importers & EPC Contractors Rely on HEDA Shelves
Headquartered in Haizhu District, Guangzhou, Guangzhou Heda Shelves Co., Ltd. has established a comprehensive 25-year manufacturing infrastructure dedicated to zero-defect structural warehouse racking exports.
Direct Factory Vertical Integration
Operating a 30,000 square meter plant powered by automated CNC punching arrays, specialized continuous roll-forming lines, and robotic gantry welding, HEDA retains end-to-end quality jurisdiction without sub-tier contracting friction.
Complimentary 2D CAD & 3D Modeling
Our senior structural engineering desk delivers complete warehouse layout blueprints, building column clearance checks, forklift turning radius validations, and 3D visual renderings within 24 to 48 hours from initial dimensional receipt.
Optimized Ocean Freight Loading
Departing directly through major South China maritime hubs (Guangzhou / Shenzhen / Hong Kong), shipments are packed with 3D computerized container load optimization to maximize TEU cube utilization and drastically lower shipping costs per pallet location.
10-Step Quality Assurance & Fabrication Process
From initial coil metallurgy inspection to ocean-ready container bracing, every structural element undergoes rigorous physical, dimensional, and chemical testing.
Steel Coil Ingress
Precision Slitting
CNC Column Punch
Cold-Bend Forming
Profile Roll Forming
Weld Polish & Deburr
Robotic Arc Welding
Phosphate Pre-Treat
Electrostatic Coating
QC & Ocean Bundling
Internationally Certified Racking Safety Standards
For municipal fire approvals, civil building permits, and international project tender compliances, HEDA Shelves maintains complete, third-party certified verification documentation ready for engineering audits.
- CE Certification No. 2435-CPR-8605159: Structural steel execution in accordance with EN 1090-1 and CPR guidelines.
- ISO 9001:2015 Quality Management (Cert No. 18624Q00169R0M): Fully certified quality system covering design, fabrication, and service.
- RoHS Environmental Surface Compliance: Lead-free, heavy-metal-free electrostatic thermoset resin powders safe for food warehousing.
Frequently Asked Questions in Global Racking Procurement
Direct technical answers addressing structural calculation, international codes, moisture protection, installation supervision, and export logistics.
What critical structural parameters are required to generate an accurate warehouse layout quotation?
How does HEDA engineer racking systems for high-risk seismic zones across Southeast Asia and the Pacific?
What pre-treatment processes guarantee powder coating durability in tropical and coastal environments?
How are shipping container load plans optimized to safeguard cold-formed steel during ocean transit?
Can local installation contractors assemble HEDA racking systems without factory technicians on-site?
Initiate Your Warehouse Engineering Review
Submit your architectural layout or preliminary pallet storage schedule. Our senior design team will deliver optimized CAD plans, 3D spatial renders, and structural calculations within 24 to 48 hours.
