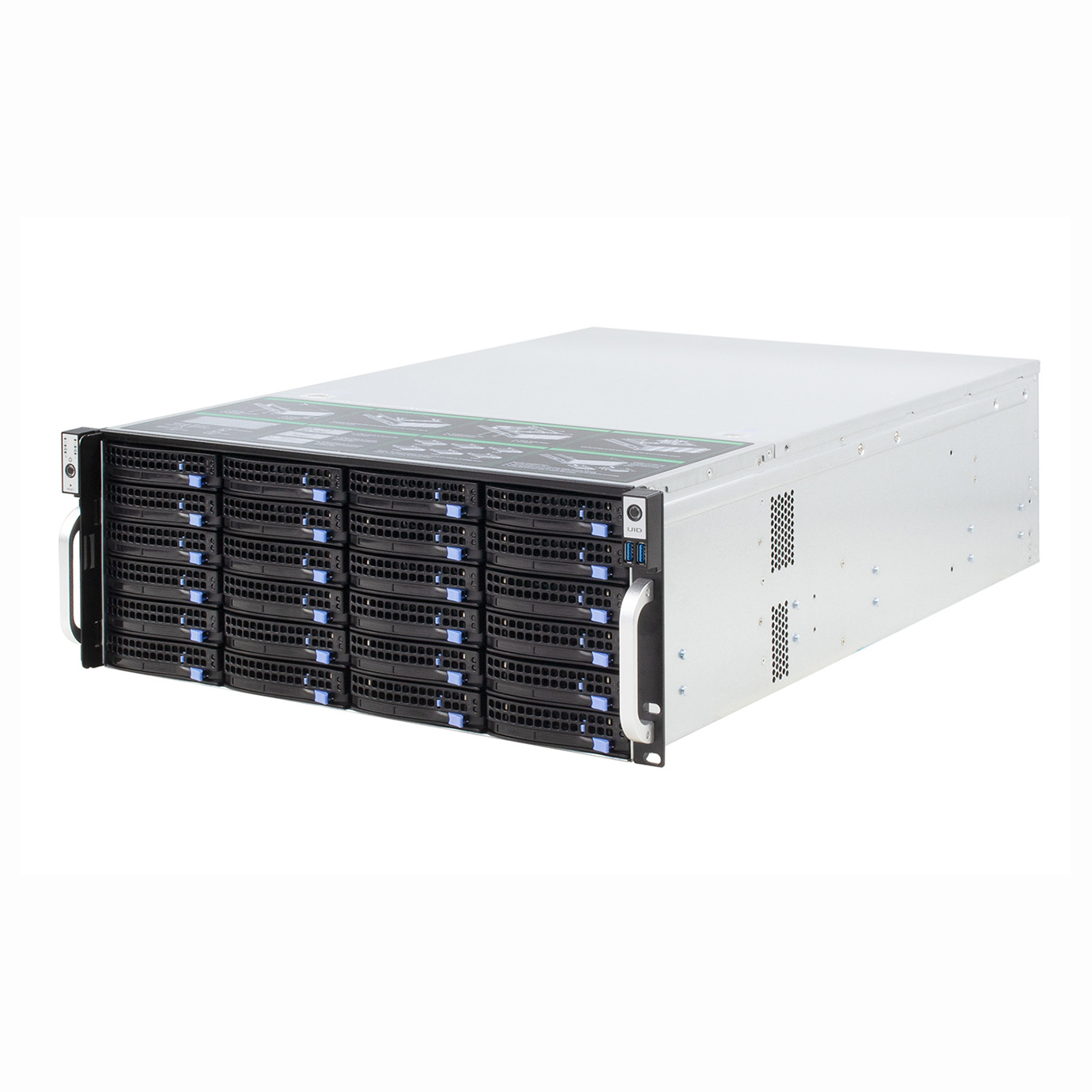

High-Performance 4U24-Bay Rack Server Customizable Itx IPTV Storage Chassis 1300W Redundant Power Low Price Xeon E5 8C 2.4GHz
Product Description
Multi-Application Cooling Fan 4U Rackmount Case ITX Case Serial Device Server
Form Factor
4U 24-Bay Hot-Swap
Processor
Intel® Xeon® E5 8C 2.4GHz
Redundant Power
1300W 1+1 High Efficiency
System Assurance
3-Year Manufacturer Warranty
Technical Specifications
| Item | Specification |
|---|---|
| Certification | CCC, SGS |
| Form Factor | ATX |
| Material | Steel |
| Style | With Fan, With Power Supply, With Side Panel Window |
| Front Ports | USB |
| Brand Name | BailianF/OEM |
| CPU | Intel® Xeon® E5 2630V3 8C 2.4GHz |
| RAM | 16G DDR4 RECC, maximum support 512GB |
| Hard disk | Optional, can support up to 24* 3.5/2.5 inch SATA hard disk |
| RAID | LSI 9364-8I, 1G cache, support RAID 0, 1, 5, 6, 10, 50, 60, JBOD |
| Network card interface | Intel Gigabit Ethernet port*2 ports, IPMI management port*1 port |
| Chassis | 4U 24-bays hot-swappable chassis Extended backplane |
| Power Supply | 1300W 1+1 redundant power supply |

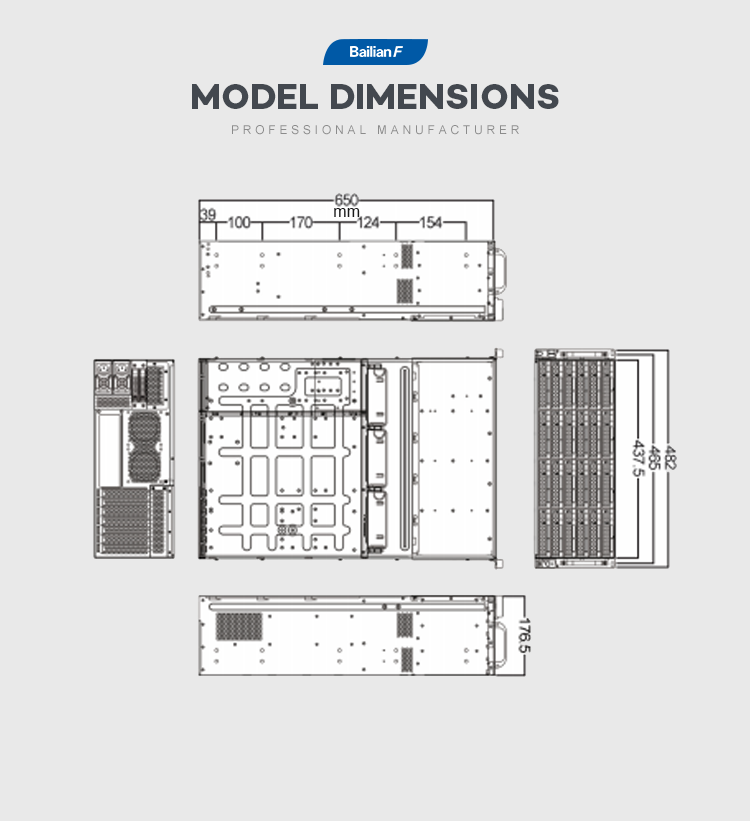

| Dimensions | 650mm*485mm*176mm (W*D*H) |
| Warranty | 3 Years |

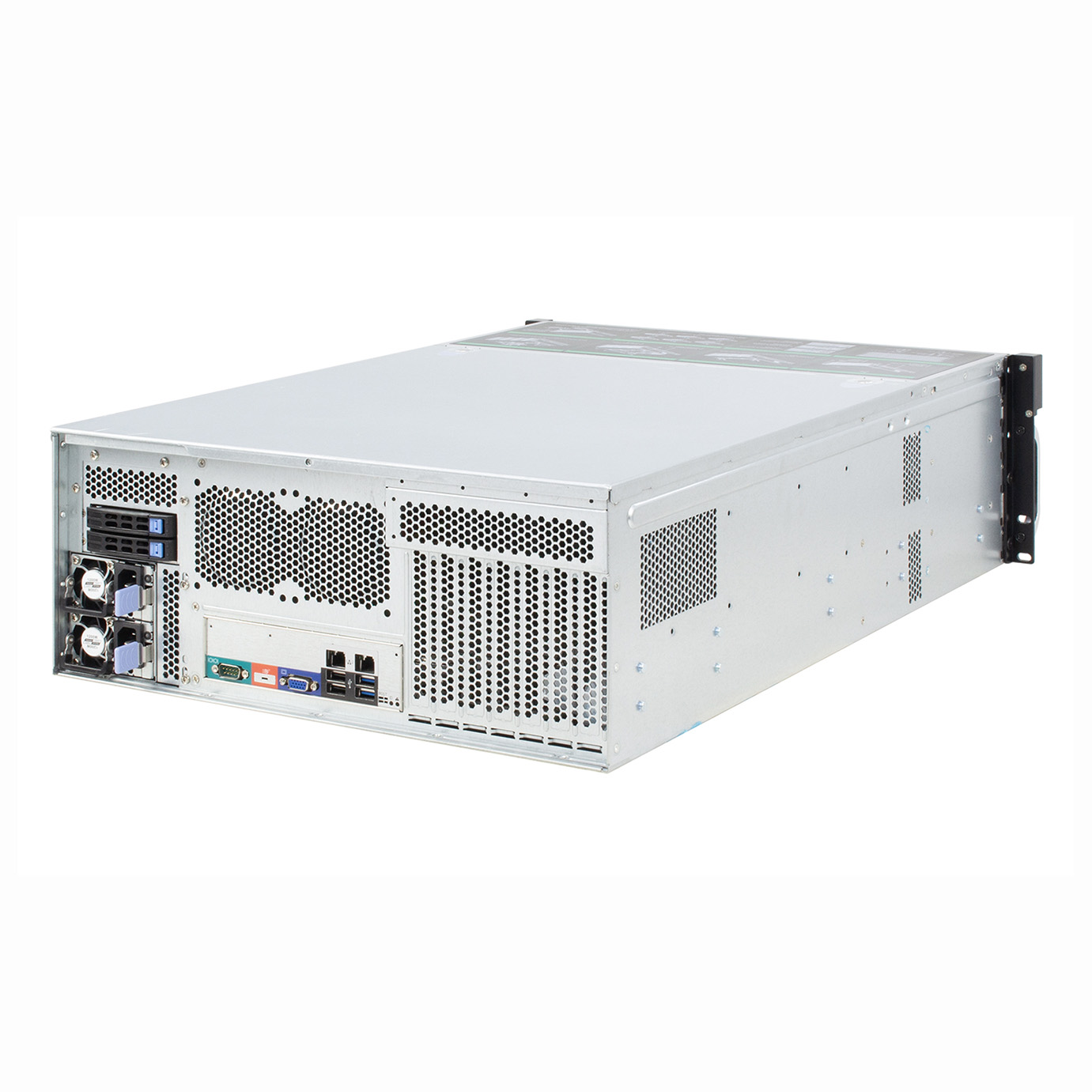

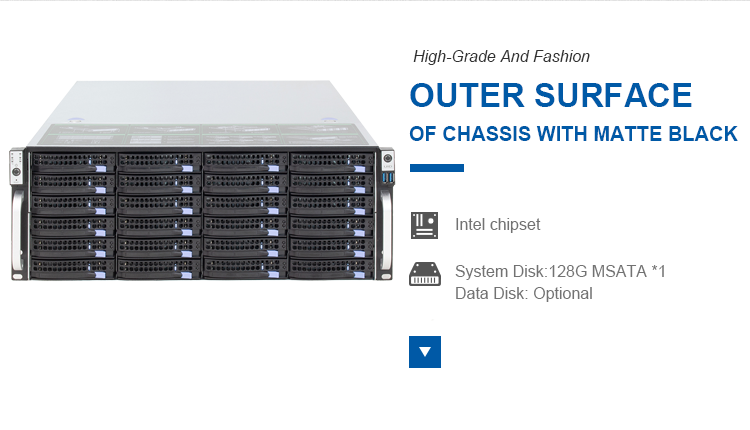

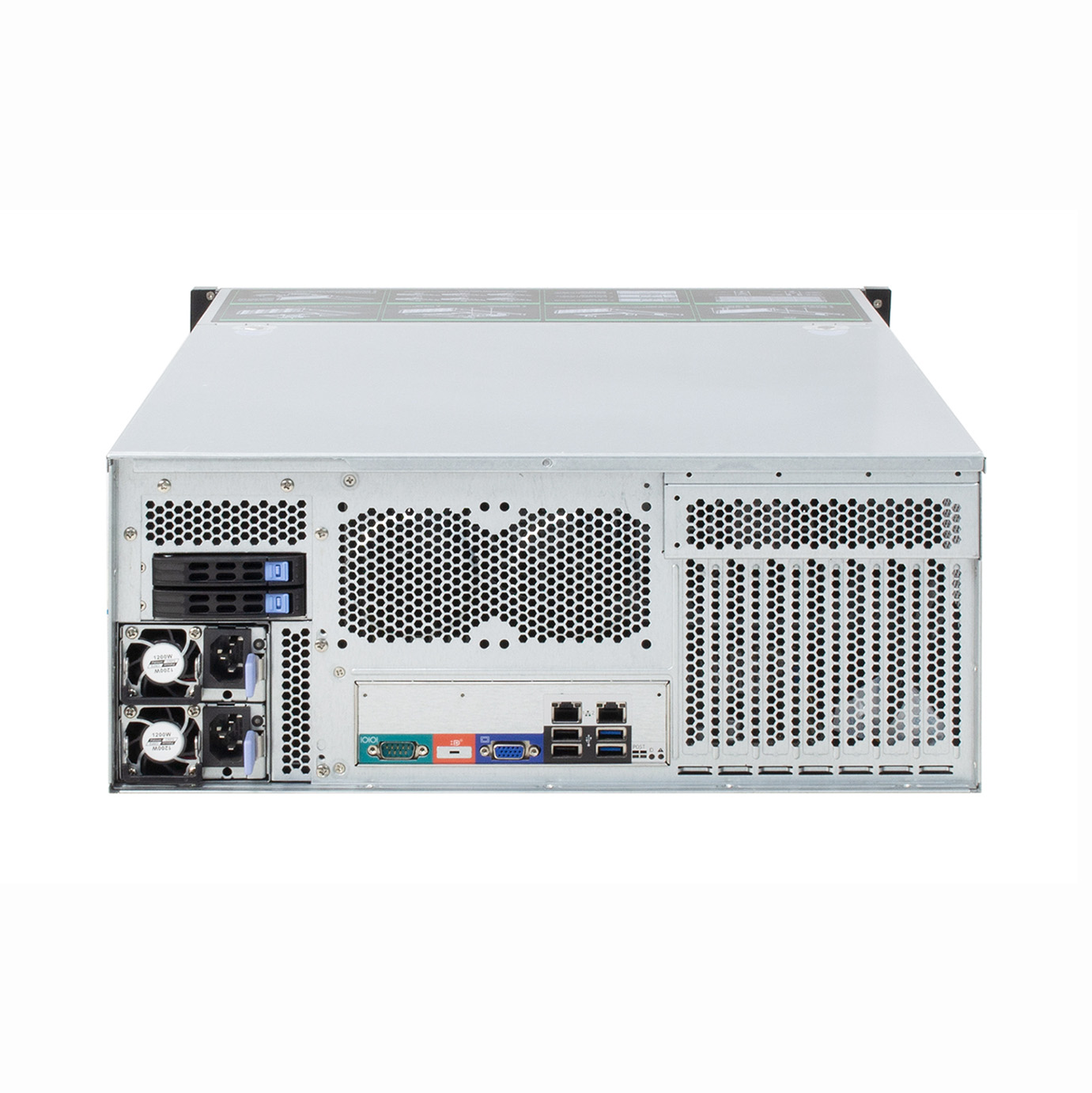

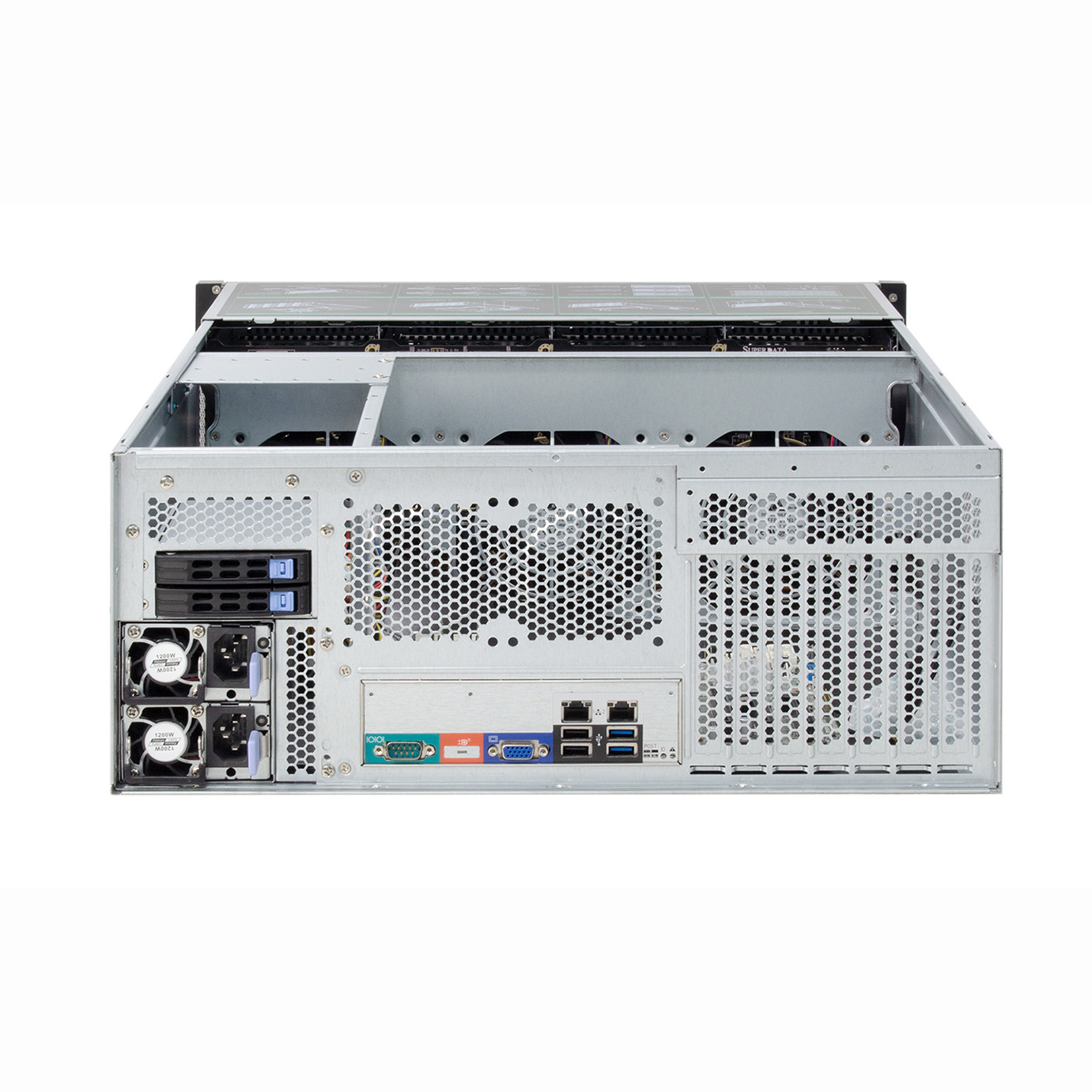

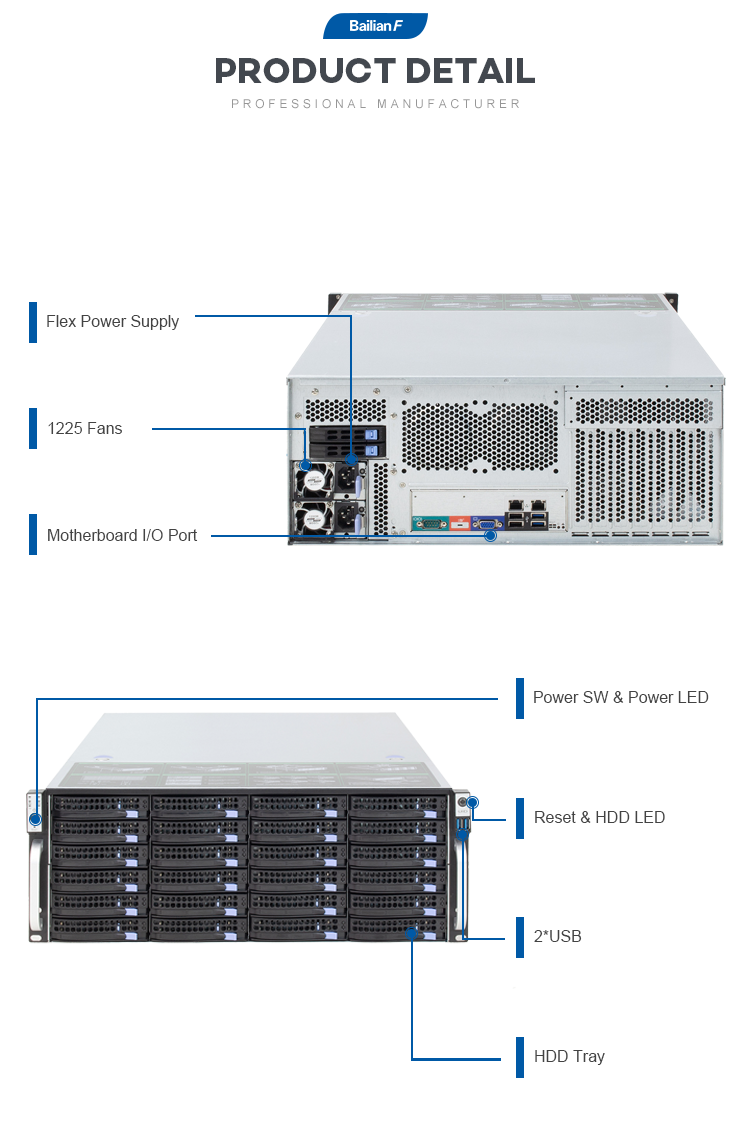

Hardware Overview & Product Showcase
More Information Available Upon Request
Frequently Asked Questions

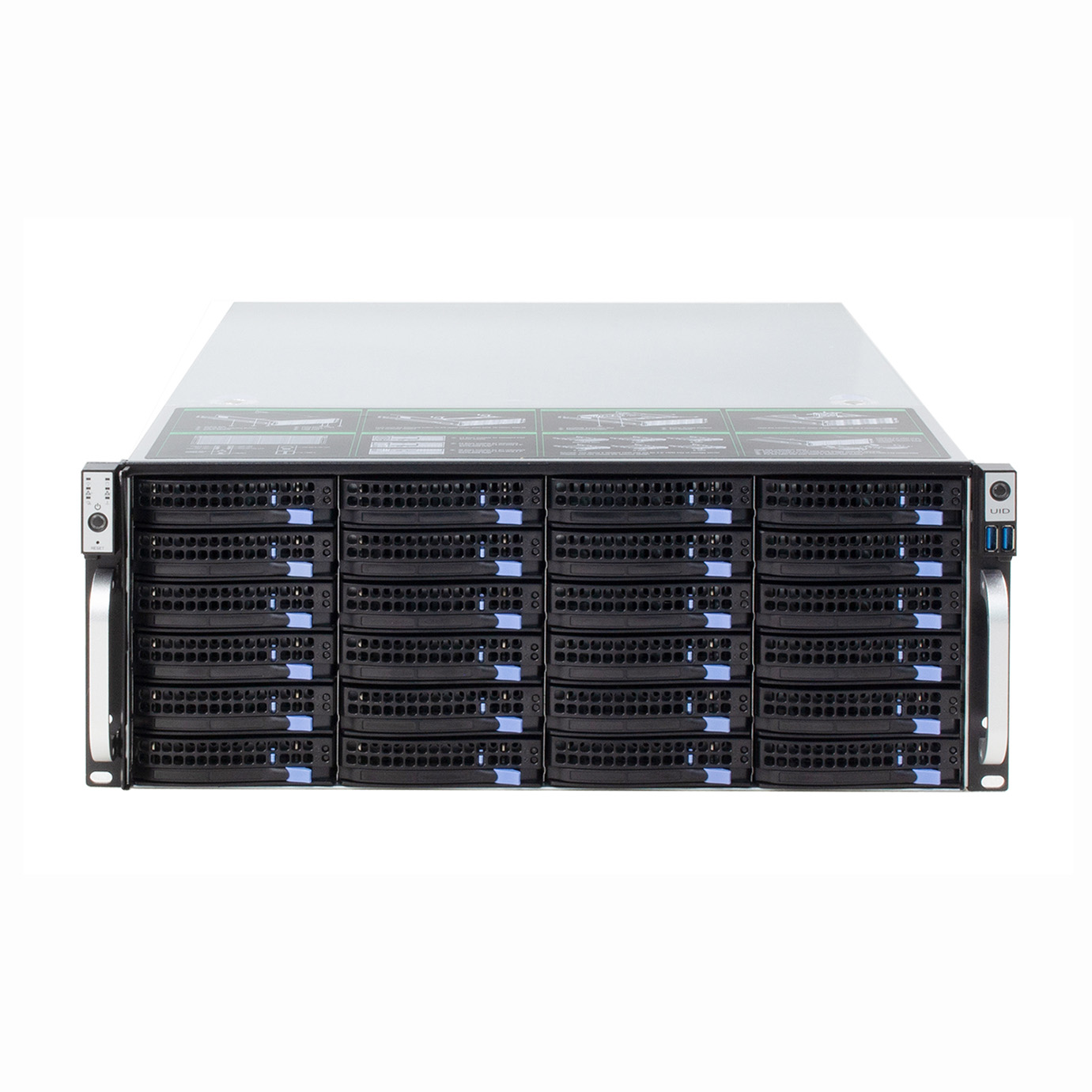

How many hard drives does this 4U rackmount chassis support?
The chassis is designed with an extended backplane that accommodates up to 24 hot-swappable 3.5-inch or 2.5-inch SATA hard drives, providing high-density storage capacity suitable for IPTV and enterprise data centers.
What processor and memory capacity does the system support?
The server is powered by an Intel® Xeon® E5-2630V3 8-Core processor at 2.4GHz. It includes 16GB DDR4 ECC Registered memory by default, with scalable support for up to 512GB of system RAM.
Which RAID configurations are supported by the integrated controller?
Equipped with an LSI 9364-8I controller featuring 1GB of dedicated cache, this system provides versatile data protection supporting RAID 0, 1, 5, 6, 10, 50, 60, and JBOD modes.
What redundancy features are built into the power delivery?
The unit comes with a 1300W 1+1 redundant power supply setup, ensuring zero downtime and non-stop continuous operation during hot-swap power module replacements or maintenance.
What network connectivity and management ports are available?
The server includes two Intel Gigabit Ethernet RJ45 network ports for robust data communication, alongside a dedicated IPMI interface for out-of-band remote server monitoring and administration.
What certifications and warranty coverage apply to this chassis?
The chassis holds CCC and SGS certifications, complies with standard industrial reliability specifications, and is backed by a 3-year warranty with support for BailianF and OEM customization.
