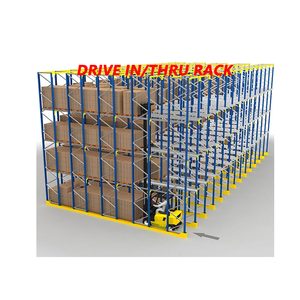

High Density Drive-In Pallet Rack Warehouse Storage System Drive in Rack Pallet Racking Double Deep Pallet Racks
Long Items
Single Sided Cantilever Rack Industrial Racks and Shelving Heavy Duty Cantilever Racks for Sale
Die & Mold Storage
Wholesale Warehouse Metal Storage Industry Manufacture Heavy Duty Mold Rack Mould Shelf System
Heavy Duty Rack

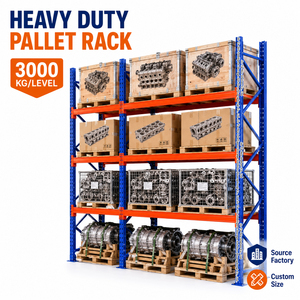

3000KG Heavy Duty Warehouse Shelf Rack For Pallet And Carton Storage 4 Levels For Pallet Storage
Drive-Through
Top Quality Pallet Racking System Warehouse Storage Drive in Pallet Rack Drive Through Racking System
Industrial Selective
Steel Racking Solutions Heavy Duty Storage Shelves Pallet Racking System Warehouse Storage
Chemical Storage
Wholesale Price Industrial Storage Shelf Drive-In Rack Steel Stacking Pallet Racking Vendors For Chemical Industry Warehousing
Structural Engineering Insights
Engineering Blueprint: Evaluating Pallet Rack Structure Manufacturers
Warehouse safety, load predictability, and regulatory clearance hinge on steel metallurgy, cold-roll profile geometry, and FEA-validated seismic design. Review the industry comparison matrix before placing major tenders.
| Evaluation Parameter | Tier-1 Certified Manufacturer (e.g. HEDA) | Standard Commercial Fabricator | High-Risk Low-Cost Vendor |
|---|---|---|---|
| Primary Steel Grade | SS400 / Q235B & Q355B Hot-Rolled Strip with Mill MTR Reports | Commercial Grade Q235B without certified batch traceability | Scrap-recycled non-standard steel strip (Unverified yield) |
| Yield Strength ($f_y$) & Tensile | Verified $f_y \ge 355\text{ MPa}$; elongation $\ge 21\%$ | Nominal $235\text{ MPa}$; unpredictable elongation | Under-spec $f_y < 210\text{ MPa}$; brittle rupture risk |
| Design Code Compliance | EN 15512, RMI ANSI MH16.1, AS 4084, CE CPR-8605159 | Regional generic building code referencing only | No dynamic load or structural calculation certs |
| Seismic Stress Validation | Static & Dynamic Spectral FEA Analysis per project geocode | Static vertical gravity load calculation only | No earthquake or seismic acceleration factoring |
| Pre-Treatment & Coating | 9-Stage Pickling + Phosphating + Electrostatic Epoxy (60-90µm DFT) | Manual degreasing + standard powder coat (30-40µm DFT) | Spray paint or air-dry enamel with poor adhesion |
| Weldment Quality | Robotic CO₂ gas shielded welding per AWS D1.1 / EN ISO 15614 | Manual semi-automated MIG welding | Inconsistent manual arc welding with slag inclusion |
Total Cost of Ownership (TCO)
Selecting a certified structural pallet rack manufacturer reduces long-term maintenance by over 68%. Precision upright geometry eliminates forklift docking snags, reducing column damage, insurance deductibles, and catastrophic collapse hazards.
Finite Element Analysis (FEA)
Top-tier rack engineering leverages ANSYS and STAAD.Pro simulation to assess torsional buckling, axial column shear, and second-order P-Delta moments. Every HEDA upright section profile is rolled with reinforced return lips for heightened radius inertia.
Global Safety Redundancy
Enterprise installations demand a minimum safety factor of 1.5 to 1.67 over nominal working load limits. All pallet racking systems feature spring-actuated positive beam connectors that resist accidental upward lift forces up to 5,000 N per hook set.
Next-Gen Intralogistics
Global Procurement & Technology Trends in Warehouse Racking Architecture
From automated high-bay shuttle warehouses to AI-optimized cold-chain facilities, procurement specifications are pivoting toward precision tolerances, sustainability, and hybrid smart structures.
1. ASRS & Shuttle Synergies
Fixed-aisle cranes and autonomous 4-directional pallet shuttles require micro-tolerances within ±1.5mm along entire 30-meter high runs. Millimeters of column deviation can cause automated optical sensor faults and shutdown.
2. High-Seismic Resilience
With warehousing hubs booming in earthquake-active belts (Indonesia, Philippines, Japan, US West Coast), demand for heavy-duty seismic baseplates, seismic isolation joints, and ductile bracing systems has grown by over 240%.
3. Cold-Chain Thermal Metallurgy
Frozen facilities (-30°C) cause structural carbon steel embrittlement and rapid moisture dew-point rusting. Procurement is shifting towards cold-tough micro-alloy steels and dual-phase hot-dip galvanizing + polyester protective powder coatings.
4. Low-Carbon Green Steel
Scope 3 supply chain carbon disclosures demand steel products forged via Electric Arc Furnace (EAF) or green-hydrogen reduction processes. Recyclability, closed-loop powder recycling, and RoHS non-toxic finishes are now non-negotiable tender criteria.
Manufacturing Supremacy
Guangzhou Heda Shelves Co., Ltd. — 25 Years of Industrial Excellence
Established in 2001 in Guangzhou, HEDA Shelves operates a state-of-the-art 30,000 square-meter production facility, outputting over 30,000 tons of structural steel storage systems each month for clients in over 120 countries.
The Proprietary 10-Stage Industrial Production & Quality Control Engine
01
Raw Material
Yield verification & ultrasonic flaw testing on hot-rolled coils.
02
Precision Slitting
High-speed CNC slitting lines with narrow strip width tolerance ±0.1mm.
03
Auto Punching
Synchronous multi-die pitch punching for butterfly & teardrop holes.
04
Cold Bending
Progressive cold roll-forming lines ensuring exact corner curvature.
05
Profile Forming
Multi-station rollers create stiffened omega & twin-box beam channels.
06
Mechanical Polishing
Automatic deburring, edge conditioning, and seam smoothing.
07
Robotic Welding
Six-axis robotic arms weld beam end connectors without spatter or porosity.
08
Acid Pickling
9-dip chemical immersion for scale removal and zinc phosphate passivating.
09
Powder Coating
Gema automated electrostatic spray booths cured at 200°C baking cycles.
10
QC & Seaworthy Pack
Final DFT, load testing, steel bundling, corrugated corner protection.
Global Verifications
Third-Party Tested & Internationally Accredited
HEDA Shelves operates in strict accordance with worldwide occupational and structural building frameworks. Project submittals include signed structural engineering stamp drawings, third-party destructive shear testing certificates, and steel melt certificates.
-
CE Construction Products Regulation: Certificate No. 2435-CPR-8605159 (EN 1090-1 Structural Steel)
-
ISO 9001:2015 Quality Management: Certificate No. 18624Q00169R0M
-
Environmental Coating Safety: RoHS Compliant, heavy-metal-free electrostatic polymers
Engineering Q&A
Pallet Rack Structure Procurement & Engineering FAQ
Exhaustive technical answers authored by HEDA's Senior Structural Engineering Directorate to assist EPC contractors, warehouse developers, and procurement authorities.
1. What engineering data is mandatory to calculate structural upright and beam profiles?
To generate an accurate CAD floor plan, 3D simulation, and static calculation report, our engineering department requires:
- Warehouse Architectural DWG/CAD: Clear ceiling height to the lowest sprinkler/truss obstruction, column grid coordinates, floor expansion joints, and ingress/egress fire corridors.
- Unit Load Specs: Pallet dimension (Width × Depth × Height inclusive of product overhang) and maximum gross weight.
- Material Handling Equipment (MHE): Forklift model, turning radius ($W_a$), mast closed height, maximum collapsed lift height, and required right-angle stacking aisle width ($A_{st}$).
- Concrete Slab Capacity: Thickness, compressive strength ($f'_c$, e.g., 25-35 MPa), single/double mesh reinforcement, and permissible point load ($kN/m^2$).
- Site Geographical Data: Seismic peak ground acceleration coefficient ($S_s, S_1$), soil classification category, and ambient operating temperature (dry storage vs. sub-zero cold room).
2. How does HEDA engineer pallet racks to withstand severe earthquake zones (e.g. Philippines, Indonesia, Japan)?
In seismic zones governed by standards such as UBC-97, IBC, or Eurocode 8, static vertical gravity designs are insufficient. We implement:
- Dynamic Modal Response Spectrum Analysis: Calculating higher-order vibration modes and inter-story drift limits to prevent frame resonance with the ground.
- Enlarged Seismic Footplates: Heavy ductile steel baseplates (12mm to 20mm thick) paired with Hilti mechanical wedge or chemical epoxy anchors to dissipate high base-shear and cyclic tensile pull-out forces.
- Over-Sized Upright Sections: Transitioning from 90mm profiles to 120mm–140mm omega profiles with increased wall thickness (2.5mm to 3.0mm) to avert local flange buckling.
- Horizontal & Vertical K/X Bracing: Installing structural back-plane bracing towers and top portal ties that tie multiple double rows into a monolithic structural block.
3. What is the allowable beam deflection limit according to international standards?
Under both EN 15512 and RMI ANSI MH16.1, the maximal permissible elastic deflection of a horizontal pallet load beam under full designed Working Load Limit (WLL) is $L/200$ (where $L$ is the clear distance between uprights). For example, a 2700mm beam carrying two 1,500kg pallets is permitted a maximum vertical sag of $2700 / 200 = 13.5\text{mm}$. When working with automated ASRS or laser-guided AGVs, HEDA tightens this deflection tolerance to $L/300$ or $L/400$ to prevent optical tracking errors and load-positioning misalignments.
4. How does your factory prevent corrosion in tropical coastal warehouses and cold stores?
Moisture, airborne salinity, and temperature differentials create catastrophic rust inside hollow upright sections if unaddressed. HEDA utilizes a dual defense methodology:
- Standard Industrial Environment: 9-step chemical immersion (degreasing, acid pickling to eliminate mill scale, zinc phosphate passivation, deionized rinse) followed by electrostatic polyester epoxy coating cured at 200°C, offering 500+ hours of continuous salt-spray resistance.
- Harsh Coastal / Blast-Freeze (-30°C) Environments: We recommend our continuous Hot-Dip Galvanizing (HDG) line according to ISO 1461 / ASTM A123. The steel profiles are submerged in molten zinc at 450°C, forming an impenetrable metallurgical zinc-iron alloy barrier (65-85µm thickness) inside and out that resists condensation cycles and acid attack.
5. What container loading and export packaging standards does HEDA employ?
Structural steel components are vulnerable to surface friction, deformation, and moisture during long sea routes. Every HEDA shipment includes:
- Bundle Strapping with Corrugated Padding: Uprights and beams are banded with heavy PET strapping over thick corrugated cardboard buffers and plastic stretch film to protect powder-coated edges from transit abrasion.
- Engineered Dunnage & Steel Skids: Base components rest on wooden blocks and custom steel transport skids to enable high-speed unloading via standard container ramp forklifts.
- Mathematical 3D Container Loading Layouts: Using specialized freight software, we maximize volumetric container fill rates (up to 98% efficiency in 40ft HQ containers), driving ocean freight expenditure down per individual pallet storage location.
Engineering Consultation Hub
Request Your Free Structural Calculation & 3D CAD Warehouse Layout
Partner directly with one of Asia's most trusted pallet rack structure manufacturers. Send your warehouse floor plan, SKU density requirements, and pallet specifications to receive a full engineering layout and competitive factory-direct quote within 24 to 48 hours.
