Factory-Direct Pallet Racking & Industrial Storage Shelves
Engineered with certified Q235B/Q355B structural steel, conforming strictly to FEM 10.2.02, EN 15512, and AS 4084 standards. Select an engineered system below for full load tables or instant structural quoting.
Wholesale Heavy Duty Pallet Rack 3000kg High Load 4 Layer Metal Shelves Durable Longspan Pallet Racking For Warehouse Storage
Multi-tier heavy industrial storage engineered for high-density palletised cargo with reinforced upright geometry and interlocking connector safety pins.

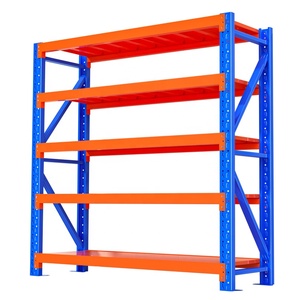

Customization Garage Warehouse Rack Adjustable Bolts Storage Stacking Racks Pallet Steel Metal Shelving Shelves for Industrial
Versatile bolt-together modular system delivering dynamic slotting reconfiguration for commercial garages, maintenance centers, and small parts bins.
Steel Rack System Heavy Duty Pallet Racking 4000kg Warehouse Storage Rack System 5-Tier Adjustable Industrial Racks
Cold-formed heavy box-beam profile configured for maximum rigidity under 4000kg uniform distributed loads across automated and manual distribution hubs.

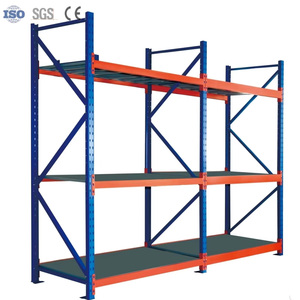

Heavy-Duty 2000KGS Large Capacity Warehouse Storage Pallet Rack Shelving Unit Each Layer Stacking Racks & Shelves
Equipped with perforated wire mesh decking or steel shelf panels for dual pallet racking and direct manual case picking operations in retail staging depots.
L2200*W1200*H4050mm 4-layer 2000kg Heavy Duty Pallet Rack Industrial Warehouse Shelving Adjustable Steel Storage Rack System
Standardised high-bay configuration balancing footprint efficiency with standard counterbalance forklift reach limits across 3PL facilities.
High Density Heavy Duty Steel Storage Warehouse Rack Very Narrow Aisle VNA Selective Pallet Racking
Compresses aisle widths down to 1600mm for specialized turret trucks, elevating floor space volumetric utilization by over 45% compared to selective racking.
Heavy Duty Metal Adjustable Warehouse Double-sided Cantilever Rack - Buy Cantilever Rack Heavy Duty Metal Cantilever Rack
Engineered for uninhibited front-loading access to lumber, steel structural tubing, PVC conduit, and sheet stock without front-column obstruction.
Gravity Flow Racking Warehouse Warehouse Shelves Goods Pallet Storage Rack Shelving Metal Shelf Rack Industrial Storage Racks
Sloped roller tracks utilizing gravitational force for automatic pallet staging, enforcing flawless First-In-First-Out inventory turnover for cold store and FMCG depots.
The Paradigm Shift in Chinese Storage Rack Manufacturing
Global logistics directors and facility architects are moving past low-cost tier shopping toward rigorous structural engineering, metallurgical consistency, and international compliance verification.
Metallurgical Integrity: Q235B vs. Q355B
China's premier manufacturing plants operate adjacent to tier-one steel producers like Baosteel and Ansteel. This guarantees certified cold-rolled coils with tight yield strength tolerances.
- Yield Stress Control: Minimum yield strength of 235 MPa (Q235B) up to 355 MPa (Q355B) for high-bay seismic frames.
- Cold-Work Hardening: Upright rolling schedules induce work hardening, elevating localized tensile resistance in punch slots.
- Charpy V-Notch Testing: Impact energy rated down to -20°C for sub-zero frozen cold chain logistics integrity.
Structural Design Codes & Safety Factors
Qualified Chinese manufacturers calculate upright buckling and beam deflection according to global codes rather than generic empirical estimation.
- EN 15512 / FEM 10.2.02: Validated European design parameters governing limit state design, torsional buckling, and joint flexibility.
- RMI (ANSI MH16.1): American industrial racking standard compliance ensuring safe interaction with material handling equipment.
- AS 4084-2023: Australian standard compliance incorporating beam deflection thresholds limited to L/200 under maximal load.
Total Cost of Ownership (TCO) Dynamics
Direct sourcing from advanced Chinese factories drops capital expenditure by 32% to 55% compared to domestic Western or regional distributors, accounting for shipping.
- Container Packing Density: CAD nested upright frames and bundled beams optimize 40HQ container cube utilization past 92%.
- Modular Reconfigurability: 50mm and 75mm pitch punching allows immediate vertical adaptation as SKU profiles transform.
- Surface Durability: Phosphating and multi-stage powder curing prevent premature corrosion and structural replacement cycles.
| Storage Rack Type | Typical Load / Pallet | Space Utilization | FIFO vs. LIFO | Primary Industrial Use Case |
|---|---|---|---|---|
| Selective Pallet Racking | 500 kg – 2,000 kg | 40% – 50% (Floor Area) | 100% Direct FIFO | FMCG, 3PL Distribution, High-SKU Retail |
| Very Narrow Aisle (VNA) | 800 kg – 1,800 kg | 65% – 75% (Floor Area) | 100% Direct FIFO | High-Rent Metro Logistics, E-commerce Fulfillment |
| Drive-In Racking | 1,000 kg – 2,000 kg | 70% – 85% (High Density) | Strict LIFO | Cold Storage, Beverage Processing, Raw Materials |
| Radio Shuttle System | 1,000 kg – 2,500 kg | 80% – 90% (Deep Lane) | Flexible FIFO / LIFO | Frozen Food Chains, Pharmaceutical Bulk Staging |
| Gravity Pallet Flow | 500 kg – 1,500 kg | 75% – 85% (Automatic) | Strict FIFO | Perishables, Fast-Moving Manufacturing Dispatch |
Emerging Procurement & Technology Trends in Warehouse Storage
The warehouse racking sector is undergoing rapid transformation driven by automation integration, extreme environmental criteria, and digital supply chain visibility. Forward-thinking procurement teams evaluate manufacturers across four core evolutions.
1. Convergence with Autonomous Mobile Robots (AMR) & Shuttles
Traditional static pallet racking is increasingly being customized to support semi-automated radio shuttles and 4-way automated pallet shuttles. The procurement trend favors Chinese manufacturers capable of holding cold-formed guide rail tolerances within ±0.5 mm over continuous 50-meter runs.
High-bay installations exceeding 20 meters are pairing with Automated Storage and Retrieval Systems (AS/RS), mandating finite element analysis (FEA) on structural sway under continuous dynamic shuttle braking cycles.
2. Advanced Surface Engineering for Tropical & Cold Chain Climates
Warehousing expansion across Southeast Asia, South Asia, and the Middle East has exposed structural steel racks to severe environmental stressors—namely 95% relative humidity in tropical zones and persistent condensation in sub-zero cold rooms.
Procurement specifications now explicitly demand multi-stage pre-treatments featuring zinc phosphating or zirconium nano-coating prior to TGIC-free electrostatic powder deposition, alongside hot-dip galvanizing (HDG conforming to ISO 1461) with zinc layer weights exceeding 65 µm for zero-rust guarantees.
3. Stringent Seismic Resilience & Pacific Rim Building Codes
Warehouses constructed across seismically volatile territories—such as Indonesia, the Philippines, Japan, New Zealand, and coastal Americas—require bespoke dynamic earthquake modeling. Structural procurement teams increasingly demand response spectrum analysis.
Top China shelf pallet rack factories now engineer enlarged baseplates, heavy ductile anchor assemblies, and specialized X-bracing topologies that absorb and dissipate ground accelerations, providing stampable structural calculations for municipal permit filings.
4. Digital Twin Layouts, ESG Tracking & Factory Traceability
Enterprise procurement departments are mandating digital transformation across their supplier base. Standard quotes now necessitate 3D Building Information Modeling (BIM) files (Revit/IFC formats) to integrate directly into architectural models before steel is cut.
Concurrently, Environmental, Social, and Governance (ESG) criteria are requiring Chinese mills to deliver Environmental Product Declarations (EPD) and Mill Test Certificates (MTC) with heat numbers for every coil batch, verifying recycled content and low-carbon processing.
Guangzhou HEDA Shelves: 25 Years of Engineering Authority
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as one of South China's benchmark manufacturers of heavy-duty pallet racking, structural steel mezzanines, and precision industrial shelving systems.
Operating a modernized 30,000 m² production facility with over 300 experienced fabrication engineers, technicians, and international project supervisors, HEDA controls every operational step under one roof. For global project developers, this internal integration eliminates subcontracting variances, preserves mill-direct pricing, and ensures rigorous schedule compliance.
Regional Optimization: Seismic & Climate Tailoring
From humidity-resistant electrostatic powder coatings in the ASEAN trade zone to specialized seismic base anchorage throughout Japan, the Philippines, and GCC countries, HEDA custom-engineers section moduli to meet your localized building department regulations.
HEDA Shelves In-House 10-Step Precision QC Architecture
Every beam, upright frame, and bracket follows an audited, repeatable manufacturing workflow.
Raw Material
Chemical & mechanical tension verification of Q235B/Q355B coils.
Precision Slitting
High-speed CNC slitting lines holding width tolerances to ±0.2mm.
CNC Punching
Automated punching forming exact 50mm or 75mm teardrop/diamond slots.
Cold Roll-Forming
Continuous multi-roller lines shaping Omega profiles without micro-fractures.
Beam Profiling
Double-C interlocking inter-welded step and box beam profiling.
Robotic Welding
Automatic shielded MIG welding connecting beam end-connectors with zero voids.
Shot Blasting
Surface descaling and rust removal reaching Sa 2.5 cleanliness standard.
Phosphating
Multi-stage chemical washing and phosphating generating a rust-proof primer film.
Powder Curing
Automated electrostatic spray booth cured at 200°C for high impact endurance.
Pre-Ship Audit
Dimensional checks, coating thickness tests (60–90µm), and bundled steel packaging.
Frequently Asked Questions on Importing Racks from China
Clear, unvarnished engineering answers addressing container loading logistics, structural permitting, steel verification, and payment terms for commercial buyers.
Get a QuoteHow do I verify the load-bearing capacity and safety factors of Chinese pallet racking?
Can Chinese manufacturers engineer racking compliant with local seismic codes?
What is the standard lead time for full container load (FCL) orders?
How do you prevent freight damage and rust during long ocean voyages?
What information is needed to receive a free CAD floor plan and 3D layout?
What surface finish should I specify: Powder Coating or Hot-Dip Galvanizing?
Request Your Free Engineered Warehouse Layout
Collaborate directly with senior racking design engineers. We review your building dimensions, pallet load profiles, and material handling pathways to supply 2D CAD layouts, photorealistic 3D structural simulations, and itemized bill-of-materials within 24 to 48 hours.
