Industrial White Paper & Sourcing Directive

Top 10 Storage Racking Solutions Factory & Supplier

Architectural engineering standards, heavy-duty capacity metrics, automated intralogistics synergy, and factory-direct manufacturing capabilities from Guangzhou HEDA Shelves Co., Ltd.

25+
Years Engineering (Est. 2001)
30,000m²
Guangzhou Production Plant
30,000Tons
Monthly Cold-Roll Steel Output
120+
Export Nations Certified
Enterprise Material Handling Hardware

Engineered Industrial Racking Systems & Heavy Configurations

Precision roll-formed from certified Q235B/Q355B structural steel coils. Every system undergoes continuous finite-element stress analysis (FEA), electrostatic powder coating, and full load compliance certification to meet EN 15512, RMI MH16.1, and AS 4084 engineering baselines.

Strategic Procurement Matrix

Technical Comparison: Storage Density vs. Selectivity & Capex

Selecting the ideal warehouse racking typology requires balancing volumetric cube utilization against hourly pallet throughput, floor load capacities, and robotic automation compatibility.

Racking System Typology Floor Space Utilization Pallet Selectivity SKU Rotation Typical Beam Load Forklift / AMR Requirement Relative Capex / Pallet

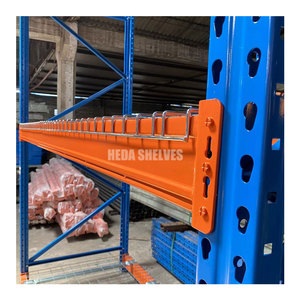

Selective Pallet Racking 40% - 50% 100% Immediate FIFO / LIFO Flexible 1,000 - 4,500 kg Counterbalance / Reach Truck Baseline (Low)
Drive-In / Drive-Through 65% - 75% 15% - 20% Strict LIFO (Drive-In) 800 - 1,500 kg Narrow Mast Reach Truck Moderate (+35%)
Gravity Pallet Flow 70% - 85% Lane Selectivity Strict Dynamic FIFO 1,000 - 1,500 kg Standard Reach / Counterbalance High (+110%)
Radio Shuttle Automation 80% - 90% Channel Selectivity Automated FIFO / LIFO 1,000 - 2,000 kg Standard Reach + Semi-Auto Shuttle High (+130%)
Heavy Cantilever Racks 50% - 65% 100% Linear Non-Palletized Bulk 500 - 1,800 kg/arm Side Loader / 4-Way Reach Moderate (+45%)
ASRS Stacker Crane Racking 85% - 95% 100% Automated WMS Dynamic Routing 1,000 - 3,000 kg Fully Automated Stacker Crane Enterprise Capital
Structural Mezzanine Floor 100% Cube Doubling 100% Multi-Level Manual Cart / Conveyor 300 - 1,200 kg/m² Pallet Gate + Goods Lift / VRC Moderate (+60%)
Industry Foresight 2025–2035

Future Procurement Trends & Engineering Evolutions

Warehouse storage hardware is transitioning from passive structural framing into active, sensor-monitored, automated intralogistics nodes. Global logistics directors must incorporate four fundamental technological shifts into upcoming capital procurement tenders.

1. Decoupled TCO & Raw Material Indexing

Global racking procurement is departing from arbitrary fixed-price bidding toward transparent structural steel price-indexing tied directly to Shanghai SteelHome or LME cold-rolled steel indices. Procurement teams now evaluate total cost of ownership (TCO) across 15-year lifecycles—prioritizing electrostatic powder coating thickness (minimum 60–90 microns), galvanized base plates, and container stowage cube efficiency over initial unit steel rates.

2. AMR & Robotic Automation Convergence

Traditional wide aisles are rapidly giving way to Very Narrow Aisle (VNA) systems and Autonomous Mobile Robot (AMR) high-density storage tunnels. Racking frames are increasingly engineered with micron-level verticality tolerances (exceeding standard FEM 10.2.02 deflection limits) and laser-calibrated guide rails to accommodate AGVs, robotic pallet shuttles, and quad-directional reach systems operating under 24/7 dark-store protocol.

3. High-Zone Seismic Dynamic Engineering

Severe seismic activity across the Pacific Rim, Southeast Asia, and the Middle East mandates dynamic, performance-based earthquake modeling. Modern tenders require ductile base plate anchoring, specialized diagonal spine bracing patterns, and heavy cold-formed box column configurations evaluated under ASCE 7 and Eurocode 8 standards to prevent harmonic structural resonance and progressive collapse during seismic shear events.

4. Micro-Fulfillment & Multi-Tier Mezzanines

Urban last-mile logistics economics demand vertical cube extraction in high-rent metropolitan territories. Multi-tier rack-supported platforms (2 to 4 tiers) featuring integrated conveyor cutouts, industrial goods lifts, and steel-grating catwalks allow 3PL providers to triple pick-face density without expanding physical building perimeters.

5. Cold-Chain Thermal Envelope Optimization

Operating cold storage warehouses at sub-zero temperatures (-25°C to -30°C) consumes massive energy. Racking procurement has shifted heavily toward high-density Radio Shuttle and Drive-In topologies that minimize cubic air volume per pallet. Steel formulations require low-temperature notch toughness (charpy V-notch tested) to avoid cold embrittlement fractures.

6. Sensorized Structural Health Monitoring (SHM)

Forward-looking enterprise warehouses are adopting IoT-enabled strain gauges and wireless impact sensors integrated directly into rack uprights. Real-time telemetry detects forklift collisions, structural beam micro-deflections beyond L/250, and dynamic overload conditions, feeding data directly into corporate WMS/ERP maintenance dashboards.

Enterprise Manufacturing Superiority

Why Global Logistics Integrators Partner with HEDA Shelves

Founded in 2001 in Guangzhou, China, Guangzhou HEDA Shelves Co., Ltd. operates a modernized 30,000 square meter integrated manufacturing facility. Controlling every metallurgical phase in-house guarantees certified tolerances, structural integrity, and competitive ocean-freight lead times.

30,000 Ton Output

Massive monthly capacity driven by automated roll-forming and robotic welding lines ensures rapid execution of multi-thousand bay contracts without production bottlenecks.

Complimentary 3D CAD

Senior structural engineers deliver precise 2D floor plans, 3D structural renderings, and load calculation sheets within 24 to 48 hours from your building sketch.

CE & ISO 9001 Certified

Factory operations independently verified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Management System No. 18624Q00169R0M.

South China Port Agility

Strategic proximity to Guangzhou, Shenzhen, and Hong Kong ports provides fast, cost-effective container shipping to ASEAN, GCC, European, and American terminals.

10-Step Quality Assurance & Fabrication Lifecycle

From primary Q235B/Q355B cold-rolled steel coils to robotic electrostatic powder curing, every production step is performed under strict internal ISO 9001 metallurgical parameters.

Raw Materials Inspection
STEP 01

Raw Steel Sourcing

Precision Cutting
STEP 02

CNC Slitting & Cut

Automated Column Punching
STEP 03

Auto Hole Punching

Cold Bending Forming
STEP 04

Cold Bending

Profile Roll Forming
STEP 05

Profile Roll Forming

Surface Polishing
STEP 06

Surface De-burring

Robotic Beam Welding
STEP 07

Robotic Welding

Pickling and Phosphating
STEP 08

Acid Phosphating

Electrostatic Powder Coating
STEP 09

Powder Coating

QC and Container Packing
STEP 10

QC & Stowage Pack

International Certifications & Quality Audit Credentials

Full third-party compliance document packages are provided for government permit approvals and safety tenders.

CE Certificate 2435-CPR-8605159

CE European Standard

Cert No. 2435-CPR-8605159

ISO 9001:2015 Certificate

ISO 9001:2015 QMS

Cert No. 18624Q00169R0M

RoHS Environmental Compliance

RoHS Environmental

Heavy Metal-Free Powder

Structural Load Test Report

Mechanical Load Test

Certified Beam & Upright Test

Expert Procurement Knowledge Base

Warehouse Storage Racking Procurement FAQ

Direct engineering answers from HEDA Shelves' technical consulting team addressing structural safety, regional seismic standards, container loading mechanics, and tropical anti-corrosion protection.

What precise technical parameters must be submitted to obtain an optimized CAD layout and quotation?

To generate an accurate 2D CAD blueprint, 3D structural rendering, and structural load analysis, our engineering team requires: (1) An architectural warehouse floor plan showing column grid positions, ceiling clear height, slab thickness, and overhead sprinkler/obstruction clearances; (2) Pallet specifications including overall dimensions (W × D × H), bottom runner orientation (two-way or four-way entry), and maximum loaded gross weight; (3) Forklift specifications including truck model, turning radius, mast lift height, and minimum aisle width requirement; and (4) SKU velocity profiles including target daily throughput and inventory rotation methodology (FIFO vs. LIFO).

How does HEDA Shelves engineer racking systems for high-risk seismic zones?

For seismic regions including the Pacific Rim (Philippines, Indonesia, Japan, Taiwan) and the Middle East, our structural calculation adheres to ASCE 7-16, Eurocode 8, and EN 16681 dynamic design spectrums. We upgrade base plate geometries, implement heavy-gauge anchor bolts with ductile chemical anchoring, reinforce horizontal-diagonal upright bracing patterns, and calculate higher-moment frame connections to isolate seismic harmonic forces and prevent progressive rack collapse during severe ground accelerations.

What surface treatments protect steel racking against tropical humidity, salt air, and cold-room condensation?

Standard components undergo an automated 8-stage surface treatment protocol: alkaline degreasing, water rinsing, acid pickling to eliminate scale, phosphating for micro-crystalline adhesion, and electrostatic application of high-durability epoxy-polyester powder (cured at 180°C–200°C to 60–90µm thickness). For outdoor lumber yards, coastal sea-spray zones, or extreme cold-storage chambers (-30°C) with constant moisture condensation, we provide hot-dip galvanization conforming to EN ISO 1461, achieving a bonded zinc barrier of 60–100µm for multi-decade corrosion immunity.

How do you optimize ocean container freight costs and prevent transit cargo damage?

Racking components are lengthy and heavy, presenting volumetric and weight optimization challenges. HEDA Shelves utilizes custom 3D container packing software to engineer load-distribution diagrams for 40ft High Cube (40HC) containers. Upright frames are bundled with protective corrugated wraps, heavy beams are banded onto custom steel skids to allow direct forklift unloading at destination, and critical connector clips are bubble-wrapped inside wooden crates to prevent maritime moisture exposure and transit abrasion.

What international engineering safety codes and certifications govern HEDA Shelves' product lines?

Our manufacturing and engineering design strictly satisfy CE Certification No. 2435-CPR-8605159, ISO 9001:2015 Quality Management Certificate No. 18624Q00169R0M, and RoHS environmental directives. Calculations strictly align with European standard EN 15512 (Steel static storage systems – Adjustable pallet racking), American RMI MH16.1 (Specification for Industrial Steel Storage Racks), and Australian Standard AS 4084-2023. Certified third-party testing reports for beam connector shear and column stub compression are available for audit inspection.

Can HEDA Shelves support on-site installation, local contractor coordination, and OEM private branding?

Yes. Every international order includes comprehensive, isometric 3D assembly shop drawings, numbered part tags, and step-by-step installation manuals. For major distribution centers and multi-level mezzanine contracts, we can dispatch senior field installation supervisors to manage local rigging teams. Furthermore, for regional material handling distributors, we provide complete OEM/ODM private-label manufacturing—including custom punching patterns, custom corporate RAL powder coat colors, and branded packaging.

Direct Factory Collaboration

Request Your Custom Racking Engineering Proposal

Connect directly with Guangzhou HEDA Shelves' engineering department. Receive professional warehouse layout design, structural load calculations, and competitive factory-direct export quotations within 24 hours.
