Fabric Roll Textile Heavy-Duty Adjustable Steel Racking
- Cradle saddles prevent roll deformation
- Load Capacity: Up to 3,500 kg/level
- Finish: Electrostatic powder coat / Galvanized
Engineered Systems
High-Performance Warehouse Storage Systems
Direct from our ISO 9001:2015 and CE-certified Guangzhou manufacturing base. Sized to specific pallet dynamics, building envelope heights, and seismic safety requirements.
High-Density Push Back Nested Cart Pallet Racks
- 2 to 6 deep pallet storage lanes
- LIFO inventory rotation with gentle gravity slope
- Low aisle foot-print; saves 40% floor space
Automatic PLC Telescopic Cantilever Rack for Profiles
- Electric motorized arm extension for cranes
- Safe handling of bar, tube, and sheet loads
- 100% crane accessibility; overhead loading

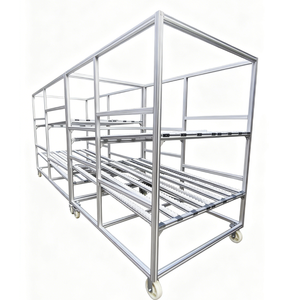

Mobile Aluminum Profile FIFO Flow Rack Cart with Casters
- Gravity roller tracks for lean assembly line feeding
- High-durability heavy-duty lockable casters
- Rapid reconfigurable modular structural framing
Narrow Aisle Selective Heavy-Duty Pallet Racking
- 100% individual pallet selectivity for SKUs
- Engineered for VNA wire or rail-guided trucks
- Cold-formed high-tensile Q235B/Q345B steel
Multilayer Stainless Steel Commercial Display Racks
- Corrosion-resistant SUS304/SUS201 stainless steel
- Modular wall-mounted upright slotted design
- High-durability aesthetic for commercial fulfillment
1,000kg 5-Tier Heavy-Duty Warehouse Picking Shelving
- Reinforced steel panels with under-beam stiffeners
- Adjustable shelf height on 50mm pitch increments
- Manual and semi-automated parts fulfillment

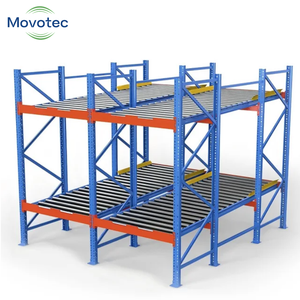

Movotec MTG100 Gravity Roller Pallet Flow Racking
- Continuous automatic FIFO stock rotation
- Integrated brake rollers and entry load separators
- Ideal for perishables, cold chain, and fast-moving SKUs
Manufacturing Excellence
Over 25 Years of Industrial Racking & Engineering Pedigree
Founded in 2001 in Guangzhou, HEDA Shelves provides vertically integrated racking solutions that eliminate third-party subcontractor markups, structural uncertainties, and production bottlenecks.
2001
Established Pedigree
30,000 m²
Production Plant Floor
30,000 Tons
Monthly Cold-Form Output
120 +
Export Destination Markets
Standardized 10-Stage Precision Fabrication Workflow
01
Coil Inspec
Certified mill-test structural steel coil testing (Q235B/Q345B).
02
Laser Slit
High-tolerance uncoiling and CNC longitudinal slitting lines.
03
Punching
Automated punch presses for precise 50mm/75mm upright pitch holes.
04
Roll-Form
Continuous multi-station cold rolling to prevent internal micro-stress.
05
Welding
Robotic pulse MAG beam-connector welding with full throat depth.
06
Degreasing
High-temperature immersion cleaning to eliminate mill scale.
07
Phosphate
Zinc-phosphating pre-treatment creating anti-oxidation micro-crystals.
08
Coating
Automated electrostatic powder spray (60–90 micron dry film thickness).
09
Curing
200°C convection tunnel curing for optimal polymer cross-linking.
10
QC & Pack
Deflection load tests, steel banding, and sea-freight container packing.
Strategic Procurement Analysis
Top 10 Global Rack Storage Warehouse Manufacturers & Selection Benchmarks
A technical cross-comparison of leading tier-1 system integrators and precision OEM manufacturing providers worldwide. Understand structural capability, engineering pedigree, and capital expenditure ROI.
| Manufacturer / Brand | Primary HQ | Core System Competencies | Structural Standards | Custom OEM / Pricing Flexibility |
|---|---|---|---|---|
| HEDA Shelves (Guangzhou) | China (South Hub) | Selective, Drive-In, Mezzanines, Cantilever, Shuttle Racks | CE / ISO 9001 / FEM | Direct Factory Pricing, Fast Turnaround (24h 3D CAD), Flexible MOQ |
| SSI Schaefer | Germany | Automated High-Bay Warehousing, Miniload ASRS, Shuttles | DIN / EN / RMI | Tier-1 Enterprise Turnkey, Premium Capital Investment |
| Daifuku Co., Ltd. | Japan | Unit Load ASRS, Sortation Transfer Vehicles, Conveyorized Racks | JIS / ISO / FEM | High Mega-Project Focus, Extended Engineering Lead Times |
| Mecalux, S.A. | Spain | Pallet Racking, Movirack Mobile Bases, WMS Logistics Software | EN 15512 / ISO | Broad Distribution Network, Standardized European Catalog |
| Interroll Group | Switzerland | Pallet Flow Rollers, Dynamic FIFO Roller Tracks, Sorting Hubs | CE / ISO | Subsystem Specialist, Higher Component Cost per Pallet Position |
| Jungheinrich AG | Germany | VNA Rack Integration, Reach Trucks, Semi-Automated Racks | FEM / DIN | Bundled Vehicle-Racking Contracts, Rigid Layout Protocols |
| Dematic (KION Group) | USA / Germany | Integrated High-Bay Racking, Multishuttle Pallet Cranes | RMI / ANSI / CE | High Automation Scale, Multi-Million Dollar Capital Budgets |
| Stow Group | Belgium | Movable Racks, Silo Self-Supporting Racking, Standard Racks | EN 15620 / ISO | Strong EMEA Regional Presence, Stricter Customization Parameters |
| Kardex Remstar | Switzerland | Vertical Lift Modules (VLM), Automated Carousels | CE / UL / ISO | Niche Small-Parts Intralogistics, Not Suited for Heavy Pallet Yards |
| Bito-Lagertechnik | Germany | Multi-Tier Shelving, Carton Live Flow, Plastic Container Systems | RAL-RG 614 / CE | High Engineering Fidelity, Central European Distribution Focus |
1. Steel Grade & Cold-Form Profile
Prioritize manufacturers specifying low-impurity carbon steels (Q235B, Q345B, or S355JR). Look for multi-ribbed upright sections with omega-profiles that provide higher torsional stiffness and resist forklift impact better than plain three-bend channels.
2. Dynamic Seismic Engineering
Industrial racking systems act as free-standing steel structures. In earthquake-active regions (e.g., Japan, Philippines, Indonesia, Western Americas), designs must be vetted under FEM 10.2.08 and RMI MH16.1 with enlarged footplates, thick anchor bolts, and cross-bay bracing.
3. Surface Pretreatment & Coating
Surface degradation causes structural micro-cracks over time. Insist on a complete 7-stage chemical pretreatment (degreasing, phosphating, passivation) before powder application to ensure salt spray resistance exceeding 500 hours, or hot-dip galvanization for sub-zero cold stores.
Industry Horizons
Macro Trends Shaping Warehouse Storage & Material Handling
From automated shuttle integration to sustainable green-steel supply chains, discover what engineering leaders and procurement directors must evaluate for five- to ten-year planning horizons.
ASRS & Autonomous Mobile Robot (AMR) Hybridization
Traditional static pallet racks are rapidly adapting for AMR payload interfaces. Modern beam connectors now feature tighter leveling tolerances (within ±1.5 mm per bay) and recessed floor channels that allow automated guided vehicles (AGVs) and autonomous stackers to maneuver safely without guide-rail deflections.
Extreme High-Cube Multi-Tier Platforms
Industrial land leasing rates in metropolitan distribution nodes (e.g., Singapore, Dubai, Hong Kong, Los Angeles) have made vertical expansion essential. Rack-supported mezzanine structures and multi-tier picking towers (spanning 3 to 5 platform levels) utilize the complete vertical envelope, doubling usable square meters while keeping the building footprint unchanged.
Smart Racking with Built-In IoT Load Sensors
The next iteration of industrial racking incorporates embedded piezoelectric strain gauges and fiber-optic deflection monitors. These sensors detect unintended forklift impacts, alert facility engineers to load imbalances before micro-fractures occur, and feed predictive safety analytics straight into your Enterprise WMS dashboard.
Need a Certified 2D & 3D Engineering Layout for Your Warehouse?
Provide your warehouse dimensions, clear stacking heights, pallet loads, and forklift parameters. Our engineering department delivers a full structural calculation report, CAD layouts, and container shipping optimization within 24–48 hours.
Procurement Knowledge Hub
Frequently Asked Questions for Warehouse Racking Sourcing
Technical guidance straight from our engineering desk to help project managers, 3PL directors, and general contractors make informed purchasing decisions.
How do you calculate safe beam deflection under full static capacity?
Under both FEM 10.2.02 and European EN 15512 codes, the maximum vertical deflection for a structural pallet beam must not exceed L/200 for standard pallet storage, or L/300 for high-bay semi-automated systems (where L = clear span length between upright columns). For example, a 2,700 mm standard box beam loaded to its rated 3,000 kg capacity per pair can safely deflect up to 13.5 mm under working conditions. It will return to true horizontal once unloaded, without permanent plastic deformation.
What specific engineering details are needed to request a formal CAD design?
To generate verified drawings, share: (1) An architectural floor plan indicating building column centers, perimeter walls, roll-up doors, and overhead obstructions like sprinklers; (2) Finished clear ceiling height to lowest obstruction; (3) Pallet specifications (width, depth, overall height including cargo, and gross weight); (4) Stored product characteristics (uniform carton vs. hanging textile rolls vs. long profiles); (5) Existing or planned material handling equipment (counterbalance, reach truck, or VNA turret truck along with minimum turn radius).
How does HEDA Shelves address seismic requirements in active fault zones?
For projects in seismic-active countries like Japan, Taiwan, the Philippines, and Indonesia, our design team performs finite element seismic stress simulations based on local peak ground acceleration coefficients. We implement heavy-duty footplates with expanded anchor spreads, switch from standard Q235B steel to higher-yield Q345B alloy steel, incorporate tubular cross-bay back bracing, and add horizontal floor-level ties to transfer shear loads directly into the concrete floor slab.
How do you protect steel components against tropical humidity and coastal salt-spray?
Standard mill steel rusts quickly in warm, humid coastal areas. Our manufacturing facility uses an industrial continuous immersion line with phosphoric acid pickling, zinc-phosphating conversion coating, and automated thermosetting polyester powder electrostatic application cured at 200°C. For coastal warehouses, open-air storage, and sub-zero blast freezers (-25°C to -40°C), we offer hot-dip galvanization per ISO 1461, delivering over 85 microns of sacrificial zinc protection to keep the steel rust-free for decades.
What is the typical production lead time and ocean container packaging method?
Standard factory lead times run between 15 and 25 working days from CAD engineering approval, depending on order tonnage. Structural upright frames are nested with protective corrugated separators, bundled with heavy steel strapping, and fitted with dedicated crane-slings. Beams and shelves are palletized in standardized timber-free steel skids designed for direct forklift access, preventing transport damage during multi-modal ocean shipping across 20GP, 40GP, or 40HQ high-cube containers.
Can you manufacture custom OEM color profiles and private-label components?
Yes. We act as a trusted OEM and ODM partner for international material handling distributors, racking contractors, and logistics integrators worldwide. Custom electrostatic colors can be matched to any RAL or Pantone standard code. We also offer proprietary connector stamping, custom-branded nameplates, localized language carton labels, and custom pitch hole punching (such as 50mm, 75mm, or 76.2mm teardrop styles). This lets regional suppliers expand their catalogs without investing in expensive cold-forming machinery.
Why source factory-direct from HEDA Shelves rather than local trading houses?
Buying factory-direct from our Guangzhou plant eliminates redundant reseller markups, gives you direct access to the structural engineers working on your drawings, and provides complete material traceability with certified mill test reports (MTR). Our central production hub in South China connects directly to the Guangzhou, Shenzhen, and Hong Kong deep-water ports. This delivers frequent vessel sailings, minimal coastal transit times, and lower overall landed equipment costs per pallet position.
