Jracking EURO Standard Heavy Duty Pallet Racking Upright System
EURO EN15512
50mm Pitch
Up to 24,000kg
30,000t
Monthly Steel Capacity
25+ Yrs
Precision Engineering
EN15512
RMI & CE Certified
120+
Export Destinations
Direct Factory Catalog
High-Capacity Pallet Racking Upright Frames & Engineered Systems
Cold-roll-formed from premium certified structural coil steel (Q235B / Q355B / SS400). Designed for high-bay stability, seismic resistance, and extreme vertical load distribution.
Custom Factory Heavy Duty Upright Storage Frame & Beams
Tailored Height
Q235B / Q355B
ISO 9001:2015
US Teardrop Compatible Upright Frame Pallet Racking
RMI Standard
2-Inch Pitch
Interchangeable
Clad-Rack Structural Heavy Steel Warehouse Building Frame
Rack-Supported
Seismic Rating 8.0
High Bay
Custom Mobile FIFO Dynamic Roller Track Shelving Upright
Lean Logistics
Modular Upright
Heavy Duty Castors

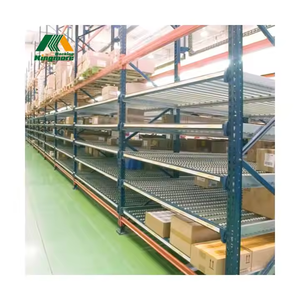

High-Density Gravity Carton & Pallet Flow Upright Frames
Strict FIFO
Continuous Braking
Galvanized Rails
Heavy Duty Stackable Modular Industrial Storage Framework
Removable Post
Tough Base Plate
Bulk Stacking
Adjustable Boltless Industrial Shelving Upright Columns
Quick Assembly
Cold-Rolled Coil
300-800kg/Tier
Structural Integrity & Engineering Whitepaper
The Anatomy of a High-Performance Pallet Rack Upright Frame
In modern industrial intralogistics, the pallet rack upright frame is the foundational spine that supports tens of thousands of metric tons in elevated dead and live weight. An upright frame consists of two cold-formed vertical columns laced together with horizontal and diagonal tubular steel braces, welded or bolted via high-tensile Grade 8.8 structural fasteners and secured to concrete slabs with seismic-rated wedge anchors. Unlike static architectural pillars, pallet rack uprights endure dynamic forces: asymmetrical pallet placement, forklift chassis impacts, torsional twisting from uneven beam deflections, and harmonic seismic waves.
Selecting the appropriate upright frame manufacturer requires evaluating structural roll-forming tolerances, steel metallurgy, punching geometry, and precision continuous welding. Leading factory plants leverage automated multi-stage rolling mills capable of processing certified structural steel coils into complex open-channel profiles with multiple stiffening bends.
Critical Metallurgy & Structural Engineering Standards
Industrial pallet rack frames are rigorously governed by international engineering codes, including the European standard EN 15512 / EN 15620, the American ANSI/RMI MH16.1 (Rack Manufacturers Institute), and the Australian AS 4084-2023. These standards dictate allowable Euler buckling limits, torsional-flexural buckling behavior, perforation reduction factors, and baseplate anchorage shear resistances.
| Engineering Attribute | Standard Industrial Spec | Heavy-Duty Automated / Seismic Spec | Testing & Compliance Verification |
|---|---|---|---|
| Steel Substrate Grade | Q235B (Yield Strength ≥ 235 MPa) | Q355B / SS400 (Yield ≥ 355 MPa) | Mill Test Certificates (EN 10204 3.1) |
| Column Profiles (Width x Depth) | 80mm × 60mm / 90mm × 70mm | 100mm × 70mm up to 140mm × 100mm | Laser Optical Cross-Section Gauge |
| Steel Wall Thickness | 1.5mm – 2.0mm (16 – 14 Gauge) | 2.0mm – 3.0mm (14 – 11 Gauge) | Ultrasonic Non-Destructive Testing |
| Punching Pitch Increments | 75mm / 76.2mm (3-Inch Standard) | 50mm European / 50.8mm Pitch | Continuous CNC Die Punching Alignment |
| Surface Passivation & Finish | Single Dip Degreasing + Powder Coat | Pickling + Phosphating + 80-120μm Epoxy | Cross-Hatch Adhesion & 500h Salt Spray |
Industry Benchmarks
Top 10 Global Pallet Rack Upright Frame Manufacturers & Factories
A vendor matrix comparing production capacities, structural engineering capabilities, seismic compliance, and export logistics fulfillment.
01 / OEM & Factory Leader
Guangzhou HEDA Shelves Co., Ltd.
Founded in 2001 with a massive 30,000 m² manufacturing plant in Guangzhou, China. Producing 30,000 metric tons monthly, HEDA combines end-to-end cold-forming, precision CNC column punching, and an automated continuous phosphating and electrostatic powder coating line. Delivers certified CE, ISO 9001:2015, and RoHS compliant frames with custom seismic calculations for over 120 countries.
02 / Automated Intralogistics
SSI Schaefer Group
A worldwide automation leader headquartered in Germany. Renowned for ultra-precise high-bay upright frames engineered specifically for automated storage and retrieval systems (ASRS) reaching ceiling heights exceeding 40 meters with minimal vertical deflection.
03 / European Powerhouse
Mecalux, S.A.
With major automated production facilities across Europe and the Americas, Mecalux produces high-capacity upright frames with specialized roll-formed Omega profiles that provide exceptional torsional rigidity in seismic regions.
04 / Heritage Engineering
Dexion (Gonvarri Material Handling)
The pioneer of adjustable industrial racking. Dexion manufactures heavy-duty slotted upright frames engineered to strict FEM/EN standards with specialized cold-rolled corner ribs that mitigate beam connection tear-out.
05 / North American Standard
Interlake Mecalux Inc.
Dominating the North American industrial logistics sector, Interlake produces high-volume welded teardrop upright frames engineered to strict RMI MH16.1 specifications, offering universal compatibility for US distribution centers.
06 / Heavy Structural Racking
Stow Group
One of Europe's largest manufacturers, Stow supplies automated shuttle racking frames and heavy-duty structural steel upright assemblies tailored for automated robotics and temperature-controlled cold-chain centers.
07 / Structural Channel Racking
Frazier Industrial Company
Distinguished by its reliance on 100% hot-rolled structural steel C-channels rather than thin-gauge roll-formed sheet steel. Frazier’s upright frames deliver extreme impact resistance for rigorous grocery distribution environments.
08 / Material Handling Integrator
Jungheinrich AG
Integrating material handling vehicles with structural warehousing, Jungheinrich engineers upright frames optimized for Very Narrow Aisle (VNA) operations, prioritizing strict vertical plumbness and tight tolerance tolerances.
09 / High-Tech Intralogistics
Daifuku Co., Ltd.
Japan’s premier automation engineering firm, providing seismic-isolated upright rack structures designed to withstand major lateral tectonic displacements while maintaining automated crane alignment.
10 / Industrial Fabricator
Steel King Industries, Inc.
A prominent American manufacturing plant specializing in closed-tube tubular upright frames ("SK2000"). Closed tubular uprights provide up to 44 times greater torsional resistance and 250% higher impact resistance compared to standard open-back roll-formed columns, making them the preferred specification for severe forklift impact environments.
Strategic Sourcing Analysis
Future Sourcing & Procurement Trends in Pallet Racking
How procurement executives, 3PL managers, and general contractors are adapting supply chain strategies through 2030.
1. High-Density Automation Readiness
Procurement is shifting away from low-density selective uprights toward reinforced frames designed to integrate with 4-way autonomous radio shuttles, AGVs, and multi-tier picking platforms to maximize cube utilization in high-rent urban nodes.
2. Strict Finite Element Seismic Modeling
With stricter regional building codes across the Pacific Ring of Fire and the Middle East, structural engineers require pre-order 3D CAD stress simulations, enlarged footplates (>150cm²), and certified anchor pull-out test data.
3. Pre-Treated Eco-Coating & Galvanization
Procurement teams are avoiding single-layer solvent paints. Standard specifications now mandate eco-friendly multi-stage pickling, iron/zinc phosphating, and heavy-duty thermosetting powder or hot-dip galvanizing for cold storage longevity.
Engineering Horizon
Structural Evolution Trends in Upright Manufacturing
Breakthroughs in structural steel metallurgy, roll-forming precision, and embedded sensor telemetry.
Ultra-High Tensile Micro-Alloy Coils
Adoption of modern high-strength micro-alloy steels (e.g., Q355B with niobium and vanadium trace elements) enables manufacturers to reduce steel thickness without compromising structural load ratings, lowering shipping container weight.
Automated CNC Roll-Punch Interpolation
Next-generation upright production lines eliminate mechanical punch slippage. Servo-driven CNC presses punch 50mm pitch tear-out holes with a cumulative tolerance of ±0.5mm across a 12-meter continuous vertical upright length.
Embedded Structural Health Monitoring (SHM)
Smart upright columns integrated with IoT strain gauges and wireless impact telemetry detect forklift collisions in real time, alerting safety officers before micro-fissures propagate into catastrophic progressive frame collapse.
Factory Direct Excellence
Why Global Industrial Planners Partner with HEDA Shelves
Headquartered in Guangzhou with a 30,000 square meter modernized manufacturing complex, Guangzhou Heda Shelves Co., Ltd. has delivered over 10,000 complete warehouse projects across 120+ countries since 2001. We remove intermediaries by providing factory-direct engineering, CAD layout design, structural FEA calculations, and robotic production under one accountability system.
Free 3D CAD & Structural Checks
Full layout design, elevation schematics, and load capacity simulations completed within 24 to 48 hours.
Seismic-Engineered Configurations
Customized frame profiles, bracing patterns, and heavy anchor baseplates for seismic zones in the Philippines, Indonesia, and Japan.
Anti-Corrosive Chemical Passivation
Comprehensive 10-step surface finishing line utilizing pickling and phosphating before electrostatic epoxy powder coating.
Rapid South China Export Logistics
Strategically situated adjacent to South China maritime ports with computerized container loading schemes that protect coatings.
Rigorous 10-Step Factory Quality Control
Every pallet rack upright frame fabricated at our plant undergoes continuous quality surveillance to guarantee absolute vertical straightness and weld integrity.
01Raw Coils
02Cutting
03Punching
04Bending
05Roll Forming
06Polishing
07Robotic Weld
08Phosphating
09Coating
10Testing/QC
Procurement Knowledge Base
Frequently Asked Questions on Pallet Rack Uprights
Direct answers to the most frequent technical, commercial, and structural engineering inquiries submitted by industrial logistics buyers.
What structural data is mandatory to calculate the correct upright frame capacity?
To determine the correct upright profile (thickness, width, and bracing configuration), structural engineers require:
(1) Maximum bay load (the sum of all pallet levels above the ground);
(2) Height to the first beam level (the unsupported bucking length, which fundamentally dictates axial load limits);
(3) Total frame height and clear ceiling height;
(4) Seismic zone accelerations (Ss and S1 coefficients);
and (5) Slab concrete compressive strength (≥ 20–25 MPa) to size the anchor baseplates appropriately.
How does the first beam level height affect total upright load limits?
Under Euler's column buckling formula, load-bearing capacity decreases exponentially with the square of the unbraced length. If the first beam level is elevated to 2,200mm to accommodate walk-through order pickers or double-stacked pallets rather than a standard 1,500mm, the upright’s axial capacity can decrease by 25% to 40%. In these scenarios, our factory specifies heavier column profiles, increased steel thickness (e.g., 2.5mm instead of 1.8mm), or reinforced lower-bay vertical bracing.
What is the difference between open-back roll-formed and structural steel uprights?
Roll-formed uprights are cold-formed from high-strength sheet steel into multi-flanged Omega or C-channels. They are cost-effective, versatile, allow adjustable beam clip connections, and offer high strength-to-weight ratios for 90% of distribution centers. Structural steel uprights are fabricated from hot-rolled C-channels. They feature thicker walls (≥ 4-6mm) with superior impact resistance against forklifts, making them optimal for harsh environments like freezer facilities and heavy-equipment yards, though at a significantly higher initial investment.
How do you protect pallet rack uprights from coastal humidity and cold storage rust?
Standard paint lines that bypass chemical pre-treatment will peel and corrode rapidly in tropical or refrigerated conditions. At HEDA Shelves, all steel frames undergo a multi-stage automated immersion sequence: chemical degreasing, acid pickling to eliminate scale, and zinc-phosphate conversion coating before an electrostatic powder application baked at 180°C–200°C. For sub-zero freezers (-25°C) or outdoor facilities, hot-dip galvanization conforming to ISO 1461 is available to provide total internal and external zinc barrier protection.
Can HEDA Shelves manufacture customized upright frames compatible with our existing racking?
Yes. Our tooling facility can match universal teardrop patterns (North American standard), 50mm European pitch profiles, 75mm/76.2mm British standard pitches, or custom distributor-specific slot designs. By sharing a sample, engineering schematic, or physical beam connector, we can manufacture compatible replacement frames, extension splice kits, or expansion bays adhering precisely to your warehouse system specifications.
Need an Engineered Upright Layout & Factory Quote?
Send your warehouse architectural plans (DWG/PDF), clear height, pallet dimensions, and forklift specifications. Our senior structural logistics engineers will deliver a certified 2D CAD layout, 3D visualization, and structural load analysis within 24 to 48 hours.
