Engineered Pallet Storage Systems

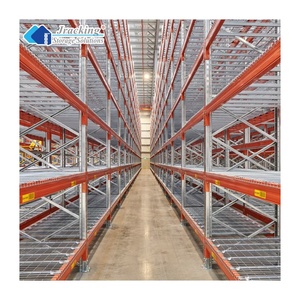

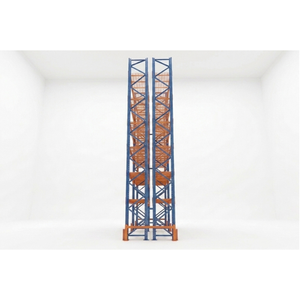

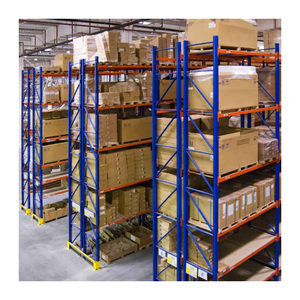

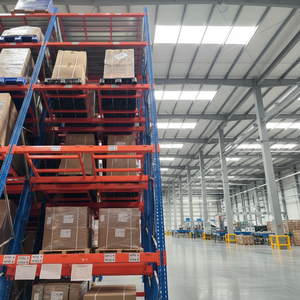

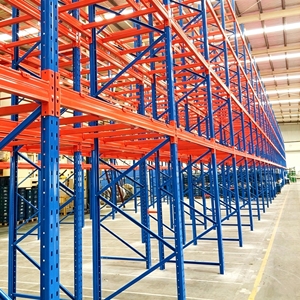

Precision-Engineered Heavy Duty Selective Racking Series
Factory-direct cold-formed structural racks designed to handle load profiles from 1,000 kg to over 4,500 kg per beam pair. Manufactured under rigorous in-house quality checks with certified Q235B/Q355B high-tensile structural steel.
Structural Whitepaper
Architectural Mechanics & Load Distribution in Selective Systems
Selective pallet racking remains the universal standard across modern logistics infrastructure, providing 100% instantaneous access to every SKU without secondary pallet handling. Discover the engineering principles governing high-density selective racking installations.
Continuous Roll-Formed Upright Profiles
Manufactured with multiple cold-bend return bends (up to 13-fold profile engineering) to maximize torsional rigidity and Euler buckling resistance. Uprights are punched at 50mm or 75mm increments using high-precision CNC tool stations to ensure seamless cross-beam locking under intense dynamic loads.
Interlocking Step & Box Beam Connectors
Beams feature twin continuous fillet welds connecting the tubular box or step profile to 3, 4, or 5-claw high-strength end connectors. Spring-steel auto-engaging safety lock pins prevent catastrophic accidental dislodgement from reach-truck or counterbalance mast impact strikes.
Seismic & Impact Dissipation Engineering
Engineered in compliance with EN 15512 and RMI criteria. Racking base plates incorporate anchored structural shims for un-level slab conditions, while high-tensile anchor studs transmit vertical overturning and base moment shear stresses into reinforced warehouse slabs during seismic events.
| Component Type | Material Specification | Yield Strength (MPa) | Standard Dimension Range | Corrosion Protection Options |
|---|---|---|---|---|
| Upright Columns | Q235B / Q355B Hot-Rolled Coil | ≥ 235 - 355 MPa | 80×60, 90×70, 100×70, 120×95 mm (Thk: 1.5 - 3.0mm) | Thermoset Epoxy Powder (60-80μm) / HDG |
| Box / Step Beams | Twin C-Profile Welded / Roll-Formed | ≥ 235 - 345 MPa | 80×50 to 160×50 mm (Span: 1,000 to 3,900 mm) | Interpon Powder Coating / Pure Safety Orange |
| Horizontal & Diagonal Bracing | C-Section Structural Channel | ≥ 235 MPa | Width: 32mm / Thickness: 1.2 - 1.5 mm | Electrostatic Powder Coated / HDG Zinc |
| Floor Anchor Baseplates | Q235 Structural Steel Plate | ≥ 235 MPa | 120×100 to 200×180 mm (Thk: 4.0 - 10.0 mm) | Hot-Dip Galvanized / Heavy Powder Coating |
Market Intelligence
Future Procurement Trends in Selective Racking (2025–2030)
Global supply chain disruptions, changing warehousing footprints, and e-commerce hyper-velocity are altering the structural and functional demands placed on selective racking systems.
Near-Zero Tolerance for Automation & AMR Integration
Warehouses are rapidly transitioning from legacy man-aboard order picking to autonomous mobile robots (AMRs) and autonomous reach-truck fleets. Procurement managers now demand structural racking tolerances tighter than EN 15620 Class 300 to ensure optical sensors navigate pallet apertures without beam-strike triggers.
Decoupling & Nearshoring OEM Supply Chains
Tier-1 integrators and regional distributors no longer rely on single-source local racking distributors with markups of 35-50%. Strategic direct-from-factory procurement models with Guangzhou manufacturing anchors ensure direct access to certified mill-run steel testing reports, mill certifications, and accelerated turnaround.
Environmental Decarbonization & EPD Demands
With European CBAM (Carbon Border Adjustment Mechanism) and ESG reporting taking center stage, enterprise warehouse developers require documented Environmental Product Declarations (EPD). Powder-coating systems must demonstrate non-toxic RoHS chemistry and energy-efficient curing processes.
Hybridization with High-Bay Mezzanine Levels

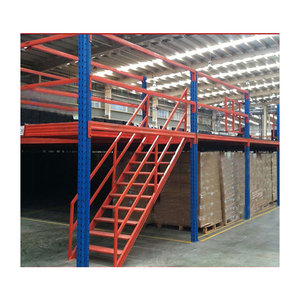

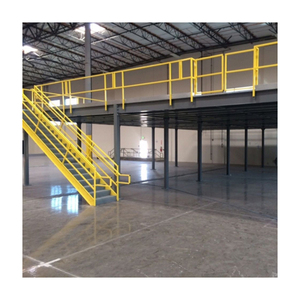

To combat escalating logistics land leases across metropolitan transit corridors, selective racking is increasingly procured with integrated multi-tier rack-supported mezzanine platforms, combining ground-level heavy unit loads with upper-tier e-fulfillment picking platforms.
Structural Innovation
Technological Development Trends in Racking Manufacturing
Modern racking fabrication has advanced beyond basic structural rolling into a precision science combining metallurgical chemistry, sensor-embedded telemetry, and adaptive surface treatments.
IoT Structural Health Monitoring (SHM)
The integration of piezoelectric strain gauges and MEMS tilt-sensors within high-bay upright columns allows real-time monitoring of seismic deflection, accidental forklift impacts, and localized beam overloads, sending instant predictive alerts to warehouse management suites (WMS).
Ultra-High Strength Thin-Walled Cold-Formed Steels
Through finite element modeling (FEM) and advanced micro-alloyed steels, modern selective upright designs achieve 18% higher load-carrying capacity while decreasing gross steel weight, reducing shipping freight costs and carbon footprints without sacrificing safety factors.
Thermo-Diffusion & Nano-Ceramic Pretreatment
Eliminating traditional iron phosphate chemical baths, modern continuous finishing lines apply zirconium-based nano-ceramic conversion coatings prior to electrostatic powder deposition. This ensures 1,000+ hours of ASTM B117 salt spray endurance for tropical and sub-zero cold-chain deployments.
Factory Credibility & Scale
Guangzhou HEDA Shelves: 25 Years of Manufacturing Excellence
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates a premier 30,000 m² smart fabrication base, leading OEM/ODM heavy-duty selective racking production for international engineering contractors, 3PL logistics networks, and regional distributor brands.
Audited International Certifications
Strict manufacturing process management backed by CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Systems (Certificate No. 18624Q00169R0M), and independent RoHS test approvals for environmentally benign coatings.
End-to-End Vertical Manufacturing
No sub-contracting risks. Raw coil slit inspection, continuous rolling mills, automated CNC high-speed upright punch lines, robotic twin-welding cells, multi-stage chemical pretreatment, and Swiss Gema electrostatic powder lines are fully housed inside our Guangzhou facility.
Full OEM/ODM Engineering Customization
Support for proprietary distributor punch patterns (teardrop, diamond, hex, or slotted holes), customized corporate powder RAL colors, customized silk-screen beam capacity charts, private-label pallet support accessories, and containerized bundle packaging.
Seismic Calculation & Tropical Weathering
Structural calculations cross-verified for high-seismic zones across Japan, the Philippines, Indonesia, and New Zealand. High-humidity marine finishes and heavy-duty hot-dip galvanizing prevent corrosion across equatorial monsoon zones.
Procurement Knowledge Hub
Frequently Asked Questions (FAQ) for Selective Racking Buyers
Critical technical, operational, and commercial answers direct from factory design engineers to guide your procurement evaluation.
What parameters are required to calculate structural load capacities and generate CAD layouts?
To provide an engineered 2D/3D layout and verified load table, our structural design department requires:
- Pallet Dimensions & Overhang: Width × Depth × Maximum Overall Height (including goods) along with maximum gross weight per pallet.
- Facility Clear Dimensions: Warehouse clear building height (to the underside of lowest roof obstacle, sprinkler heads, or lighting truss), column-to-column grid spacing, expansion joint positions, and floor slab load capacity (point load kN/m²).
- Material Handling Equipment (MHE): Forklift type (counterbalance, reach truck, VNA turret truck), mast collapsed height, maximum lift elevation, and required minimum aisle turning radius (Ast).
- Environmental Site Conditions: Regional seismic zone parameters (PGA), ambient storage temperatures (ambient, chilled, or -25°C cold storage).
How does Selective Pallet Racking compare against Double Deep, Drive-In, and Radio Shuttle?
Selective Pallet Racking offers 100% immediate selectivity with direct SKU accessibility, standard forklift compatibility, and the lowest initial capital cost per pallet position. However, it requires 40-45% of total warehouse floor area for operating aisles.
In contrast:
- Double Deep Racking: Increases pallet density by 30% by storing pallets two-deep, requiring specialized pantograph reach trucks and lowering SKU selectivity to 50%.
- Drive-In Racking: Eliminates operating aisles for high bulk density (LIFO rotation), but increases forklift collision risks and entry maneuvering time.
- Radio Shuttle Systems: Provides automated high-density deep-lane storage with high throughput, but commands higher upfront automation investment.
What international testing standards and load verification codes do your racking systems fulfill?
Our systems comply with European Standard EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design), American RMI (Rack Manufacturers Institute) MH16.1 specifications, and Australian Standard AS 4084:2012 / AS 4084:2023. We provide certified structural calculation packets, finite element analysis (FEA) deflection simulation plots, and independent third-party physical stub-column and beam connection shear test reports upon project commissioning.
What anti-corrosion finishes are available for tropical, coastal, and cold-store logistics centers?
We provide three distinct corrosion-protection tiers based on warehouse environment:
- Electrostatic Thermoset Powder Coating: Utilizing eco-friendly lead-free polyester powders cured at 180°C–200°C following 9-stage degreasing and phosphating, yielding a 60–80 µm dense film resistant to scratches and impact in standard ambient dry warehouses.
- Pre-Galvanized Coil Forming: For horizontal/diagonal bracing channels and roll-formed base components exposed to mild humidity.
- Hot-Dip Galvanizing (HDG): In accordance with ISO 1461 / ASTM A123, components receive a molten zinc bath treatment achieving a coating thickness of 65–85 µm, engineered specifically for sub-zero frozen food warehouses, sea-freight outdoor staging yards, and chemical facilities.
What OEM & ODM capabilities do you offer overseas distributors, contractors, and system integrators?
We operate fully customized OEM/ODM partnerships for overseas racking brands and supply integrators. Our customization scope includes:
- Custom Hole Punching Tooling: Compatibility with Teardrop punch patterns (standard in North America), Australian 76.2mm pitch slots, European 50mm diamond systems, or client-exclusive proprietary punch shapes.
- Corporate Branding & RAL Colors: Precision electrostatic color matching to exact corporate identity palettes, custom embossed company name markings on end-plates, and branded capacity load plaques.
- Container Bundling & Palletized Loading: Customized packaging protocols including timber bunk separation, edge-corner angle iron guards, stretch-wrap bundling, and detailed container loading maps to streamline rapid unloading at destination ports.
