Heavy-Duty Warehouse Shelving & Racking Portfolio
Factory-direct cold-formed structural solutions engineered for European and North American load safety protocols (EN 15512 and RMI standards), serving cold logistics, dynamic high-density fulfillment, and automated supply chains.
High-Capacity Heavy Duty Drive-In Pallet Racking System Corrosion Protection Stainless Steel

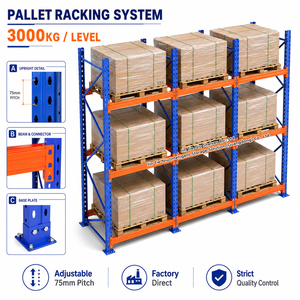

3 Pallet Levels Heavy Duty Steel Selective Pallet Racking System 3000KG
Peterack PT-HD Industrial Heavy Duty 5-Layer Steel Selective Pallet Rack Storage Shelves
Heavy Duty Rack Steel Warehouse Pallet Storage Shelf Boltless Shelving System
Warehouse Heavy Rack Pallet Rack Store Shelf System For Factory Storage
Heavy Duty Steel Pallet Racking System Adjustable Storage Rack Unit
Customized FIFO Roller Racking Dynamic Storage Rack Carton Flow Rack
Radio Shuttle Rack High Density Automated Warehouse Storage Racking System
Engineering Authority & OEM/ODM Export Credentials
Guangzhou Heda Shelves Co., Ltd. (founded 2001) is a specialized structural steel fabricator with 25+ years of verified international engineering deliveries. We maintain a self-owned 30,000 m² high-precision production complex delivering over 30,000 tons of racking annually.
Full OEM/ODM Engineering
We tailor cold-roll structural cross-sections, upright punch geometry (teardrop, diamond, hexagonal), custom beam box profiles, and OEM private branding for regional system distributors worldwide.
Free 2D/3D & FEA Calculations
Our in-house team of structural engineers delivers complete AutoCAD layouts, Navisworks 3D models, and Finite Element Analysis (FEA) deflection verification within 24 to 48 hours for every project quote.
International Compliance Audit
Compliant with CE (EN 15512:2020), ISO 9001:2015, and RoHS environmental surface standards. Mill test certifications and seismic stress-strain verification are supplied with all structural dispatches.
Corrosion-Resistant Finishing
Automatic 8-step pickling, surface phosphatizing, and thermosetting epoxy-polyester powder coating (70-90µm thickness). Marine-grade hot-dip galvanizing available for cold storage and humid coastal climates.
10-Step Full Traceability QC
Every coil undergoes ultrasonic flaw detection, automated continuous punch tolerance verification, robotic seamless welding inspection, cross-hatch adhesion testing, and dimensional load test protocols.
Container Load Optimization
Advanced nesting pack-lists tailored for 40HQ ocean freight save up to 25% on shipping volume. Includes bundle-level color labeling, exploded-view structural schematics, and bilingual installation manuals.
Industrial Shelving System Engineering Specification Matrix
Compare mechanical properties, structural floor density ratios, and recommended handling equipment across high-density storage typologies.
| System Type | Floor Space Utilization | Access Methodology | Typical Load Rating | Ideal Industry Use Case |
|---|---|---|---|---|
| Selective Pallet Racking | 40% - 45% (Standard Aisle) | 100% Direct Access (FIFO) | 1,000 - 4,500 kg / beam level | 3PL, FMCG, Multi-SKU Distribution, Retail Distribution |
| Drive-In / Drive-Thru | 65% - 75% (Aisle-free) | Last-In, First-Out (LIFO / FIFO) | 800 - 2,000 kg / pallet slot | Cold Storage, Beverage, Seasonal Uniform Batches |
| Radio Shuttle System | 75% - 85% (Deep-lane run) | Semi-Automated (FIFO & LIFO) | 500 - 2,000 kg / pallet | High-throughput Freezers, Raw Materials, High-Rent DC |
| Gravity Flow / Carton Flow | 60% - 70% (Gravity lane) | Strict FIFO Expiry Control | 50 - 1,500 kg / track | Pharmaceuticals, Perishable Foods, Fast-moving Assembly |
| Multi-Tier Mezzanine Floor | 100% - 250% (Vertical cubic) | Manual Cart / Conveyor Access | 300 - 1,200 kg / m² | E-commerce Picking, Automotive Spare Parts, Hardware |
| Heavy-Duty Cantilever | 50% - 60% (Unobstructed column) | Direct Crane / Forklift Access | 500 - 3,000 kg / arm level | Steel Tubing, Timber, Extrusions, Sheet Metal Bundles |
Procurement Trends Reshaping Industrial Shelving Systems
Procurement leaders, facility planners, and warehouse architects must anticipate technological convergence, changing building standards, and geopolitical supply resilience through 2027-2030.
Automation-Ready Structural Tolerances
Traditional manual racking tolerances (Class 400) are being replaced by high-precision Class 100/200 requirements. Autonomous Mobile Robots (AMR), Automated Guided Vehicles (AGV), and crane-based AS/RS systems demand deflections limited to L/200 or L/300 under full live dynamic load, requiring higher-yield cold-rolled profiles with laser-calibrated hole centers.
Seismic Compliance & Dynamic Damping in Asia-Pacific
With massive supply chain decentralization across the Pacific Rim (Indonesia, Philippines, Japan, Taiwan, and Vietnam), warehouse tenders now mandate dynamic seismic response modeling. Procurement requires verified base-plate anchoring shear reports, upgraded diagonal bracing ratios, and ductility checks under local building seismic codes.
High-Density Energy Conservation in Cold Chains
With global industrial power costs escalating, chilled and frozen storage operators cannot afford air wastage. Automated Radio Shuttle racks and compact mobile racking systems reduce chilled cubic meters per pallet by up to 45%, reducing compressor running hours and dramatically lowering long-term operating costs.
Low-Carbon Steel & Eco-Certified Pre-Treatments
Global ESG disclosure regulations (such as the EU Corporate Sustainability Due Diligence Directive) require supply chain transparency. Buyers demand EPD (Environmental Product Declaration) certificates, low-emission scrap-recycled EAF steel coils, zero-VOC powder coatings, and non-toxic zinc phosphating chemistries.
Technological Developments in Steel Racking Engineering
How metallurgical upgrades, automated roll-forming kinematics, and precision FEA structural modeling have modernized industrial shelving systems from basic weldments into calibrated structural components.
Advanced Micro-Alloyed High-Yield Steels
Modern industrial shelving relies on high-strength micro-alloyed hot-rolled structural steel coils (grades Q235B, Q355B, and EN 10025 S355JR). These alloys achieve yield strengths exceeding 355 MPa without sacrificing ductile elongation, enabling thinner wall thicknesses while increasing ultimate beam section moduli and column buckling resistance.
Multi-Stage Continuous Roll-Forming Lines
Modern roll mills employ up to 24-station sequential roller lines with real-time laser profile sensors. This eliminates micro-fracturing along cold-formed 90-degree corners, ensuring uniform residual stress profiles across multi-ribbed upright geometries and closed omega-style box beams.
Robotic Continuous Seam & Stud Welding
Robotic multi-axis welding cells equipped with vision-guided seam tracking ensure consistent weld fillets between beam tubes and locking connector claws. Eliminating manual weld start-stop defects ensures compliance with cyclic fatigue criteria under intense multi-shift material handling operations.
HEDA Shelves 10-Step Production & Quality Engineering Chain
Steel Coil Audit
Chemical composition analysis & elongation pull tests on raw coils.
Precision Slitting
CNC slitting with width tolerances held to within ±0.2mm.
Continuous Punch
High-speed hydraulic tooling punching 50/75mm upright pitch.
Cold Roll-Forming
Gradual multi-stage rolling preserving metallurgical grain structure.
Robotic Welding
Double-sided MIG welding of beam-to-claw connections.
Surface Degreasing
Acid pickling stripping oxides, rolling scales, and oils.
Zinc Phosphating
Chemical surface conversion creating an anti-corrosion barrier.
Electrostatic Coat
Automated powder spray booths ensuring 80µm paint thickness.
Curing Tunnel
High-temperature 200°C polymerization baking.
Load QA & Bundle
Destructive lot test, palletized strapping, and containerization.
Frequently Asked Questions for Global Procurement Teams
Key technical specifications, regulatory standards, and logistics guidance for international warehouse managers and procurement directors.
What engineering data is required to generate a custom 2D/3D warehouse racking layout?
- Warehouse Architectural Drawing: Clear internal height (clear ceiling to lowest obstacle like sprinklers/HVAC), building column grids, dock doors, floor expansion joints, and fire escape pathways.
- Unit Load Dimensions: Width (along beam), Depth (into rack), Height including pallet, and maximum gross gross weight per unit.
- Material Handling Equipment (MHE): Forklift make, model, minimum aisle turning radius (AST), and maximum reach mast height.
- Operational Dynamics: Target inventory rotation cycle (FIFO vs. LIFO), SKU volume count, and picking methodologies.
How does HEDA Shelves ensure structural safety against seismic events and dynamic loads?
What surface treatment is best: Electrostatic Powder Coating or Hot-Dip Galvanizing?
Can you manufacture replacement components for existing third-party or OEM racking brands?
What are your shipping lead times, and how do you protect components during ocean transit?
What quality certifications and deflection standards do your systems satisfy?
Request an Engineering Consultation & 3D Layout
Send your warehouse architectural plans or equipment list to our Guangzhou engineering team. Receive free custom 2D AutoCAD layouts, 3D renderings, and transparent FOB/CIF pricing within 24 to 48 hours.
