1. Precision Structural Engineering: Cold-Formed Steel and Section Modules
In high-density industrial storage, mechanical stability depends on cold-formed steel engineering rather than nominal wall thicknesses. At Guangzhou Heda Shelves Co., Ltd., our engineering methodology relies on certified Q235B and Q355B high-tensile structural steel coils. Through continuous multi-station progressive roll-forming lines, we cold-form structural upright profiles featuring omega-style cross sections. These geometries feature calculated rib stiffeners and return flanges, yielding a higher section modulus ($Z_x$) and moment of inertia ($I_x$) while reducing deadweight.
Critical Deflection Tolerances: In compliance with FEM 10.2.02 and RMI specifications, our load-bearing horizontal beams undergo laser robotic welding of precision-stamped connector brackets featuring 3-, 4-, or 5-hook claw configurations. This mechanical interlock ensures zero play while transferring moment forces into upright posts. Beam deflection is engineered not to exceed $L/200$ to $L/300$ under full static load conditions (up to 3,000 kg per level), eliminating structural creep and preserving overhead clearance for material handling equipment.
2. Surface Finishing and Corrosion Protection in Humid & Cold Chain Warehouses
Industrial racking systems installed across maritime environments, tropical monsoon zones (such as Southeast Asia), and blast freezers operating down to -30°C face distinct corrosive threats. Untreated micro-abrasions in powder coatings can lead to progressive rust delamination under cyclical condensation.
To eliminate this failure mode, HEDA Shelves implements an automated 10-step surface pre-treatment sequence. Prior to coating, components undergo chemical degreasing, multi-stage acid pickling to strip mill scale, and immersion zinc phosphating. This forms an insoluble, micro-crystalline conversion layer that chemically binds the subsequent electrostatically deposited thermosetting epoxy-polyester powder (60–80 μm thickness). For open-air timber logistics, highly chemical environments, or sub-zero refrigeration, we apply hot-dip galvanization in accordance with EN ISO 1461, achieving zinc deposition depths over 85 μm for maintenance-free lifespans exceeding 30 years.

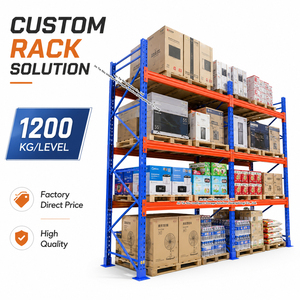

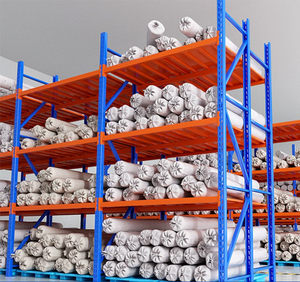

| System Architecture | Primary Steel Spec | Standard Load Envelope | Handling Interface | Target Logistics Environment |
|---|---|---|---|---|
| Selective Pallet Racking | Q235B Cold-Formed Steel | 1,000 – 3,000 kg / level | Counterbalance / Reach Forklifts | General 3PL, FMCG, Raw Materials |
| Drive-In / Drive-Through | High-Tensile Q355B | 800 – 1,500 kg / pallet | Narrow Reach Truck / Counterbalance | Cold Storage, Beverage, Seasonal Bulk |
| Carton & Pallet Gravity Flow | Galvanized Steel + ABS Rollers | 50 – 1,200 kg / lane | Manual Pick / Ergonomic Lift Trucks | FIFO Strict Expiry, Order Fulfillment |
| Very Narrow Aisle (VNA) | High-Tolerance Q235B/Q355B | 1,000 – 2,500 kg / level | Rail/Wire-Guided Turret Trucks | High Land-Cost Hubs, E-Commerce |

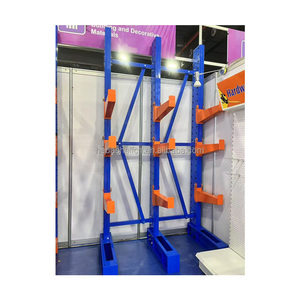

| Heavy Duty Cantilever | Hot-Rolled I-Beam / Formed H | 500 – 3,000 kg / arm | Side Loaders / Overhead Cranes | Steel Pipe, Timber, Aluminum Extrusions |
Factory Audit Trail
End-to-End Production & Quality Control Architecture
Ten tightly integrated in-house phases at our Guangzhou production campus maintain structural traceability from raw mill coil to final container packing.
01
Raw Material QA
Mill test tensile validation02
CNC Slitting
Tolerances within ±0.1mm03
Automated Punch
50mm/75mm pitch positioning04
Roll Profiling
Multi-pass cold-forming05
Robot Welding
Gas shielded weld integrity06
Surface Pickling
Oxide & mill scale stripping07
Zinc Phosphate
Anti-corrosive chemical anchor08
Electrostatic Coat
Thermoset resin curing09
Structural Testing
Static beam & column checks10
Containerization
Steel strapping & protective warp
Future Industry Forecast
Emerging Racking Trends & Sourcing Evolution
Strategic warehouse infrastructure shifts over the coming decade: integration with ASRS/AMRs, modular mezzanine construction, and automated shuttle integration.
ASRS & AMR Compatibility
Pallet storage is shifting from static manual forklift bays toward Autonomous Mobile Robot (AMR) navigation and Automated Storage & Retrieval Systems (ASRS). Structural tolerances for floor slab anchors, guide rails, and deflection limitations are moving from millimeter to sub-millimeter scales.
Seismic Performance Verification
With industrial centers growing in active seismic zones across the Asia-Pacific (Indonesia, Philippines, Japan), procurement specifications require detailed structural calculation reports. Advanced dynamic modeling ensures upright gauge, footplate anchors, and vertical x-bracing accommodate ground acceleration shear forces without frame collapse.
Modular Multi-Tier Mezzanines
Rising industrial land values across primary metropolitan hubs (Singapore, Hong Kong, Dubai) necessitate vertical cubic utilization. Rack-supported mezzanine platforms engineered with integrated stair towers, pallet drop gates, and conveyor tie-ins effectively multiply active picking floor space without expanding warehouse footprints.
Procurement Directives
Frequently Asked Questions on OEM Racking Procurement
Essential guidance covering technical requirements, certification, seismic engineering, and logistics planning for EPCs, 3PLs, and direct warehouse operators.
Q: What core parameters are required to generate an engineering CAD layout?
To produce an optimized 2D/3D design and structural load verification, our engineering team requires: complete building architectural drawings with column grid locations, clear roof height to sprinkler or HVAC lines, pallet dimensions (W x D x H) including product overhang, gross weight per pallet, material handling forklift models with mast lift elevations, and anticipated SKU throughput velocity.
Q: How are cold room and high-humidity environments protected from corrosion?
Standard indoor storage uses a 10-step degreasing, acid pickling, and zinc phosphating process followed by an electrostatically applied epoxy-polyester powder coat. For low-temperature blast freezers (-30°C) with constant condensation risks, or coastal operations, we manufacture hot-dip galvanized components (BS EN ISO 1461), ensuring complete internal and external metallurgical zinc coverage.
Q: Can HEDA Shelves engineer racking systems for local seismic regulations?
Yes. Our engineering division regularly calculates structural frames in accordance with regional seismic parameters across Southeast Asia, Central Asia, and the Americas. By analyzing building soil classes and spectral acceleration values, we adjust base plate thicknesses, anchor bolt specifications, heavy-duty upright wall gauges, and reinforced back-to-back bracing configurations.
Q: Which internationally verified production certifications do you maintain?
Guangzhou Heda Shelves Co., Ltd. operates under audited management and quality systems holding factory-direct CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Systems certification (Certificate No. 18624Q00169R0M), and independent laboratory RoHS compliance reports verifying heavy-metal-free powder surface finishes.
Q: Do you provide OEM and ODM private labeling for material handling distributors?
Yes. As an OEM/ODM manufacturer for regional systems integrators and industrial suppliers worldwide, we provide customized stamping, private label branding on column connectors and frame protectors, proprietary paint color-matching, custom-dimension roll-forming, and unified export packing that protects parts during international transit.
Q: What is the standard production cycle and international shipping process?
Standard fabrication schedules run 15 to 25 calendar days depending on steel tonnage and surface finish requirements. We provide complete 3D container loading schematics designed to maximize container volume while preventing transit damage. Full mechanical assembly manuals and part-marked installation drawings accompany every outbound shipment.
