High-Yield Load Infrastructure: Precision Product Showcase
Engineered to absorb severe dynamic mechanical stress while delivering operational efficiency across varied supply chains, cold storages, and automated setups.
Heavy-Duty Bulk Material Racking (1000–4000kg)
- Yield Strength: Q235B / Q355B Grade
- Dual-Phosphatized Anti-Corrosion
- FEM 10.2.02 Structural Load Rating

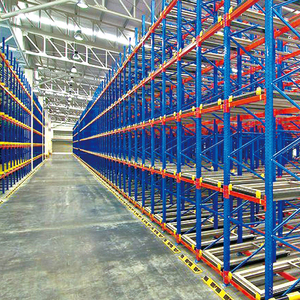

High-Density Gravity Push Back Racking
- Low-Friction Nested Rolling Carts
- LIFO Inventory Management
- Aisle Reduction: Up to 55%
Multi-Tier Mezzanine Platform System
- Floor Ratings: 300–1000 kg/m²
- Cold-Formed Integrated Beams
- Integrates Picking & Modular Offices
Heavy-Duty Structural Cantilever Racking
- Arm Load Capacity: Up to 3,000kg
- Clear Front Aisle Unobstructed Access
- Configured for Pipe, Rebar & Timber
Vehicle & Auto Frame Cantilever Racks
- CE Certified EN 1090 Compliance
- High Dynamic Impact Resistance
- Optimized Pitch Bolt-Connection Plates
Rack-Supported Mezzanine Storage Floors
- Converts Vertical Height to Floors
- Staircase & Pallet Drop Gates Included
- Surface: Steel Decking / Grating
Heavy Structural Logistics Warehouses
- Integrated Portal Steel Framing
- Direct Engineering Calculation Packs
- Custom Span & Height Dimensions
Triple Support Beam Selective Rack (1500kg)
- Triple-Connector Safety Locking Clips
- Standard 50mm / 75mm Pitch Spacing
- 100% Selective Pallet Picking
Structural Integrity: Technical Specifications & Quality Assurances
A data-backed framework demonstrating precision tolerances, load simulations, and cold-formed profile optimizations tailored to eliminate point-of-failure risks.
| Evaluation Parameter | Standard Commercial Grade | HEDA Shelves Engineered OEM Grade | Operational Safety Advantage |
|---|---|---|---|
| Raw Structural Steel | Commercial Scrap Re-melt Q195/Q215 | Prime Mill Certified Q235B & Q355B (Baosteel/Ansteel) | High yield strength; resists buckling under dynamic seismic & impact conditions. |
| Upright Cold Roll-Forming | 8 to 10-stage single-speed rolling | 16 to 22-stage progressive servo profile rolling | Preserves material thickness; prevents micro-fracturing along cold-formed flanges. |
| Pre-Treatment Protocol | Basic solvent wipe-down | Continuous 7-tank Pickling, Ultrasonic Degreasing & Phosphating | Eliminates sub-layer oxidation, guaranteeing coating adhesion even in humid climates. |
| Welding Precision | Manual MMA / Basic MIG welding | Panasonic multi-axis robotic pulse-MIG seam stations | Continuous weld penetration along beam connector plates without heat deformation. |
| Powder Surface Finish | Recycled epoxy dip coating (40–50μm) | Thermoset polyester electrostatic application (70–110μm) | Resists mechanical flaking from forklifts; compliance with EU RoHS standards. |
Finite Element Method (FEM) Modeling
Every profile design undergoes non-linear ANSYS finite element stress calculations. Our engineers model seismic accelerations, lateral wind shears, and dead-weight variables to verify safety margins well before production begins.
Full CE & ISO Quality Control
Certified under CE No. 2435-CPR-8605159 and ISO 9001:2015 Management Standards. Raw steel coils are tested for tensile capacity and elongation, with full traceability documentation provided with each export shipping container.
Custom OEM Profile Engineering
We roll-form proprietary teardrop, diamond, and slotted hole pitches. Whether supplying private-label distributors or matching existing teardrop infrastructure in North America, we calibrate beam connectors to your exact tooling.
Emerging Trends Reshaping Industrial Racking Procurement
Market dynamics, robotic integrations, and escalating warehousing costs are transforming high-density racking specifications worldwide.
1. High-Density Automation Integration
Driven by land scarcity, supply chain operators are shifting away from standard 3.5-meter aisles toward automated 4-way radio shuttles and Very Narrow Aisle (VNA) systems. Uprights require tighter floor deflection tolerances to maintain automated robotic alignment.
2. Total Cost of Ownership (TCO) Prioritization
Procurement teams increasingly assess lifecycle costs over upfront steel pricing. Specifying corrosion-resistant pre-treatments, reinforced bottom-upright guards, and durable beam connections reduces secondary repairs caused by forklift damage.
3. Modular and Seismic-Adaptive Frameworks
Regional distribution centers require scalable configurations that adapt to SKU turnover. At the same time, regional seismic safety mandates demand heavy-duty baseplate bolting, seismic bracing patterns, and dynamic load-distribution engineering.
Why Tier-1 Importers and Distributors Partner with HEDA Shelves
Combining direct mill supply advantages, precision tooling, and tailored engineering support from our centralized production base in Guangzhou.
25 Years of Factory Expertise
Founded in 2001, we deliver deep industry experience across heavy manufacturing, retail distribution, cold-chain operations, and third-party logistics centers worldwide.
Direct In-House Manufacturing
Our complete 10-step production line—from steel punching, cold-roll profile bending, robotic welding to electrostatic powder application—remains entirely in-house for complete quality control.
Complimentary 2D/3D CAD Engineering
Our dedicated engineering group provides complete floor-load calculations, 2D layout optimizations, and detailed 3D design renderings within 24–48 hours of project submission.
Seismic & Tropical Climate Engineering
Systems engineered for seismic stability in fault-line regions, alongside heavy phosphatized and hot-dip galvanized finishes designed to resist high humidity in coastal and tropical locations.
Private-Label OEM / ODM Turnkey Support
We supply racking distributors worldwide with custom-stamped component profiles, branded color matching, OEM load plates, and direct container-stuffing schematics.
Rapid South China Export Logistics
Strategically situated near primary Guangzhou and Shenzhen ports, delivering reliable vessel routes, optimized container space utilization, and lower overseas transit freight costs.
Frequently Asked Questions on Custom OEM Pallet Racking
Technical answers to support warehouse engineers, procurement directors, and system integrators during project evaluation.
What parameters are required to calculate structural load designs and generate quotes?
- Warehouse architectural CAD files or dimensional sketches (length, width, clear ceiling height, building column layouts).
- Unit load specifications: Pallet width, depth, height, and gross load weight (including pallet variance).
- Forklift capabilities: Minimum aisle clearance requirements, turning radius, mast lift height, and counterweight constraints.
- Operational environment: Working ambient temperature, cold-chain requirements, and regional seismic zone codes.
