Custom OEM Live Storage Racking Suppliers & Exporters

Industrial-grade gravity flow roller systems, radio shuttle integrations, and heavy-duty high-density warehousing configurations tailored for global intralogistics supply chains.

Precision Engineered Systems

Featured Live Storage & Heavy-Duty Racking Portfolio

Constructed from premium certified Q235B steel with custom roller gradients, brake separations, and radio shuttle automation. Explore our factory-direct OEM/ODM structural solutions engineered for mission-critical order fulfillment centers and regional consolidation hubs.

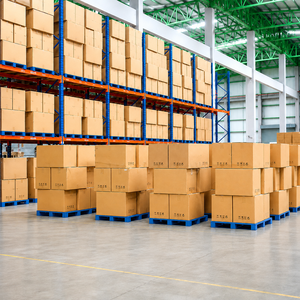

Heavy-Duty Pallet Steel Storage Rack 2000kg Heavy Duty Q235B Pallet Rack

Steel Storage Rack 2000kg Heavy Duty Q235B Pallet Rack Warehouse Storage Rack High Density Industrial Shelving Solution

  • Up to 2,000kg / Level Beam Capacity
  • Hot-rolled Q235B Certified Profiles
  • Electrostatic Epoxy Powder Coating
Specs & Details Get Catalog

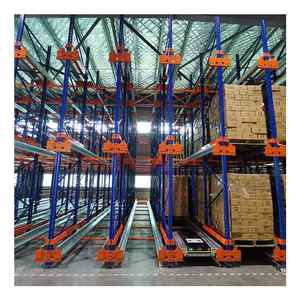

Cold Storage FIFO FIFO Automatic Warehouse Pallet Racking System Radio Shuttle

FIFO Automatic Warehouse Pallet Racking System Storage Shelf Stacking Racks Shelves Radio Shuttle Racking for Cold Storage Room

  • Operates Down to -25°C Environments
  • High-Density Automated Shuttle Car
  • Precision Galvanized Track Rails
Specs & Details Get Catalog

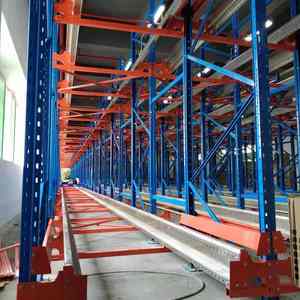

Automated Shuttle High Quality Pallet Storage Rack Shuttle System

Direct Factory High Quality 5 Iron Pallet Storage Rack Shuttle Rack System High-Density Drive-In Free Layout Design For

  • Deep Lane Density up to 40+ Pallets
  • Eliminates Forklift In-Rack Impacts
  • Free 3D Layout Simulation Included
Specs & Details Get Catalog
Stackable Post Racks Heavy-duty Steel Metal Logistic Stackable Post Pallet Racks

Heavy-duty Steel Metal Logistic Stackable Storage Post Pallet Racks

  • Flexible 4-High Vertical Stacking
  • Demountable Posts for Empty Return
  • Heavy Gauge Tubular Frame Base
Specs & Details Get Catalog

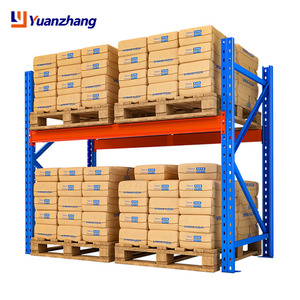

Triple Support Beam Wholesale Heavy Duty Pallet 1500KG Triple Support Rack

Wholesale Heavy Duty Pallet 1500KG Triple Support Heavy-Duty Rack Warehouse Racks Beam Rack Super Heavy-Duty Shelving

  • 1,500kg Structural Anti-Deflection
  • Triple Flange Cross-Tie Safety
  • 75mm Interlocking Pitch Adjustment
Specs & Details Get Catalog

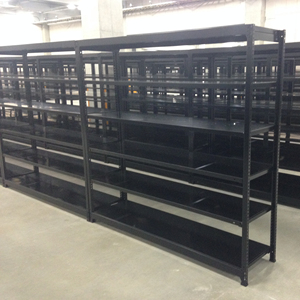

Medium-Duty Steel Customized Medium-Duty Warehouse Steel Rack Shelf

Factory Price Customized Medium-Duty Rack Warehouse Steel Metal Rack Shelf

  • 300 - 800kg Uniform Load Per Shelf
  • Boltless Fast Interlock Assembly
  • Ideal for Carton Flow Bed Add-ons
Specs & Details Get Catalog

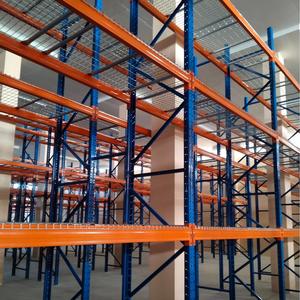

Double Deep Storage Double Deep Selective Shelving Pallet Racking

OEM ODM Heavy Duty Industrial Double Deep Stacking Selective Shelving Pallet Racking Warehouse Storage Racks For Sale

  • Reduces Aisle Requirements by 40%
  • Pantograph Reach Forklift Matching
  • Heavy Section Column Profile Options
Specs & Details Get Catalog

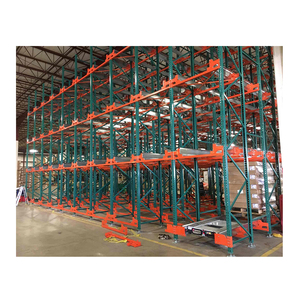

Automated Shuttle Live Heavy Duty Automatic Radio Shuttle Rack High Efficiency

Heavy Duty Automatic Radio Shuttle Rack High Efficiency Automated Pallet Storage Racking System FILO/FIFO

  • Intelligent Dual Mode FIFO / FILO Logic
  • Integrated Laser Anti-Collision Array
  • Fast 1.0 m/s Empty Shuttle Speed
Specs & Details Get Catalog
30,000m²
Guangzhou Modern Production Base
30,000t
Monthly Structural Rolling Output
120+
Global Export Destinations
25Yrs
Engineering & Export Track Record

Industrial Engineering Whitepaper: Live Storage Racking Systems in Modern Supply Chains

Live storage racking—frequently designated in intralogistics as gravity flow racking, dynamic pallet flow, or carton live storage—operates as the backbone of high-velocity, high-density warehousing. By exploiting controlled gravitational potential energy along inclined roller beds, live storage eliminates unproductive travel aisles and enforces an infallible First-In, First-Out (FIFO) or Last-In, First-Out (LIFO) material rotation.

As warehouse floor acquisition and cold room construction costs escalate exponentially across Southeast Asia, Europe, and the Middle East, supply chain engineers face an unrelenting mandate: compress volumetric cubic footprints while boosting order picking throughput. Traditional selective pallet racking reserves between 50% and 60% of total facility floor space purely for material handling equipment (MHE) travel corridors. Custom OEM live storage systems reverse this ratio, delivering up to an 85% storage density coefficient with distinct physical loading and picking aisles that separate dangerous vehicular interactions.

The Dynamic Gravity Flow Equation: Achieving flawless pallet glide in heavy-duty flow racks demands calibrated balancing between lane gradient (typically 3.0% to 4.2%), roller pitch calculation based on bottom pallet runner geometry, centrifugal speed controller placement, and safety separation separators engineered to decouple front pick face pressure.

Gravity Roller Tracks

Cold-drawn steel or impact-modified polymer rollers configured on CNC-punched steel frames with continuous load ratings up to 1,500kg per pallet tier.

Centrifugal Brake Rollers

Viscous internal planetary or centrifugal resistance brakes distributed along flow lanes to limit descent velocity to a safe speed under 0.3 m/s.

End-Stop Separator Gates

Patented mechanical release devices that trap subsequent pallets 100mm back, allowing forklift drivers to extract discharge pallets free from line pressure.

Seismic Guide Angles

Heavy gauge Q235B channel guides with rolled entry tapers designed to steer misaligned pallets onto the track centerline without track jamming.

In live storage operations, the dynamic behavior of the pallet is the primary engineering variable. Weak timber pallets with broken bottom skids, excessive deflection over rollers, or plastic runners with uneven friction coefficients will halt flow lanes. As a factory-direct OEM manufacturer, HEDA Shelves runs comprehensive pre-shipment roller-bed glide simulations on client pallet samples inside our Guangzhou facility. We adjust bearing tolerances, roller surface finishes, and intermediate acceleration springs to guarantee reliable rolling across diverse climatic shifts, from the tropical humidity of Malaysia to temperature-controlled cold rooms at -25°C.

Industry Intelligence & Forecasting

Future Procurement Trends in Live Storage & High-Density Storage (2026–2030)

Strategic global supply chain procurement is transitioning from disconnected standalone racking toward integrated dynamic intralogistics ecosystems. Analyze the five dominant macro shifts transforming engineering specifications worldwide.

01

Hybrid Shuttle-Flow Convergence

Procurement teams are moving away from purely passive gravity rollers in deeper lanes (>20 pallets). Hybrid designs combine automated radio shuttle carriers with terminal gravity flow lanes, achieving maximum deep-lane density while eliminating roller runaway hazards.

02

FMCG & Cold-Chain Energy Conservation

Refrigerated warehouse facilities incur excessive cooling losses when oversized aisles circulate cold air around empty spaces. High-density dynamic live storage minimizes refrigerated cubic volume, lowering electrical kilowatt loads per stored metric ton by 32% to 45%.

03

Strict Traceability & Date Expiry Enforcement

Stricter food safety regulations and pharmaceutical pedigree mandates are making automated FIFO compliance mandatory. Live storage physical flow beds naturally ensure oldest inventory is dispatched first without relying solely on manual barcode scan compliance.

04

Standardization to International Structural Codes

Cross-border procurement now demands adherence to EN 15512 (European Racking Code), FEM 10.2.02, and AS4084 standards. Buyers are terminating contracts with uncertified workshops in favor of ISO 9001 and CE-marked producers who furnish third-party steel batch testing and load reports.

05

Modular OEM Upgradability for AMR Integration

Modern live storage racking is designed with custom discharge elevations that allow Autonomous Mobile Robots (AMRs) and automated pallet stackers to dock directly with gravity beds, establishing lights-out buffer staging between automated manufacturing lines and shipping docks.

R&D Breakthroughs

Technological Innovations in Gravity Storage Engineering

From mechanical damping metallurgy to digital structural simulation, discover how our custom manufacturing engineers solve high-velocity logistics challenges.

Self-Regulating Planetary Brake Rollers

Unlike outdated hydraulic friction brakes prone to fluid leakage in freezing temperatures, modern centrifugal planetary brakes use hardened steel gear sets with self-compensating internal resistance. They deliver smooth, consistent velocity control regardless of whether the incoming pallet carries 300kg or 1,500kg.

Corrosion-Proof Galvanized & Phosphated Coatings

Industrial storage units in coastal port terminals or chemical staging plants experience accelerated structural oxidation. Our dual-step pickling and phosphating pre-treatment guarantees 100% molecular bonding of thermo-hardened powder resins, tested to exceed 500 hours of continuous salt-spray exposure.

FEA Dynamic Load & Seismic Engineering

Finite Element Analysis (FEA) computer models evaluate real-time harmonic resonance and dynamic braking impact stresses during emergency pallet stops. Our engineering division calculates base plate anchorage depth, vertical diagonal cross-bracing, and frame deflection parameters down to the millimeter.

Enterprise Authority & Reliability

Why Global Project Contractors & OEMs Partner with HEDA Shelves

Established in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has evolved into one of Asia's most reputable structural racking manufacturers, operating a 30,000 square meter integrated manufacturing facility.

In-House Manufacturing Control from Coil to Container

Unlike export trading middlemen who subcontract production across fragmented workshops, HEDA Shelves centralizes every structural process under one roof. Our Guangzhou manufacturing center houses 12 automatic continuous roll-forming production lines, robotic profile punchers, high-precision laser cutting centers, automated double-side seam welders, and an advanced electrostatic powder coating finishing plant.

  • Strict Q235B Certified Structural Steel: Sourced exclusively from top-tier state-owned mills with Mill Test Certificates (MTC) verifying yield strength (≥ 235 MPa) and elongation ratings.
  • Official CE & ISO 9001:2015 Accreditation: Validated CE Certification No. 2435-CPR-8605159 and ISO 9001:2015 Certificate No. 18624Q00169R0M verifying compliant factory management systems.
  • Free 2D CAD Layouts & 3D Visualizations: Our dedicated project engineering team converts your warehouse sketch or architectural drawings into optimized layouts within 24 to 48 hours.
  • South China Logistics Advantage: Fast access to Guangzhou and Shenzhen international deep-water seaports, ensuring short maritime transit times and efficient container stuffing plans.
HEDA Shelves Guangzhou Racking Manufacturing Factory
Full-Cycle OEM/ODM Customization Custom hole pitch (50mm/75mm), beam connectors, upright section sizing, and customer private-labeling for regional logistics distributors.
Procurement Due Diligence

Frequently Asked Questions (FAQ) for Live Storage Racking Sourcing

Clear technical answers to help purchasing managers, structural engineers, and intralogistics system integrators make informed sourcing decisions.

What gradient angle is required for heavy pallet live storage racking systems?
Standard pallet flow systems are engineered with a slope gradient between 3.0% and 4.0% (approximately 1.7° to 2.3°). Systems handling lighter cartons or containers on plastic skate wheels may require a 4.0% to 5.0% gradient. The precise angle depends on bottom pallet condition (wooden Euro-pallet, US GMA, or perimeter-base plastic pallet), total unit payload weight (e.g., 500kg vs. 1,500kg), and ambient facility temperature. HEDA engineers perform factory-floor inclination test runs with your exact pallet specification to identify the optimum slope that prevents stalls without causing runaway acceleration.
How does live storage prevent the front pallet from being crushed by line pressure?
In gravity lanes deeper than 4 to 5 pallets, cumulative hydrostatic line pressure from rear pallets pushes against the discharge end, creating severe extraction binding and potential product crushing. We resolve this by integrating automatic mechanical load separators (separator stops). When the lead pallet reaches the pick stop, the separator locks the second pallet approximately 100mm behind it, isolating all upstream weight. Only when the forklift driver completely extracts the lead pallet does the mechanical trip release, allowing the next pallet to advance smoothly to the pick face.
Can live storage racking be deployed in sub-zero frozen cold storage facilities?
Yes. HEDA Shelves engineers specialized cold-chain live storage and radio shuttle installations operating down to -25°C (-13°F). For cold rooms, roller bearings are packed with synthetic low-temperature food-grade grease to avoid freezing, brake rollers feature thermal-expansion compensation, and the steel frame structure can be specified with hot-dip galvanized finishes or cold-impact resistant Q235D/E steel grades to eliminate low-temperature metal embrittlement risks.
What are the key technical differences between Live Storage and Radio Shuttle Racking?
While both systems provide exceptional storage density by eliminating interior truck aisles, their mechanical operation differs: Live Storage is a passive gravity-driven solution using full-length roller beds, ideal for continuous high-throughput picking in operations with moderate lane depths (4 to 12 pallets). Radio Shuttle Racking is a semi-automated system using motorized, battery-powered robot shuttles traveling on steel guide tracks, which is better suited for ultra-deep lanes (up to 40+ pallets) and facilities requiring flexible toggling between FIFO and LIFO modes without the cost of complex roller mechanisms.
What data is required from our engineering team to receive an accurate layout and quotation?
To prepare an accurate engineering drawing and structural calculation report, our team requires: (1) Warehouse floor plan in DWG/CAD format or a dimensioned sketch indicating building columns, ceiling clear height, and overhead obstacles; (2) Pallet dimensions (W × D × H) including product overhang and gross weight (minimum, average, maximum); (3) Pallet bottom runner orientation (3-skid, 5-skid, or perimeter base); (4) Material handling equipment type, mast collapsed height, and maximum lift reach; and (5) Operating temperature requirements and local seismic design regulations.
How does HEDA Shelves ensure quality control during high-volume OEM production?
Our quality assurance follows a documented 10-step protocol certified under ISO 9001:2015. Incoming hot-rolled steel coils undergo tensile and chemical spectroscopy testing. Upright columns and beams are punched and roll-formed on automatic CNC lines with tolerances held within ±0.5mm. Prior to electrostatic coating, all steel components pass through a 7-stage automatic chemical wash (degreasing, pickling, phosphating, passivation). Finished batches undergo ultrasonic weld checks, cross-hatch coating adhesion testing, and destructive load testing in our factory laboratory.

Partner with a Dedicated Live Storage OEM Manufacturer

Optimize your warehouse cube utilization, slash handling travel times, and accelerate order dispatch cycles. Submit your project requirements to receive a customized 2D/3D CAD design, structural load calculations, and our comprehensive technical catalog within 24 hours.
