Custom Engineered Industrial Storage & Pallet Racking Systems
Precision-formed from certified high-tensile Q235B and Q355B structural steel, our factory-engineered configurations provide load-tested reliability for third-party logistics (3PL), cold-storage chains, FMCG distribution, and automated intralogistics hubs across 120+ countries.
200–800 KG / Level
Medium Duty Industrial Metal Shelving Rack for Warehouses
High-Density VNA
Narrow Aisle Movable Pallet Storage Rack System
Multi-Tier Pick

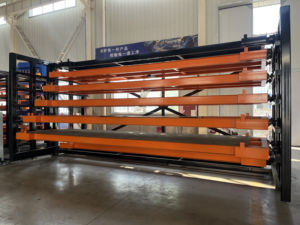

Multi-Tier Carbon Steel Powder Coated Heavy Duty Storage Rack
Custom Commercial
Wall Mount Freestanding Slatwall Display Cabinet Racks
Semi-Automated
Automatic 4-Way Cold Storage Pallet Shuttle Racking System
1000–4000 KG / Level
Industrial Heavy Duty Metal Multi-Level Pallet Racking
High Bay Engineered
Blue-Orange High Bay Adjustable Heavy Duty Warehouse Racking
Logistics Hub Spec
Heavy Duty Pallet Racking Storage System Q235B Steel
Engineering Whitepaper: Steel Grade Performance & Deflection Mechanics
Industrial racking safety is governed by finite limit state analysis, beam deflection limits under static uniformly distributed loads (UDL), and torsional buckling resistance of upright open-section geometries. Guangzhou Heda Shelves Co., Ltd. builds exclusively according to European EN 15512, American ANSI MH16.1 (RMI), and Australian AS 4084 structural verification frameworks.
| Structural Parameter | Commercial Q235B Grade (Standard Duty) | High-Yield Q355B Grade (Seismic / Heavy Duty) | International Standard Equivalence | Impact on Warehouse Design Life |
|---|---|---|---|---|
| Yield Strength ($f_y$) | ≥ 235 MPa | ≥ 355 MPa (+51% Load Capacity) | EN 10025 S235JR / ASTM A36 | Permits higher unbraced column lengths and slender profiles. |
| Ultimate Tensile Strength ($f_u$) | 370 – 500 MPa | 470 – 630 MPa | EN 10025 S355JR / ASTM A572 Gr 50 | Prevents sudden catastrophic rupture under unexpected shock loading. |
| Elastic Modulus ($E$) | $2.06 \times 10^5$ MPa | $2.10 \times 10^5$ MPa | ISO 630-2 / GB/T 700 | Ensures beam horizontal deflection stays strictly within $L/200$ to $L/300$. |
| Punching Pitch Precision | 50.0 mm / 75.0 mm (±0.15mm pitch tol.) | 50.0 mm / 76.2 mm (±0.10mm pitch tol.) | Continuous CNC multi-station punch | Guarantees 100% true vertical beam connector locking without play. |
| Surface Pre-Treatment | Manual degreasing or dry wipe | 10-Step Acid Pickling + Phosphating | ISO 12944-4 Surface Prep | Eliminates micro-oxidation; yields 800-hour neutral salt spray (ASTM B117). |
| Coating Thickness & Polymer | 40–50 μm hybrid epoxy | 60–90 μm Electrostatic Pure Polyester | Qualicoat / RoHS Compliant | Resists forklift scuffing, chemical fumes, and tropical peel hazards. |
| Thermal Range Threshold | -10°C to +45°C | -35°C to +50°C (Cold Chain Hardened) | EN 15620 Tolerances Class 400 | Prevents cold brittleness and micro-cracking in freezer rooms. |
Dual-Rib Box Beam Welding
Unlike ordinary open C-channels that suffer lateral torsional buckling under heavy center-pallet loads, HEDA utilizes automated seam-welded continuous interlocking box beams with cold-formed dual vertical ribs, providing superior section modulus ($Z_x$) and zero permanent sag.
Seismic Footing & Base Anchor Dynamics
For seismic regions (PGA > 0.15g such as the Philippines, Japan, Indonesia, and New Zealand), we engineer oversized 8mm–16mm thick base plates, multi-point chemical anchoring calculations, and heavy-gauge X-bracing to resist ground motion shearing without structural shearing.
Interlocking 4-Claw Beam End Connectors
Our patented cold-stamped 4-claw and 5-claw beam connectors generate a stiff moment-resisting joint with upright stanchions. Fitted with spring-loaded high-tensile safety locking pins, inadvertent forklift vertical dislodgement is eliminated under full capacity.
10-Stage Precision Manufacturing & Quality Control Architecture
Operating from our 30,000 square meter wholly-owned manufacturing complex in Guangzhou, China, every component undergoes strict dimensional tolerance verification. We maintain total sovereign control from prime Baosteel raw coils to ultrasonic-tested seam welds.
Future Racking Trends: Automation Synergy, Space Economics, & Green Warehousing
Warehousing capital expenditure (CapEx) in 2025–2030 has shifted decisively from mere passive cubic storage toward high-density automated throughput systems. Procurement executives, project contractors, and regional distributors must evaluate three macro trends:
1. AMR & Shuttle-Ready Engineering
Standard static selective racks are rapidly being superseded by 4-Way Radio Shuttle & Autonomous Mobile Robot (AMR) grid structures. Warehouse operators demand tight deflection tolerances ($≤ 1/500$ span) and hyper-smooth channel roll-forming to prevent optical and LIDAR positioning faults during automated machine transit.
2. Rent-Per-CBM Mitigation (Verticality)
With prime logistics real estate exceeding historical rental highs in Singapore, Hong Kong, Tokyo, Riyadh, and Western Europe, projects are migrating to Multi-Tier Rack-Supported Mezzanines (up to 4 levels) and VNA (Very Narrow Aisle) configurations up to 18 meters clear height, effectively doubling storage without land leasing expansion.
3. Decarbonized Steel & Zero-VOC Coatings
Global ESG reporting requires verifiable life-cycle environmental assessments. HEDA Shelves leads sustainable fabrication through electric cold-roll lines, 100% heavy metal-free Qualicoat-certified thermosetting powder coatings, and thin-gauge/high-strength micro-alloy optimization that lowers steel tonnage freight emissions by up to 14%.
Guangzhou HEDA Shelves: Strategic OEM / ODM Partner for Global Exporters
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has served as the sovereign contract manufacturer behind world-class racking distributors, national retailers, and government logistic hubs. We supply full structural documentation, 3D BIM integration, and guaranteed delivery reliability.
Free 2D CAD & 3D Layout
Within 24 to 48 hours, our in-house structural engineering office delivers fully optimized AutoCAD floor plans, 3D perspective models, and precise pallet position counts matching your forklift turn radii.
Verified European CE & ISO
Fully certified under European Construction Products Regulation CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 No. 18624Q00169R0M. TUV load test reports provided with every project tender.
Full OEM / ODM Customization
Custom column punches (50mm European pitch, 75mm standard pitch, or 76.2mm teardrop pitch), custom RAL corporate color matching, and private label steel embossing for international racking brands.
South China Port Proximity
Located directly adjacent to Nansha, Huangpu, and Shenzhen ports, allowing immediate ocean freight access, compressed transit times to ASEAN and Middle Eastern routes, and container packing schemes that save up to 22% CBM.
Industrial Racking Procurement FAQ: Technical, Logistical, & Compliance Details
Essential insights directly from our engineering desk to help supply chain directors, structural consultants, and warehouse operators mitigate risks before issuing a purchase order.
How do you calculate safe working loads (SWL) for pallet racking beams?
Safe Working Load calculations comply with EN 15512:2020 limit-state design. We model each beam under static uniformly distributed load (UDL) with a statutory partial load safety factor ($\gamma_F = 1.4$) and material resistance factor ($\gamma_M = 1.1$). The maximum allowable deflection cannot exceed $L/200$ (or $L/300$ for automated handling). Physical prototype destruction tests are conducted on hydraulic rigs to prove yield limits before mass rolling.
Can HEDA engineer warehouse racking for active seismic earthquake zones?
Yes. For seismic projects across Southeast Asia (Philippines, Indonesia), South Asia, Japan, and the Middle East, our civil engineers execute dynamic finite-element response spectrum analyses. We calibrate column section thickness (up to 2.5mm–3.0mm Q355B), incorporate oversized heavy-gauge baseplates, install back-to-back bracing trusses, and specify Hilti chemical anchors verified under seismic shear categories C1 and C2.
What steel surface treatment ensures rust prevention in humid tropical environments?
Ordinary spray painting easily delaminates. HEDA utilizes a rigorous 10-step surface pre-treatment consisting of warm alkali degreasing, acid pickling to eliminate mill scale, cold rinsing, and crystalline zinc-iron phosphating. This is followed by automated electrostatic pure-polyester powder baking at 200°C. For extreme humidity, coastal air, or sub-zero blast freezers, we provide continuous hot-dip galvanizing complying with EN ISO 1461.
What critical data is required to generate a 2D CAD and 3D warehouse layout?
To receive a verified engineering design, submit: (1) Architectural CAD floor plan with column grid and clear under-hook height; (2) Finished pallet dimensions (Width × Depth × Total Height inclusive of cargo overhang); (3) Gross pallet weight; (4) Forklift truck specifications (maximum mast reach, closed mast height, and minimum right-angle stacking aisle width $A_{st}$); (5) Ambient temperature and local floor slab load capacity ($kN/m^2$).
How does HEDA optimize 40ft High Cube (40HQ) container stuffing?
Racking components are long, heavy, and awkward to pack. Our logistics engineers use computer 3D loading simulations to interlock upright frames, bundle box beams with protective timber spacers, and palletize accessories. Upright frames are prefabricated with modular bolted bracing to allow high nesting density, maximizing both weight limits (up to 26–28 metric tons per 40HQ where allowed) and volume, reducing sea freight cost per pallet position.
Do you offer OEM private labeling and contract manufacturing for foreign distributors?
Yes. Over 40% of our production volume is delivered under OEM agreements for established storage equipment brands in Europe, Australasia, the Middle East, and the Americas. We accommodate custom upright punch patterns (including teardrop, hex, and keyhole), proprietary beam connector designs, custom corporate powder coat formulations, and specialized export packaging bearing the client's corporate branding.
Ready to Engineer Your Warehouse for Maximum Throughput?
Send your building layout and storage requirements to Guangzhou Heda Shelves Co., Ltd. Our structural engineering team will deliver a comprehensive 2D CAD layout, 3D rendering, and detailed factory-direct quotation within 24–48 hours.
