Precision-Engineered Industrial Storage Racking Systems
Manufactured using high-tensile cold-rolled steel coils, fully certified under CE and ISO 9001:2015 standards. Every rack assembly undergoes finite element stress calculation to optimize dynamic warehouse footprint efficiency and structural stability.
High Quality Q235B Metal Teardrop Pallet Rack Adjustable Warehouse Rack Durable 5 Layer Longspan Industrial Storage Rack
1000KG 5-tier Beam Structure Industrial Warehouse Rack with Steel Panels for Carton and Parts Picking
Multi-Tier Carbon Steel Powder Coated Anti-Rust Heavy Duty Warehouse Racking System 2000mm Height Storage Rack for Industrial
Xinanda S001 Factory Warehouse Racking Systems Heavy Duty Pallet Rack Industrial Steel Shelving Galvanized Carton Box Packaging
Industrial Multi-Tier Mezzanine Rack System Steel Platform Warehouse Storage Stacking Racks & Shelves
Factory's Heavy Duty 4-Layer Garage Stacking Rack Steel Frame 300kg Capacity Corrosion Protection
5 Layer Storage Cloth Heavy Duty Pallet Rack Storage For Fabrics 1000KG 2000KG 3000KG Pounds Tons

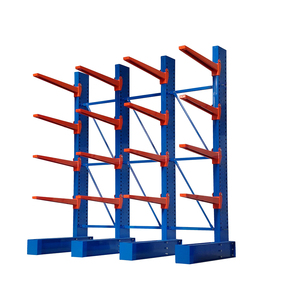

Industry Warehouse Steel Structural Pipe Rack Cantilever Rack for Pipe / Lumber Storage
Structural Engineering, Metallurgical Grades, and Load Integrity
Industrial warehouse storage systems represent structural load-bearing frameworks subject to continuous static loads, dynamic forklift impacts, and seismic acceleration forces. As a dedicated OEM/ODM manufacturer, our engineering foundation is governed by international structural racking design codes, including FEM 10.2.02, RMI MH16.1, and AS4084-2023.
Certified Steel Metallurgy
We exclusively process certified prime structural coils of Q235B and high-yield Q355B carbon steel (equivalent to ASTM A36 and S355JR). Every production heat is traceable via mill test certificates (MTC) verifying precise tensile strength (≥375 to 510 MPa), yield limits (≥235 to 355 MPa), and charpy V-notch impact toughness across cold-temperature regimes.
Seismic Finite Element Analysis
Warehouse projects located across circum-Pacific seismic zones require customized moment-resisting baseplates and anchor bolt schematics. Our technical center utilizes 3D Finite Element Analysis (FEA) to simulate frame buckling, beam-to-column connector semi-rigidity (κ), and horizontal ground acceleration response curves under peak maximum-considered earthquake (MCE) events.
Surface Passivation & Powder Deposition
Longevity in coastal and humid equatorial environments depends on multi-tier surface barrier integrity. Our continuous in-house finishing lines execute a stringent 9-stage pre-treatment comprising acid pickling, ultrasonic degreasing, and zinc-phosphate conversion, followed by automated electrostatic polyester powder deposition cured at 200°C (cross-hatch adhesion ASTM D3359 Class 5B).
Guangzhou HEDA Shelves: Enterprise OEM/ODM Competence
Operating out of our centralized production hub in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. oversees complete vertical manufacturing integration. By housing roll-forming profiling, robotic arc welding, and electrostatic powder coating under one quality system, we deliver reliable tolerances, verified steel integrity, and rapid delivery schedules for global distribution network contractors.
Full In-House Manufacturing
No subcontracted roll-forming or third-party coating. Our 30,000 m² plant maintains dedicated cold-bending lines, continuous CNC beam-punching arrays, and automated dual-sided robotic welding stations to ensure absolute dimensional repeatability down to ±0.5mm tolerances.
Rigorous Certifications & Traceability
Fully certified under CE Certification (No. 2435-CPR-8605159) and ISO 9001:2015 (Certificate No. 18624Q00169R0M). Our coatings adhere to non-toxic RoHS standards, with full ultrasonic weld flaw detection and batch raw material load deflection verification reports.
Dedicated Engineering & Free 3D Layout
Our in-house design engineering department of 30+ structural specialists converts your architectural CAD drawings or warehouse sketches into optimized 2D space layouts and 3D realistic renderings within 24 to 48 hours, fully calculating beam deflection and aisle clearance.
OEM Brand Customization & Export Packaging
We supply leading overseas racking distributors and integrators with OEM custom hole punch geometries (Teardrop, 50mm pitch, 75mm European pitch, 76.2mm standard), bespoke RAL powder paint matching, embossed private-label stamping, and export steel-banded bundling.
Standardized 10-Step Quality Assurance & Fabrication Pipeline
Raw Material Test
Spectrographic steel composition & tensile yield testing.
Precision Slitting
High-speed coil uncoiling, leveling, and CNC shear slitting.
Automated Punching
Continuous CNC multi-ton punches for hole-pitch alignment.
Cold Roll-Forming
Multi-roller roll-forming machines shaping upright profiles.
Beam Seaming
Twin C-profile interlocking and continuous step beam forming.
Robotic Welding
CO2 gas shielded robotic arms welding beam connectors.
Chemical Pickling
Acid immersion removal of scale, rust, and surface grease.
Phosphating
Micro-crystalline phosphate conversion for coating adhesion.
Electrostatic Coating
Automatic powder spray booth cured in a 200°C tunnel kiln.
QC & Palletizing
Deflection load audit, film wrapping, and container packing.
Future Procurement & Technological Trends in Industrial Storage
Warehouse logistics systems are rapidly shifting from passive static storage fixtures into high-performance, dynamic automation-ready structural frameworks. Procurement directors must anticipate the structural demands of next-generation intralogistics ecosystems over a 15-to-25-year lifecycle.
AS/RS and AMR-Compatible Racking Precision
The expansion of Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), and stacker crane AS/RS requires ultra-tight racking manufacturing tolerances. Future procurement prioritizes structural deflection ratios under full static load of L/500 to L/800 (compared to traditional manual forklift racking of L/200), preventing optical sensor misalignment during automated high-speed pallet retrieval.
Cube-Volume Maximization via Multi-Tier Systems
With industrial land lease costs rising across major logistics nodes globally, procurement strategies have pivoted from horizontal warehouse expansion to vertical volume utilization. Multi-tier rack-supported mezzanines, structural steel platforms, and semi-automated four-way radio shuttle systems triple pallet storage capacity per square meter without altering the building’s physical footprint.
Sub-Zero Metallurgy for Cold Chain Infrastructure
Accelerated demand for fresh foods, biopharmaceuticals, and deep-freeze supply chains demands structural racking steels capable of maintaining impact notch toughness at -30°C. Modern procurement mandates high-manganese structural alloys and hot-dip galvanized surface treatments (minimum 65μm zinc coat) to completely eliminate brittle fracture risks and condensation corrosion.
Stringent Seismic and Environmental Building Codes
Permit authorities across seismic fault regions, cyclone zones, and port vicinities require stamped structural calculations verified by certified professional engineers (PE). Procurement contracts now routinely specify baseplate dynamic dampening systems, high-ductility anchor embedment depths, and computerized frame stability audits before order placement.
Interchangeable OEM Modular Architecture and Supply Chain Circularity
Global distributors and 3PL third-party logistics firms manage volatile client inventories. Strategic buyers favor modular teardrop and universal beam connection geometries that facilitate fast reconfiguration of beam elevation pitches without hot-works cutting or specialized tooling, significantly reducing total cost of ownership (TCO) across decades of operational change.
Industrial Storage Racking Procurement FAQ
Direct engineering answers to the most common structural, commercial, and operational questions asked by international contractors, facility directors, and OEM buyers before order authorization.
What engineering parameters are needed for a custom layout quote?
To generate an optimized structural racking proposal, provide: 1) Architectural warehouse CAD drawing or sketch indicating clear ceiling height, column grids, and floor slab thickness; 2) Pallet dimensions (W x D x H) including goods overhang and gross weight; 3) Forklift model, turning radius, and maximum mast lift elevation; 4) Ambient storage temperature and local seismic acceleration category.
How does HEDA guarantee steel structural safety and load certifications?
We operate an in-house hydraulic structural testing bed capable of static load tests up to 50 metric tons. Each upright and beam section design is validated according to EN 15512 and ANSI MH16.1 codes. Every shipment is accompanied by CE Certificate documentation (No. 2435-CPR-8605159), mill test analysis for raw steel yield strength, and certified calculation sheets.
What is the standard production lead time for heavy industrial racking?
Standard containerized OEM production takes 15 to 25 calendar days following engineering drawing sign-off and deposit receipt. For complex multi-tier mezzanine steel platforms requiring specialized fabricated I-beams and stamped stairs, manufacturing cycles range between 25 and 35 days. We coordinate container stuffing plans from Guangzhou and Shenzhen ports.
Can you provide custom powder coating colors or hot-dip galvanizing?
Yes. We offer electrostatic powder coating in any standard RAL color code (popular combinations include Orange RAL 2004 beams with Blue RAL 5015 uprights). For cold storage facilities, outdoor lumber yards, or corrosive fertilizer warehouses, we provide complete hot-dip galvanizing compliant with ISO 1461, ensuring over 20 years of rust-free service life.
How are overseas assembly and on-site erection managed?
Every export shipment includes detailed 3D exploded assembly diagrams, CAD component layout blueprints, and marked part bundles matching packing lists. For major logistics distribution hubs or multi-tier mezzanine installations, we dispatch bilingual senior installation supervisors to coordinate and certify local contractor assembly crews on site.
Do you support distributor private labeling (OEM) and custom stamping?
Yes. A significant portion of our production consists of OEM manufacturing for overseas regional racking brands and logistics integrators. We support custom roll-tooling for proprietary hole patterns, laser-cut logo branding on upright columns, bespoke load warning signs, and neutral or custom-branded protective export packaging.
Request a Custom 2D/3D Layout & Engineering Load Calculation
Consult directly with our structural engineering team. Submit your warehouse floor plan, ceiling clear height, and pallet load specifications to receive a free structural feasibility audit, pallet density optimization plan, and transparent factory-direct pricing within 24 hours.
