Featured Industrial Racking & Rack Numbering Solutions
Factory-direct structural steel storage configurations paired with precision coordinate indexing, optical location markers, electronic pick modules, and intelligent identification technologies.
Vision AI Ready
Heavy Duty
Four-Layer Industrial Rack System with Color-Coded Numbering
1,000-3,000kg/Tier
Epoxy Powder
Color Coded
Multi-Tier Pick

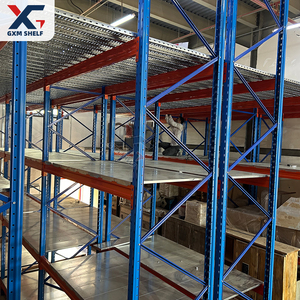

Mezzanine Floor Racking & Multi-Tier Attic Shelf System
Multi-Tier Layout
Zonal Mapping
Steel Decking
Industrial Grade
Heavy Duty Structural Steel Racking with Magnetic Numbering
Q235B Steel
Magnetic C-Channel
ISO 9001
Automated Clad
Commercial Rack-Clad Building System with 3D Spatial Grid
AS/RS Automated
Height 30m+
High Density
Turnkey AS/RS
EBILTECH Architectural Clad-Rack Matrix Storage System
Turnkey EPC
Retro-Reflective
VNA Ready
Heavy Pallet
Pallet Racking with Steel Wire Mesh Decking & Beam Labels
Wire Mesh Deck
Label Protectors
Drop-In Fit
Digital IoT
Sophia 6-Digit Pick-to-Light Electronic Rack Number Tag
6-Digit Display
WMS Bus Sync
Pick-to-Light
Engineering Architecture
The Anatomy of an Industrial Warehouse Rack Numbering System
How systematic spatial coordinate codification converts disorganized square footage into an algorithm-friendly, error-resistant distribution network.
Hierarchical Address Topology
Industrial rack identification relies on standard alphanumeric codification: Zone – Aisle – Bay – Level – Position (Z-AA-BB-L-PP). This eliminates spatial ambiguity, enabling Warehouse Management Systems (WMS) to compute shortest path picking algorithms and cut forklift transit time by up to 34%.
Substrate & Optical Calibration
High-bay operations require Grade A verification standards (ISO/IEC 15416) for barcodes and 2D matrix symbology. Retro-reflective microprismatic substrates allow narrow-aisle turret trucks and long-range laser scanners to capture shelf coordinates from up to 16 meters away without leaving the driver cab.
Environmental Chemical Resilience
Manufacturing facilities must withstand extreme operating dynamics. Warehouse rack labels and numbering plates designed by HEDA Shelves employ cross-linked high-tack acrylic adhesives and UV-resistant polycarbonates rated for temperatures ranging from -35°C deep freeze to +65°C ambient humidity.
99.8%
Inventory Picking Accuracy with Verified Check-Digits
15m
Maximum Retro-Reflective Barcode Scanning Distance
-35°C
Low-Temperature Adhesion Rating for Cold Chain Racks
30,000m²
HEDA Shelves Guangzhou Integrated Manufacturing Base
Strategic Sourcing Intelligence
Future Procurement Trends in Warehouse Rack Identification (2026–2030)
Procurement officers and logistics engineers are shifting from passive sticky labels to intelligent, dynamic location numbering systems engineered for automation, robotics, and circular facility lifecycles.
1. Shift from Static Vinyl to Electronic Shelf Labels (ESL)
Fast-moving 3PL facilities face frequent slotting changes. Modern RF/Bluetooth Electronic Shelf Labeling (ESL) and multi-color e-ink tags allow real-time location re-addressing directly from WMS databases, eliminating manual re-labeling downtime and scraping labor entirely.
2. Computer Vision & Drone-Readable Floor/Aisle Markers
With the adoption of autonomous mobile robots (AMRs) and automated inventory cycle-counting drones, rack placards now integrate dual-symbology: human-readable bold fonts paired with overhead AprilTags, ArUco visual fiducials, and specialized Datamatrix codes.
3. Modular Magnetic Anodized Aluminum Extrusions
To safeguard cold-formed steel racking against surface oxidation from aggressive solvent adhesives, international facility owners specify extruded aluminum C-channel carriers with high-gauss neodymium backing strips for tool-free, non-destructive repositioning.
| Identification Technology | Typical Application | Durability Benchmark | Scan Range | Installation Rigidity | Procurement Cost Factor |
|---|---|---|---|---|---|
| Direct Thermal Transfer Poly | Standard Selective Racking | 3–5 Years (Indoor ambient) | 0.2m – 1.5m | Permanent Pressure-Sensitive Acrylic | Economic Base |
| Multi-Level Totem Placards | Eye-Level Upright Beam Mounts | 7–10 Years (UV/Impact Resistant) | 0.5m – 3.0m | Magnetic or Mechanical Riveted | Moderate Value |
| Retro-Reflective Long-Range | High-Bay VNA & Drive-In Systems | 10+ Years (Microprismatic film) | Up to 16.0m | High-Shear Synthetic Elastomer | Engineered Premium |
| Pick-to-Light (PTL) Bus Modules | E-commerce Split-Case Fulfillment | 50,000+ Operating Hours | Direct Sight & Push Button | Integrated Snap-fit Beam Track | High Automation ROI |
Enterprise Manufacturing Authority
Guangzhou Heda Shelves: 25 Years of Factory-Direct Engineering
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates an integrated 30,000 square meter intelligent manufacturing base, fabricating cold-formed racking and turn-key warehouse labeling systems for over 120 countries worldwide.
Single-Source In-House Production
From raw Q235B high-tensile steel slitting, precision CNC punching, roll forming, robotic welding to multi-stage pickling, phosphating, and automated electrostatic powder coating — zero third-party subcontracting ensures unmatched dimensional tolerances.
Verified International Certifications
Our products adhere rigorously to international building and logistics safety standards, backed by official CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (Certificate No. 18624Q00169R0M), and environmental RoHS-compliant surface coatings.
Complimentary 2D CAD & 3D Modeling
Every commercial warehouse project includes free structural engineering consultations. Within 24 to 48 hours, our senior design team delivers full-scale AutoCAD floor plans, 3D photorealistic renderings, structural capacity calculations, and custom rack numbering schematics.
Strategic South China Port Logistics
Located in Guangzhou with direct proximity to Nansha, Shenzhen, and Hong Kong ports, HEDA Shelves ensures short shipping transit times across Southeast Asia, the Middle East, Europe, and the Americas, complete with container load optimization blueprints.
Procurement Knowledge Base
Frequently Asked Questions: Warehouse Rack Numbering Procurement
Crucial engineering, installation, and software integration inquiries resolved by our senior technical team.
What is the standard alphanumeric indexing format recommended for high-bay racking?
The universally adopted industrial standard is the 6-to-8 character coordinate schema: AA-BBB-L-PP, representing Aisle (01-99), Bay/Column (001-999), Level (A-F or 1-6 from ground up), and Pallet Position (01-04). We also integrate a two-digit mathematical Modulo check-digit at the bottom of the barcode label to prevent manual scanning entry errors.
How do you address label peeling and adhesive failure in cold storage facilities (-20°C to -35°C)?
Standard solvent-based rubber adhesives crystallize and delaminate in sub-zero environments. For frozen food and pharmaceutical applications, HEDA Shelves utilizes deep-freeze modified acrylic adhesive systems with a minimum application temperature of -25°C and a service threshold of -50°C, or mechanical magnetic PVC carrier strips attached to the steel uprights.
Can warehouse rack numbering systems be synchronized with existing WMS (SAP, Manhattan, Blue Yonder)?
Yes. We ingest your master warehouse location database via standard CSV/Excel schema and pre-print serialized Code 128, Code 39, or GS1 DataMatrix barcodes with corresponding check-digits. For pick-to-light (PTL) electronic systems, our controllers communicate directly through standard REST APIs, Modbus TCP, or MQTT over industrial Wi-Fi/Ethernet gateways.
What is the difference between multi-level totem labels and individual shelf-beam labels?
Individual beam labels are placed directly on each horizontal load beam at the specific pallet slot. Totem placards are consolidated, color-coded vertical markers affixed to the bottom upright frame at eye level (1.5m). Totems allow operators to scan top levels (levels 4 to 7) directly from the floor without aiming long-range laser scanners upward, accelerating cycle counts by 40%.
How does HEDA Shelves ensure barcode verification quality during mass fabrication?
All printed numbering plates undergo Automated Optical Inspection (AOI) calibrated against ISO/IEC 15415 (2D) and ISO/IEC 15416 (linear) verification parameters. We certify that every batch maintains an overall verification Grade of A or B (reflectance, edge contrast, modulation, and defect tolerance), eliminating scanner reject loops on site.
What documentation and drawings are supplied with factory export orders?
Orders are shipped with complete structural load capacity certificates, mill test certificates for Q235B steel coils, electrostatic coating thickness reports (60-80 microns), CE Declaration of Conformity, detailed AutoCAD 2D/3D layout elevations, and step-by-step assembly diagrams showing exact numbering placard coordinates.
