Engineered Smart Warehouse Racking Systems
Precision-formed from certified high-tensile structural steel (Q235B / Q355B), our robotic intralogistics racking solutions converge structural rigidity with automated material-handling robotics, driving spatial density and eliminating throughput bottlenecks.

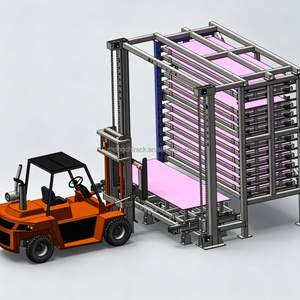

Intelligent Steel Vertical Sheet Storage Rack Automated Plate Warehouse with Robot Automatic Loading Function Heavy Duty
- 3,000–5,000 kg cassette capacity
- Integrated vacuum lifter / manipulator
- Heavy plate & sheet CNC docking
Omnistorage Mini Warehouse Storage Racking High Speed 3d Intelligent Warehousing
- Travel speed up to 6 m/s; 50 kg totes
- Micro-fulfillment & hardware parts
- High-acceleration vertical extraction
Smart Warehouse Robot Picking Systems Automated Storage Retrieval System Tool Storage System Asrs Shelving Rack
- Goods-to-Person robotic AMR pairing
- Zero-backlash shelf docking profiles
- Real-time dynamic slotting software
Customized High Density Mobile Shelving Smart Control Motorized Industrial Warehouse Pallet Steel Rack System School Workshop
- PLC controlled motorized chassis
- 85%+ volumetric warehouse utilization
- Photoelectric safety curtain sensors

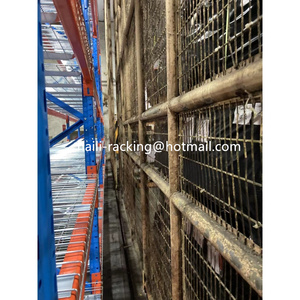

Good Sale Warehouse Smart Textile Racking System
- Curved cradle anti-indentation profiles
- Barcode/RFID roll tracking alignment
- High-load long-span tubular supports
Smart Weighing Shelves with Intelligent WMS, Electronic SMT Material Storage Racks for Digital Warehouse Management Factory Auto
- Load cell accuracy ±0.1g per partition
- Automatic piece count replenishment
- Direct ERP / MES API data handshake
Heavy Duty Scale STACKER CRANE and on Request Capacity Pallet Racking Auomated ASRS Warehouse HUASHINE INTELLIGENT
- Heights up to 40 meters vertical mast
- Single/double deep telescopic forks
- Regenerative power braking system
Pteris ASRS Shuttles Pallet Racking System Smart Warehouse Forklift Automation with Radio Control Cargo & Storage Equipment
- Deep-lane automated radio shuttle cart
- Cold room operational down to -30°C
- FIFO & LIFO software switchable
Why Industrial Engineers Partner with Our Guangzhou Facility
Procuring automated storage infrastructure directly from our factory in Guangzhou eliminates trading margins while giving your engineering team unconstrained customization, transparent structural finite-element calculations, and ISO/CE certified safety factors.
Continuous In-House Metallurgy
Unlike aggregators, we manage every phase under a single roof: raw hot/cold-rolled coil slitting, cold roll-forming, continuous-hole CNC punching, robotic welding, and automatic phosphating.
Compliant Seismic FEA Verification
Every rack upright, diagonal strut, and heavy-duty base plate is engineered according to FEM 10.2.02, EN 15512, and AS4084 guidelines, accompanied by seismic dynamic reports for permit approvals.
Verified European CE & ISO Credentials
Certified under CE No. 2435-CPR-8605159 and ISO 9001:2015 (Certificate 18624Q00169R0M). Raw materials feature verified metallurgical mill certificates with guaranteed mechanical yield strengths.
Free 24–48h 3D CAD/BIM Layouts
Supply your building footprints, clear heights, and material flow rates. Our senior engineering team produces full 2D layout schematics and 3D volumetric clearance models within 48 hours.
10-Stage Precision Production & Quality Control Pipeline
Automated storage retrieval systems (AS/RS) and shuttle racks operate with minimal millimeter tolerances. Our 10-stage quality pipeline guarantees dimensional repeatability across 10,000+ beam hooks and upright columns.
Certified Coils
Spectrographic analysis of high-tensile Q235B & Q355B coils.
Precision Slitting
High-speed laser cutting & CNC multi-axis strip uncoiling.
Automated Punching
CNC progressive multi-die column perforation at ±0.1mm pitch.
Cold Roll-Forming
Multi-roller continuous profiling maintaining structural grain flow.
Box-Beam Interlock
Automated twin-groove rolling for closed box load-bearing beams.
Edge Polishing
De-burring and thermal stress elimination on connector plates.
Robotic Welding
Panasonic multi-axis robotic welders for continuous gas-shielded seams.
Acid Pickling
Multi-bath degreasing, ultrasonic rust removal, and phosphate passivation.
Electrostatic Powder
GEMA automatic powder coating; cured at 180–200°C for 60–80μm thickness.
Containerization
Protective bubble wrapping, steel-pallet crating & balance load modeling.
The Architectural Evolution of Smart Warehouse Racking
Modern intralogistics is undergoing a profound paradigm shift: moving away from static, forklift-dependent aisle configurations toward fully kinetic, software-driven 3D matrix systems.
Kinematic Densification: Beyond Selective Racking
Conventional selective pallet racking yields a maximum land utilization rate of roughly 35% to 40%, with the remaining footprint sacrificed to forklift turning radiuses (typically 3.2m to 3.8m aisles). As land procurement capital costs surge globally, warehouse architects are implementing autonomous dense storage topographies.
By integrating rail-bound 2-way and 4-way multi-directional radio shuttles within precision cold-formed steel channels, operating aisles are completely re-allocated to revenue-generating storage cells. System throughput is decoupled from human operator fatigue, permitting round-the-clock operations at cycle speeds exceeding 1.2 m/s.
- Volumetric Density Amplification: Increases storage density by up to 240% compared to standard wide-aisle configurations.
- Structural Optimization: Deflection tolerances tightly managed within $L/250$ to $L/300$ under full static and dynamic live loads.
- Integrated Telemetry: Micro-switches, barcode positioning, and laser range finders integrated directly onto upright flanges.
System Topology Comparison
Selecting an automated racking typology requires balancing operational throughput ($pallets/hour$) against capital expenditure and SKU diversity.
| Storage Architecture Type | Space Utilization Ratio | Aisle Width Requirement | Throughput Velocity | Automation Level | Typical Application Sector |
|---|---|---|---|---|---|
| Standard Selective Racking | 35% – 40% | 3.0m – 3.6m | Low (Forklift Manual) | Zero Automation | High SKU, Low Turn, General 3PL |
| Very Narrow Aisle (VNA) | 50% – 60% | 1.6m – 1.9m | Medium (Turret Truck) | Semi-Guided (Wire/Rail) | High-Bay E-Commerce Distribution |
| Radio Shuttle Cart Racking | 70% – 80% | Only Loading Aisle Required | High (Automated In-Lane) | Semi-Automated (Radio RF) | Cold Storage, Food & Beverage, FMCG |
| 4-Way Shuttle AS/RS Matrix | 85% – 92% | Zero Internal Access Aisles | Ultra-High (Multi-Shuttle Fleet) | Full Lights-Out AS/RS | Pharma, High-Value Parts, Dark Hubs |
| Automated Stacker Crane AS/RS | 75% – 85% | Dedicated Track (~1.4m) | Continuous High (up to 40m high) | Full PLC / WCS Centralized | Heavy Industrial Manufacturing, Automotive |
Smart Warehouse Racking: Strategic Procurement Trends (2025–2030)
Supply chain directors and plant executives are prioritizing resilient, energy-efficient, and software-agnostic hardware architectures. These four pillars represent the core procurement selection criteria over the coming decade.
Edge-IoT Sensor Integration
Racking is transitioning from inert structural steel into intelligent, sensor-instrumented cyber-physical assets. Next-generation configurations embed optical beam deflection monitors, ultrasonic pallet placement verifiers, and load-cell strain gauges.
In specialized electronics distribution, smart weighing shelves continuously tally high-value components (e.g., SMT reels), generating instant inventory feeds directly to enterprise ERP systems without human counting audits.
Decarbonized Cold Chain Density
Refrigeration costs account for up to 60% of cold store operational expenditure. The thermodynamic rule is absolute: every cubic meter of unutilized warehouse headspace represents wasted continuous refrigeration power.
Global cold chains are replacing human-operated forklift aisles with condensed radio shuttle channels functioning down to -30°C. High-density shuttle systems shrink building footprints, slashing thermal leakage and reducing compressor energy demands by 25% to 35%.
Open-Architecture WMS/WCS Agnosticism
Procurement teams are deliberately steering clear of proprietary closed-loop hardware ecosystems that lock operators into exclusive vendor service contracts.
Our factory supplies smart racking and shuttle automation outfitted with standard Modbus, TCP/IP, OPC UA, and RESTful API endpoints, allowing seamless plug-and-play integration with third-party Warehouse Management Systems (SAP, Manhattan, Infor, Blue Yonder) without licensing friction.
Frequently Asked Questions by Industrial Buyers
Key technical, structural, and commercial questions resolved directly by our Guangzhou engineering and export logistics team.
What structural steel grades are utilized, and how is load capacity calculated?
We fabricate uprights and load-bearing horizontal beams exclusively from prime hot-rolled and cold-rolled certified Q235B and Q355B structural steel coils (equivalent to European S235JR and S355JR). Load capacity is calculated using 3D finite-element software (FEA) compliant with FEM 10.2.02 and EN 15512 safety codes, guaranteeing a minimum safety factor of 1.5 against elastic collapse under rated load conditions.
Can your engineering team adapt designs for active seismic zones?
Yes. Warehouses installed across active seismic regions (such as Indonesia, the Philippines, Japan, New Zealand, and western Latin America) require customized dynamic response spectra. Our engineers expand column wall thickness, widen base plate footprint profiles, install cross-aisle portal bracing, and use certified Hilti / Fischer chemical anchor studs. We provide complete structural calculation packages for local municipal permit sign-offs.
How does the racking surface resist extreme humidity and coastal salt spray?
Prior to coating, steel members undergo automated continuous 8-stage chemical immersion: hot alkaline degreasing, clean water rinse, sulfuric acid pickling, surface conditioning, and zinc phosphating. This establishes a micro-crystalline passivation layer. We then apply thermosetting TGIC-free polyester powder, cured to 60–80μm thickness, passing 500+ hours of continuous salt-spray testing. Hot-dip galvanization is supplied for open-air yards and deep cold stores.
What minimum site parameters are needed for a free 3D layout simulation?
To generate a complete 2D CAD blueprint, bill of materials (BOM), and 3D volumetric model within 24–48 hours, our design office requires: (1) Warehouse building DWG or dimensional sketch including column grids and clear height; (2) Pallet specifications (width, depth, overall height, and gross load weight); (3) Material handling equipment or forklift model; (4) Estimated SKU count and required hourly throughput.
How are international shipping volume and freight costs optimized?
Racking components are heavy and bulky. Our factory uses computerized 3D container packing simulations (Auto-Pack) to distribute upright frames, beams, and pallet tracks cleanly across 40ft High Cube (40HQ) containers. Uprights are bundled with protective dunnage and lifting loops for swift crane offloading, keeping freight cost per pallet position to the absolute market minimum.
Do you support OEM and private-label distribution agreements?
Yes. Over 40% of our production volume supports private-label distributors, systems integrators, and logistics contractors in Europe, North America, Southeast Asia, and the GCC. We provide custom beam connection patterns, proprietary punching styles, custom brand color matching (RAL standard), and neutral or distributor-branded packaging.
