L2200*W1200*H4050mm 4-Layer 2000kg Pallet Rack
Layer Load2000 kg / tier
Upright Height4050 mm
Steel SpecQ235B Cold-Rolled
Certified Warehouse Storage & Pallet Rack Systems
Constructed from high-tensile Q235B cold-rolled steel, each system features multi-stage chemical anti-corrosion treatment and electrostatic powder coating. Optimized for standard ISO, GMA, and Euro pallets with customizable bay profiles.
Standard Anti-Corrosion Heavy Duty Pallet Assembly
FinishingElectrostatic Coated
Pitch Spacing50mm / 75mm Pitch
ProtectionPhosphatized Barrier
Industrial Heavy-Duty 3-Ton Reinforced Racking
Safe Working Load3000 kg / level
Profile TypeClosed Box Beam
ApplicationBulk Manufacturing

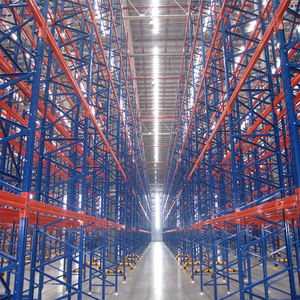

Commercial Rack Infrastructure with End Safety Guards
Impact GuardIntegrated Steel
Aisle SafetyEN 15635 Compliant
ConfigurationHigh-Bay Distribution
Very Narrow Aisle (VNA) High-Density Racking
Aisle Footprint1600 - 1800 mm
Height PotentialUp to 15 Meters
ThroughputHigh Selective Pick
Adjustable Double-Sided Metal Cantilever Rack
Load ClassUp to 1000kg/arm
GeometryDouble Sided Free
InventoryBar, Timber, Pipe
Heavy-Duty 4-Tier Cold-Rolled Industrial Shelving
Shelf Capacity500 - 800 kg/tier
AssemblyBoltless Interlock
Corrosion ClassISO 12944 C3/C4
Factory-Direct Continuous Drive-In Racking System
Density Gain+75% Floor Space
Filing MethodLIFO / Drive-Through
Cold Room ReadyDown to -30°C
25+
Years of Engineering (Since 2001)
30,000m²
Production Floor Space
30,000t
Monthly Cold-Forming Capacity
120+
Export Destination Countries
Engineering Architecture of Rolling and High-Density Pallet Racks
An engineering breakdown of mobile pallet racking bases, dynamic roll-out mechanisms, structural deflection limits, and safety standards governing modern automated warehouses.
Structural Mechanics of Dynamic Rolling Pallet Racks
In modern industrial facilities where warehouse space commands a high premium, traditional stationary rack structures often prove inefficient due to dedicated forklift operating aisles that occupy 60% or more of usable cubic volume. Dynamic mobile rolling pallet racking mounts high-capacity selective rack superstructures onto motorized, heavy-duty chassis bases that travel along in-floor guide rails. By mobilizing the rack clusters, an entire bank of multiple bays requires only a single access aisle that opens automatically upon command via RF terminal, PLC console, or warehouse management system (WMS) triggers.
From a metallurgy and engineering calculation standpoint, dynamic rolling racks must account for horizontal dynamic inertia forces generated during start, acceleration, and deceleration phases. Guangzhou Heda Shelves applies continuous cold-roll formed upright sections stamped with specialized omega-profiles and teardrop/diamond hook connectors. The upright profiles leverage certified Q235B structural grade steel, which exhibits superior yield strength (≥235 MPa) and elongation performance (≥26%), ensuring the frame absorbs kinetic shocks without micro-fracturing or localized weld fatigue.
Deflection Criteria and Safety Engineering (FEM 10.2.07 & EN 15512)
Procuring wholesale racking systems from China demands strict adherence to international structural tolerance standards. Structural load checks at our Guangzhou manufacturing facility evaluate upright frame stability under three distinct conditions: ultimate limit states (ULS), serviceability limit states (SLS), and accidental impact scenarios.
Under European FEM 10.2.07 standards and ANSI MH16.1 specifications, maximum allowable beam deflection is capped at L/200 for standard pallet storage, and tightened to L/300 or L/400 for automated crane/shuttle interface channels. Uprights receive factory-stamped load safety placards detailing permissible uniform distributed load (UDL) values, maximum unbraced vertical length, and permissible floor base pressure to prevent structural punching shear through concrete slabs.
| Racking Topology | Storage Density Gain | Selectivity Factor | Floor Rail Required | Optimum Operational Application |
|---|---|---|---|---|
| Selective Pallet Racking | Baseline (Standard) | 100% Immediate Access | No | Multi-SKU High-Turnover 3PL & Retail DCs |
| Mobile Rolling Pallet Racks | +80% to +100% Increase | 100% (Aisle Activated) | Yes (Recessed Guide Rails) | Cold Storage, High Land-Cost Distribution Hubs |
| Very Narrow Aisle (VNA) | +45% to +60% Increase | 100% Direct Pick | Guide Rails or Wire-Guided | High-Bay Logistic Centers with Reach Heights >12m |
| Drive-In / Drive-Through | +65% to +75% Increase | Last-In, First-Out (LIFO) | Optional Pallet Guides | Homogeneous Bulk Stocks, Seasonal Harvest & Raw Material |
| Radio Shuttle Automation | +85% High Density | FIFO / LIFO Selectable | Cart Channel Integrated | Automated Cold Chain, FMCG & Chemical Storage |
Future Procurement & Manufacturing Trends in Industrial Racking
How regional nearshoring, AS/RS integration, environmental surface chemistries, and seismic modeling are reshaping wholesale racking procurement through 2030.
Convergence with AS/RS & Autonomous Shuttles
Wholesale buyers are transitioning away from static, forklift-dependent setups toward racking modules prefabricated for 4-way autonomous shuttles and AMR (Autonomous Mobile Robot) pick systems. Manufacturing tolerance margins on column alignment have shrunk from ±3.0mm to strictly within ±1.0mm per 10-meter rise.
Seismic & Geo-Climatic Custom Engineering
Supply chain volatility requires racks engineered for distinct regional stress factors. Across earthquake corridors (the Pacific Ring of Fire, Indonesia, the Philippines, Japan), procurement specs demand thicker base plates, heavy diagonal bracing, and localized shear pin anchor verification capable of withstanding PGA > 0.4g seismic accelerations.
Eco-Compliant Non-Heavy-Metal Surface Treatments
Strict environmental directives (EU RoHS, REACH) are eliminating traditional chromate surface pre-treatments. Guangzhou Heda leads the transition by utilizing closed-loop silane nano-ceramic conversion layers and lead-free thermosetting electrostatic powders that achieve 500+ hours of continuous salt spray resistance (ASTM B117).
Modular Multi-Tier Mezzanine Platforms
Rapid urban e-commerce growth in metropolitan nodes like Singapore, Dubai, and Hong Kong has driven demand for hybrid rack-supported mezzanines. By utilizing rack uprights to support suspended mezzanine floors, distribution centers double floor space utilization while reducing civil construction costs by up to 45%.
Digital Factory Acceptance Testing (FAT)
International project managers increasingly bypass costly on-site audits in favor of remote digital QA pipelines. Factory 3D laser-scanning, full weld defect ultrasound testing records, and real-time beam load-deflection video documentation are supplied prior to container packing, expediting custom clearances.
Optimized Container Cube Engineering
With freight rates subject to global market volatility, Chinese OEM suppliers engineer profile geometries to maximize ocean container cubic capacity. Beams nest inside each other, while upright frames ship knockdown (bolted on-site), ensuring 40ft HQ containers reach 95%+ volumetric stowage efficiency.
Why Global Tier-1 Logistics Firms Partner with HEDA Shelves
A quarter-century of industrial steel processing excellence based in Haizhu District, Guangzhou, delivering custom storage fabrication with certified provenance.
Fully Integrated In-House Production Process
Unlike trading brokers, HEDA Shelves commands a comprehensive 10-stage production pipeline inside our 30,000 m² factory: raw steel coil incoming inspection, precision shearing, computerized CNC column punching, multi-roll cold forming, surface bead polishing, robotic welding, hot chemical pickling and phosphating, electrostatic powder coating, and systematic pre-shipping load validation. Every dimension and mill certificate is maintained in-house.
Official European CE & ISO 9001:2015 Certifications
All fabricated warehouse components carry full structural CE Certification (Certificate No. 2435-CPR-8605159) complying with the Construction Products Regulation (CPR). Our operational quality system is accredited under ISO 9001:2015 (Certificate No. 18624Q00169R0M), paired with verified lead-free RoHS-compliant powder chemistry. We provide official submittals and calculations required by municipal building and fire safety authorities.
Complimentary 2D/3D CAD Layouts & FEA Load Simulation
Before committing capital, our senior structural engineers develop custom 2D layout schematics and 3D architectural renders within 24 to 48 hours. Using finite element analysis (FEA), we model stress distributions on specific beam spans, aisle clear widths based on forklift turning radius data, and pallet weight profiles, delivering optimized pallet space counts tailored to your facility footprint.
Deep Regional Logistics & Installation Footprint
Direct factory export from South China ocean terminals (Guangzhou, Shenzhen, Nansha) ensures low-cost, short-transit routes to ASEAN, South Asia, the Middle East, and beyond. Every shipment includes step-by-step 3D assembly manifests and detailed container packing slips so local installation crews complete erection smoothly and accurately.
Frequently Asked Questions by Industrial Rack Importers
Direct, technically grounded guidance covering steel grade verification, seismic ratings, tropical corrosion defense, and customs documentation.
What structural steel grade is used in your upright profiles, and can you provide mill test certificates?
Our pallet rack systems utilize prime Q235B cold-rolled structural carbon steel (equivalent to European S235JR and American ASTM A36) sourced directly from tier-one steel producers such as Baosteel. Q235B delivers a certified minimum yield point of 235 N/mm² with excellent cold bendability and weldability. Original Mill Test Certificates (MTC) detailing heat batch chemistry (C, Si, Mn, P, S percentages) and mechanical tensile properties are supplied with every bill of lading.
How does your factory protect cold-storage and coastal warehouse racks from corrosion?
Standard systems undergo an automated 5-stage pre-treatment: alkaline degreasing, acid pickling to eliminate scale, water rinsing, chemical phosphating to create an inorganic anti-corrosive crystalline base, and automated thermosetting polyester electrostatic powder spraying (film thickness: 60–90 μm). For sub-zero blast freezers down to -30°C or tropical coastal installations with extreme humidity (Southeast Asia, Middle East), we offer full hot-dip galvanizing according to EN ISO 1461, achieving coating weights exceeding 500 g/m² for decades of maintenance-free service.
Can HEDA Shelves engineer racking systems for earthquake-prone zones like Indonesia and the Philippines?
Yes. Seismic engineering is handled by our in-house civil and mechanical structural specialists. Based on the target installation country's building code (e.g., NSCP in the Philippines, SNI in Indonesia, Eurocode 8, or FEMA 460), we adjust upright column gauge thickness, broaden footplate anchor patterns, configure cross-aisle and down-aisle portal bracing frames, and specify specialized wedge or chemical capsule anchors. Full engineering calculation reports can be furnished for municipal construction permitting.
What minimum data is required to generate a complete warehouse layout drawing and commercial quote?
To prepare an accurate CAD proposal and pallet capacity analysis, we require: (1) Architectural floor plan or dimensioned sketch indicating building dimensions, clear height under eaves, and internal column locations; (2) Pallet specifications including width, depth, overall height including cargo, and maximum gross weight per pallet; (3) Operational forklift details (counterbalance, reach truck, VNA turret truck, or stacker) including turning radius (Ast) and lift reach; and (4) Targeted turnover method (FIFO vs. LIFO).
What is your typical production lead time and export container packaging standard?
Standard wholesale production cycles run between 15 to 25 working days depending on total steel tonnage. Components are bundled into customized steel-strapped shipping units wrapped in waterproof PE film with corrugated corner protectors. Beams are stacked in counter-nested orientations, and small hardware accessories (safety lock pins, anchor bolts, levelling shims) are packed in reinforced wooden crates to prevent shifting during ocean transit.
