Engineered by Guangzhou Heda Shelves Co., Ltd. from cold-rolled steel and hot-dip galvanized sections for extreme yard endurance, seismic safety, and ultra-dense footprint utilization.
When engineering and sourcing China wholesale external pallet racking, procurement managers, system integrators, and logistics contractors operate within parameters that diverge radically from climate-controlled interior warehousing. External racking systems—whether erected as freestanding outdoor yard racks, canopy-sheltered cantilever structures, or full-scale rack-clad storage buildings—must contend continuously with atmospheric corrosion, heavy dynamic wind loads, seismic ground acceleration, and ground moisture migration.
As one of South China's established manufacturing authorities since 2001, Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) maintains deep engineering expertise in transforming structural steel into high-integrity outdoor storage assets. Navigating the Chinese manufacturing ecosystem for exterior-grade pallet racking demands granular technical evaluation across three engineering vectors: metallurgical selection, surface chemistry (corrosion barrier systems), and load resistance calculations.
External yard racking cannot rely on standard gauge cold-rolled profiles without strict engineering verification. Operating in open yards exposes upright columns, horizontal cross beams, and base connections to combined forces that do not exist indoors. Wind drag creates sustained lateral overturning moments, while forklift impact in open environments often happens under variable tire grip and weather conditions.
The service life of exterior pallet racking is defined almost entirely by its protection against oxidation. Standard indoor powder coatings rapidly delaminate when subjected to seasonal temperature swings (-20°C to +50°C), atmospheric humidity, ultraviolet radiation, and airborne salts in coastal container yards. Top-tier China manufacturers provide two primary anti-corrosion pathways:
| Protective Finish Type | Surface Treatment Process | Coating Thickness | Atmospheric Corrosivity Category (ISO 12944) | Expected Exterior Yard Life |
|---|---|---|---|---|
| Pre-Galvanized Coil Forming | Continuous mill zinc-coated steel coiled prior to punching/forming | 15 – 25 µm (Z180 – Z275) | C2 (Low risk, rural/dry inland) | 3 – 7 Years (Edges vulnerable to punch-hole corrosion) |
| Advanced Marine Powder Coat | Multi-stage pickling, zinc phosphating, followed by epoxy-polyester architectural powder | 80 – 120 µm | C3 (Urban, moderate industrial, inland yard) | 8 – 12 Years (Requires routine mechanical impact inspection) |
| Batch Hot-Dip Galvanizing (HDG) | Post-fabrication immersion in molten zinc bath at ~450°C (BS EN ISO 1461) | 65 – 100+ µm (Metallurgical zinc-iron alloy bond) | C4 to C5-M (Marine coastal, chemical handling, heavy industrial yards) | 20 – 35+ Years (Total internal and external coverage, self-healing zinc patina) |
For chemical yards, marine ports across Southeast Asia, the Middle East, and coastal terminals, Batch Hot-Dip Galvanizing (HDG) post-punching is the undisputed benchmark. Every beam slot, bolt perforation, and welded box-connector receives a complete metallurgical bond that prevents moisture infiltration into hollow profiles.
B2B enterprise buyers and 3PL conglomerates are shifting procurement methodologies. Here are three macro developments reshaping factory-direct outdoor racking contracts.
Rather than constructing standalone industrial steel warehouses and subsequently erecting interior racking, tier-one logistics developers are commissioning integrated Rack-Clad infrastructure directly from Chinese factories. The external pallet racking itself acts as the primary structural frame, supporting the insulated roof, wall cladding, and exterior girt framing. This eliminates secondary structural building costs, shrinking project schedules by up to 40% and optimizing land use in high-rent zones such as Singapore, Hong Kong, and GCC industrial parks.
European and North American regulatory mandates (such as the EU Carbon Border Adjustment Mechanism - CBAM) are compelling international buyers to audit the embedded carbon of structural steel racking. Chinese manufacturing leaders are migrating toward electric arc furnace (EAF) recycled scrap steel, green solar-powered powder coating lines, and third-party verified Environmental Product Declarations (EPDs). Sourcing from suppliers with transparent carbon lifecycle certifications is becoming mandatory for tier-one project financing.
Procuring overseas racking without site coordination risks devastating dimensional clash on site. The procurement standard has migrated to full Building Information Modeling (BIM - Level 2 / Revit format). Chinese engineering teams now supply complete clash-detection coordinates, 3D structural anchor layouts, and simulated forklift aisle kinematics before the first roll-forming line starts, eliminating costly onsite drilling modifications in hardened yard slabs.
Historically, external pallet racking was treated as a disposable, low-capital solution: standard interior selective racks placed on gravel yards with tarpaulins to protect steel components. This obsolete methodology led to high corrosion failure rates, beam deflection, and safety risks during storms. Modern engineering has evolved external racking into high-density, weather-resilient storage ecosystems.
Contemporary outdoor pallet and cantilever racks feature factory-integrated structural canopy cantilevers. Top column extensions are engineered with standardized pitch brackets to support galvanized corrugated roofing profiles and integrated rain gutters. This prevents pooling of water on upper pallet loads, diverts moisture away from critical load-bearing upright joints, and shelters forklift operators during loading cycles in tropical rainfall regions like Southeast Asia.
Heavy dynamic outdoor racking installations on asphalt or concrete slabs are susceptible to uneven subgrade settlement caused by seasonal rain saturation or thermal expansion. High-bay external installations now incorporate passive and active tilt/deflection sensor brackets. Laser-surveyed target mounts allow facility safety managers to conduct millimeter-accurate vertical alignment audits, preventing catastrophic collapse in seismic and wind-loaded environments.
Where high land rental costs in port zones and cold-chain hubs prevent expansive yard sprawl, high-density semi-automated solutions are deployed outdoors within canopy enclosures. Galvanized Radio Shuttle racking systems allow automated battery-driven carriers to maneuver pallets inside 30-meter-deep drive-in channels, while zero-energy Gravity Flow racks ensure continuous First-In, First-Out (FIFO) material rotation for temperature-sensitive beverage and food handling operations.
Founded in 2001 in Guangzhou, HEDA Shelves operates a dedicated 30,000 square-meter production complex with 300+ structural engineers, automated roll-forming lines, and comprehensive CE & ISO 9001 certified QA ecosystems.
Over two decades of pure-play focus on industrial storage systems, delivering 10,000+ completed projects across logistics, automotive, heavy manufacturing, and cold-chain distribution centers worldwide.
Full in-house automated cold-roll forming, automated precision punching, robotic seam welding, and multi-stage phosphate coating lines ensuring strict gauge tolerances and reliable delivery schedules.
Verified CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (Certificate No. 18624Q00169R0M), and RoHS environmentally compliant non-toxic protective coatings.
Our dedicated structural engineering department provides complimentary 2D CAD floor plans, 3D photorealistic renderings, seismic load review, and exact pallet-capacity calculations before commercial contract sign-off.
Rigorous yield testing of certified prime steel coils before shearing.
High-precision automated continuous punching of column tear-drop & diamond holes.
Automatic submerged welding of heavy box beams and base plate joints.
Deep multi-tank chemical de-rusting & phosphatizing pre-treatment bath.
Electrostatic baking at 200°C or molten zinc immersion with full container palletizing.
Send your warehouse dimensions, pallet weight specs, and yard location to receive an engineered layout and factory-direct wholesale pricing within 24 hours.
Expert engineering answers to critical inquiries raised by foreign logistics directors, structural contractors, and import agents.

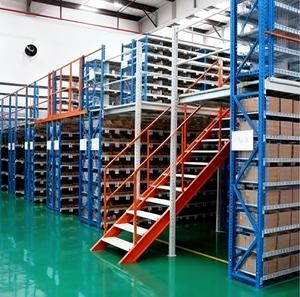

Whether you require heavy-duty outdoor selective pallet racking, weather-resistant cantilever racks, multi-tier mezzanine floors, or automated storage systems, HEDA Shelves delivers verified engineering precision, factory-direct wholesale pricing, and worldwide project support.
