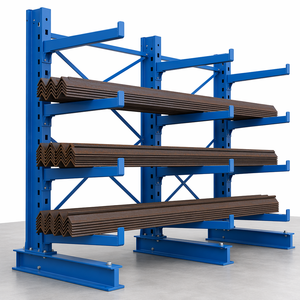

Engineered for high structural stiffness, variable arm modularity, and maximized vertical volumetric efficiency. Browse our primary factory-direct heavy-duty models below.
Cantilever racking represents the premier mechanical solution for non-palletized, long-span continuous products such as extruded aluminum, hot-rolled steel H-beams, PVC conduits, timber packs, and structural sheet panels. Unlike conventional selective pallet racks, cantilever frameworks eliminate front upright columns, establishing an uninterrupted horizontal storage plane.
When selecting and dimensioning an industrial cantilever installation, warehouse directors and structural engineers must calculate cumulative arm-deflection ratings and ground-anchorage base reactions under dynamic loading cycles:
| Component | Standard Specification | Heavy-Duty Option | Engineering Advantage |
|---|---|---|---|
| Upright Column | 200×100 to 300×100 C-Profile | Hot-Rolled H-Beam (HEA / IPE Series) | Superior moment resistance against longitudinal sway and arm-torque |
| Adjustable Arms | Straight / Tapered C-Section | Reinforced Box Section with End Stops | Taper design compensates for elastic deflection under heavy loads |
| Pitch Spacing | 100 mm / 140 mm Increments | 50 mm Precision Pitch | Adapts precisely to fluctuating profile bundle heights to eliminate dead air |
| Surface Coating | Electrostatic Epoxy Powder (70–90μm) | Hot-Dip Galvanized (ISO 1461) | Eliminates flaking; galvanization resists aggressive coastal & chemical air |
A critical engineering consideration in cantilevers is the moment distribution at the column-to-base and column-to-arm joints. Our Guangzhou manufacturing facility implements continuous submerged-arc welding on base plates alongside high-tensile 8.8 and 10.9-grade structural hardware, ensuring compliance with ANSI MH16.2 and EN 15512 codes.
Driven by global supply-chain realignments, industrial nearshoring, and rising square-meter warehouse costs, procurement authorities are shifting their technical criteria for cantilever infrastructure.

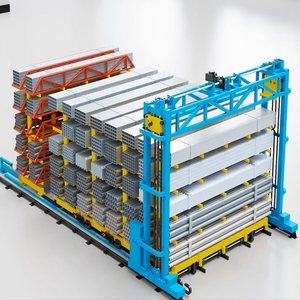

Traditional manually picked cantilever layouts are giving way to automated crane and stacker-fed systems. Buyers demand integrated arm guides and optical-sensor brackets compatible with automated transfer cars for profile extraction.
With urban industrial land commanding unprecedented leasing rates, procurement specifications are scaling upwards. Cantilever profiles are increasingly configured for 9m to 15m clear heights, paired with guided Narrow Aisle (VNA) sideloader forklifts.
Global procurement teams in regions such as Southeast Asia, Japan, and the Americas now require verified Finite Element Analysis (FEA) calculation dossiers confirming high seismic resistance under peak dynamic acceleration limits.
How state-of-the-art cold-bending lines, surface pre-treatments, and structural simulations deliver substantial operational lifespans under intense warehouse usage cycles.
Our production workflow is governed by strict ISO 9001:2015 protocol: ranging from prime structural steel coil uncoiling, multi-axis automated CNC column punching, continuous progressive roll forming, and robotic MIG welding, through to automated pickling, phosphating, and electrostatic powder curing.
Unlike third-party trade aggregators, every single cantilever upright and arm is traced back to heat-numbered raw material certification batches. This complete vertical integration prevents tolerance mismatches during on-site erection, saving contractors significant labor hours and avoiding site installation delays.
Addressing the core technical, logistical, and structural concerns raised by international logistics contractors, warehouse planners, and direct wholesale buyers.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a specialized 30,000 m² modern manufacturing hub with 300+ seasoned engineers and production specialists. With a monthly production output surpassing 30,000 tons, we eliminate intermediary markups, deliver stringent load-certified racking, and provide complete end-to-end design verification.
Whether setting up regional long-profile distribution hubs, automating pipe storage, or sourcing wholesale containers under private-label OEM terms, consult directly with our senior racking engineering specialists.
Inquire NowSubmit your profile dimensions, floor footprint, building heights, and crane/forklift models for an immediate design assessment and full bill of materials.
