High-Density VNA Warehouse Systems
Explore our heavy-duty cold-rolled steel Very Narrow Aisle systems, customizable up to 18 meters in clearance with guide rails, wire guidance, and seismic-resistant bracing.

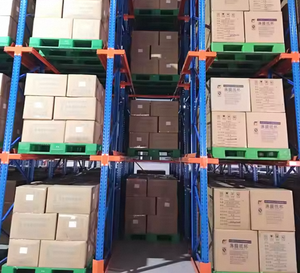

Heavy-Duty VNA Pallet Racking System Metal Adjustable Warehouse Rack

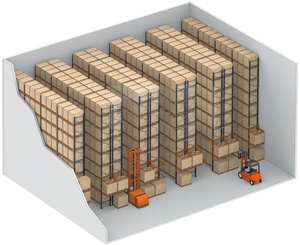

URGO Very Narrow Aisle Pallet Rack / VNA Racking System
Warehouse Storage Heavy Duty Cantilever Pallet Racking System
Narrow Aisle VNA Pallet Racking High-Density Logistics System

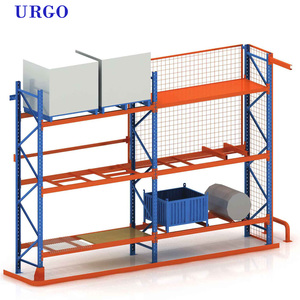

Very Narrow Aisle Pallet Rack / VNA Heavy Duty Racking System
Custom Euro Galvanized VNA Narrow Pallet Racking System
URGO High Utilization Warehouse Storage Vertical VNA Racking
High Density Heavy Duty VNA Pallet Racking (1000-3000kg/Layer)
Architectural Foundations of Very Narrow Aisle Racking
A rigorous engineering analysis of aisle spatial calculations, floor flatness tolerances according to DIN 15185 / TR34, and guidance mechanism selection.
1. Spatial Compression & Volumetric Utilization Economics
In standard Selective Pallet Racking (APR), operating aisles typically range from 3,200 mm to 3,800 mm to accommodate conventional counterbalance or reach forklifts. Very Narrow Aisle (VNA) architecture contracts these operative clearance tracks to between 1,500 mm and 1,800 mm. By capturing this redundant horizontal circulation space and directing storage vertically (often exceeding 15 to 18 meters), VNA systems unlock up to 85% volumetric cubic capacity while preserving 100% individual pallet selectivity.
| Storage System Classification | Operative Aisle Width | Direct Selectivity | Floor Area Efficiency | Clear Height Potential | Handling Unit Speed |
|---|---|---|---|---|---|
| Standard Selective Racking (APR) | 3,200 – 3,800 mm | 100% Direct | 35% – 42% | Up to 11.0 m | Moderate / Variable |
| Very Narrow Aisle (VNA) | 1,500 – 1,800 mm | 100% Direct | 65% – 85% | Up to 18.0 m | High (Guided Track) |
| Double Deep Pallet Racking | 2,800 – 3,200 mm | 50% (FILO Secondary) | 50% – 58% | Up to 12.0 m | Lower (Stock Reshuffle) |
| Radio Shuttle Cart Racking | Shared Transfer Aisles | Channel Selective | 70% – 80% | Up to 16.0 m | High (Bulk Batches) |
2. Floor Flatness Tolerances & Guide Tracking Dynamics
Because VNA turret trucks lift full pallet loads of 1,000–1,500 kg to elevations up to 18 meters, even minor millimetric deviations in concrete floor slab inclination translate into severe mast sway at maximum reach. Structural installations must adhere strictly to DIN 15185 or TR34 (Class Fmin / Superflat) specifications.
Mechanical Profile Steel Guide Rails
Comprises continuous heavy structural angle steel (L100x75x8 or L125x80x10) or C-channel profiles mechanically anchored to the concrete slab along the rack baselines.
- Physical Impact Absorption: Shields bottom upright sections against accidental steering impact.
- Zero Electronics: Immune to power cut-offs or slab magnetic interference.
- Entry Run-in Horns: Flared entry guide blocks expedite high-speed truck positioning.
- Recommended Floor Type: Standard industrial slabs undergoing retrospective VNA retrofit.
Inductive Low-Frequency Wire Guidance
Utilizes a copper low-frequency signal line embedded within a 15mm-deep floor saw cut down the aisle center, tracked by electromagnetic sensors on the vehicle chassis.
- Zero Floor Obstruction: Floor remains completely flush, allowing easy manual cleaning and cross-aisle foot traffic.
- Lower Bottom Beam Levels: Pallets on the bottom level can sit directly on the floor without clearing angle iron.
- Reduced Wear: Eliminates continuous friction between truck guide rollers and steel profiles.
- Recommended Floor Type: Superflat new-pour industrial slabs (DIN 15185 certified).
Emerging Procurement & Technological Trends in VNA
How automation integration, structural telematics, and cross-border engineering modularity are redefining very narrow aisle logistics procurement globally.
Driverless VNA-AGV Transition
Global fulfillment centers are shifting from human-operated trilateral turret trucks to Autonomous Mobile Robot (AMR) and AGV narrow-aisle stackers. Modern VNA upright profiles now incorporate laser retro-reflector targets and QR code matrix indexing to enable millimetric automated positioning.
Total Real-Estate Cost Hedging
With industrial land leasing rates across Southeast Asia, North America, and Europe rising by 18-32% since 2022, 3PL and cold chain operators favor vertical VNA over horizontal warehouse footprint expansion, capturing an immediate 40% reduction in long-term lease liabilities.
IoT Structural Strain Telematics
Next-generation VNA installations integrate piezoelectric load cells and dynamic vibration sensors on baseplates and portal tie beams. Facility managers receive real-time structural warnings regarding beam deflection or localized mast impact events via cloud telemetry.
Thermal Energy-Optimized Cold Chains
VNA cold storage installations utilize hot-dip galvanized finishes and pre-engineered airflow corridors. Condensing the aisle footprint directly diminishes the refrigerated cubic volume requiring sub-zero chilling, slashing facility HVAC power consumption by 22% annually.
Why International EPCs & 3PL Operators Partner with HEDA Shelves
Founded in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. delivers single-source structural engineering, state-of-the-art cold-bending manufacturing, and global project delivery.
End-to-End In-House Manufacturing Verification
To guarantee beam deflection within L/200 and vertical upright plumbness under maximum live static loading, our Guangzhou factory operates under a closed-loop 10-stage quality control process.
Raw Steel Assay
Certified Q235B / Q355B coils with spectrographic chemical testing.
Precision CNC Slitting
High-tolerance uncoiling, decoiling, and millimetric edge trimming.
Multi-Die Punching
Automated CNC punching of 50mm / 75mm pitch upright profiles.
Continuous Roll Forming
Continuous 24-station rolling stands form Omega upright sections.
Dual-C Profile Seaming
Interlocking automated seam welding for high-torsion box beams.
Robotic Connector Welds
Automated MIG welding of 3-, 4-, or 5-claw beam connector heads.
Chemical Pre-treatment
8-stage pickling, hot rinsing, and zinc phosphating degreasing wash.
Electrostatic Coating
Nordson automated powder spray booths with RoHS-compliant resins.
Thermal Curing Tunnel
200°C polymerized polymer cross-linking for corrosion durability.
Container Consolidation
Steel banded strapping, protective PE wraps, and CAD packing maps.
Frequently Asked Questions in VNA System Procurement
Technical, logistical, and structural answers curated by HEDA Shelves' chief project engineers to de-risk high-bay racking investments.
What are the minimum floor slab tolerances required before erecting a 12m–18m VNA racking installation?
How do you calculate structural safety in seismic zones (e.g., Philippines, Indonesia, Japan, Chile)?
Mechanical profile guide rails vs. Inductive wire guidance: Which system is more cost-effective?
What certifications and compliance documents are supplied for export clearance and local municipal permits?
How does HEDA handle international container consolidation and freight cost optimization?
What is the standard production lead time and installation support provided overseas?
Request a Tailored VNA Warehouse Layout & Static Load Calculation
Collaborate directly with our Guangzhou structural engineering team. Receive an optimized 2D/3D CAD warehouse layout, pallet position count, structural steel weight estimation, and ex-factory quotation within 24 to 48 hours.
- Warehouse floor dimensions & clear height
- Pallet dimensions & maximum weight
- Turret truck / Forklift technical cut-sheet
- Seismic zone & floor slab parameters
Click below to open direct live technical chat or project intake with our structural design desk:
Contact UsGuangzhou Heda Shelves Co., Ltd. • Response within 24 business hours
