High-Efficiency Pallet Racking & High-Density Storage Lineup
Manufactured using Q235B/Q355B certified steel with continuous cold-roll forming, automated multi-point punching, and corrosion-resistant phosphating powder finishes tailored for worldwide logistics hubs.
Heavy-Duty Warehouse Storage Shelf Rack (2,000–2,500kg)
- Capacity: 2000kg - 2500kg / beam tier
- Structure: Tear-drop or 75mm pitch connection
- Finish: Electrostatic thermo-hardening epoxy

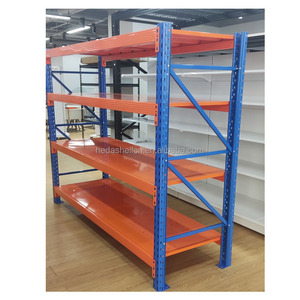

Long Span 4-Layer Industrial Metal Storage Shelves (200kg)
- Capacity: 200kg - 500kg UDL per level
- Decking: Cold rolled steel decking or timber
- Assembly: 100% boltless snap-in interlocking
High Density Gravity Roller Pallet Flow Racking System
- Throughput: Continuous gravity FIFO roll
- Control: Speed controllers & end-stop brakes
- Aisle Reduction: Cuts travel aisles by up to 65%
Double Deep Heavy-Duty Selective Pallet Racking
- Accessibility: Double-reach telescopic capability
- Configuration: Upright columns up to 12 meters
- Safety: Drop-locking spring-loaded safety pins
5-Layer Stainless Steel Boltless Pallet Rack with Anti-Corrosion
- Material: SS304/SS316 food-grade metallurgy
- Application: Cold storage, cleanrooms, chemicals
- Protection: High acidic and moisture resilience
Heavy Duty Radio Pallet Shuttle High-Density System
- Automation: Wireless RF remote vehicle transfer
- Mode: Flexible FIFO & LIFO logic execution
- Density: Lane depths up to 40+ pallets deep
Light-Duty Modular Adjustable Steel Storage Shelving
- Flexibility: 50mm pitch adjustable beam levels
- Usage: E-commerce fulfillment, archives, parts
- Setup: No specialized tooling required
Omnistorage Mini High-Speed 3D Intelligent Warehousing AS/RS
- Technology: High-speed automated stacker crane
- Software: Direct WMS / ERP system integration
- Footprint: Up to 85% floor footprint reclamation
Engineering Integrity: Structural Mechanics & Steel Traceability
In modern industrial storage design, structural failure is never an option. As a tier-one China top pallet storage system manufacturer, our manufacturing methodologies are governed by empirical structural load modeling, finite element analysis (FEA), and strict compliance with European RMI/FEM 10.2.02 and EN 15512 specifications. Unlike generic trading brokers, our factory controls the entire metallurgical value chain directly from the prime billet.
We source cold-rolled coils primarily classified under certified Q235B and Q355B structural steel grades. Through automated precision continuous cold roll-forming lines, the profiles achieve exceptional yield point resistance, mitigating both horizontal shearing forces and vertical beam deflection under non-uniform distribution loads (UDL). Every profile is punch-cut on automated CNC lines, ensuring the tightest tolerance tolerances along the entire vertical height of upright frames up to 12 meters in a single continuous section.
Continuous Roll-Forming
Multi-station roller banks gradually shape column cross-sections without inducing micro-stress fractures, ensuring upright profiles retain higher structural rigidity under seismic load stress.
Phosphate Pre-Treatment
Every fabricated element passes an automated chemical pickling and phosphating pre-treatment bath to completely strip mill scale and oxidation before electrostatic powder baking.
Certified Robotic Welding
Beam connectors and structural base plates are welded utilizing multi-axis Panasonic robotic stations, eliminating human fatigue variance and guaranteeing penetration uniformity across all welds.
Future Procurement Trends in Industrial Storage (2025–2030)
Global logistics directors and engineering consultants are radically shifting how warehouse racking assets are specified, sourced, and integrated. Explore the primary strategic vectors shaping upcoming procurement cycles.
| Procurement Vector | Legacy Practice | Emerging Paradigm (2025+) | Operational ROI Impact |
|---|---|---|---|
| Automation Compatibility | Static standard selective pallet racking | AS/RS and 4-Way Radio Shuttle ready channels | +250% storage capacity; 70% decrease in manual forklift strikes |
| Seismic & Environmental Codes | Generic regional load tables | Site-specific finite element calculation reports | Full international code compliance (IBC, Eurocode, AS4084) |
| Anti-Corrosive Finishes | Standard single-coat wet spraying | RoHS-compliant electrostatic epoxy + hot-dip galvanizing | Zero corrosion breakdown in cold chain and tropical monsoon sites |
| Supply Chain Integration | Catalog purchases from local middlemen | Direct factory CAD/3D modeling & OEM customization | 30-40% CapEx reduction on initial structural deployment |
Trend 1: Micro-Fulfillment & 3D Vertical Density
Urban real estate acquisition costs in metropolitan commerce corridors require warehouses to move upwards. Procurement has shifted towards 4-tier rack-supported mezzanine platforms and mini-load AS/RS systems that double working cubic storage while maintaining high pick throughput.
Trend 2: Rigorous Cold-Chain Resiliency
With global cold chain volumes growing rapidly, refrigerated facilities require storage configurations like radio shuttle and gravity flow racks that maximize cold chamber cubic meter utility, vastly reducing the operational energy consumed per refrigerated pallet.
Trend 3: Smart Sensor & Deflection Monitoring
Tier-one racking installations are increasingly integrated with real-time strain-gauge telemetry and deflection monitors that alert logistics managers to structural beam overload or structural forklift collision before mechanical failures occur.
Why Enterprise Buyers Trust Guangzhou Heda Shelves
Combining 25 years of domestic manufacturing leadership with international supply chain agility to provide turnkey, scalable warehouse storage infrastructure.
Established Proven Pedigree
Founded in 2001 in Guangzhou, HEDA Shelves has completed over 10,000 warehouse projects across 120+ sovereign nations, engineering tailored storage solutions for retail, pharma, and global 3PL operators.
Free 2D CAD & 3D Modeling
Our senior warehouse engineers deliver structural calculation reports, 2D floor plans, and comprehensive 3D visual renderings within 24–48 hours without upfront consulting commitments.
Certified Conformity (CE & ISO)
Our manufacturing and quality assurance frameworks maintain verified accreditation: CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and strict RoHS eco-compliance.
Complete OEM / ODM Services
We serve major multinational racking brands, equipment distributors, and system contractors with custom column sections, specialized paint finishes, private branding, and dedicated container packing plans.
South China Port Proximity
Located near major ocean export hubs in Guangzhou and Shenzhen, we optimize freight lead times to Southeast Asia, the Middle East, Europe, and the Americas with precision modular container staging.
Turnkey Installation Support
Every system includes engineered 3D piece-marked erection drawings, detailed video assembly guides, and optional on-site dispatch of project engineers to oversee local rigging teams.
10-Step Precision Quality Engineering Lifecycle
From initial coil testing to pre-assembly test-fitting, our production line follows strict traceability checks to verify that every upright, beam, and connector meets structural tolerances.
Steel Sourcing & Punching
Mill-certified high-tensile steel coils undergo continuous CNC mechanical punching, cutting, and laser profiling to verify 75mm/50mm pitch accuracy across beam lock connection holes.
Cold Bending & Roll Forming
Automated rolling stands shape closed box-beams and complex multi-flange upright omega sections, maximizing moment of inertia while maintaining precise profile dimensions.
Welding & Surface Treatment
Multi-axis robots weld heavy beam connector claws, followed by full immersion degreasing, ultrasonic pickling, and chemical zinc-phosphating to eliminate subsurface oxidation.
Powder Coating & QC Audit
Electrostatic powder coating baked at 180°C–200°C produces high impact resistance. Every batch is sample load-tested and bundled with specialized protective packaging for ocean transport.
Frequently Asked Questions on Pallet Storage Procurement
Straightforward answers to the critical engineering, shipping, and technical specifications international procurement managers evaluate when importing from Chinese manufacturers.
What specific details are required to engineer a customized warehouse layout?
Our engineering team requires: (1) Warehouse architectural drawings in DWG or clear dimensional sketches indicating building columns, ceiling clear height, and dock doors; (2) Pallet dimensions (width, depth, overall load height including pallet) and maximum gross weight; (3) Forklift specifications including aisle turning radius (AST) and maximum mast lift reach; (4) Total SKU profile and target stock rotation style (FIFO vs. LIFO).
How does HEDA ensure structural safety in active seismic zones?
For installations in earthquake-prone regions (such as the Philippines, Indonesia, Japan, or the west coast of the Americas), we adjust upright steel thicknesses, widen baseplates, integrate reinforced back bracing frameworks, and utilize heavy chemical anchor bolts. We run site-specific seismic simulation checks compliant with international building codes.
What is the standard production and shipping lead time for volume orders?
Standard fabrication cycles range between 15 to 25 working days depending on order tonnage and whether special paint colors or custom roll-formed profiles are requested. Transit times from Guangzhou/Shenzhen ports typically range from 7–14 days to Southeast Asia, 18–25 days to the Middle East, and 28–38 days to North America and Europe.
Can your systems be customized for sub-zero cold room environments?
Yes. For cold storage facilities operating between 0°C and -30°C, ordinary powder paints can develop micro-cracking and standard steel may experience cold embrittlement. We supply specially alloyed low-temperature steels, hot-dip galvanized finishes with zinc thicknesses exceeding 60–80 microns, or high-grade stainless steel (SS304/316) configurations.
What documents are provided for customs clearance and engineering sign-off?
Every commercial export consignment is backed with full documentation: Bill of Lading, detailed packing list with piece-level tracking, commercial invoice, Certificate of Origin (CO / Form E / Form F for tariff reductions), CE compliance certificates, ISO 9001 quality certificates, raw steel mill test certificates (MTC), and stamped structural calculation sheets.
How are damaged components handled after international shipment?
All upright columns and heavy beams are bundled using protective corrugated wrap, plastic strapping, and corner guards to prevent maritime transit friction. Furthermore, we include spare connectors, safety lock pins, and essential hardware with every container, and offer immediate air-freight replacement for any transit-damaged structural components.
Transform Your Warehouse Density & Throughput Today
Connect directly with our senior structural engineers in Guangzhou. Receive a tailored 2D CAD floor plan, 3D spatial rendering, and complete structural load quote within 24 hours.
