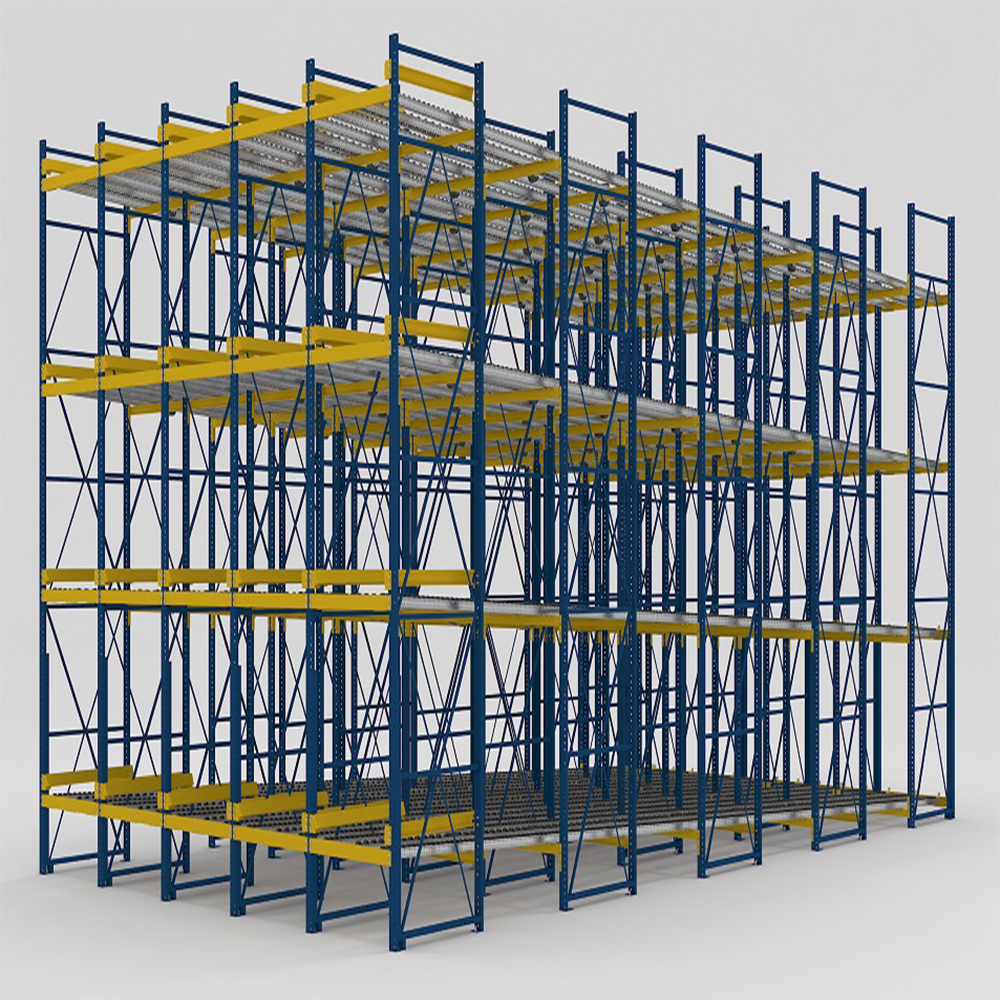

Warehouse High Density Gravity Roller Pallet Flow Rack
Product Description
Specification
| Item | Heavy Duty Pallet Flow Racking |
| Style | FIFO Racking System |
| Material | Grade Q235/Q345 |
| Certification | ISO9001 |
| Standard Color | Blue(RAL5017), Orange(RAL2004), Green(RAL6000), Light Grey (RAL7035), Yellow(RAL1037) |
| Access Style | High Accessibility & Selectivity |
| Adjustable Pitch | 50mm, 50.8mm, 75mm, 76.2mm |
| Finishing | Powder Coated Or Galvanized |
| Application Environment | Normal Temperature Or Freezer |
| Back-up Service | Installation Drawing / On Site Instruction |
| Design Service | Free CAD Service Available |
| Lead Time | 3 Weeks for 2*40' Container |
| Standard Package | Palletized, Export-Purpose Packaging |
| Container Load | 10-15 tons / 1*20' container, 20-25 tons / 1*40' container |
| Trade Term | EXW / FOB / CNF / CIF |
Company Profile
Customer Photos
Our Advantages
Packing & Delivery
Frequently Asked Questions
Q: How does a FIFO Heavy Duty Pallet Flow Racking system work?

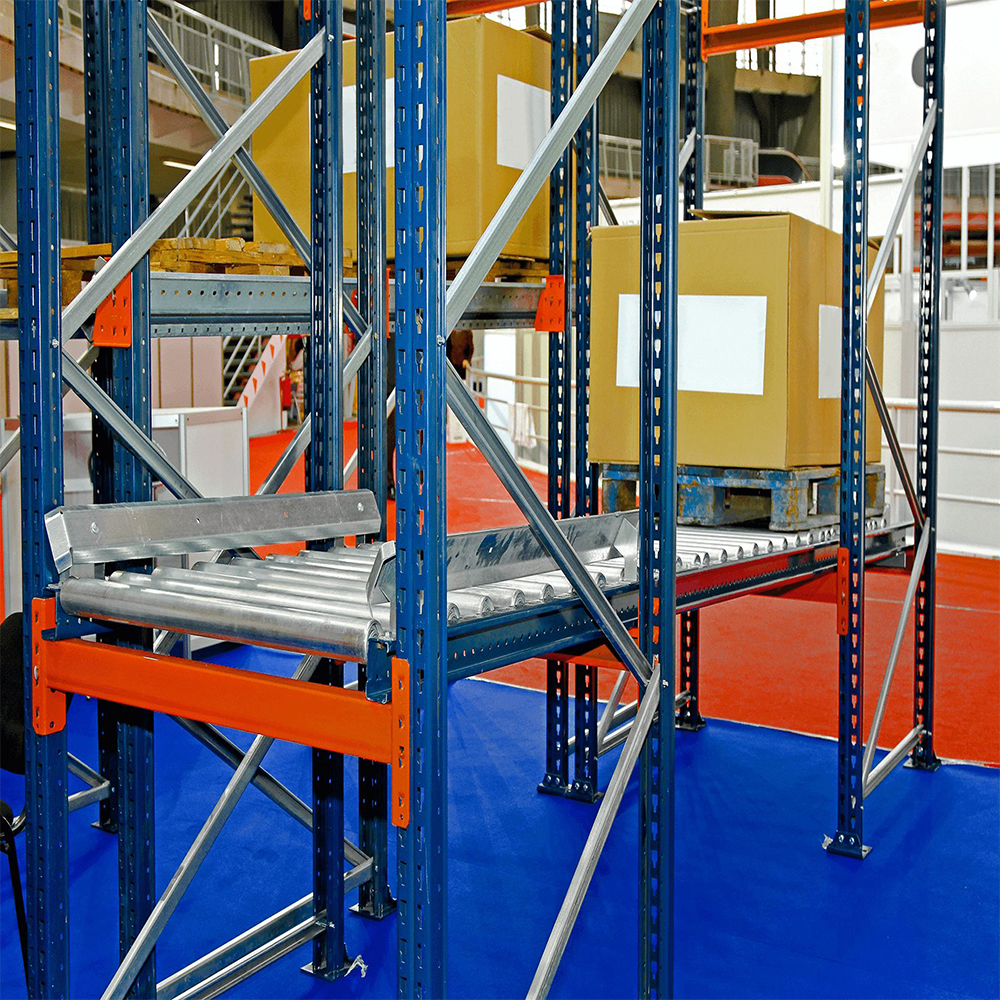

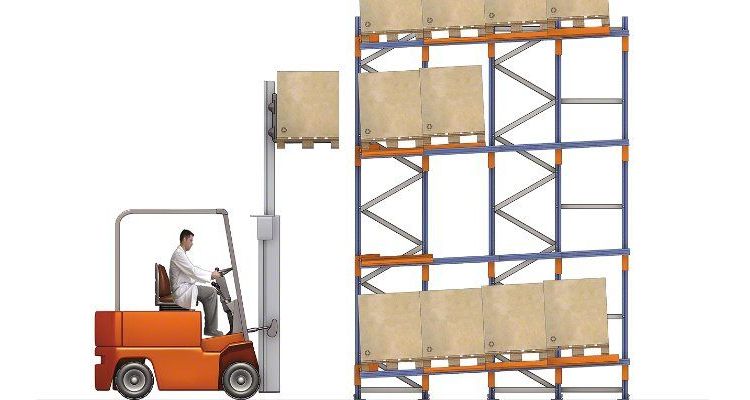

A: Pallet Flow Racking operates on a First-In, First-Out (FIFO) principle. Pallets are loaded from the higher end of slightly inclined roller tracks and glide safely down by gravity toward the picking face at a controlled speed.
Q: Can this racking system be implemented in cold storage or freezer conditions?
A: Yes. Our systems are engineered using high-grade Q235/Q345 steel with durable powder-coated or galvanized surface finishes suitable for ambient temperature warehouses as well as freezer environments.
Q: Do you offer customized layout designs and CAD drawing support?
A: Yes, we provide free professional CAD layout and engineering design services tailored specifically to your facility's architectural dimensions, pallet sizes, and load requirements.
Q: What is the typical lead time for manufacturing and delivery?
A: The standard production lead time is approximately 3 weeks for two 40-foot containers. Delivery schedules can be coordinated according to chosen trade terms (EXW, FOB, CNF, or CIF).
Q: What installation support is provided after delivery?
A: Every project includes detailed step-by-step structural installation drawings. On-site technical guidance or engineer instruction is also available depending on project requirements.
