Custom-engineered racking assemblies manufactured under ISO 9001:2015 and CE EN15512 safety compliances, tailored for fast-moving enterprise supply chains.
An authoritative breakdown of mechanical calculations, load distribution principles, and aisle-to-density ratio optimization for high-capacity warehouse planners.

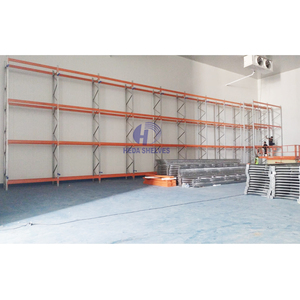

Double deep racking positions pallet loads two deep in back-to-back configurations, eliminating up to 50% of the working aisles required by standard selective layouts. By transitioning to a pantograph or sliding-fork panty-truck system, logistics centers achieve up to 60-65% higher warehouse volumetric storage efficiency while retaining direct access to 50% of immediate SKUs.
Because secondary loads are held at an extended reach, horizontal torsional moments and deflection criteria strictly govern beam fabrication. Our engineering models specify beam deflection tolerances at L/200 according to international FEM 10.2.02 standards, preventing joint distortion and beam dislodgement under dynamic telescopic mast cycles.
Uprights are cold-roll-formed from high-tensile certified structural grade Q235B and Q355B coil stock. Multi-bend Omega profile columns distribute perpendicular seismic loads and axial compression uniformly down to oversized anchor baseplates, delivering robust safety performance across earthquake-prone Pacific Rim territories.
Strategic analysis for enterprise supply chain leaders sourcing warehouse infrastructure through 2026–2030.
Traditional deep-reach forklift systems are increasingly converging with automated radio shuttles. Pallet carrier modules reduce reach-truck mast strain, increase retrieval speed in double-deep channels, and eliminate operator entry risks.
With global cold chain construction accelerating for biologicals and fresh foods, cubic refrigeration costs dictate layout density. Double deep and high-density shuttle racking maximize pallet yield per kilowatt-hour of cooling power.
Procurement specifications now frequently mandate strain-gauge safety nodes and laser-guided visual positioning strips, enabling warehouse management systems (WMS) to detect beam overloading and collision damage in real time.
Global carbon border tariffs drive factories toward lead-free, low-VOC electrostatic epoxy powders cured at optimized kiln cycles, backed by closed-circuit chemical recovery that complies with environmental RoHS and REACH mandates.
Guangzhou Heda Shelves Co., Ltd. operates a specialized 30,000 square meter intelligent fabrication base equipped with fully automated continuous roll-forming lines, computerized multi-station punching presses, precision robotic welding clusters, and enclosed electrostatic powder coating tunnels.
With an annual processing capacity exceeding 30,000 tons of high-grade structural steel, our factory provides direct supply chain visibility without middlemen markups. Every custom project receives bespoke finite element analysis (FEA), comprehensive load testing reports, and custom shipping palletization calculated to minimize container cubic waste.
Certified Quality System: CE Certification No. 2435-CPR-8605159 | ISO 9001:2015 Management Reg. No. 18624Q00169R0M | EN 15512 Racking Structural Conformance.
In-depth responses covering design criteria, structural parameters, reach-truck requirements, and import compliance.
Connect directly with our senior structural racking engineers. Receive full 2D CAD plans, 3D renderings, and certified load-bearing estimates customized for your facility layout within 24 hours.
