High-Yield Commercial & Industrial Storage Solutions
Explore heavy-duty warehouse pallet racks, modular retail store gondolas, high-density flow tracks, and NSF-certified wire display shelves direct from our Guangzhou manufacturing facility.
1,000–5,000 kg / Tier

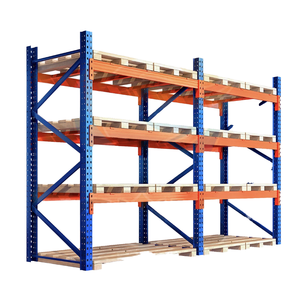

Mracking Heavy-Duty Warehouse & Supermarket Hybrid Shelving
Integrated multi-bay storage system combining high-volume overhead bulk pallet racking with lower-tier cash-and-carry retail display tiers.
Perforated Backboard
American Style Double-Sided Gondola Retail Shelving
Commercial perforated metal pegboard shelving with multi-angle brackets, high-tensile upright pillars, and reinforced foot supports.
Costco Style Hybrid
Custom Member Club Heavy-Duty Black Gondola Shelving
Matte black architectural aesthetic engineered for membership hypermarkets; features modular base shelves with top-tier live storage frames.
NSF Sanctioned
NSF Commercial Heavy-Duty Welded Wire Tier Shelving
Ultra-clean, open-truss wire shelving that maximizes light distribution and HVAC ventilation; certified for cold stores and food displays.
Steel-Wood Hybrid

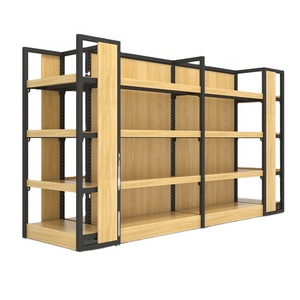

Runda Modular Steel-Wood Premium Retail Gondola System
Architectural wood-grain timber integrated with heavy-gauge tubular steel skeletons for organic food retailers, boutique marts, and wine cellars.
High-Density Stacking
Cosmetics & Pharmacy Modular Stacking Storage Display
Narrow-aisle precision shelving system with pull-out drawer dividers, magnetic categorization strips, and shatterproof tempered glass shelving.
Dynamic FIFO
Movotec MTG100 Dynamic Gravity Roller Flow Racking
First-In First-Out (FIFO) gravity-powered pallet flow tracks equipped with speed controller rollers, heavy-duty guide entries, and end brakes.
100% Pallet Access

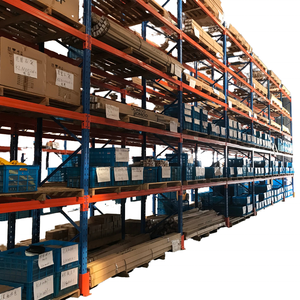

Selective Pallet Racking with Dual-Coated Corrosion Shield
The international standard for industrial distribution centers: teardrop/hex upright geometry, heavy boxed step beams, and seismic footplates.
Structural Engineering Authority & In-House Quality Assurance
Commercial shelving and heavy industrial racking safety depends entirely on steel grade consistency, roll-forming tolerance, and chemical pre-treatment integrity. Our manufacturing infrastructure in Guangzhou completely integrates roll-forming, automatic laser punching, and electrostatic thermoset polymer coating under one ISO 9001 certified roof.
Our Proprietary 10-Stage High-Yield Manufacturing Protocol
Raw Steel Testing
Spectrographic analysis of prime Q235B and Q355B coils to guarantee yield strength ≥ 235–355 MPa.
CNC Slitting
Continuous-feed high-speed slitting lines cut coil stock to micron tolerances with zero edge burring.
Automated Punching
Continuous multi-station CNC presses punch 50mm, 75mm, or teardrop pitch patterns with 0.1mm accuracy.
Cold Roll-Forming
18-pass dedicated cold roll mills produce stiffened Omega (Ω) profiles with engineered multi-rib returns.
Precision Beam Forming
Twin interlocking C-sections seam-welded to create heavy-duty box step beams resisting lateral torque.
Robotic MIG Welding
Multi-axis OTC robotic welding cells fuse beam connectors with deep penetration and zero weld spatter.
Chemical Pickling
Complete submersion in automated acid baths cleans all mill scale, oils, and environmental residues.
Zinc Phosphating
Multi-stage passivation micro-etches steel pores, ensuring 500+ hour salt-spray corrosion resistance.
Powder Coating
Swiss Gema electrostatic guns deposit 60–80μm dry film thermosetting polymer baked at 200°C.
QC Load Validation
Full destructive deflection testing to EN 15512 safety limit states prior to palletizing and export wrap.
Commercial Rack & Shelving Technical Selection Guide
B2B procurement teams must assess physical deflection indices ($L/200$ to $L/250$), seismic baseline shear values, and aisle space requirements before placing commercial orders.
| Storage Architecture | Typical Steel Grade | Standard Load Envelope | Deflection Limit State | Aisle Width (AST) Required | Best Industry Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Q235B / Q355B Hot-Rolled CFS | 1,000 – 4,500 kg / level | $L / 200$ under full load | 3,000 – 3,800 mm (Counterbalance) | FMCG, 3PL Distribution, Raw Logistics |
| Drive-In / Drive-Through | Q355B Heavy Structural Channel | 800 – 1,800 kg / pallet | $L / 250$ on cantilever rail | Direct truck entry (Single lane) | Cold Storage, Beverage, Seasonal Stock |
| Multi-Tier Mezzanine Floors | Q235B / Heavy I-Beam Steel | 300 – 1,200 kg / m² floor | $L / 300$ for human ergonomics | Manual picking aisles (900–1,200 mm) | E-commerce fulfillment, Auto Parts, Garments |
| Supermarket Gondola Systems | SPCC Cold-Rolled Carbon Sheet | 60 – 200 kg / cantilever shelf | $L / 180$ cosmetic deflection | 1,200 – 1,800 mm shopping carts | Hypermarkets, Retail Pharmacies, Hardware |
| Dynamic Pallet Flow Racks | Q235B Box Beam + Galvanized Rollers | 500 – 1,500 kg / pallet | 2.5% to 3.5% gravity grade slope | Separate load & unload aisles | Pharmaceutical FIFO, Dairy, Perishables |
Engineering Note on Cold-Formed Steel Thickness: International structural standards (AISI S100 and EN 1993-1-3) dictate that load ratings are governed by minimum design base steel thickness (exclusive of coating). We supply third-party ultrasonic thickness gauge verification reports and Mill Test Certificates (MTC conforming to EN 10204 Type 3.1) with every consignment to protect buyers against non-conforming, under-gauged imports.
Macro Procurement Trends Reshaping Commercial Racking (2025–2030)
Procurement directors and warehouse project engineers are navigating three decisive structural shifts: automation interoperability, environmental carbon regulations, and modular resilience.
1. Interoperability with AMR & Automated Shuttles
Traditional static racking is declining in modern warehouse specifications. Tier-1 buyers demand racking configurations ready for automated four-way radio shuttles and Autonomous Mobile Robots (AMRs).
- Floor run-out tolerance reduced to $\pm 1.5\text{mm}$ across bays.
- Reinforced bottom guidance curbs and optical retro-reflective target fixtures.
- Shuttle channel integration allowing up to 90% cubic volume utilization.
2. Green Steel & Zero-VOC Compliance
European and American carbon border taxes (such as CBAM) are making low-emission manufacturing mandatory. Sustainable procurement protocols penalize toxic solvent finishes.
- Zinc phosphate bath substitution with nano-ceramic silane conversion coatings.
- Thermoset epoxy powders free of heavy metals and compliant with RoHS/REACH.
- Closed-loop wastewater purification and recycling throughout production.
3. Hybridized Omnichannel Micro-Hubs
Retail real estate costs are forcing supermarkets and department stores to convert back-of-store facilities into automated or semi-automated rapid delivery micro-fulfillment stations.
- Dual-purpose profiles: decorative retail front, heavy-duty rear storage.
- Tool-less boltless click-in assemblies for swift seasonal layout resets.
- Multi-tier picking platforms built directly over active retail floor areas.
Why International EPCs & Direct Importers Source From Us
With more than 20 years of continuous international export, we combine certified European structural calculation models with direct South China port access.
Full In-House Engineering
Free preliminary 2D CAD engineering layouts and realistic 3D spatial renders delivered within 24 to 48 hours based on your exact warehouse footprint and forklift mast heights.
Seismic Design Verification
Custom structural calculations tailored to regional seismic zones (PGA factors) across Indonesia, the Philippines, Japan, and the Middle East, ensuring local building permit approvals.
Direct Coastal Shipping
Shipments depart directly via Guangzhou and Shenzhen ports. We provide optimized 3D container stuffing calculations that increase container volume utilization by up to 18%.
Rigorous Certifications
Full production certified under CE (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 (Certificate No. 18624Q00169R0M), alongside verified RoHS-compliant surface coatings.
Critical Sourcing & Engineering Questions Answered
Key technical details that commercial procurement directors, logistics engineers, and warehouse operations managers review before issuing formal RFQs.
How can buyers prevent steel gauge cheating during factory procurement?
Always stipulate the base steel thickness (BMT) rather than the nominal total coated thickness (TCT) on purchase agreements. Some budget factories use 1.7mm steel and add 0.3mm of thick powder paint to masquerade as 2.0mm structural stock. We supply verified raw Mill Test Certificates (MTC) and allow pre-shipment ultrasonic wall testing on all upright profiles and beams.
What is the difference between 50mm, 75mm, and teardrop pitch patterns?
Teardrop punching is standard across North American distribution networks, allowing universal cross-brand beam compatibility. The 50mm pitch is dominant across European and Australian projects complying with FEM/AS standards, offering finer vertical level adjustment to optimize clearance. The 75mm pitch pattern delivers high section modulus values for heavy industrial storage loads in excess of 4,000 kg per level.
What concrete slab specifications are required for heavy-duty racking?
For standard selective pallet racks up to 8 meters tall, concrete slabs must provide at least 150mm to 200mm thickness with minimum compressive strength of $C20/25$ to $C30/37$ ($3,000\text{ to }4,000\text{ PSI}$). Higher AS/RS and narrow-aisle installations require $F_F / F_L$ floor flatness ratings in accordance with DIN 18202 or ACI 117 to prevent mast sway and anchor pull-out failure.
How do you protect exported racking against tropical ocean freight corrosion?
Maritime transport exposes steel to high humidity and salt atmospheres. In addition to our 9-stage phosphate acid pre-treatment and 200°C electrostatic powder cure, components are bundled with moisture-wicking film, corrugated edge protectors, and vapor corrosion inhibiting (VCI) desiccant packs inside sealed 40ft HQ containers to prevent galvanic moisture staining.
What engineering deliverables are provided prior to commercial PO sign-off?
Before PO signing and initial deposit, our engineering team supplies full AutoCAD layout drawings, clear-height calculation profiles, pallet orientation plans, forklift turning radius cross-checks, load table specifications, and 3D architectural renders. On request, we provide formal structural calculation packages for local municipal building permits.
Can you manufacture custom retail gondolas matching existing store fixtures?
Yes. Our custom OEM and ODM sheet-metal division produces shelving matching custom RAL color swatches, non-standard column perforations (including European Tegometall and American Lozier styles), specific wire shelf configurations, and integrated LED under-shelf lighting raceways to maintain brand identity across multi-location retail chains.
