High-Density Heavy-Duty Racking & Industrial Storage Series
Manufactured strictly from certified Q235B and Q355B cold-rolled structural steel, optimized for load safety under EN 15512, RMI, and FEM specifications.

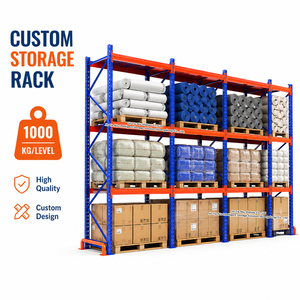

1000KG Warehouse Heavy Duty Pallet Rack Adjustable Storage Racking System Factory Direct
- Rated Capacity:1,000 – 4,500 kg / level
- Pitch Adjustability:50mm / 75mm pattern
- Profile Material:Certified Q235B Cold Steel

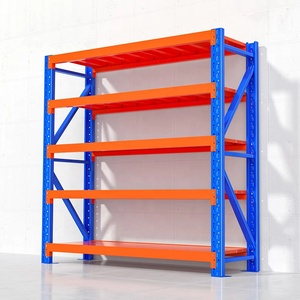

Low Price Racking Adjustable Metal Boltless Shelf and Racks Warehouse Storage Medium Duty Metal Rack Shelf
- Rated Capacity:200 – 500 kg / shelf tier
- Fastener System:100% Interlocking Boltless
- Surface Tech:Phosphatized Powder Coat

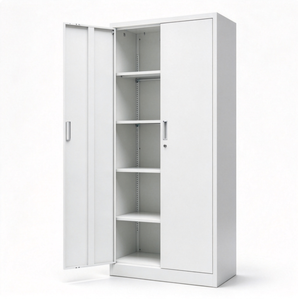

Commercial Heavy Duty Locking Metal Storage Cabinet with Adjustable Shelves and Double Doors
- Locking Mechanism:3-Point Cam Rod Lock
- Sheet Thickness:0.8mm – 1.2mm SPCC
- Shelf Flexibility:4 Adjustable Tiers
1000kg Warehouse Rack System with High Density Layout
- Space Utilization:Up to 85% Volumetric
- System Compat:VNA, Drive-In, Shuttle
- Structural Safety:FEM 10.2.02 Validated
Industrial Powder Coated Steel Stacking Storage Rack & Portable Post Stillage Pallet
- Stacking Dynamic:3 to 5 Tiers High
- Load Per Stillage:1,200 – 2,000 kg
- Mobility Factor:Forklift 4-Way Entry
Heavy Duty Sheet Metal Drawer Type Storage System with Roll-Out Die Racking
- Extraction Ratio:100% Full Extension
- Drawer Capacity:1,000 – 3,000 kg / level
- Safety Latches:Auto-Locking Interlock

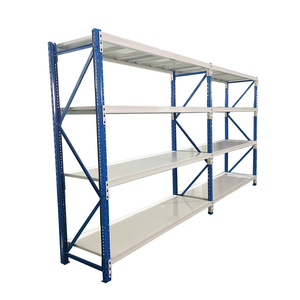

Middle Duty Longspan Style Selections Shelf & Multi-Tier Hand Picking System
- Payload Range:300 – 800 kg / level
- Decking Option:Steel Panel / Wire / Plywood
- Application:E-Commerce Picking / Parts

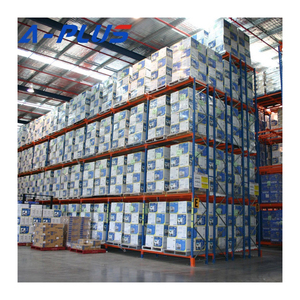

Warehouse High Density Metal Steel Pallet Rack Customize Double Deep Racking System
- Aisle Elimination:Reduces Aisles by 50%
- Storage Gain:+60% Over Standard Selective
- Handling Unit:Pantograph Reach Truck
High-Density Racking Architectures: Comparative Structural Dynamics
Industrial warehousing across global logistics corridors faces unprecedented challenges: escalating land acquisition costs, severe construction labor bottlenecks, and higher throughput velocities demanded by omnichannel fulfillment. In response, modern supply chains are moving decisively away from standard selective pallet racks toward engineered high-density storage systems. As an OEM/ODM manufacturing leader based in Guangzhou with over two decades of metallurgical and structural fabrication authority, Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) provides direct-from-factory insight into selecting, calculating, and deploying high-density storage solutions.
A high-density racking installation fundamentally alters the ratio of storage space to transit space. In conventional selective pallet racking setups, working aisles consume 60% to 68% of the total warehouse floor footprint, resulting in a net volumetric utilization often below 35%. High-density configurations—including Radio Shuttle Racking, Drive-In/Drive-Thru Racking, Gravity Pallet Flow, Push-Back Carts, and Double-Deep Racks—eliminate up to 80% of unnecessary access aisles. By condensing storage blocks into contiguous multi-tier lanes, operators can increase pallet capacity between 60% and 220% without expanding building foundations.
Radio Shuttle Pallet Racking
Utilizes self-powered semi-automated robotic shuttle carts traversing deep-lane galvanised tracks. Forklifts never enter the rack interior; instead, the shuttle executes precision horizontal transfers via RF control or WMS integration.
Gravity Pallet Flow Systems
Continuous dynamic roller tracks inclined at an engineered 3% to 4% gradient. Pallets glide under gravity from loading faces to picking faces, governed by centrifugal speed retarders and mechanical end-stop separators.
Nested Cart Push-Back Racks
Low-profile nested carts roll across inclined structural channel guide rails. Each loaded pallet pushes preceding units backward; unloading allows rear carts to drift forward smoothly by gravity for front-aisle retrieval.
| Racking Topology | Storage Density Index | Direct Selectivity | Rotation Principle | Forklift Speed / Pallet Turn | Capital Cost Index (TCO) |
|---|---|---|---|---|---|
| Radio Shuttle Automation | Ultra-High (85-90%) | Low-Medium (Per Lane) | Both FIFO & LIFO | Very High (Shuttle Assisted) | Medium-High (Rapid ROI) |
| Pallet Flow (Gravity Roller) | Very High (80-85%) | Medium (Per Lane) | Strict FIFO Only | High (Continuous Feed) | Higher (Mechanical Tracks) |
| Double-Deep Selective | Medium-High (55-65%) | 50% Immediate Access | LIFO Per Pair | Medium (Requires Reach Mast) | Lowest Cost / Position |
| Drive-In / Drive-Thru | High (70-80%) | Low (Batch SKU) | LIFO (Thru: FIFO) | Low-Medium (Aisle Entry) | Economic Structural Profile |
| Push-Back Nested Carts | High (70-75%) | Medium (Per Lane) | Strict LIFO | Medium-High (Front Loading) | Moderate (Cart Assemblies) |
Key Procurement Trends & Technological Evolutions in High-Density Systems
Strategic transformations reshaping global supply chain investments across Southeast Asia, North America, the Middle East, and Europe through 2030.
1. Convergence with Micro-Automation & 4-Way Shuttles
Procurement teams are shifting away from rigid, single-direction shuttle systems toward flexible Four-Way Radio Shuttle Matrixes. By pairing vertical lifters with 4-directional robotic carts, facilities achieve automated 3D cube storage without the multi-million-dollar capex of heavy stacker cranes (AS/RS). These systems deliver energy efficiencies under 0.1 kW/pallet move and integrate with standard warehouse management software (WMS).
2. Stringent Seismic & Dynamic FEM Modeling Standards
High-density racking systems in seismically active regions—such as the Pacific Rim (Indonesia, Philippines, Japan), Central Asia, and Mediterranean corridors—now mandate non-linear pushover dynamic calculations. Chinese Tier-1 manufacturers like HEDA Shelves employ sophisticated finite element method (FEM) software compliant with EN 15512:2020 and RMI MH16.1, optimizing steel gauge distributions without excessive dead load.
3. Cold Chain Volumetric Compaction & Thermal Efficiency
With refrigerated space costing up to 6 times more in operational kWh than ambient warehousing, cold chain operators in the seafood, dairy, and biopharma industries are converting cold store layouts to dense shuttle cubes. Eliminating non-productive air corridors directly shrinks refrigeration heat loads by 35% to 50%, generating continuous operational power savings throughout the system’s design lifecycle.
4. Advanced Pre-Treatment & Anti-Corrosion Formulations
In tropical monsoon zones and coastal humidity (e.g., Southeast Asian logistics hubs), standard powder coating often delaminates prematurely. Next-generation factory lines utilize automated 9-stage pickling, zinc-iron phosphating, and nano-ceramic bonding before applying high-density thermosetting epoxy-polyester coatings. For sub-zero or corrosive chemical duty, structural hot-dip galvanizing per ISO 1461 ensures rust-free operation for over 25 years.
5. Direct-from-Factory Container Stuffing Optimization
With maritime container freight remaining volatile, global procurement directors demand precise 3D load simulation prior to dispatch. Uprights, step beams, and shuttle guide rails are nested into interlocking bundles with custom timber dunnage and heavy-duty strapping. This maximizes 40ft High Cube container payloads to 26–28 metric tons, lowering transoceanic freight costs per pallet position by up to 35%.
6. Structural Health Monitoring & Telemetric Load Deflection
Smart warehousing embraces IoT-enabled strain sensors and integrated laser plumbness verification. By instrumenting critical base plates, back-bracing nodes, and transfer rails, structural engineers receive real-time alerts if forklift impact forces exceed structural design thresholds or if foundation settlement surpasses allowable deflection tolerances (L/200 criteria).
Guangzhou HEDA Shelves Co., Ltd.: 25 Years of Global Racking Engineering
A comprehensive 30,000 m² heavy-industry manufacturing campus delivering certified storage systems to over 120 nations across the globe.
Founded in 2001 in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has grown into an international engineering authority in heavy-duty pallet racking, complex multi-tier mezzanine floors, and semi-automated high-density radio shuttle configurations. Unlike trading middlemen or assembly workshops, HEDA maintains 100% vertical manufacturing control: from raw steel coil inspection to precision CNC cold-roll-forming, robotic pulse welding, multi-stage chemical pretreatment, and automated electrostatic powder coating.
Our staff of 300+ technicians, certified structural calculation engineers, and dedicated international logistics managers eliminates overseas procurement friction. Every project undergoes a rigorous engineering validation stage—delivering full 2D CAD placement plans, 3D photorealistic renderings, and complete structural load and deflection calculations within 24 to 48 hours of floor plan receipt.
Vertically Integrated 10-Step Manufacturing Process
Raw Steel Inspection
Precision CNC Cutting
Upright Punching
Cold Roll-Bending
Continuous Roll Profile
Surface Shot Polishing
Robotic Joint Welding
Chemical Phosphating
Automated Powder Coat
Load Testing & Packing
Frequently Asked Questions: High-Density Racking Procurement
Essential structural, metallurgical, and contractual questions evaluated by engineering consultants and logistics project directors prior to issuing purchase orders.
What structural engineering information is required to generate a certified layout?
How does HEDA guarantee structural compliance in seismic hazard zones?
What is the maximum deflection limit permissible for heavy-duty load beams?
How do radio shuttle systems perform in deep-freeze cold storage environments?
What surface finish is recommended for high-humidity coastal facilities?
How are NFPA fire suppression and in-rack sprinklers coordinated in high-density blocks?
What is your container loading efficiency and packaging methodology?
How do international clients manage installation without local factory technicians?
Optimize Your Warehouse Cubic Capacity Today
Submit your facility drawings or pallet parameters. Our senior structural design engineers will generate a complimentary 2D CAD layout, 3D visual rendering, and accurate quotation within 24 to 48 hours.
Connect with an Engineer
Speak directly with our technical sales division to evaluate system feasibility and receive project pricing.
Inquire Now
